Description:

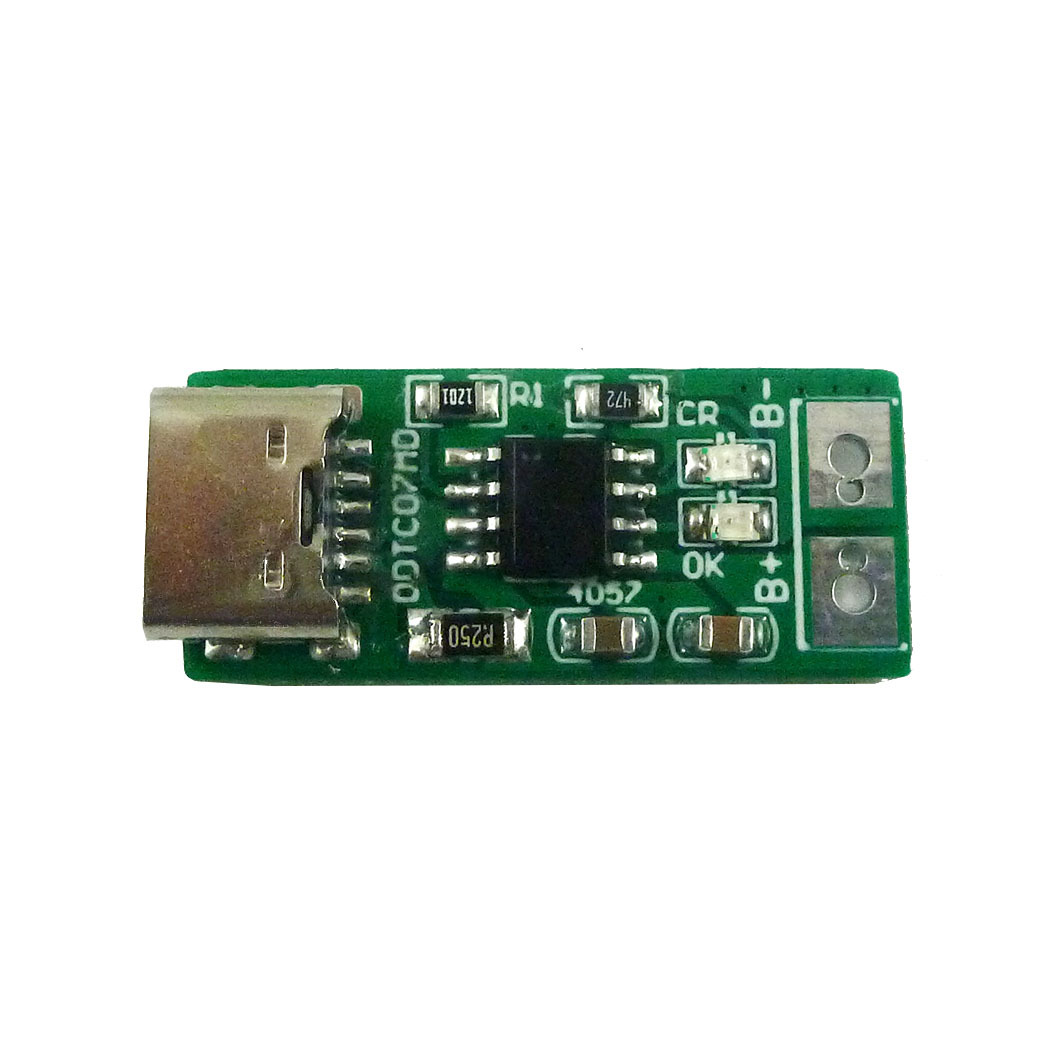

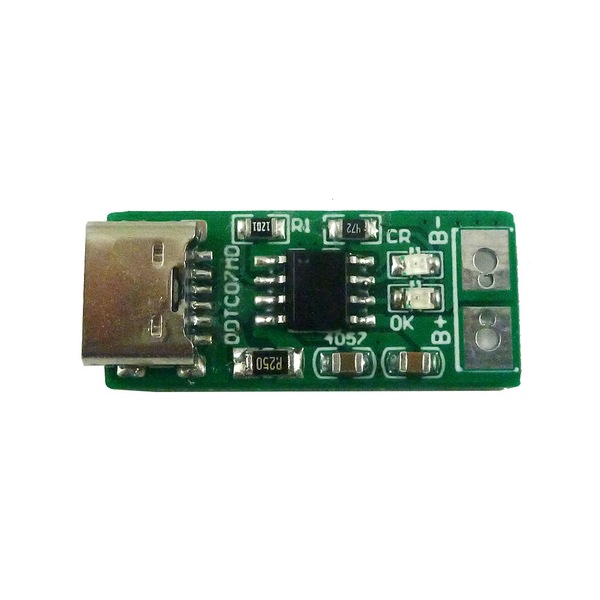

Lithium Ion Battery Charger for Type-C

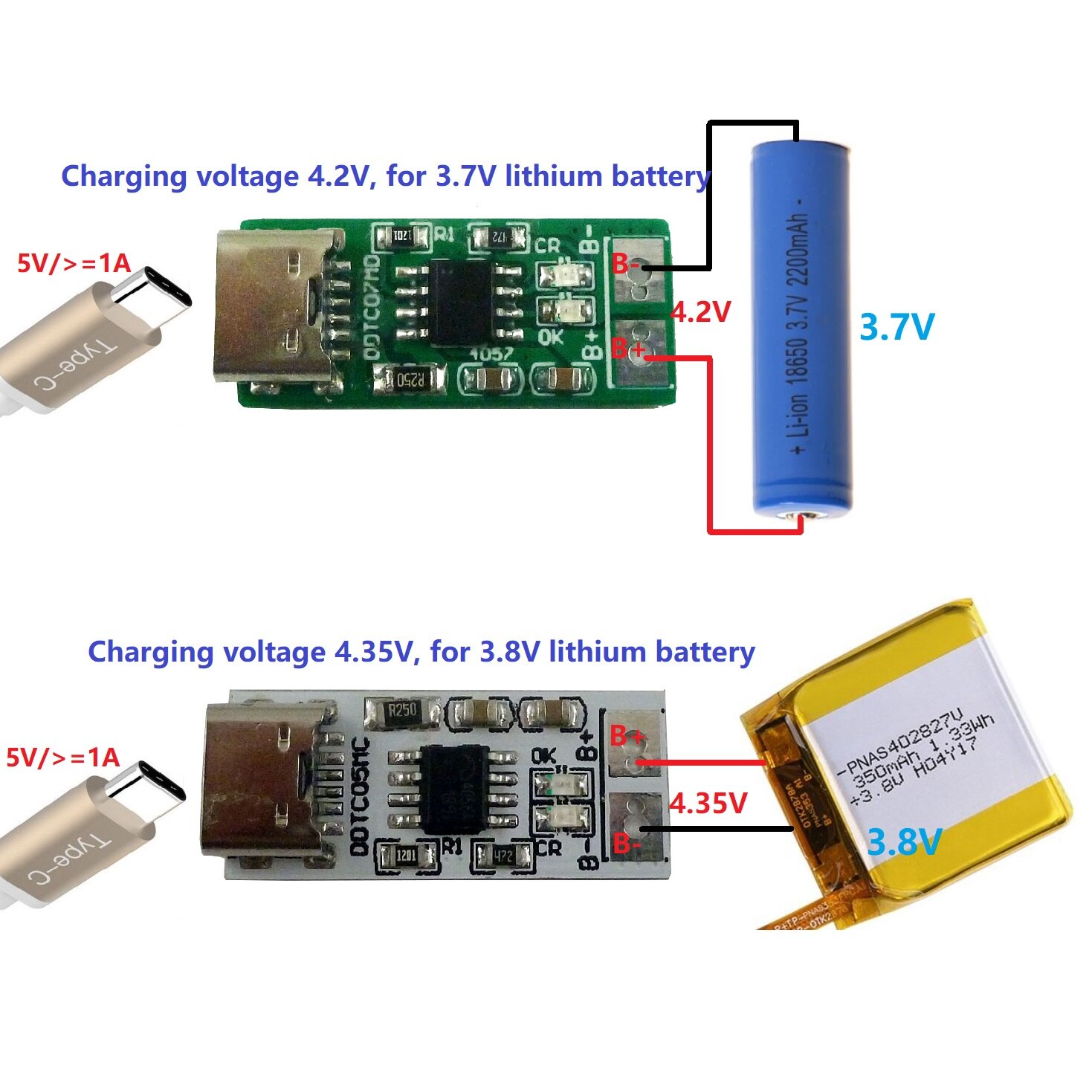

Power supply: DC 5V/>=1A

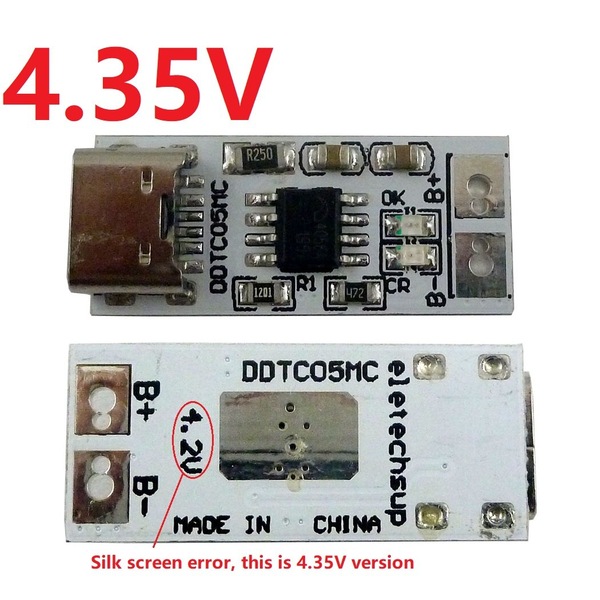

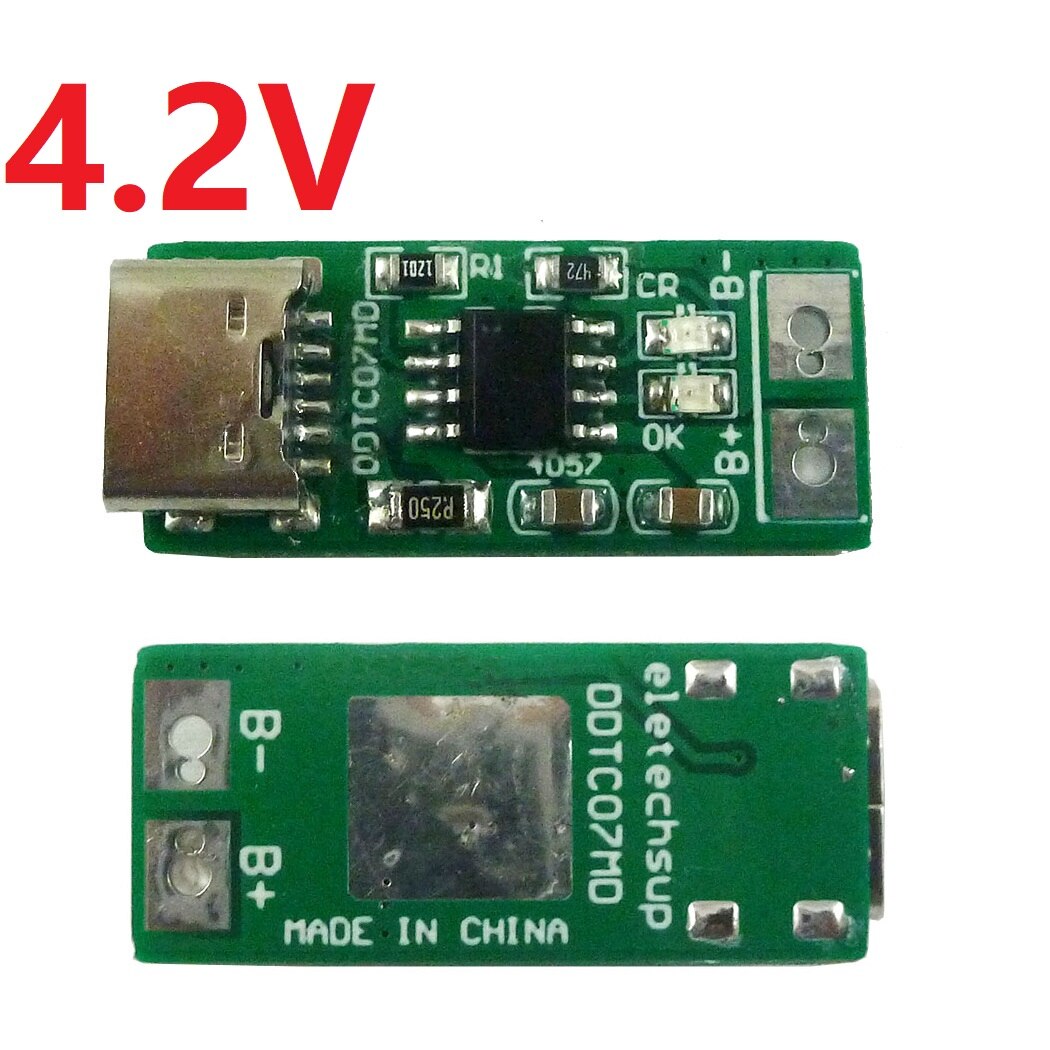

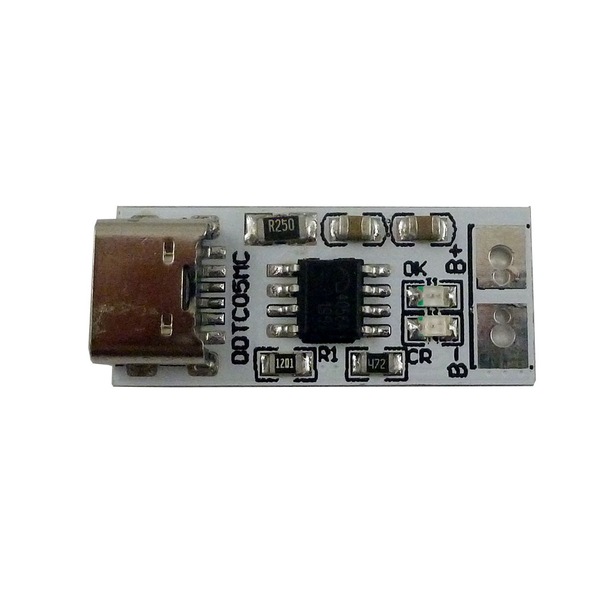

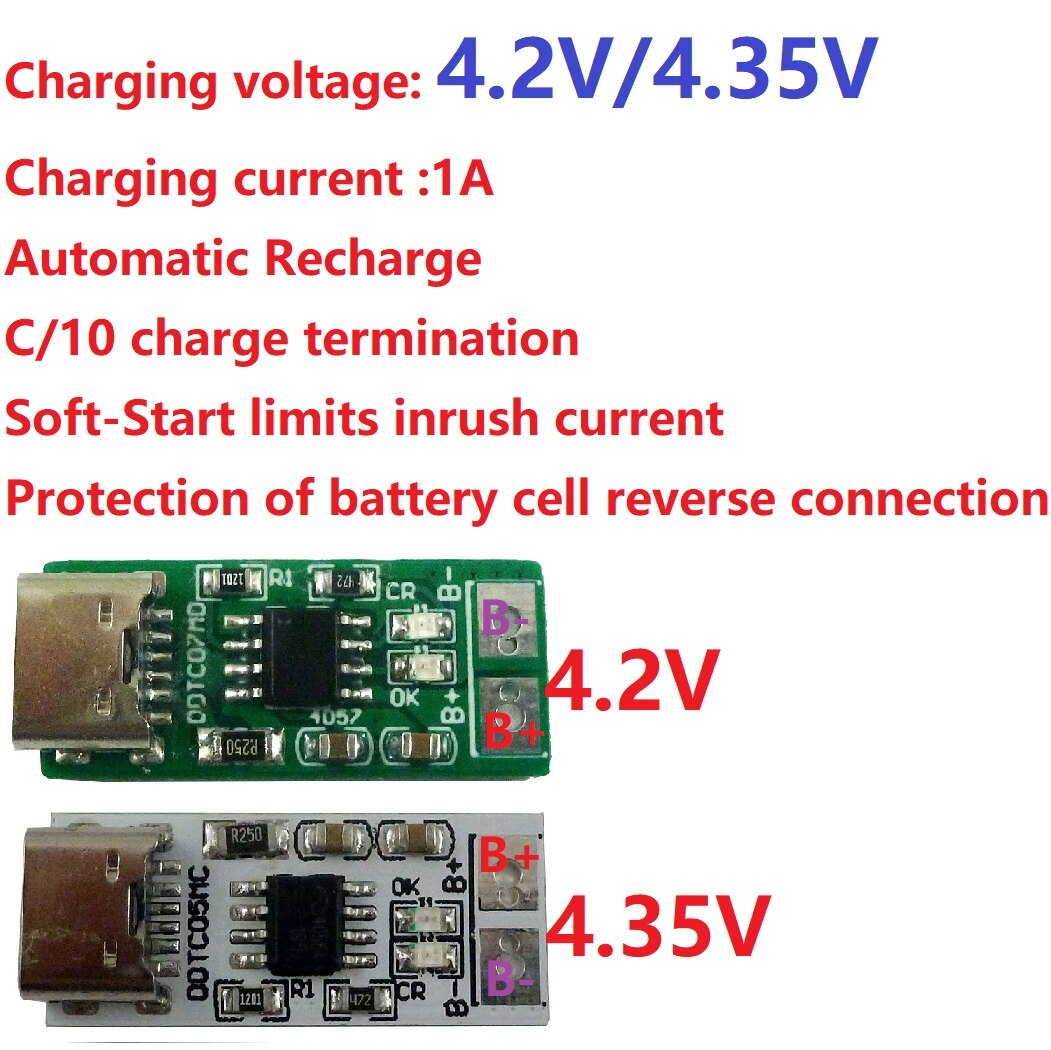

Charging voltage: 4.2V/4.35V
Protection of battery cell reverse connection

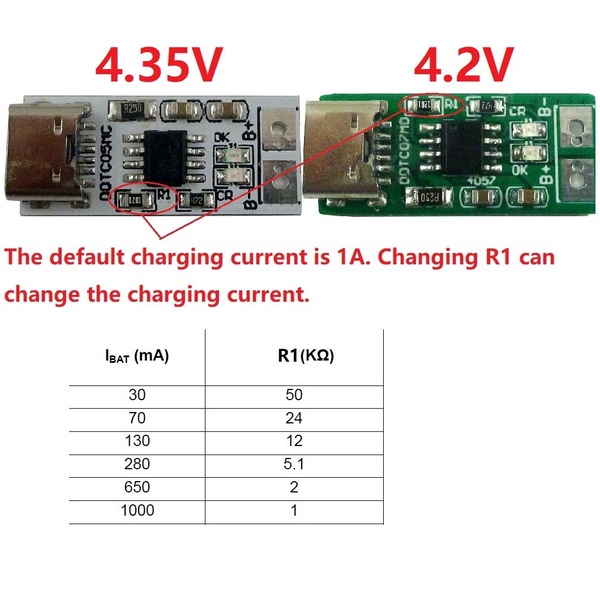

Charging current :1A
Complete linear Charger in SOP8 Package for single Cell Lithium-Ion Batteries.
Constant-Current/Constant-Voltage operation with thermal regulation to maximize Rate Without risk of overheating
Preset 4.2V (4.34V) charge voltage with ��1% accuracy
Automatic Recharge
Two Status Indication for Charge status, no battery and battery failure indicators
C/10 charge termination
55��A supply current in shutdown
2.9V trickle current charge threshold
Soft-Start limits inrush current
Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;
Operating Ambient Temperature??40?? to ??85??
Size : 26mm x 12mm x 4.5mm
Weight : 1.5g

Packing list:1 PCS 1A 4.2V Li-ion Li-Po Lithium Battery Charger
