Toyota Hilux 2020-2024 Elinz Reverse Camera Kit for Toyota Factory Stereo OEM Screen Display T611

Improve your driving confidence with the Elinz Reverse Camera Kit, designed for Toyota Hilux models from 2020 to 2024. Whether you drive a WorkMate, Rogue, SR, SR5, or Rugged X, this kit integrates effortlessly with your factory stereo OEM screen, offering convenience, safety, and clear visuals.



Toyota Hilux 2020-2024 Compatible

Fits all Toyota Hilux 2020-2024 models like WorkMate, Rogue, SR, SR5, Rugged X whether you have a Single, Double Cab or Cab-Chassis that did not come with a camera from factory with this type of factory screen.

• Plug and Play Installation
  • It comes with a T-Harness to seamlessly integrate the reverse camera with your Toyota Hilux factory screen without cutting the factory wiring or removing the factory head unit from your dashboard.
  • The T-Harness directly plugs into the 26-pin OEM socket behind the passenger kick panel trim.
• Auto-Activation
  • The reverse camera will automatically turn on and images will be displayed instantly when you put the gear in reverse.
• 800TVL Resolution
  • With high quality 800TVL resolution it ensures that you can see every detail clearly when reversing.
• CMOS Sensor
  • This reliable and high-quality reverse camera is equipped with 1/3" CMOS sensor to provide you with quality and detailed images and greater clarity than other aftermarket reversing cameras in the market.
• IP68 Waterproof Connectors
  • The threaded and O-ring sealed connectors between the camera and power cable makes it more durable and secure connection. It fully protects your reverse camera in all kinds of weather conditions.
• Parking Guidelines ON/OFF
  • You can cut the GREEN wire loop to enable/disable parking lines on a reverse camera.
• Viewing Options
  • The camera comes with blue and white wire loops allowing you to flip the image horizontally or vertically without changing the bracket. So whether you are installing the camera above or below the number plate you can easily manage the viewing options by cutting the wire loops.
  • Blue Wire Loop: Vertical Image Flip
  • White Wire Loop: Horizontal Image Flip.
• Angle of View
  • The camera has a horizontal viewing angle of 120°, vertical viewing angle of 90° and diagonal viewing angle of 170°. Perfect angle so you can better understand the situation behind your vehicle.

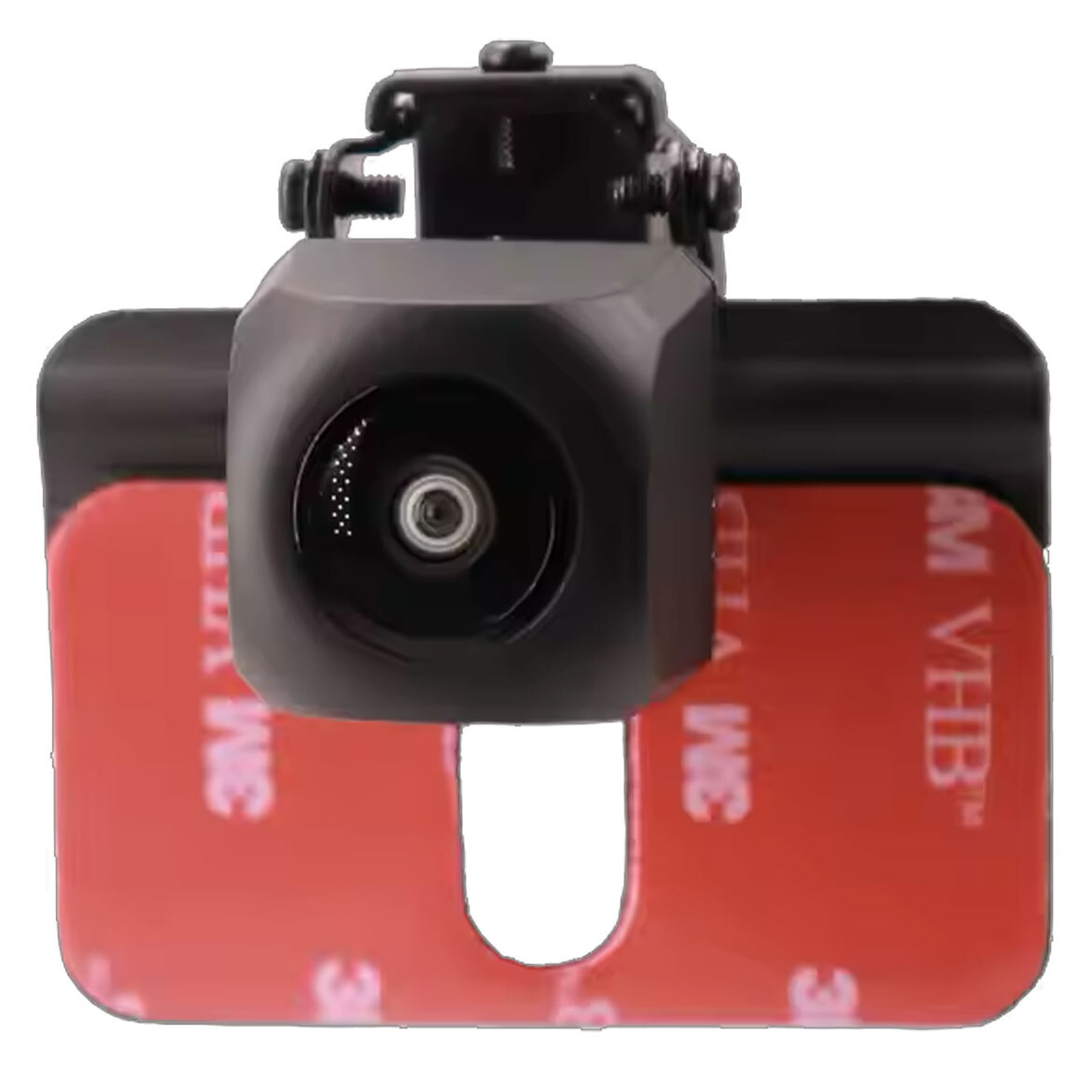

• IP68 Waterproof Camera
  • Leave your worries about heavy rains and other weather conditions, camera can withstand different weather situations.

• Image Sensor: 1/3" CMOS
• Resolution: 800 TVL
• Angle of View: 170° Diagonal, 120° Horizontal, 90° Vertical
• Power Supply: DC 12V
• Vehicle Connection: 26 Pin (T-Harness)
• Connector IP Rating: IP68
• Operating Temperature: -30°C to +80°C
• Camera IP Rating: IP68
• Camera Wire Loops:
  • BLUE Wire Loop = Vertical Image Flip
  • WHITE Wire Loop = Horizontal Image Flip
  • GREEN Wire Loop = Parking Guidelines On/OFF

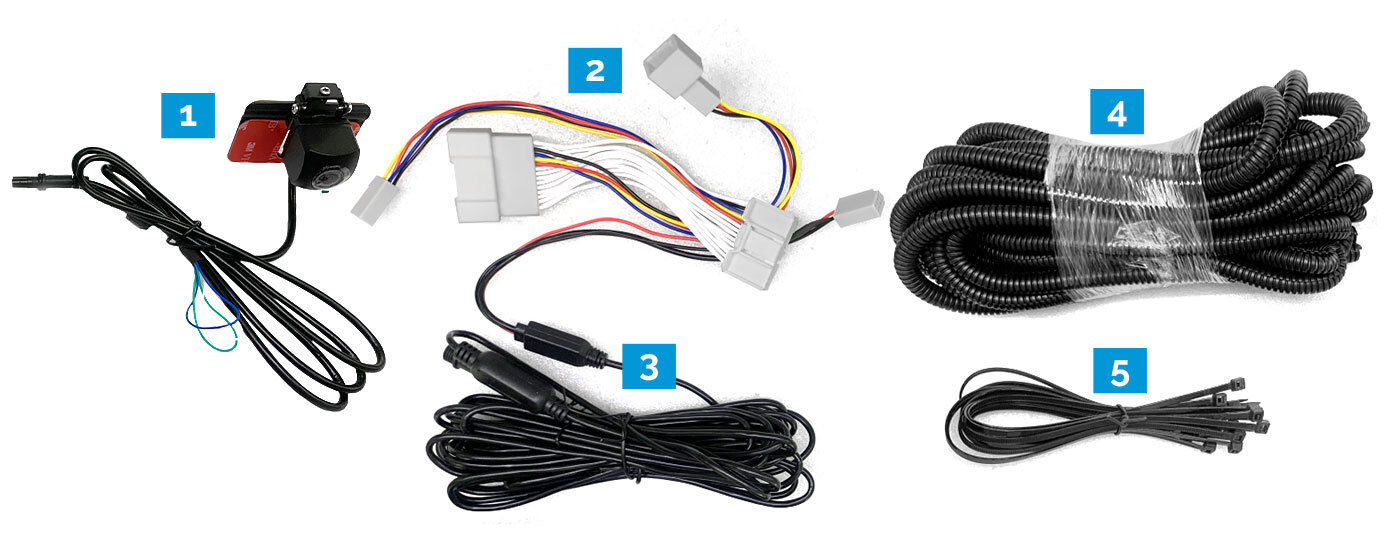

1. 1x Reverse Camera
2. 1x T-Harness
3. 1x 8m Power Cable
4. 1x 7m Split Wire Loom Conduit
5. 15x Cable Ties
