You will need to complete some minor final assembly before riding, and all the tools required to assemble the bike have been listed on the carton and in the manual.
Please note, that all bicycles purchased online, are mechanical devices and need to be serviced regularly to ensure proper functioning.
New gear and brake cables will stretch during the initial ride-in period, and will need to be adjusted after approx 50kms of riding.
FRAME |
27.5" lightweight 6061 alloy disc specific frame
with integrated head tube, internal cable routing, snake stays and replaceable derailleur hanger
|

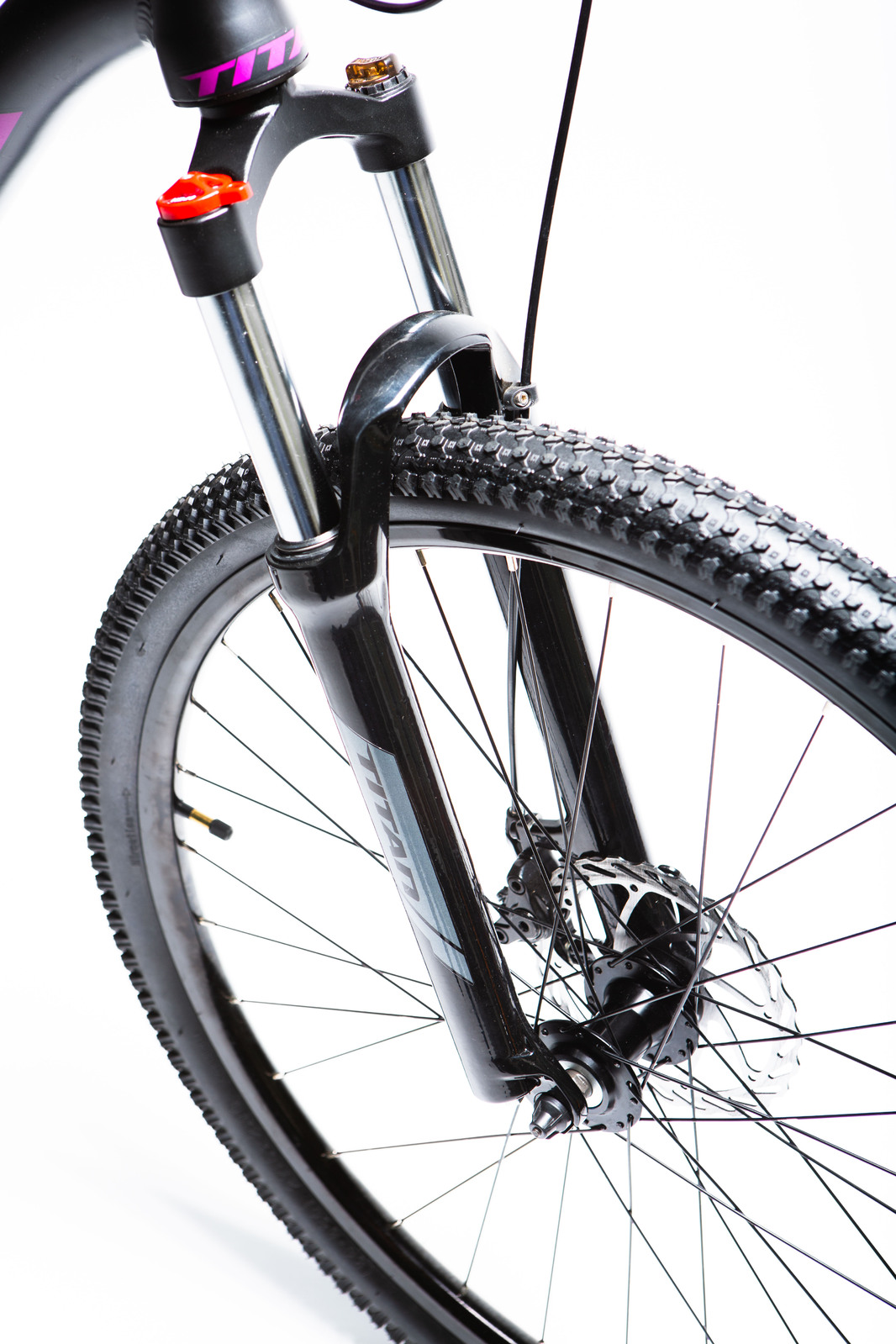

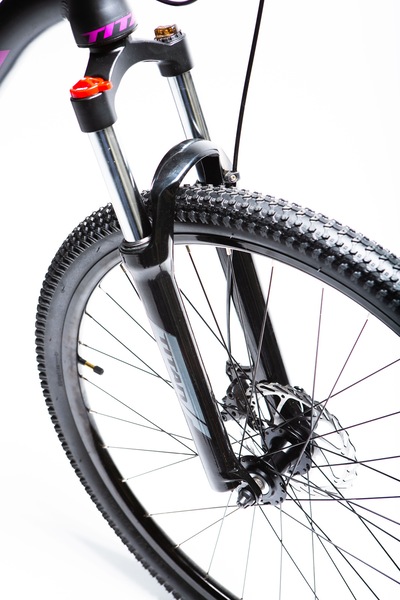

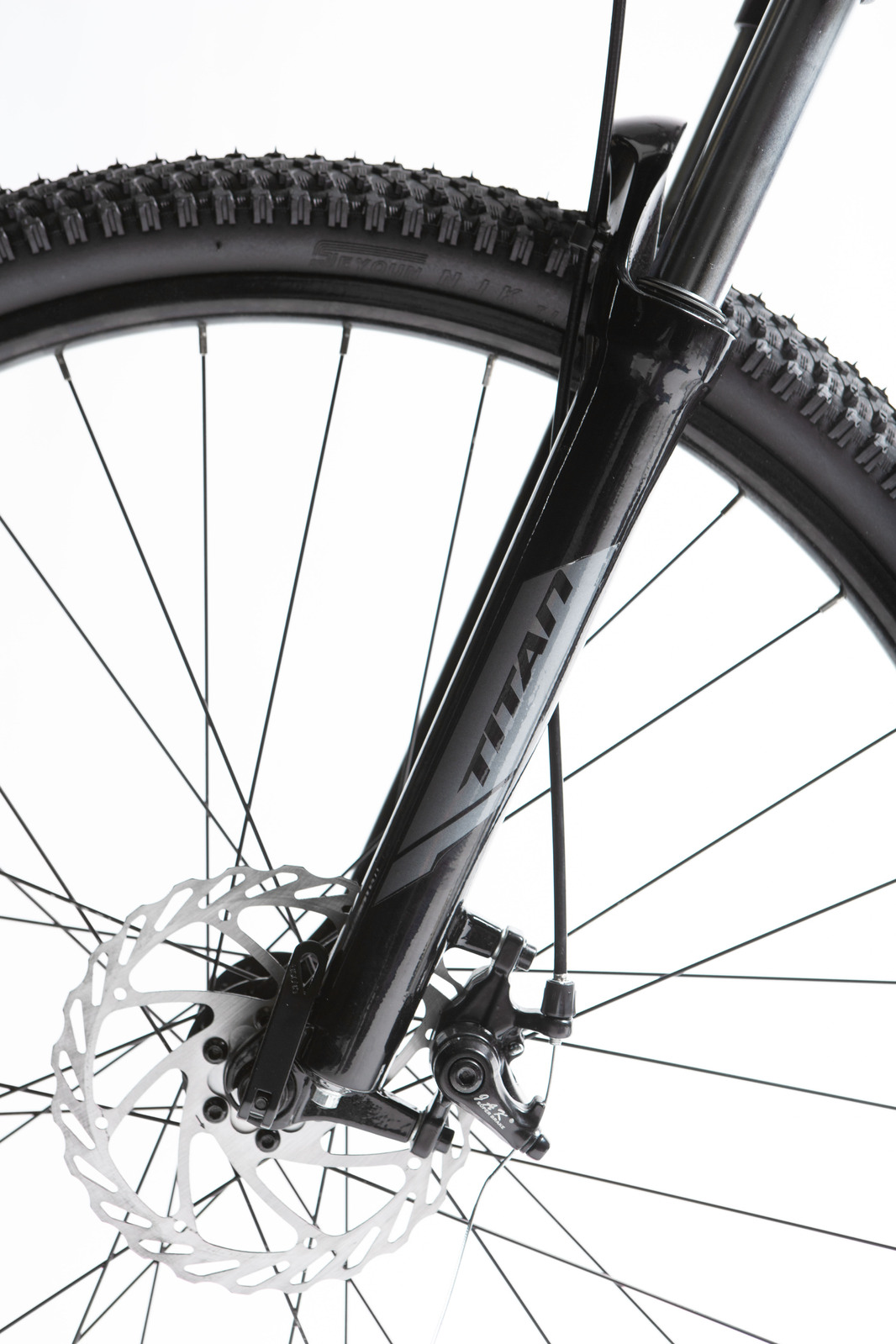

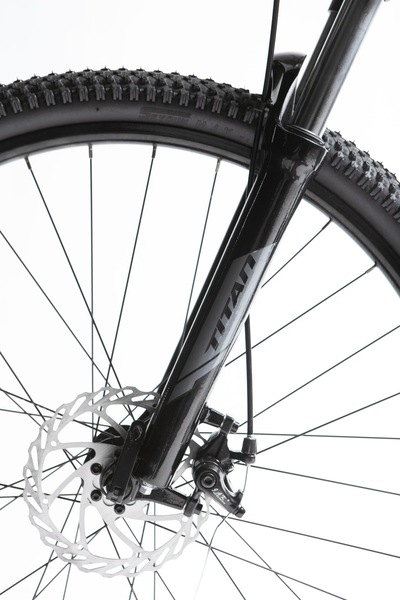

FORK | 27.5, 80mm travel, preload. |
HEADSET |
Semi integrated A-head 1-1/8" |

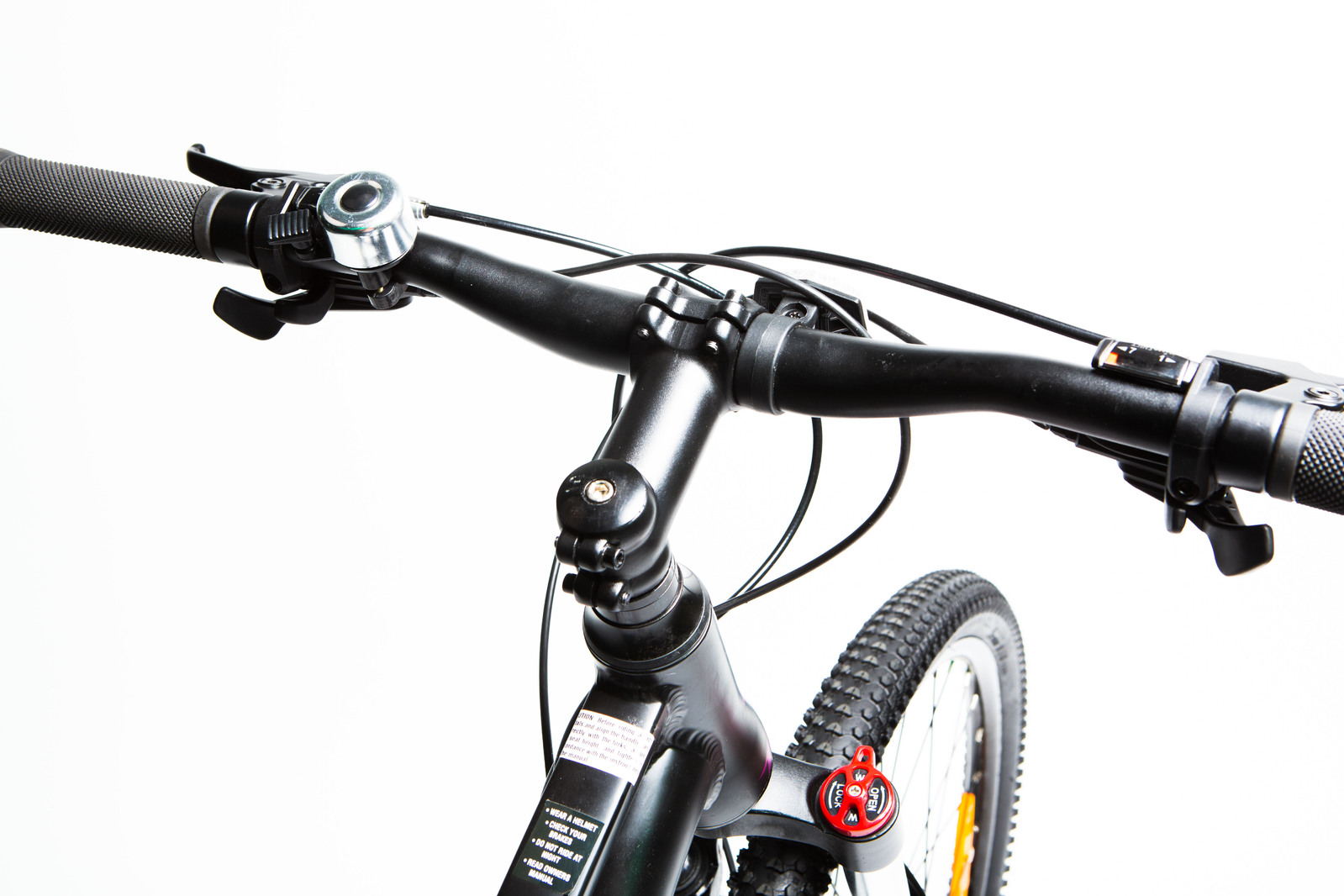

HANDLEBAR | Low riser, W: 640mm, R: 20mm, bore: 31.8mm, sweep: 6° |
GRIP | Kraton grip |
HEADSTEM | Alloy A-head 25.4mm Ext: XS/S=60mm, M/L=80mm, XL=105mm |
CRANKSET | Alloy MTB crank 42 x 32 x 22T L=170mm |
BOTTOM BRACKET | Cartridge bottom bracket |
PEDALS | Low profile high impact resin |
FRONT DERAILLEUR | MicroShift FD-M20 ∮31.8mm Top pull |

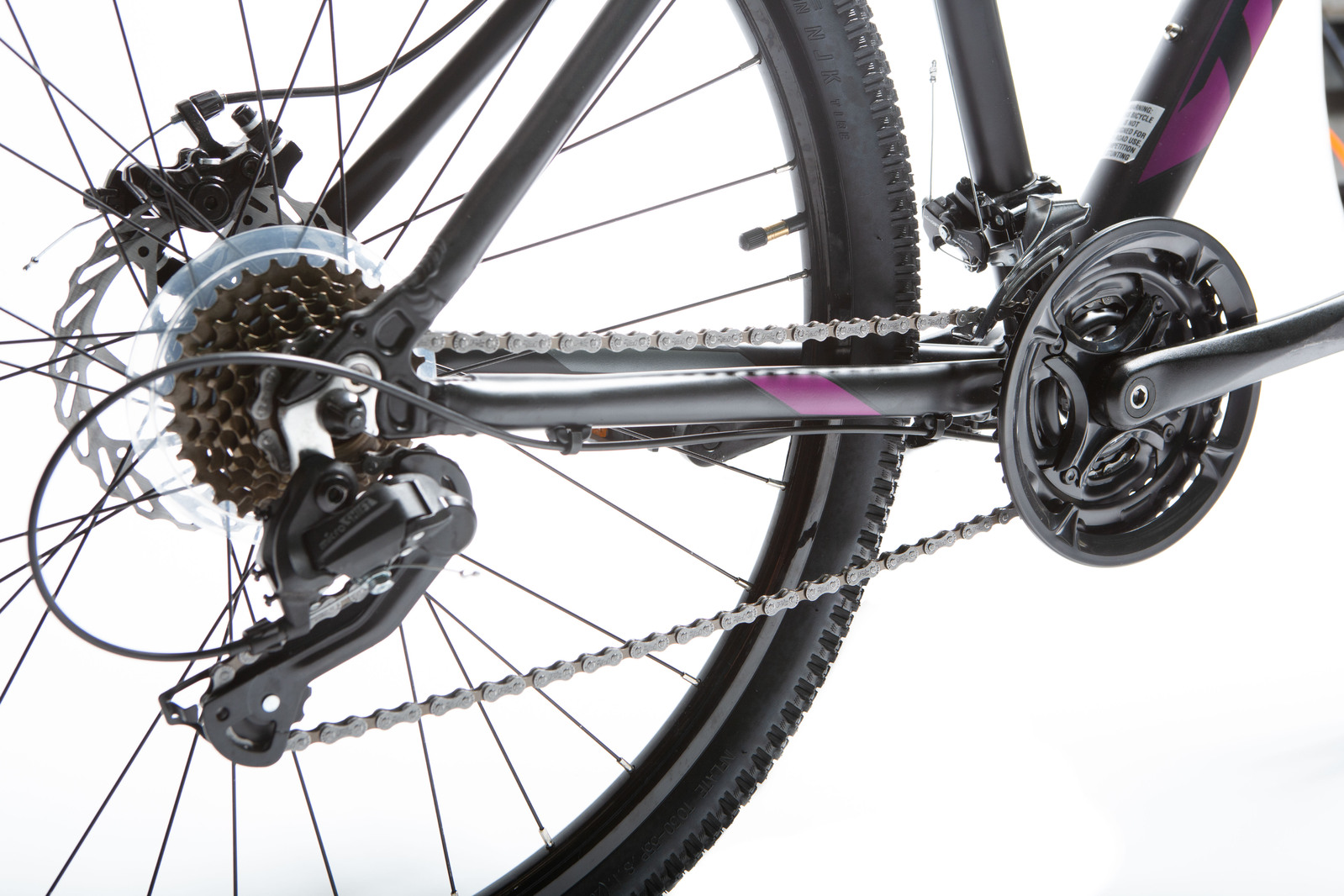

REAR DERAILLEUR | MicroShift TS38-7 7Speed Index, Inner pull |

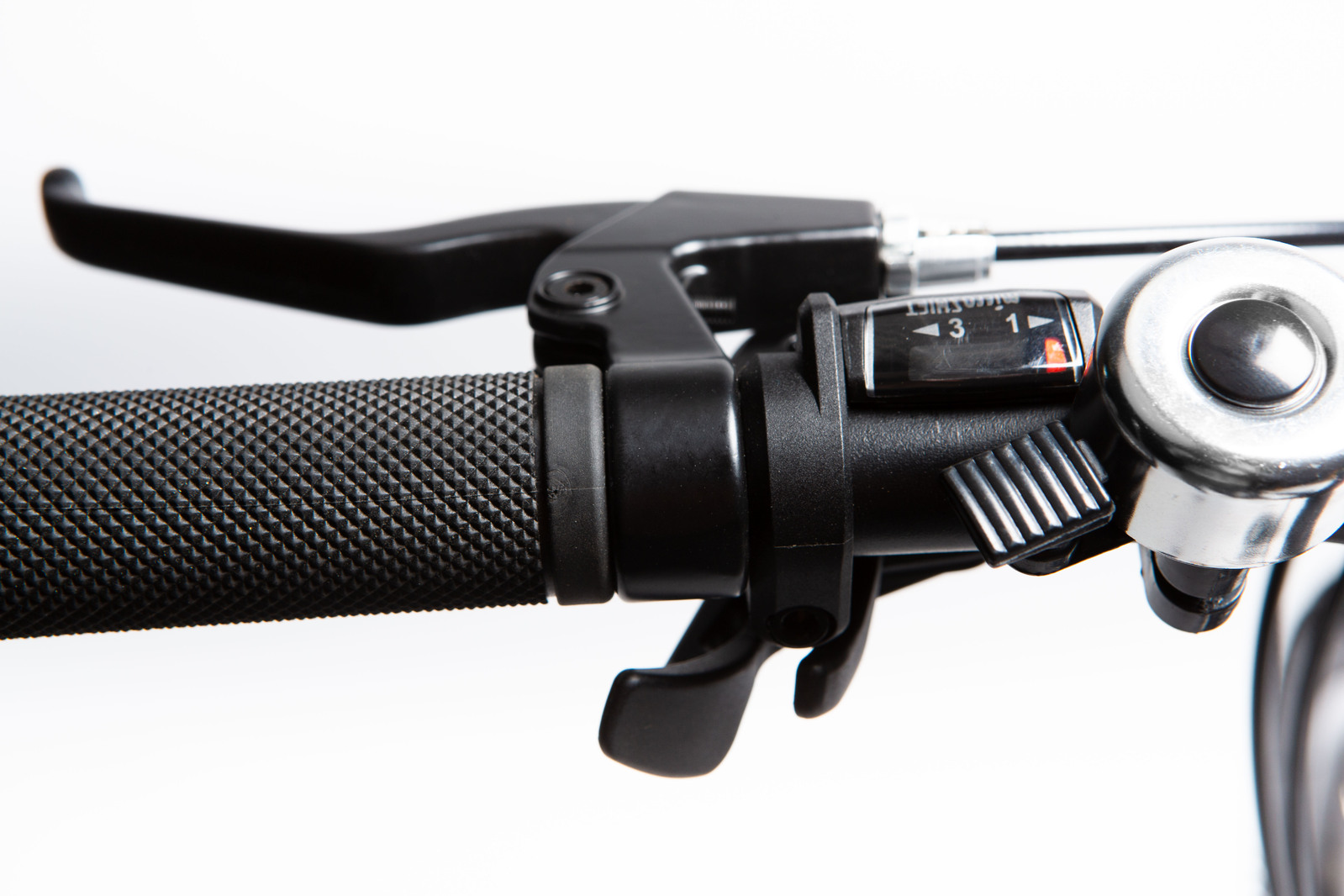

SHIFTERS | MicroShift 21 speed Index R:TS38-7 7Speed, L:TS38-3 Speed, 3 finger pull |

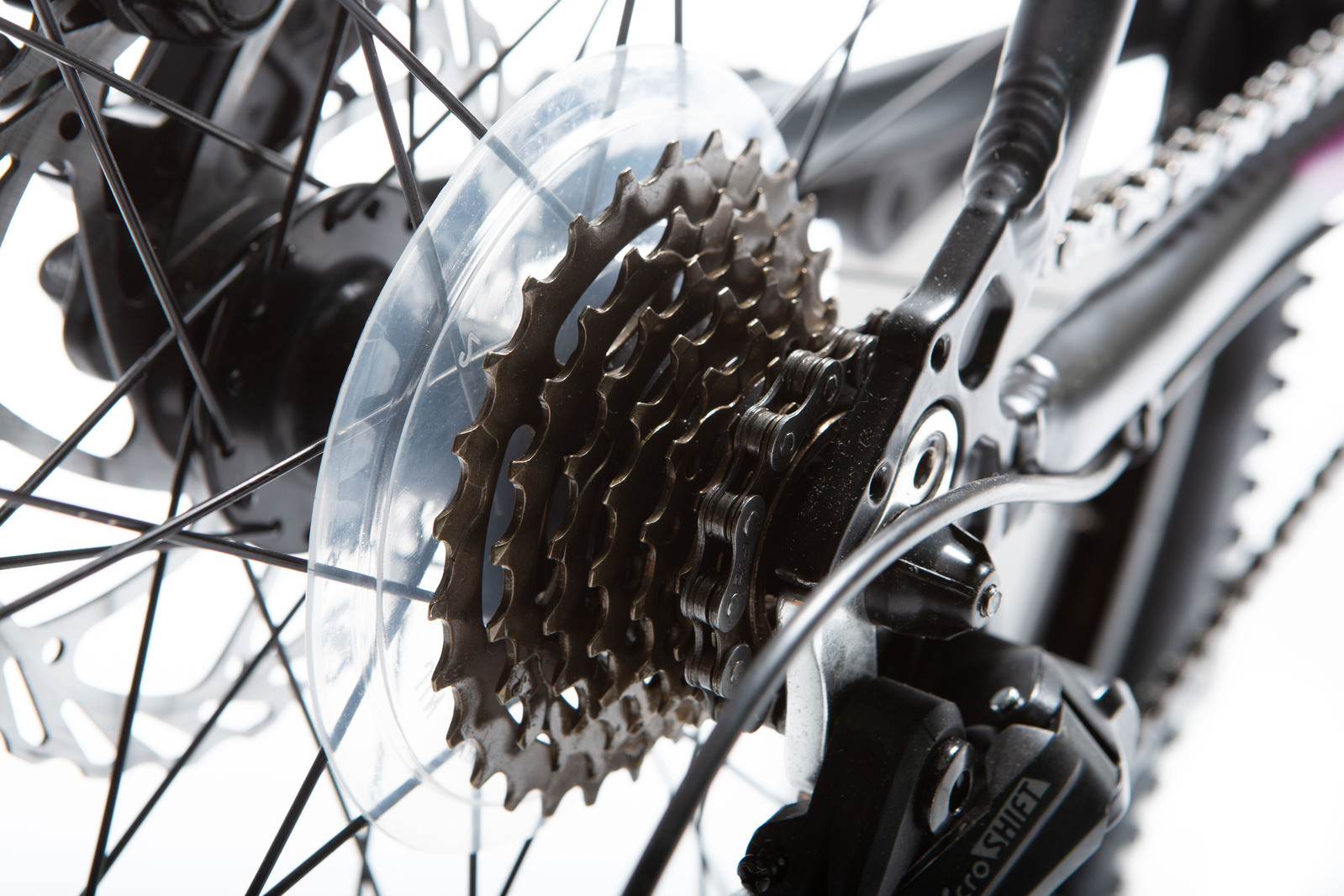

FREEWHEEL | General Model SF-FW05 7 speed 12-28T |
CHAIN | KMC Z-7 x 120 Links |

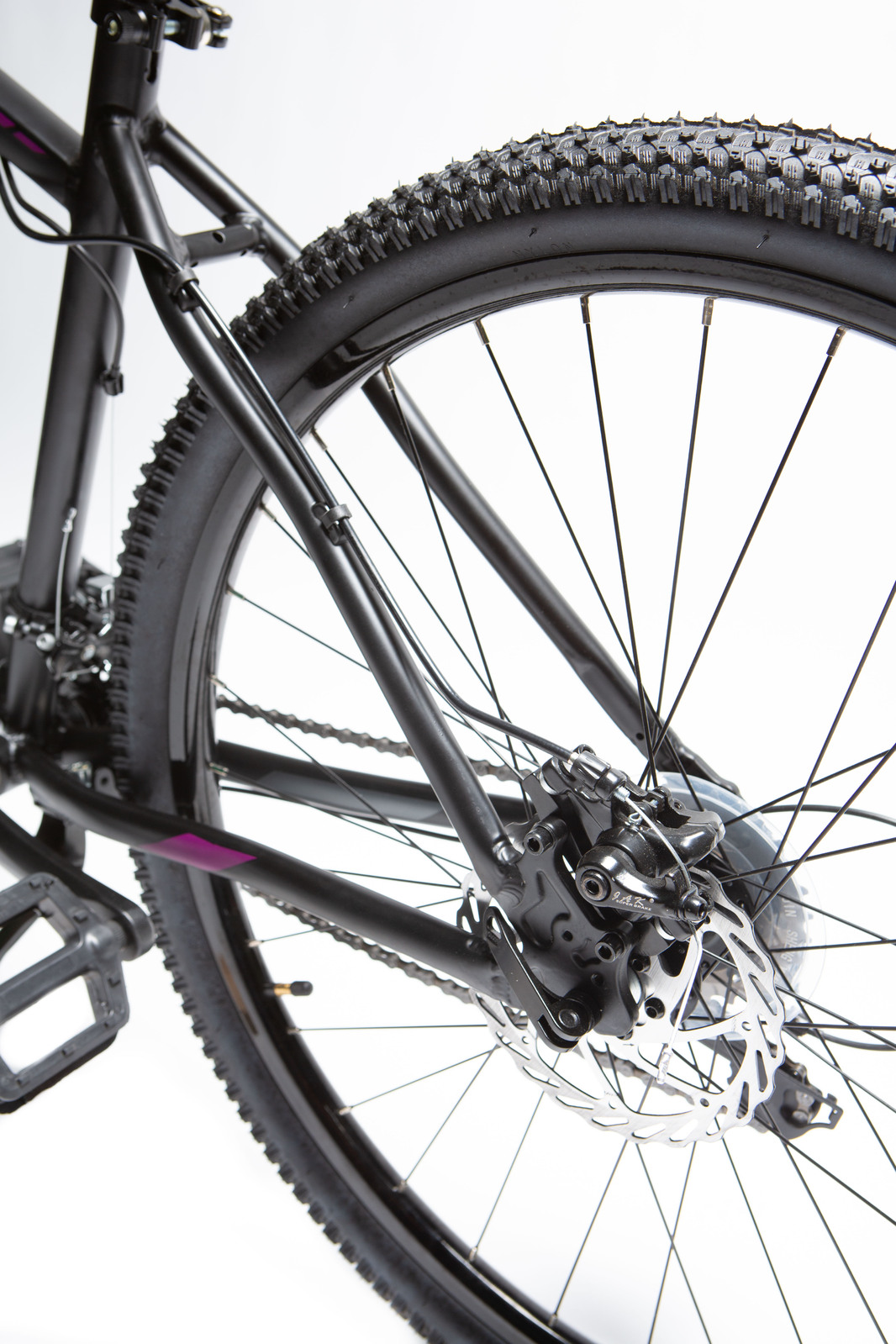

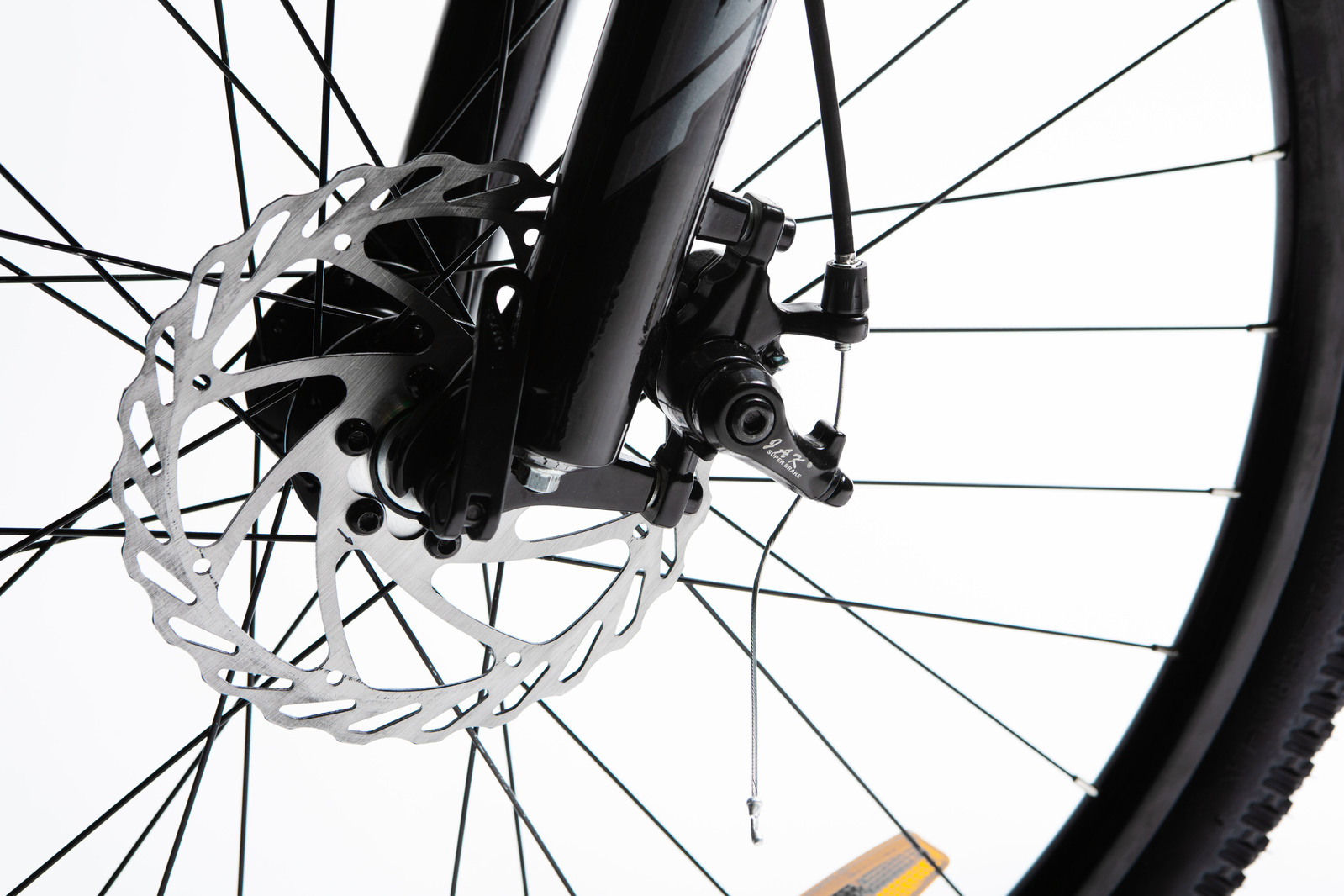

BRAKES | JAK-8 mechanical disc brakes with 160mm rotors |
WHEELS | 27.5" alloy 32 hole A/V double wall disc specific rims, alloy disc hubs and stainless spokes |
TYRES | General 27.5 x 2.1" wire bead |
SADDLE | General MTB sport saddle |
SEATPOST / CLAMP |
Alloy micro adjust 27.2mm, L:350mm with QR clamp |
FRAME SIZE | XS | S | M |
---|---|---|---|
 | 14" | 15.5" | 17.5" |
A – STACK | 584 | 602 | 616 |
B – REACH | 373 | 381 | 397 |
C – STAND OVER HEIGHT | 382 | 412 | 437 |
D – EFFECTIVE TOP TUBE LENGTH    | 540 | 565 | 585 |
E – SEAT TUBE (CENTRE TO TOP) | 355 | 400 | 440 |
F – SEAT ANGLE | 74° | 73° | 73° |
G – HEAD TUBE LENGTH | 100 | 115 | 130 |
H – HEAD ANGLE | 69° | 70° | 70° |
I – WHEEL BASE | 1058 | 1061 | 1082 |
J – CHAIN STAY LENGTH | 435 | 435 | 435 |
K – BB DROP | 45 | 45 | 45 |
L – FORK RAKE | 42 | 42 | 42 |
M – AXLE TO CROWN | 495 | 495 | 495 |
REAR DROPOUT SPACING | 135 | 135 | 135 |
APPROX. RIDER HEIGHT | 147 - 160CMÂ Â 4'10" - 5'3" |
163 - 170CMÂ Â 5'4" - 5'7" |
170 - 178CMÂ Â 5'7" - 5'10" |
TO ENSURE A PROPER FIT, WE RECOMMEND CAREFULLY CHECKING THE SIZING AVAILABILITY THAT BEST SUITS YOU.APPROX. RIDER HEIGHT IS A RECOMMENDATION, AND SHOULD BE USED AS A GUIDE ONLY.
