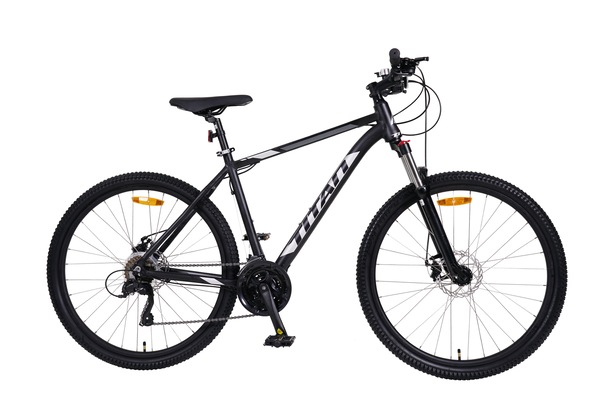

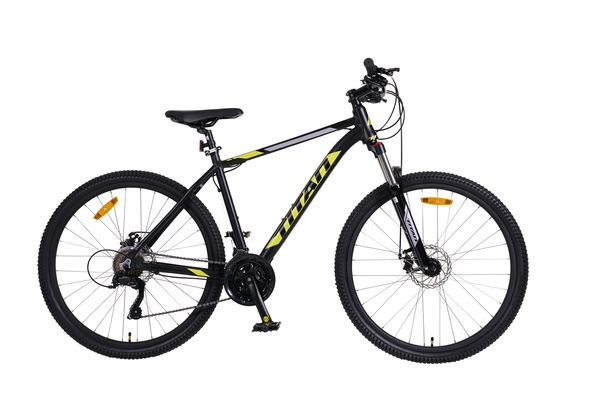

Titan Challenge One Mens Mountain Bike 27.5" Wheel, 21 Speed, Front Suspension, Disc Brakes

Titan Challenge One Mens Mountain Bike 27.5" Wheel, 21 Speed, Front Suspension, Disc Brakes

Limited Stock!

Price	$399
	Collect 399 Everyday Rewards points Log in to MyDeal to link your card
Size	Please select an option
Colour	Please select an option
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

FREE SHIPPING when you spend over $150

Exclusive to products sold by The Bicycle Depot

Quantity

Add to wishlist

You will need to complete some minor final assembly before riding, and all the tools required to assemble the bike have been listed on the carton and in the manual.

10-15min - You have assembled bikes before
15-25min - You are mechanically handy
30-40min - Never assembled a bike and working with tools isn't your thing

Please note, that all bicycles purchased online, are mechanical devices and need to be serviced regularly to ensure proper functioning.

New gear and brake cables will stretch during the initial ride-in period, and will need to be adjusted after approx 50kms of riding.

Gents Titan Mountain Bike Challenge One SPECIFICATIONS

FRAME	27.5" lightweight 6061 alloy disc specific frame with integrated head tube, internal cable routing, snake stays and replaceable derailleur hanger
FORK	27.5, 80mm travel, preload and Lockout
HEADSET	Semi integrated A-head 1-1/8"
HANDLEBAR	Low riser, W: 640mm, R: 20mm, bore: 31.8mm, sweep: 6°
GRIP	Kraton grip
HEADSTEM	Alloy A-head 25.4mm Ext: XS/S=60mm, M/L=80mm, XL=105mm
CRANKSET	Alloy MTB crank 42 x 32 x 22T L=170mm
BOTTOM BRACKET	Cartridge bottom bracket
PEDALS	Low profile high impact resin
FRONT DERAILLEUR	MicroShift FD-M20 ∮31.8mm Top pull
REAR DERAILLEUR	MicroShift TS38-7 7Speed Index, Inner pull
SHIFTERS	MicroShift 21 speed Index R:TS38-7 7Speed, L:TS38-3 Speed, 3 finger pull
FREEWHEEL	General Model SF-FW05 7 speed 12-28T
CHAIN	KMC Z-7 x 120 Links
BRAKES	JAK-8 mechanical disc brakes with 160mm rotors
WHEELS	27.5" alloy 32 hole A/V double wall disc specific rims, alloy disc hubs and stainless spokes
TYRES	General 27.5 x 2.1" wire bead
SADDLE	General MTB sport saddle
SEATPOST / CLAMP	Alloy micro adjust 27.2mm, L:350mm with QR clamp

GEOMETRY

FRAME SIZE	XS	S	M	L	XL
	14"	16"	17.5"	19"	21"
A – STACK	574	584	595	607	618
B – REACH	375	382	403	419	435
C – STAND OVER HEIGHT	406	435	454	478	505
D – EFFECTIVE TOP TUBE LENGTH	540	555	585	605	630
E – SEAT TUBE (CENTRE TO TOP)	355	410	440	480	530
F – SEAT ANGLE	74°	73.5°	73°	73°	72.5°
G – HEAD TUBE LENGTH	110	120	130	140	150
H – HEAD ANGLE	69°	69°	69.5°	70°	70.5°
I – WHEEL BASE	1062	1073	1092	1108	1121
J – CHAIN STAY LENGTH	440	440	440	440	440
K – BB DROP	45	45	45	45	45
L – FORK RAKE	42	42	42	42	42
M – AXLE TO CROWN	475	475	475	475	475
REAR DROPOUT SPACING	135	135	135	135	135
APPROX. RIDER HEIGHT	147 - 160CM 4'10" - 5'3"	155 - 165CM 5'1" - 5'5"	165 - 173CM 5'5" - 5'8"	173 - 180CM 5'8" - 5'11"	180 - 190CM 5'11" - 6'3"

APPROX. RIDER HEIGHT IS A RECOMMENDATION, AND SHOULD BE USED AS A GUIDE ONLY.

TO ENSURE A PROPER FIT, WE RECOMMEND CAREFULLY CHECKING THE SIZING AVAILABILITY THAT BEST SUITS YOU.
