Thornado 12HP Stationary Motor DIESEL Engine E-Start 25.4mm Horizontal Key Shaft

Thornado 12HP Stationary Motor DIESEL Engine E-Start 25.4mm Horizontal Key Shaft

1 Review

This efficient 12HP diesel engine has a 25.4mm horizontal key shaft. It runs smooth with minimal vibration and features a large capacity 5.5L fuel tank.

Hurry! 18 items left!

Price	$929
	Collect 2787 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Thornado 12HP Stationary Diesel Engine Electric Start (25.4mm Key Shaft)

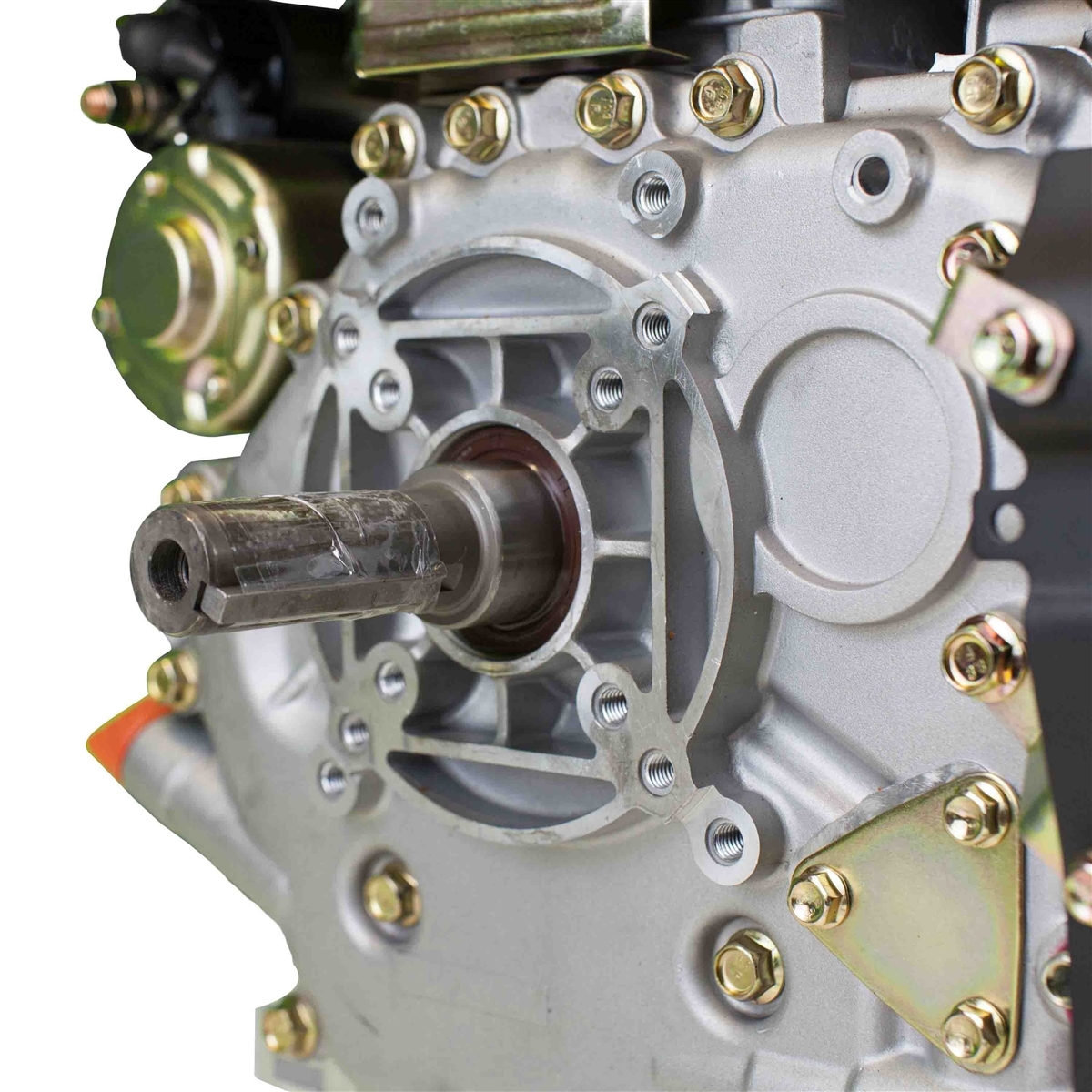

The Thornado 12HP diesel engine is a 4-stroke, single cylinder forced air-cooled engine with a electric starter that makes it easy to get the equipment running and on task. The engine is coupled with a horizontal key shaft of 25.4mm diameter.

The thornado 12HP diesel engine is designed and built with all high quality parts that make the engine very durable and better than most of the available brands on the market nowadays. Highly efficient, the Thornado 12HP engine has multiple uses because of its small size, its light weight, and its portability. The Thornado 12HP engine seems to be the perfect solution using in variety of applications including water pumps, Go-karts, generator, Chippers, Pressure Washers, Bench saws & other Agricultural uses.

Key Features

Powered by Thornado 12HP, single cylinder 4 stroke air cooled engine
Compact structure, mature technology, and stable performance
Quick and easy start
Steel liner bore
Smooth running with minimal vibration
High power to weight ratio
12 Months Australia Warranty

*T&C's Apply, see Warranty Policy for full details.

SPECIFICATIONS
Model No	DX-188QE
Type	Single cylinder 4 stroke, forced air cooled
Displacement	438cc
Bore x Stroke	88 x 72
Max Power HP / Rpm	12 HP / 3600 Rpm
Max Torque	20.2/2800
Combustion System	Direct Injection

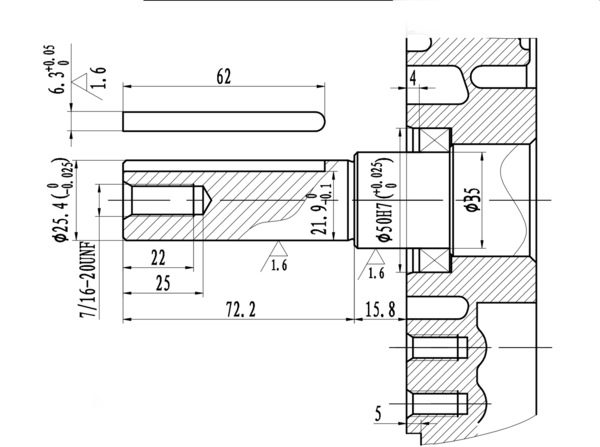

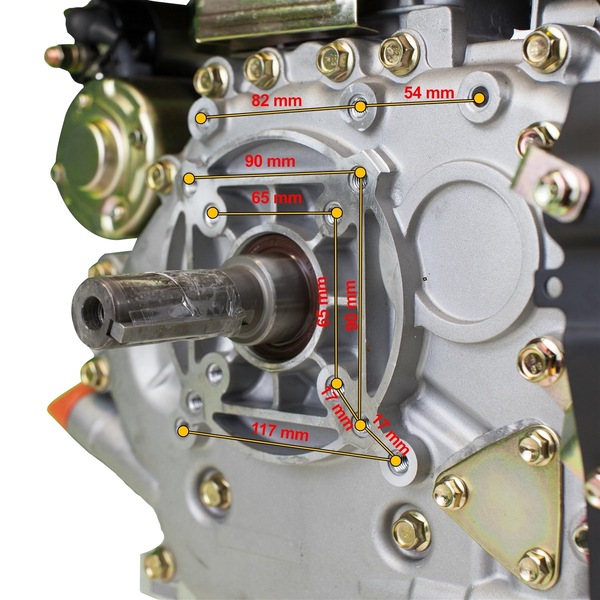

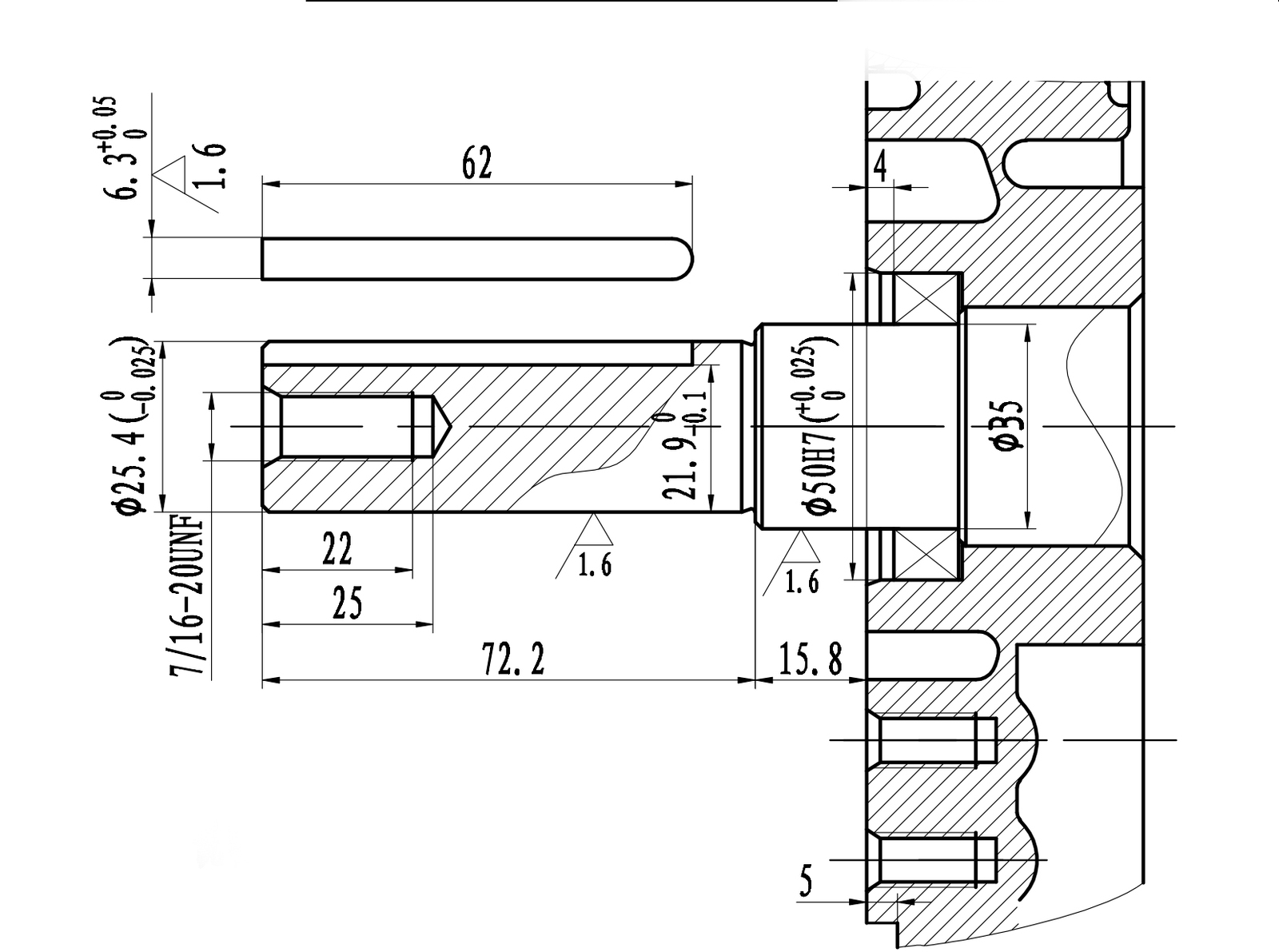

Shaft Type	Horizontal Key Shaft (Q Type)
Shaft Diameter	25.4mm
Shaft Length	72.2mm
Shaft Rotation	Anti clockwise from output
Compression Ratio	19:1
Fuel Type	Diesel
Oil Type	SAE10w-30 / SAE15w-40
Fuel Tank Capacity	5.5L
Oil Capacity	1.6L

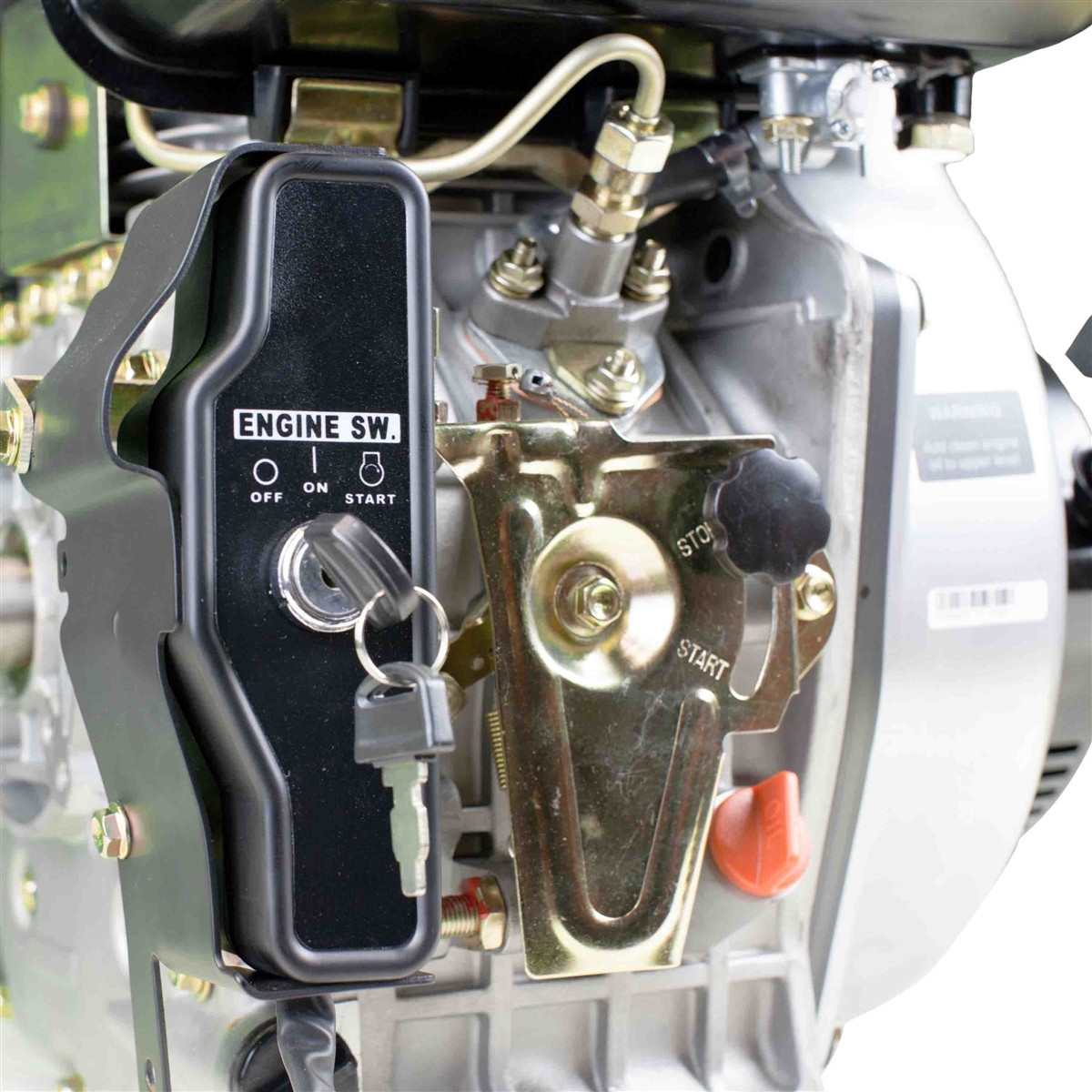

Starting System	Electric start / Recoil manual start
Product Length	440 mm
Product Width	417 mm
Product Height	495 mm
Dry Weight	53kg

Suitable Applications

Air compressor
Water pump
Go-Kart
Generator
Pressure washer
Chippers
Agricultural uses

Specifications:

Model No	DX-188QE
Type	Single cylinder 4 stroke, forced air cooled
Displacement	456cc
Bore x Stroke	88 x 75
Continuous HP / Rpm	10HP / 3000 Rpm
Max Power HP / Rpm	12HP / 3600 Rpm
Combustion System	Direct Injection
Shaft Type	Horizontal Key Shaft (Q Type)
Shaft Diameter	25.4mm
Shaft Length	72.2mm
Shaft Rotation	Anti clockwise from output
Compression Ratio	19:1
Fuel Type	Diesel
Oil Type	SAE10w-30 / SAE15w-40
Fuel Tank Capacity	5.5L
Oil Capacity	1.65L
Starting System	Electric start / Recoil manual start
Dimension (L x W x H)	422 x 460 x498 mm
Dry Weight	50kg

SKU: DX-188QE
