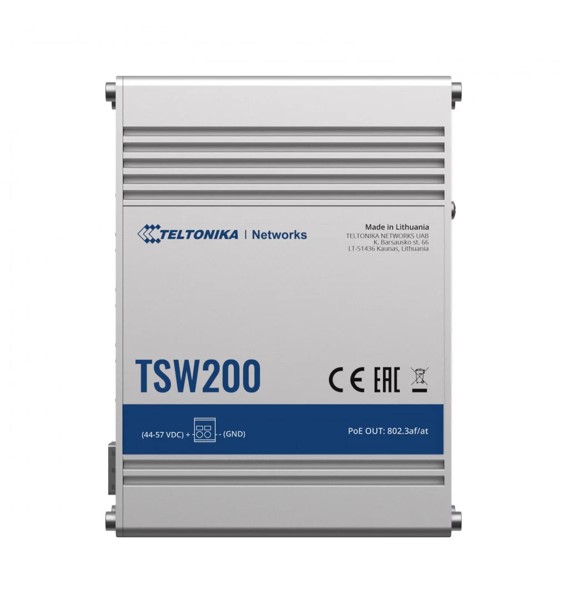

TELTONIKA TSW200 - Industrial Unmanaged PoE+ Switch - Does not include Power Supply NHT-PR320AUA

TELTONIKA TSW200 - Industrial Unmanaged PoE+ Switch - Does not include Power Supply NHT-PR320AUA

Hurry! 2 items left!

Price	$301.29
	Collect 903 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Teltonika TSW200 - Industrial Unmanaged PoE+ Switch

ETHERNET

LAN 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Fiber 2 x SFP ports

POE

PoE ports Port 1 - 8 PoE standards 802.3af and 802.3at PoE Max Power per Port (at PSE) 30 W Total PoE Power Budget (at PSE) 240 W

PERFORMANCE SPECIFICATIONS

Bandwidth (Non-blocking) 20 Gbps Packet buffer 128 KB MAC address table size 2K entries Jumbo frame support 9216 bytes

POWER

Connector 2 pin industrial DC power socket Input voltage range 7-57 VDC Input voltage range for PoE 44-57 VDC Power consumption (idle/max no PoE/max) 1,81 W/5.5 W/245.5 W

PHYSICAL INTERFACES (PORTS, LEDS)

Ethernet 8 x RJ45 ports, 10/100/1000 Mbps Fiber 2 x SFP ports Status LED’s 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s Power 1 x 2 pin industrial DC power socket Ground 1 x Grounding screw

PHYSICAL SPECIFICATION

Casing material Full aluminum housing Dimensions (W x H x D) 132 x 44.2 x 95.1 mm Weight 456 g Mounting DIN rail or wall mounting (additional kit needed), flat surface placement

OPERATING ENVIRONMENT

Operating temperature -40 °C to +75 °C Operating humidity 10 % to 90 % non condensing Ingress Protection Rating IP30

GTIN: 4779051840120
