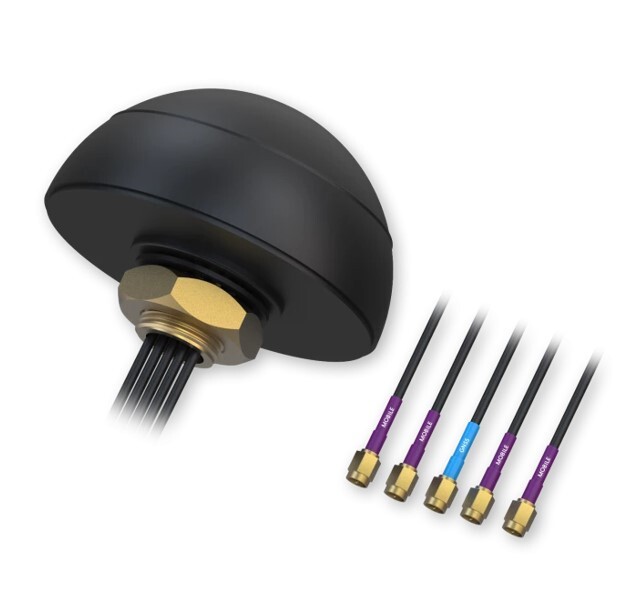

Teltonika Combo Quad Mobile/Gnss Roof Sma Antenna

Teltonika COMBO QUAD MOBILE/GNSS ROOF SMA ANTENNA

TECHNICAL DATA

GNSS ANTENNA

• Frequency Range: 1575.42 MHz
• Polarization: RHCP
• Impedance: 50
• LNA Gain: 28 ±2 dB
• Supply Voltage: 3-5 VDC
• Current Consumption: < 15 mA
• V.S.W.R: <2.0

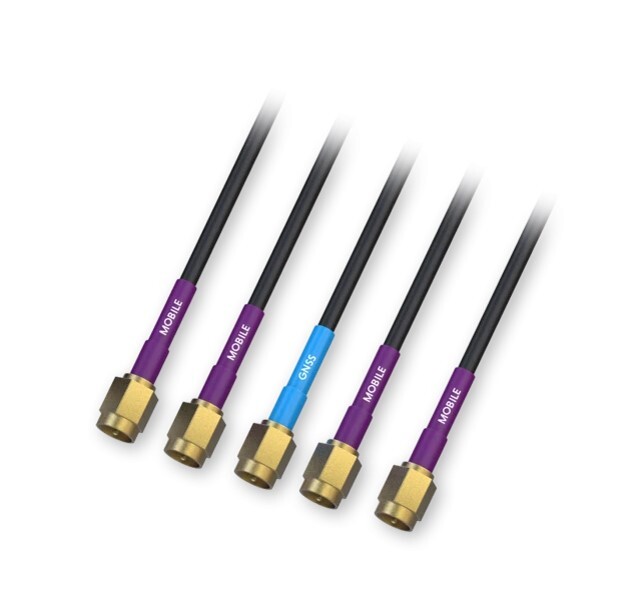

• Connector: SMA Male
• Cable: 1 x RG174, 3000 mm

LTE MIMO ANTENNA

• Frequency range: 698-960/1710-2690 MHz
• Polarization: Linear
• Impedance: 50 Ω
• Gain: 3 dBi
• V.S.W.R: < 3.0
• Connector: SMA Male
• Cable: 4 x RG174, 3000 mm

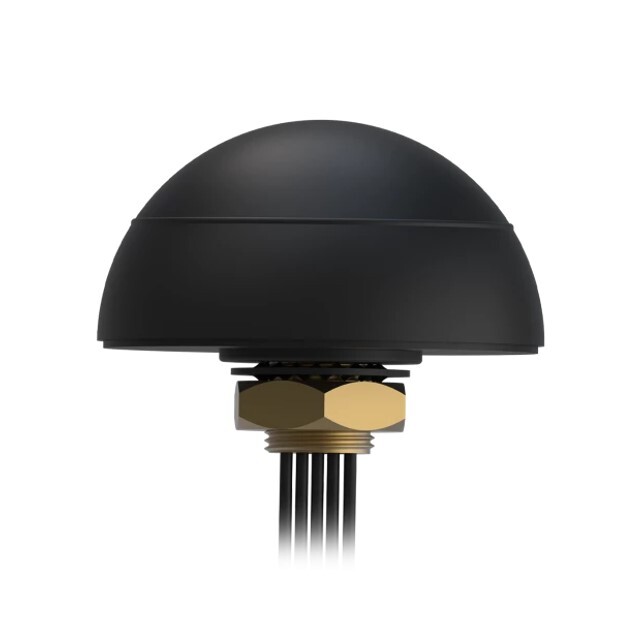

MECHANICAL / ENVIRONMENTAL

• Radome material: ABS
• Radome ingress protection rating: IP65
• Mounting method: Screw
• Operating temperature: -40 °C to +85 °C
• Operating relative humidity: < 95 %
• RoHS compliant: Yes
• Weight: 540 g
