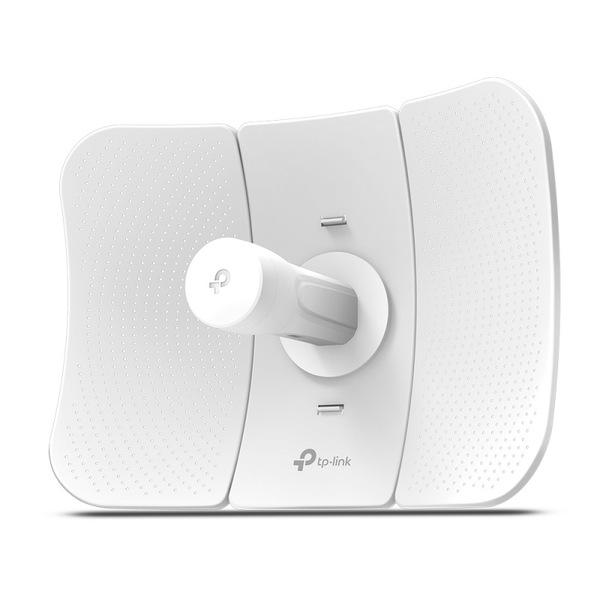

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE High-gain Directional Antenna

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE High-gain Directional Antenna

Be the first to review this product

Hurry! 10 items left!

Price	$98.88
	Collect 98 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE

Features:

Up to 150Mbps on 5GHz wireless data rates
23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
Excellent beam directivity, improved latency and noise cancellation

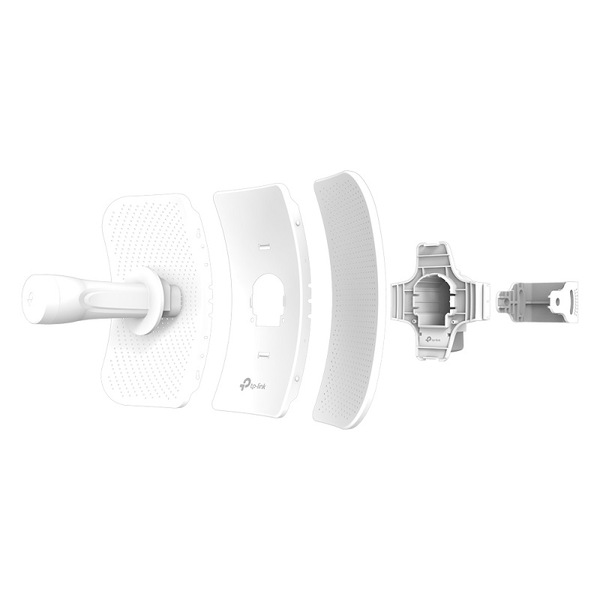

Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
Pharos Control gives administrators a free, centralized management system
Passive PoE supports to allow flexible deployment and convenient installation

Learn more about Pharos Control >

Specifications:

HARDWARE FEATURES

Processor :Qualcomm 560MHz CPU, MIPS 74Kc
Memory :64MB DDR2 RAM,8MB Flash
Interface :1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Power Supply :Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions ( W x D x H ) :350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
Antenna Gain :23dBi
Antenna Beamwidth :7°(Azimuth), 10°(Elevation)
Protection :15KV ESD Protection
6KV Lightning Protection
Enclosure :Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES

Wireless Standards :IEEE 802.11a/n
Proprietary Protocol :TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds :Up to 150Mbps (40MHz,Dynamic)
Up to 72.2Mbps (20MHz,Dynamic)
Up to 36.1Mbps (10MHz,Dynamic)
Up to 18.05Mbps (5MHz,Dynamic)
Frequency :5.15~5.85GHz
Transmit Power :Max. 23dBm (Adjustable power by 1dBm)

SOFTWARE FEATURES

IPv6 :Yes
Network Configuration :WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations :Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management :Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools :Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations :Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog

POE ADAPTER FEATURES

Dimensions(W x D x H) :85.8x43.9x29.7 mm
Interfaces :1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
Button :Remote Reset Button
Power Status LEDs :Green
Input :100-240VAC, 50/60Hz
Output :24VDC, 0.6A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency :>84.29%
Certifications :CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark

OTHERS

Certification :CE, FCC, RoHS, IP65
Package Contents :Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements :Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment :Operating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

SKU: NET-TPL-CPE605
