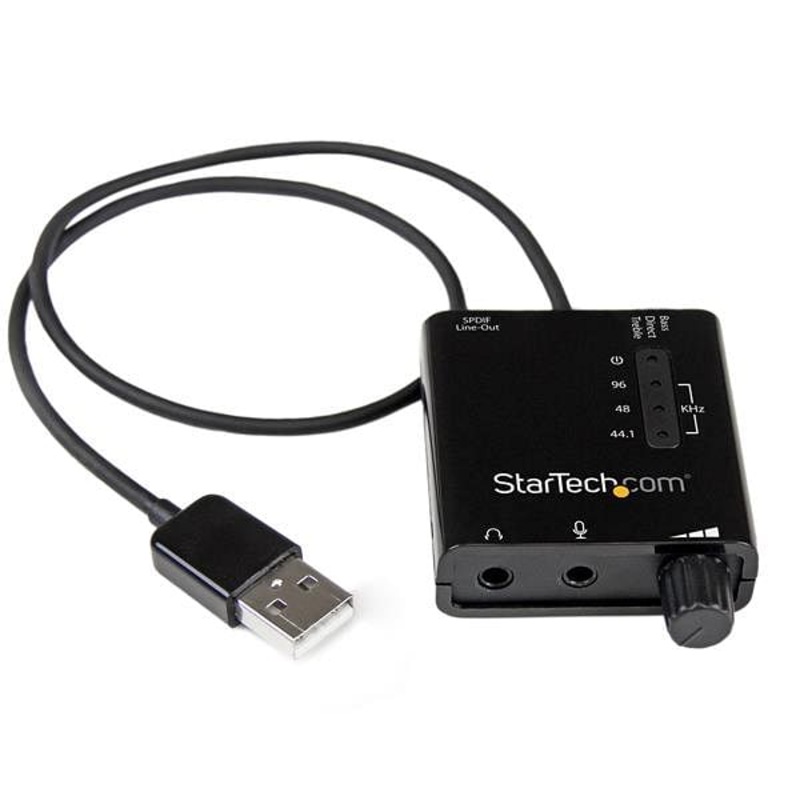

StarTech USB to Audio Converter External SPDIF Sound Card
The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).
This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Connector(s) | |
Connector Type(s) | 3.5 mm Mini-Jack (3 Position) Female |
3.5 mm Mini-Jack (4 Position) Female | |
3.5mm Mini-Toslink (SPDIF, Optical) Female | |
USB Type-A (4 pin) USB 2.0 Male | |
Environmental | |
Humidity | 10~90% RH (Non-Condensing) |
Operating Temperature | 0?C to 60?C (32?F to 140?F) |
Storage Temperature | 0?C to 70?C (32?F to 158?F) |
Hardware | |
Bus Type | USB 2.0 |
Chipset ID | VIA - VT1630A |
Indicators | |
LED Indicators | Playback / Recording sample rate |
Power | |
Packaging Information | |
Shipping (Package) Weight | 119 g [4.2 oz] |
Performance | |
Audio Specifications | 96 KHz / 24-bit Sample Rate Approx 91dB SNR (A-weighting) 16-100ohm Headphone Drive Ability |
Physical Characteristics | |
Cable Length | 406.5 mm [16 in] |
Color | Black |
Enclosure Type | Plastic |
Product Height | 16 mm [0.6 in] |
Product Length | 47 mm [1.9 in] |
Product Weight | 40 g [1.4 oz] |
Product Width | 46 mm [1.8 in] |
Power | |
Power Source | USB-Powered |
Software | |
OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.6 to 10.8 |
Special Notes / Requirements | |
Note | 5.1 surround sound output is supported in Windows only |
System and Cable Requirements | Available USB Port |
What's in the Box | |
Included in Package | Instruction Manual |
Software CD | |
USB Stereo Audio Adapter |
Specification | Value |
---|---|
MPN | ICUSBAUDIO2D |
Manufacturer Part Number | ICUSBAUDIO2D |
Product Condition | Brand New/Unused |
SKU | 242326 |
