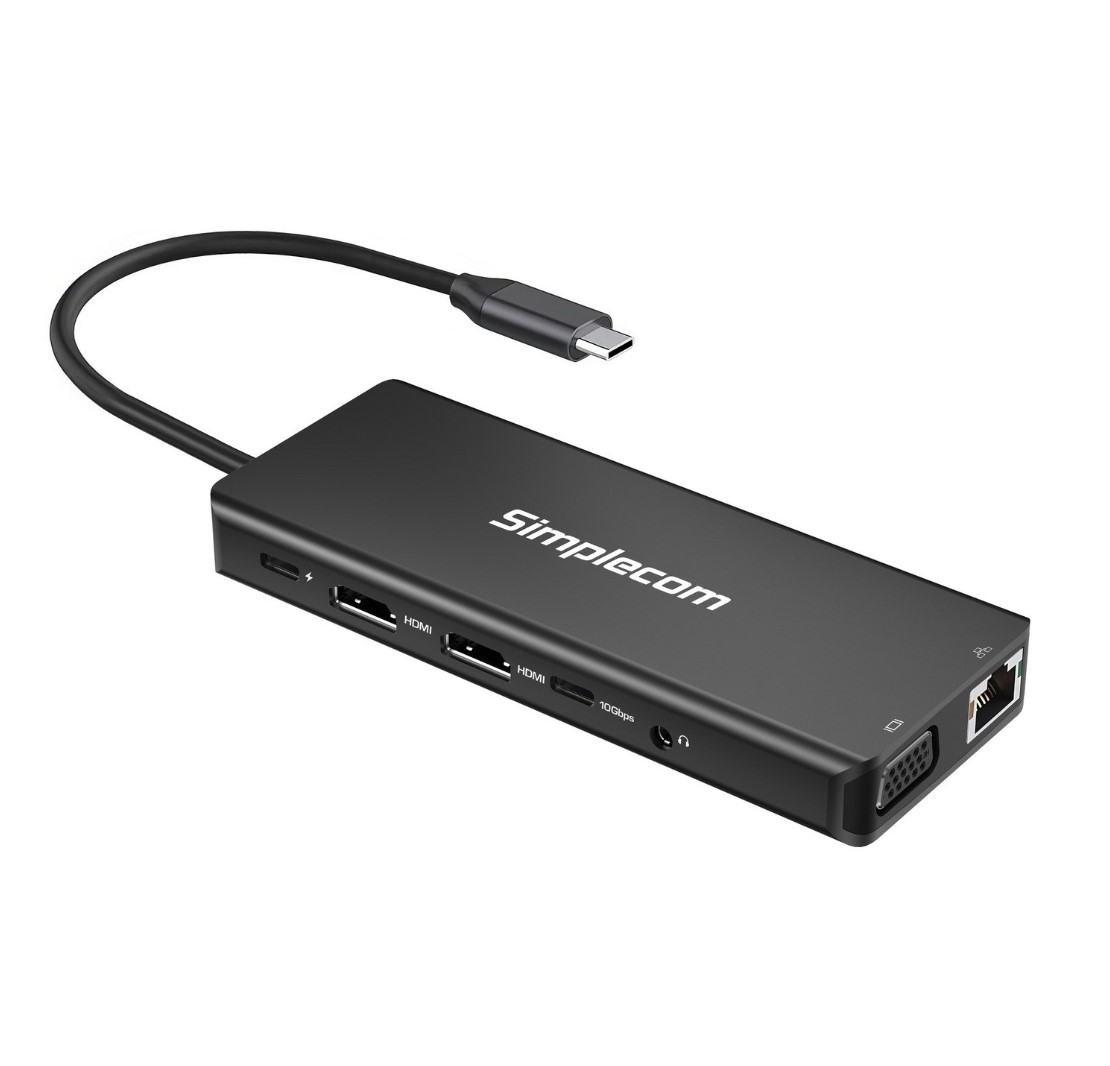

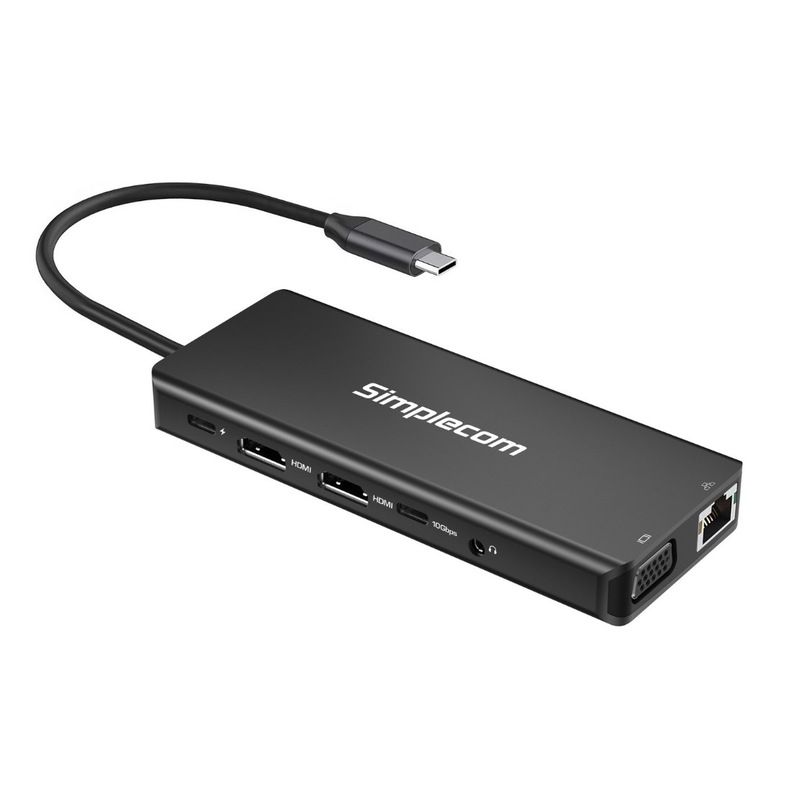

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps
Features
13-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
USB ports support up to 10Gbps transfer rate following USB 3.2 Gen 2 standard
Dual HDMI plus VGA, triple video outputs with MST Support
Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
Support Mirror or Extended mode (maximum 2 extended mode displays)
Gigabit Ethernet support connection speeds of up to 1000Mbps
2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
USB-C PD port for charging the laptop with up to 100W of power
3.5mm audio jack for easy connection of headphones or speakers
Durable stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Plug play, no driver software required
Specifications
USB Hub: 4x USB-A Female (2x 5Gbps, 2x 10Gbps), 1x USB-C Female (10Gbps)
Video Output: 2x HDMI, VGA
HDMI Resolution: Single HDMI output supports up to 4K@30Hz, dual HDMI outputs support up to 1920x1080@60Hz on each external monitor
VGA Resolution: up to 1080p@60Hz
MST Support: Yes (for Windows System only)
RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
PD Charging: USB-C Female (for charging only), up to 100W
3.5" Audio Jack: Yes (Audio output only)
Operation Temperature: 0 - 45 C
Housing: Aluminium Alloy
Dimensions: 13.5 x 5.5 x 1.6 (cm)
Cable Length: 15cm
Weight:
System Requirements
Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
Windows 8 or above for MST and two extended screens support
Thunderbolt USB-C port, USB3.2 Gen2 or USB4 port for 10Gbps data transfer rate
macOS does not support MST and will only support one extended mode
