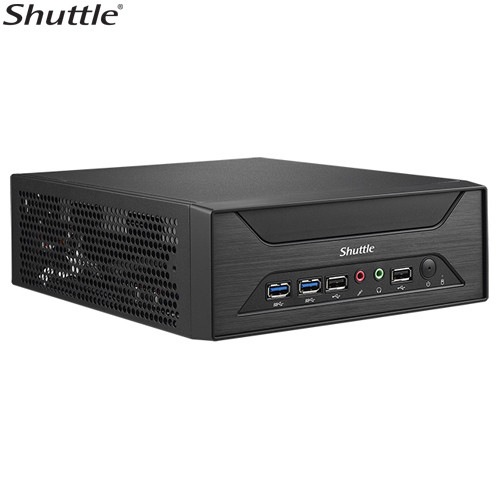

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280, 120W
3x

Shuttle XH270 Slim Mini PC 3L Barebone - Support Intel KBL&SKY CPU, 4x 2.5' HDD/SSD bay (RAID), 2xLAN, HDMI, DP, VGA, RS232, 2xDDR4, M.2 2280, 120W

Hurry! 3 items left!
Price
$599
Collect 1797 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/01/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (3) has been reached.

FORM FACTOR Mini-ITX MB 3L chassis PROCESSOR Support Skylake-S/Kabylake-S 65W CPU CHIPSET Intel H270 Express Chipset MEMORY (2)DDR4 SO-DIMM 2133/2400MHz support, dual channel up to 32GB (16GB*2) VIDEO OUTPUT (1)HDMI+(1)DisplayPort+(1)VGA support triple independent display 4K playback Integrated in CPU AUDIO Realtek ALC662 5.1 channel High Definition audio ETHERNET Intel I211*2 10Mb/100Mb/1Gb/s operation Support Wake-on-LAN function Support Teaming feature STORAGE INTERFACE SATA 6.0Gb/s interface ONBOARD CONNECTORS (1) 4pin fan connector (4) SATA connector w/power (2) 2x5 pin USB2.0 header (1) Front audio header (1) Front USB2.0 header (1) Front USB3.0 header (1) Auto power on (1) RS232 header FRONT PANEL (1) Power Button (1) Power Led (1) HDD Led (2) USB2.0 port (2) USB3.0 port (1)MIC-In (1)Earphone-Out BACK PANEL (2) RJ45 Gigabit LAN port (1) DisplayPort (1) HDMI (1) VGA (2) USB2.0 port (2) USB3.0 port (1) RS232 (1) Line-in port (1) Line out port (1) MIC-in port (1) Clear CMOS button (1) DC in (1)Kensington lock (2)Wireless Antenna fixture(optional) DRIVE BAYS Support 4* 2.5' HDD/SSD DIMENSIONS 240(L) x 200(W) x 72(H) mm Dimension drawing POWER 120W Power Adapter Input:100- 240V AC Output: 19V 6.32A DC ACCESSORIES XPC Multilanguage Quick User Guide XPC DVD Driver Thermal Grease 120W adapter 2.5 HDD rack*4 Power cord HDD Screw pack EXPANSION SLOT (1) M.2 2280 Type M (PCIe x4,SATA 6GB/s) (1) M.2 2230 Type A,E (PCIe x1,USB2.0) OS SUPPORT Windows 7(SKL-S only) Windows 10 Linux
GTIN: 887993001340
