CAT5/Component Video - HDTV/Digital & Stereo Audio - 2 Port - TRANSMITTER
The SB-6330T CAT5 Component Video HDTV Digital and Stereo Audio (2) Port Transmitter is able to transmit Component Video or Composite Video and Digital & Stereo Audio for long distances up to 1000 ft. The SB-6330T provides excellent overall performance and versatility. It can transmit differential Component/Audio signals over a single twisted pair category cable or use a triple, differential or single-ended input to transmit differential outputs. Specifically designed for YUV signals but can also be used for any type of video signals or high-speed data transmission. This high-speed amplifier is designed to operate (3) group signals with high-performance quality HDTV signal. Extends up to 1000 ft from receiver to transmitter for output to multiple high-definition HDTV/plasma displays using a CAT5 cable. The SB-6330T Transmitter supports double CAT5 outputs and one loop-out port for preview of AV sources on a HDTV display at the same time via the RJ-45 (CAT5) jack and Component-Digital-Audio sockets. Ideal solution for applications to display the same image on multiple remote locations.
Features
- Inputs via gold-plated, colour-coded RCA Phono sockets
- Category UTP cable max length to 1000 ft
- Easy to install and highly reliable
- (2) RJ-45 output sockets
- Brushed aluminium case with mounting brackets
- LED power ON indicator
- Includes power supply
- Supports resolutions up to 1080p
- For use in conjunction with the CAT5 Component receivers
- Can connect to (2) separate CAT5 receivers
Connections

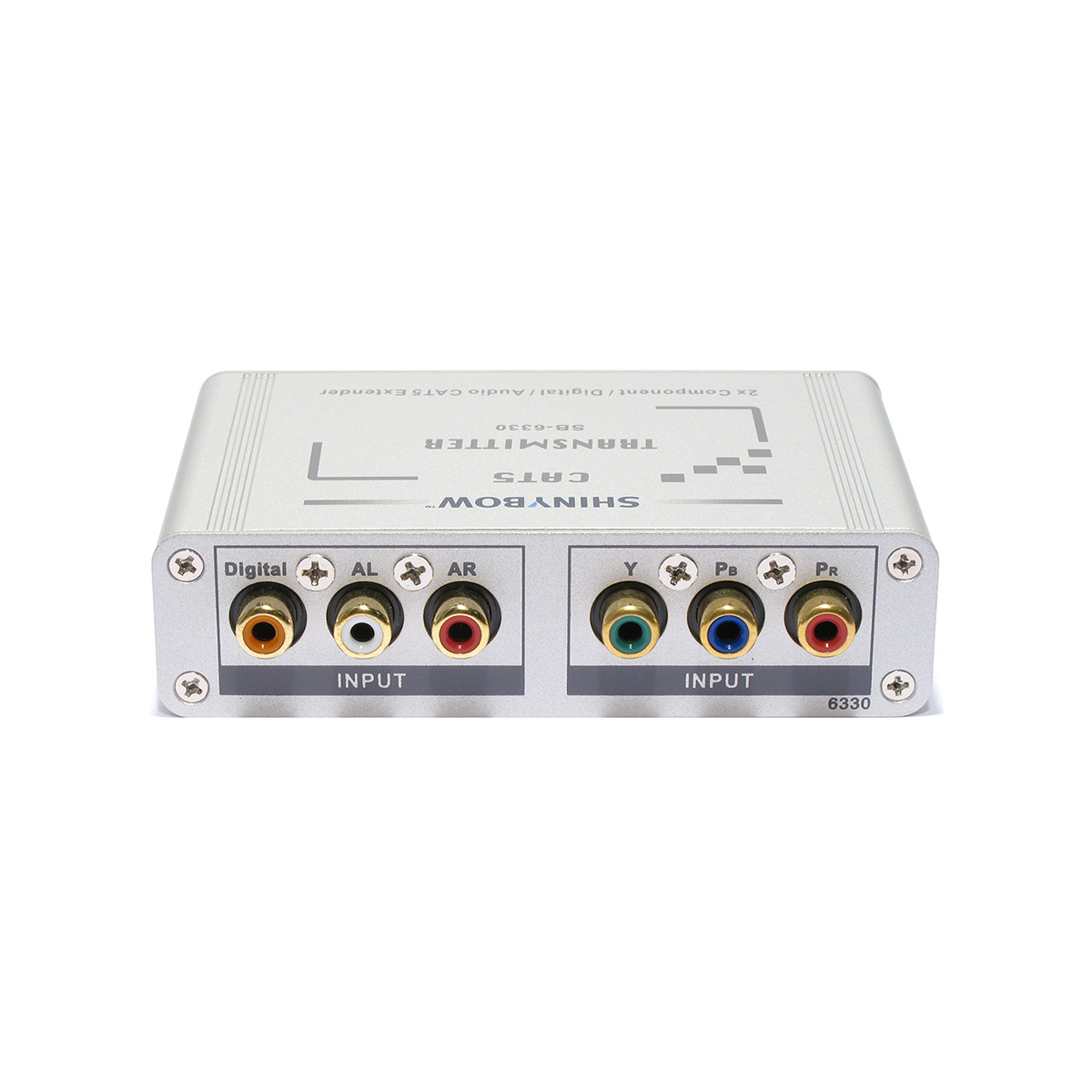

Inputs:
(1) Component Video (YPBPR)
(1) Digital (Composite Video) + Stereo Audio

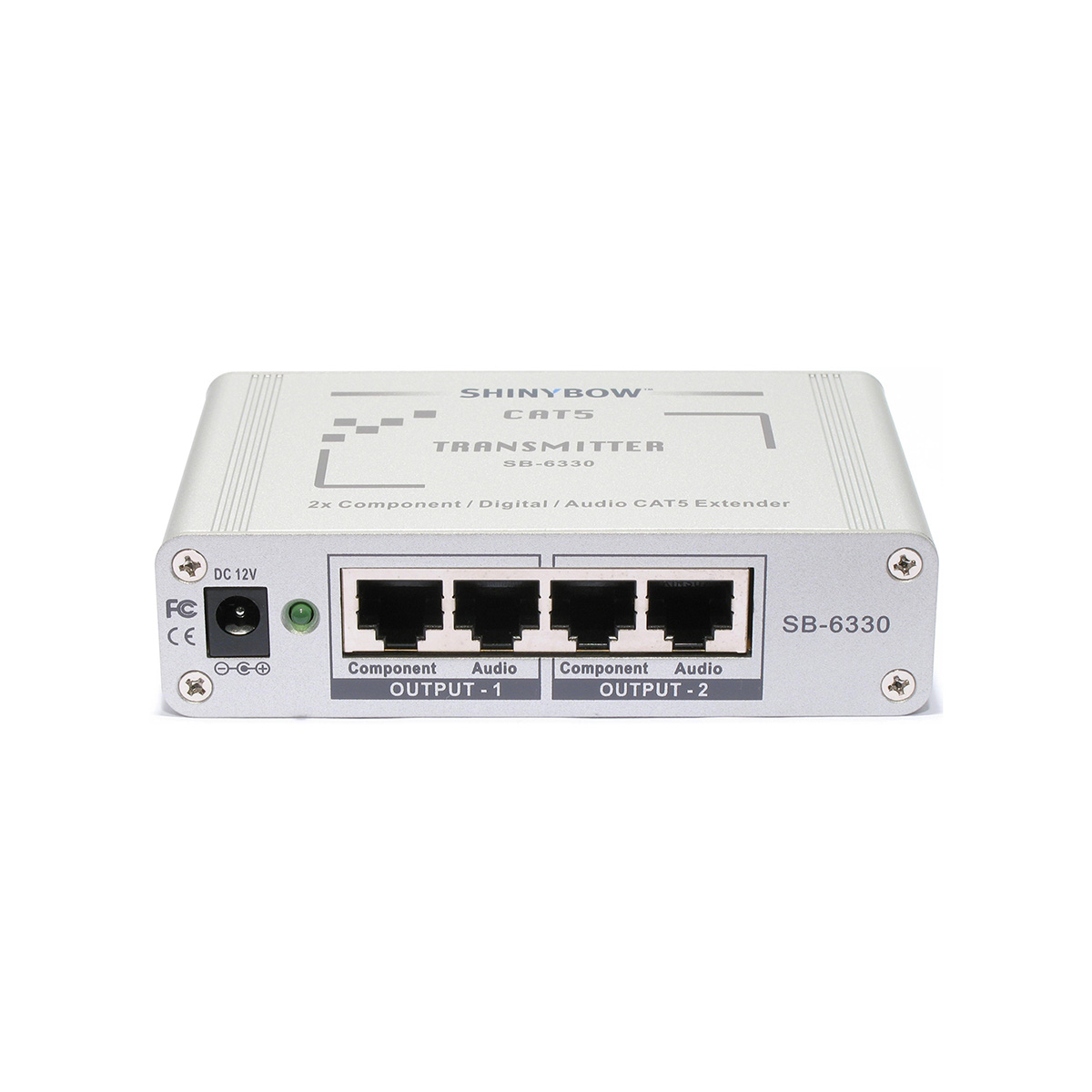

Outputs:
(2) CAT5 Component Video (YPBPR)
(2) CAT5 Digital (Composite Video) + Stereo Audio
The SB-6330 is compatible with the following receiver units:
- SB-6130R
- SB-6230R
- SB-6340R
- SB-6330R (Digital & Stereo Audio)
- SB-6235R (Digital & Stereo Audio)
- SB-6345R (Digital & Stereo Audio)
User Manual (PDF)
