Product Details

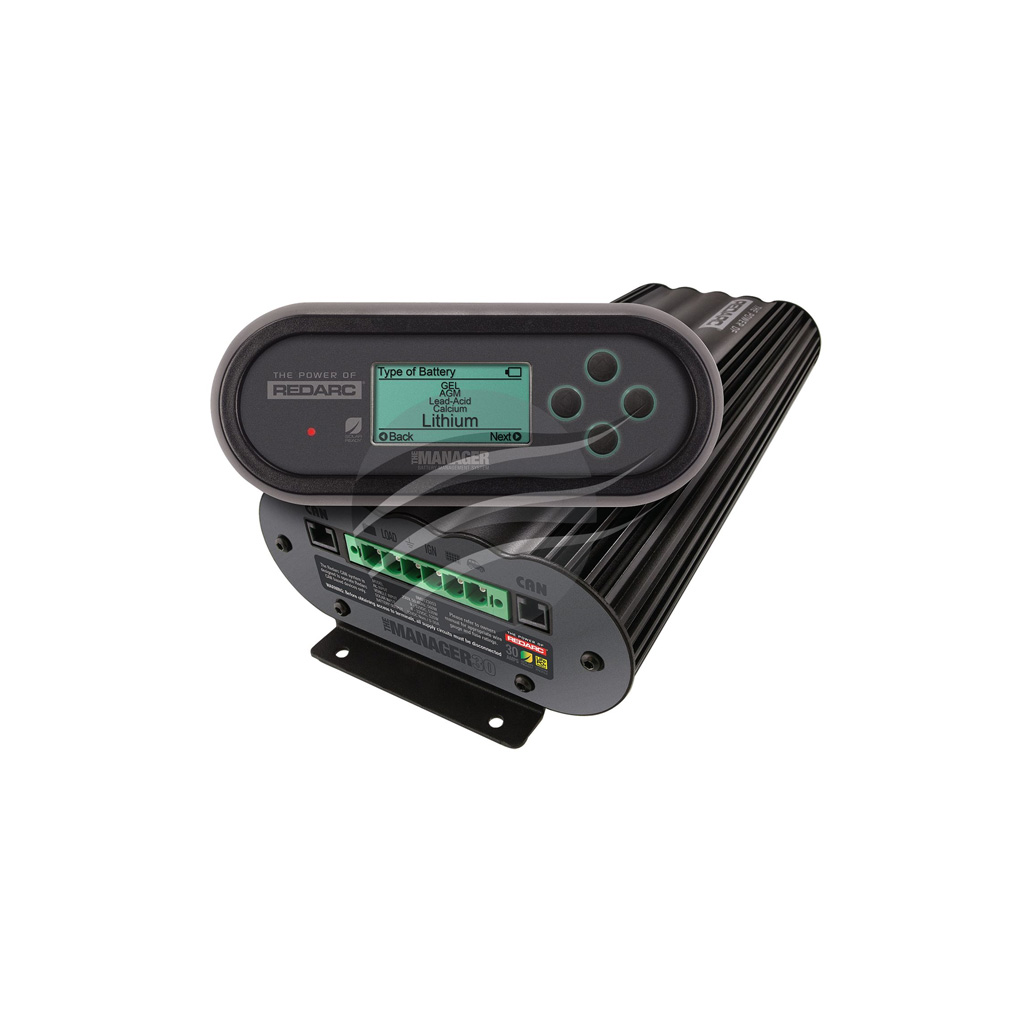

Redarc Manager30 V3 Battery Management System 12/24V 30amp 12/24V Input, 12V 30amp Output (Nom.)w/ Lithium Charging capabilities
Manager30 S3 is a 30A state-of-the-art battery management system designed to charge & maintain auxiliary batteries by incorporating AC, DC & solar inputs Ideal for recreational vehicles, caravans, & camper trailers w/ multiple battery banks
| Specifications |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
16.0V* (*Calcium setting in storage mode) |
| Output Current Rating (Cont.) |
30A |
| Output Power |
520W |
| Input Fuse Rating |
50A |
| Output Fuse Rating |
40A |
| Warranty |
2 Years |
| Protection |
Short Circuit, Surge, Reverse Polarity, Overload |
| Input (Operating) Voltage |
240VAC / 9 - 32VDC |
| Length (mm) |
445 |
| Width (mm) |
185 |
| Height (mm) |
79 |
| Weight (kg) |
5.5 |
| AC Mains Plug Type |
AU, NZ, EU |
| Type Approval |
CE |
Features
Multi Stage AC-DC Battery Charger
Multi Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Battery Monitor
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Tested to mains power safety standards in Australia
Redarc 12/24v Manager30 V3 Battery Management System 30A 12V Output
Product Details
Redarc Manager30 V3 Battery Management System 12/24V 30amp 12/24V Input, 12V 30amp Output (Nom.)w/ Lithium Charging capabilities
Manager30 S3 is a 30A state-of-the-art battery management system designed to charge & maintain auxiliary batteries by incorporating AC, DC & solar inputs Ideal for recreational vehicles, caravans, & camper trailers w/ multiple battery banks
| Specifications |
| Output System Voltage |
12VDC |
| Maximum Charging Voltage |
16.0V* (*Calcium setting in storage mode) |
| Output Current Rating (Cont.) |
30A |
| Output Power |
520W |
| Input Fuse Rating |
50A |
| Output Fuse Rating |
40A |
| Warranty |
2 Years |
| Protection |
Short Circuit, Surge, Reverse Polarity, Overload |
| Input (Operating) Voltage |
240VAC / 9 - 32VDC |
| Length (mm) |
445 |
| Width (mm) |
185 |
| Height (mm) |
79 |
| Weight (kg) |
5.5 |
| AC Mains Plug Type |
AU, NZ, EU |
| Type Approval |
CE |
Features
Multi Stage AC-DC Battery Charger
Multi Stage DC to DC Charger
Maximum Power Point Tracking Solar Regulator
Battery Monitor
Dual Battery Isolator
Load Disconnect Controller
Super quiet operation
Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
Tested to mains power safety standards in Australia
Redarc 12/24v Manager30 V3 Battery Management System
The next generation Manager30 S3 model is the complete battery management system for charging auxiliary batteries used in recreational automotive and marine applications. The dual battery system incorporates AC, DC and solar inputs to achieve the best charge for an auxiliary battery.
Developed with ease of installation in mind, The Manager30 is compatible with all vehicles and alternator systems including variable voltage alternators.
Whether you re charging Lead Acid, Gel, Calcium, AGM or Lithium Iron Phosphate batteries, The Manager30 represents a complete DC to DC charging and maintenance solution. If you re charging one auxiliary battery or more, The Manager30 will ensure they re always fully charged, providing peace of mind when battery charge provides the power source for the comforts of home whilst travelling around Australia.
The Manager30 operates like 6 separate products, it charges an auxiliary battery from the vehicle while on the move, it s a 240 volt charger, a solar regulator, a battery isolator, a load disconnect controller, all with a remote battery monitor, making it market leading.
Charging lithium batteries
Lithium batteries have improved storage capacity relative to size and weight. They do however require specific charging conditions in order to operate correctly and the battery itself must have an in-built cell management system. REDARC have designed a charging profile within The Manager30 to complement these in-built systems.
Green power priority
The Manager30 is designed to charge an auxiliary battery from multiple sources simultaneously. If 12 volt solar power is available, solar power will be used before topping up the output charging current from another source mains (if available) or DC vehicle power when on the move.
MPPT solar regulator
The built-in Maximum Power Point......
