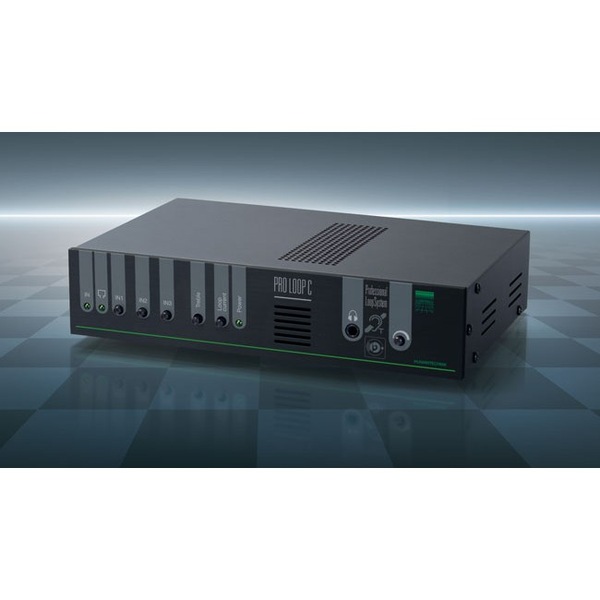

Humantechnik Proloop C Induction Loop Amplifier

Using an inductive loop system, hearing-aid wearers can pick up the signals emitted by electric/ electronic audio sources (microphone or hi-fi systems) directly in their hearing aids or CI systems.
As a result, they hear the sound without any annoying background noise, echo or reverberation. An outstanding advantage of using induction loop systems: no special receivers are required. All that?s needed is the hearing aid.
Most modern hearing aids are now equipped with adjustable M and T functions. M stands for microphone, i.e. hearing thesound in the room via the integrated microphone, and T (telecoil) means that the audio signals are transmitted inductively and directly
via a telecoil integrated in the hearing aid. Some hearingaids are also equipped with an ’‹MT’½ function, which combinesboth types of reception, microphone and telecoil so that thelisteners are able to hear the sound in the room as well as the
inductively transmitted signals.

How does an induction loop system work

Alternating current creates a magnnetic fi?eld in a wire/a loop. If a second wire is introduced into this magnetic field (here: the telecoil in a hearing aid), a correspondingly alternating current will also be created in it: the electrical impulses are induced into the second
wire without any actual electrical connection.
An induction loop system consists of a loop and an amplifier. The loop, an insulated wire, runs around the outside of the listening area. Theamplifier, connected with an audio source (hi-? system, speaker?s microphone, etc.), transmits the acoustic signals converted into
alternating current to the loop.
The magnetic field inside the loop allows the listeners tomove freely in the room and pick up the audio signals fed directly into their hearing aids.

The PROLOOP amplifier family is designed for professionaluse in medium-sized rooms (up to 170 m2) in private buildings and public facilities, in which particularly high dependability and extremely reliable operation are required.

With its 100-percent short-circuit proof amplifier, programmable, balanced XLR input jacks and highly stable output power, the PROLOOP C is able to meet these demands.Automatic Gain Control (AGC) guarantees consistent field strength and reproduces stable sound with a special emphasis on clear speech, even under acoustically demanding conditions. The integrated monitor output and corresponding testing technology can be used to analyse the induction loop audio quality

FEATURES:

Higher output power: 11 A RMS / Short-circuit-proof
Automatic fuse reset / Two programmable, balanced XLRinputs
One phono input / Two line outputs
Extra-sturdy jacks / Dual action AGC for excellent speech recognition
High availability, operating reliability and quality assurance
Convenient monitoring of the magnetic field: Can be done using headphones or speakers
Treble control to compensate for treble losses due to reinforcement

SPECIFICATIONS:

Mains connection:	230-240 V AC 50 Hz, 7-200 W, 10 A fuse
Coverage:	170m2 acc. to IEC 60118-4, single-loop, free field

Induction loop output
Max. current:	60 A from peak to peak, 1-5 ms, 1 kHz, 11 A RMS, continuous 1 kHz, short-circuit-proof
Max. voltage	31 V from peak to peak
Output AGC:	Sets voltage and power for steady signals like oscillation and sine curves after 0.6-1 seconds to -10 dB.Short pulses and normal program signals are not limited.
Frequency response:	100 - 5000 Hz ( ± 3 dB)
Distortion::	< 1%
Cable connection:	Screw connection on rear panel of amp
Line Outputs 1. LINE OUT:	0 dBm-phono (with AGC function

Line Inputs
Inputs 1 & 2:	0.5 mV-180 mV / 10 kOhm (mic.) alt. 50 mV - 10 V/ 10kOhm (line)Separate 2-channel AGC, phantom voltage 9-12 V,XLR connections
Input 3:	50 mV-10 V / 10 kOhm, phono connections

AGC
Dynamics:	> 70 dB
Rise time:	2 - 500 ms
Fall time:	0.5 - 20 dB/s

Controls & Displays
Treble control:	0 - +9 dB, potentiometer
Induction loop adjustment:	0 - 170 m’, potentiometer
Displays:	One green LED each for mains connection input level and induction loop current

Induction Loop Monitoring	6.3 mm jack for speaker and headphone monitoring

Enclosure
Dimensions (H x W x D):	62 x 295 x 188 mm
Weight:	3.6kg
Colour:	Black
