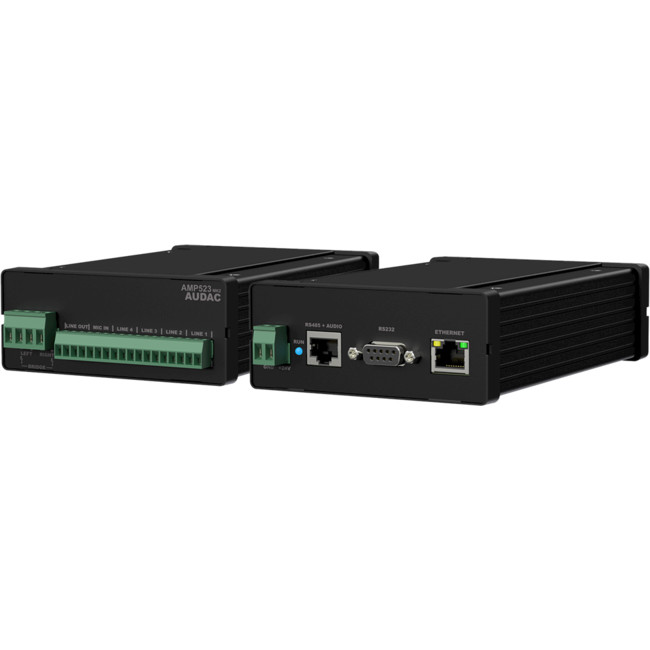

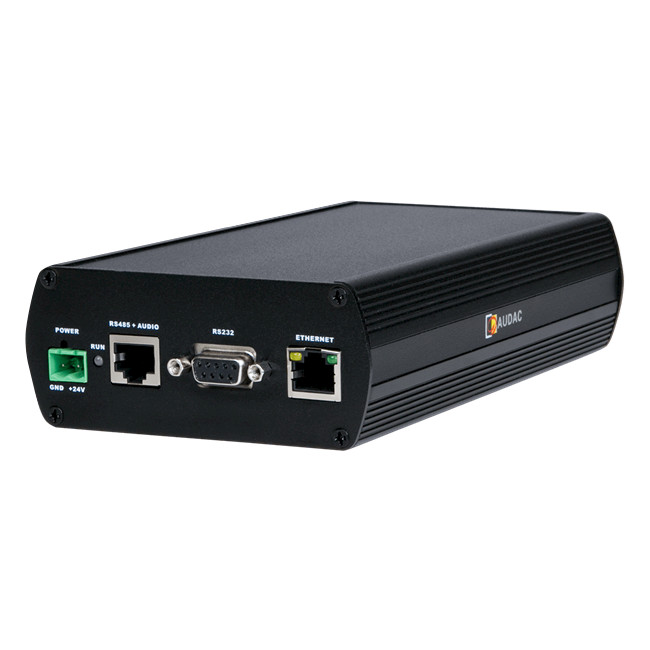

The AMP523 is a mini stereo amplifier with an integrated web based control unit featuring four stereo line inputs andone balanced microphone input with phantom power.
It has an output power rating of 2 x 15 Watt.
The simple and compact but versatile functionalities makeit perfectly suited for small speaker systems requiring compact and economical audio solutions which are comprehensive and easily controllable.
Some typical applications are classrooms where the audio system will be used in combination with a smartboard, offices and meeting rooms where the music should switch automatically from background music to speech or playback when the presentation starts, ?. and many other similar applications.
The compact size and very high efficiency even makes it possible to hide it in a closet, on a false ceiling or mountit under a desk or table.
The various stereo line inputs allow simultaneous connections for different sources such as laptops, CD or MP3players and tablets while having a microphone connected.
The switching between the inputs, volume regulation and other function controls can be done in multiple ways: an integrated website makes it possible to control all the functions from any computer with a web browser without requiring additional software while the RS232 connection makes it possible to control the AMP523 with any device supporting serial communication such as a computer or even ahome or industrial automation system.
Another option is to control the system through smartphones and tablets using the special developed AUDAC Touch™ app.
Using the freely availableapplication for smart devices guarantees total system control and configuration from any device on any location and at any time.
To make the installation even more complete, an optional MWX43 or MWX45 wall panel can be installed to control the signal routing and volume level from one or multiple fixed locations.
The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements.
_
Get the AUDAC Touch™ app
_
HD+N (@ 1 kHz) | < 0.1% | ||
Crosstalk (@ 1 kHz) | < -75 dB | ||
Signal / Noise | > 95 dB | ||
Efficiency | 87% | ||
Cooling | Passive | ||
Protection | Over heating | ||
DC Short circuit | |||
Limiter | |||
Control | RS-232 | ||
TCP/IP | |||
RS-485 | |||
RMS Power | @ 4 ? Stereo | 2 x 15 W | |
@ 8 ? Stereo | 2 x 7.5 W | ||
@ 8 ? Bridge | 30 W | ||
Outputs | Type | 1 x Stereo Loudspeaker | |
Connector | 4-pin Euro Terminal Block (Pitch - 5.08 mm) | ||
Power | Supply | 24V DC (PSD242 switching Power supply included 100~ 240V AC / 47 ~ 63 Hz) | |
Inputs | Balanced Stereo | Type | 4 x Stereo Balanced Line |
Connector | 18-pin Euro Terminal Block (Pitch - 3.81 mm) | ||
Impedance | 20 k? | ||
Sensitivity (1W/1m) | -10 dBV ~ +4 dBV | ||
Balanced Microphone | Type | 1 x Balanced Microphone | |
Connector | 18-pin Euro Terminal Block (Pitch - 3.81 mm) | ||
Impedance | 47 k? | ||
Sensitivity (1W/1m) | -45 dBV ~ -20 dBV | ||
Other | Type | 1 x RS-485 + Differential audio | |
Connector | RJ45 | ||
Type | 1 x RS-232 | ||
Connector | SUBD9 | ||
Type | 1 x Ethernet | ||
Connector | RJ45 | ||
Power | Consumption | Standby | < 3.0 W (PSD242 included) |
PRODUCT FEATURES | |
---|---|
Dimensions | 108 x 44 x 164 mm (W x H x D) |
Weight | 0.810 kg |
