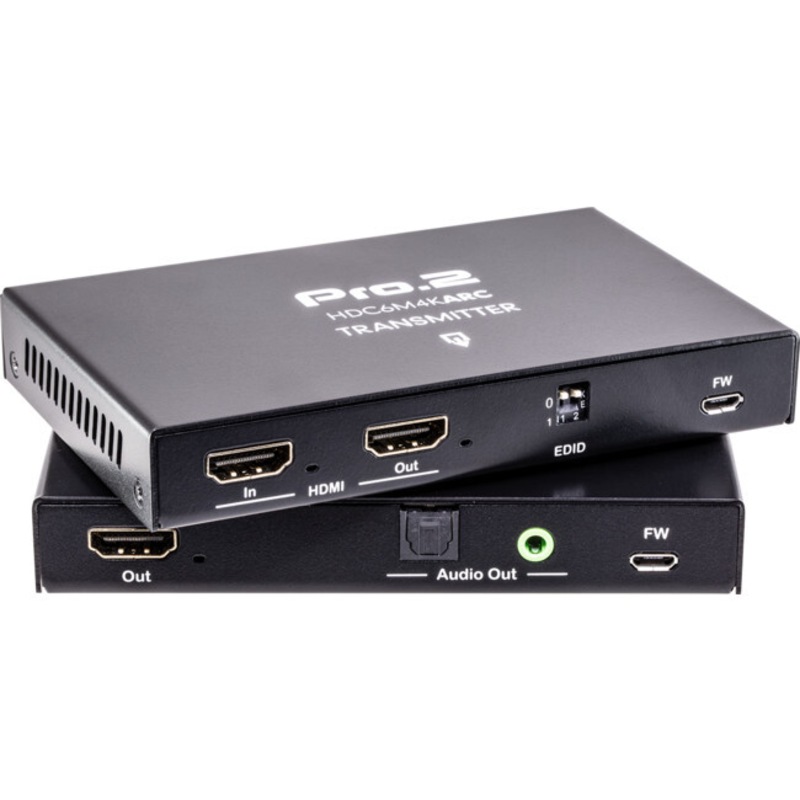

Pro.2 HDC6M4KARC HDMI Over CAT Extender 70m ARC 4K EDID HDMI Loop Optical

Pro.2 HDC6M4KARC HDMI Over CAT Extender 70m ARC 4K EDID HDMI Loop Optical

Price
$309.90
Collect 309 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (133) has been reached.

{tab Features}
Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables.

If you are running a cable 15 metres or more, make sure you use a SOLID CAT5/6 cable. This product may not work with standard stranded ethernet cable. See related items for cabling that will work this product. 60m distance has been tested fine on F/UTP solid cat6 cable.

FYI: Most of the pre-made cat5/6 leads on the market are stranded cables not solid.

Compared with the HDC6M4K, this newer model offers extra features like CEC and ARC pass-through and Bi-directional IR.

Note: ARC needs to be enabled on both sides, the TV display and the AV Receiver, as these are disabled by default on devices!

HDMI2.0 18G 4K extender over single solid UTP cable with local loop out and CEC/ARC!

This compact and simple HDC6M4KARC is the easiest way to extend your 4K HDMI via a single solid CAT5e/6 cable up to 70m*!

Features
  • HDMI2.0 extender, bandwidth 18Gbps, deep color up to 4K@60Hz 4:4:4-8bit
  • Support HLG, HDR10 +
  • ARC CEC pass-through
  • With the local HDMI loop out plus the IR, you can view and control your video source locally or remotely
  • Bi-directional power over cable feature, only one power supply is required on either the transmitter end or receiver end.
  • Support S/PDIF Toslink and PCM2.0 analog audio extraction
  • HDCP2.2/1.4 compliant
  • Transmit up to 70m under 4K@60Hz YUV4:4:4 and 4K@30Hz/ l080P over a single solid Cat5e/6 cable
  • EDID management
  • Wideband Bi-directional IR Pass-through, compatible with Foxtel IQ4!
  • Support LPCM 7.1CH, Dolby True HD, DTS-X, DTS-HD master, and Dolby Atmos audio
  • Support 4K@60Hz downscale to 1080P
  • HDMI audio sampling rate up to 32-96KHz, 16-24bit
  • Support Micro USB port to upgrade new firmware for future
  • Compact size and easy mount with the rack mount ears supplied
  • ARC supports audio PCM/Dobly/DTS,48KHZ, supports up to 5.1CH audio
What is in the box?
  • Transmitter x 1
  • Receiver x1
  • IR emitter x 2
  • IR receiver x 2
  • DC24V 1A power supply x 1
  • Rack mount ears x 4
  • Manual x 1
*PLEASE NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 shield solid core cable for the best results.



Connection diagram

Got the right cable?

Please note: IEEE-568B standard solid cables are recommended for this kit.

{tab Specifications}
Specifications
Operating Temperature Range -5 to +40' C (+23 to +104°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Transmitter Connections HDMI input x 1, HDMI loop out x 1, Power DC x 1, EDID x1
  IR TX input x 1, IR RX output x 1, Micro USB socket x1, RJ45 x1
Receiver Connections HDMI output x 1, RJ45 x1, Micro USB socket x 1, Power DC x 1
  IR RX input x 1, IR TX output x 1, Toslink x 1, 3.5mm Audio x 1
Output Resolution 4k@ 60hz YUV4:4:4/ 4k@ 30HZ/1080P/1080i?/720P/576P/480P
Bandwidth Up to 18Gbps 600MHz
Colour Space RGB, YUV 4:4:4, 4:2:2, 4:2:0
HDCP 1.4/2.2
Deep Colour 8-bit, 10-bit, 12- bit
Audio Format Supported DTS-HD Master Audio , Dolby True HD, PCM etc.
Output Video Signal HDMI
HDMI Cable Length to TX/RX

4K@60Hz: input/output 5M Max, 4K@30Hz: input/output 8M Max

1080P: input/output 10M Max

Dimension (LxWxH)

TX: L120.2mm x W78.3mm x H18 mm;

RX: L120.2mm x W78.3 mm x H18 mm

Power supply DC 24V1A Power supply
Power consumption 12W (MAX)
Transmission Distance

up to 70m under 4 K@60 Hz YUV4:4:4 and 4K@30Hz/1080P

Net Weight TX:240g; RX: 240g

*PLEASE NOTE: 70m distance is under perfect transmission conditions including straight cable runs with no bends, kinks, electrical interference, patch panels, or wall outlets. Use CAT6 solid core cable for the best results.

EDID 2 Pin Dip Switch on the Transmitter
00
Default 4K60-YUV420-2CH
01
Copy EDID from the far-end display
10
Copy EDID from the loopout display
11
Default 4K60-YUV444-5.1CH



{tab FAQ}
1. Q: Does this unit work with the new Foxtel iQ3?
A: Yes. Just make sure your IR emitter is placed in the correct location. See the image below.

Also, note that the new Foxtel IQ boxes only come with a Bluetooth remote. You will need to acquire a Foxtel-compatible IR remote.

2. Q: What happens if the product is not working?
A: Please check your cable, and make sure IEEE-568B type solid cable is being used.
{/tabs}
