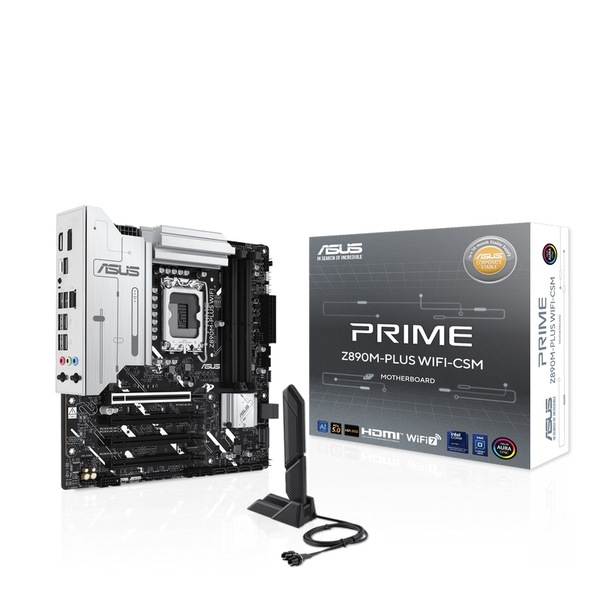

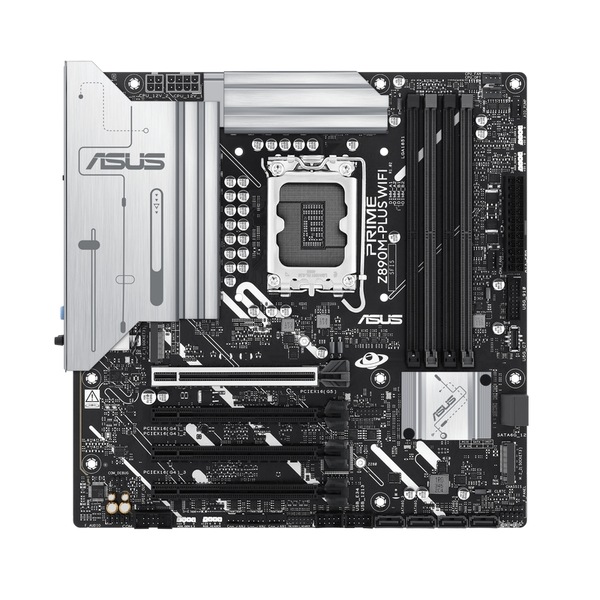

[PRIME Z890M-PLUS WIFI-CSM] Motherboard, for Intel, DDR5, LGA1851, Micro-ATX

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

• Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Exclusive AI: AI Cooling II and AI Networking II to simplify setup and improve performance
• Intel LGA 1851 Socket: Designed for Intel Core Ultra processors (Series 2)
• Optimized thermal design: Large VRM heatsinks, M.2 and PCH coolers, hybrid fan header and Xpert 4 Fan with AI Cooling II
• High-performance network: Wi-Fi 7 (802.11be) on-board with ASUS WiFi Q-Antenna and Realtek 2.5 GB Ethernet

• Model :PRIME Z890M-PLUS WIFI-CSM
• News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
  isplay from the graphics card when installing Windows 11 24H2. It is recommended
  to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
  Please visit Asus website to check and download the latest updates.
• CPU :Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer toAsus official site/support/download-center/for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset :Intel® Z890 Chipset
• Memory :4 x DIMM slots, max. 192GB, DDR5
  Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  Dual channel memory architecture
  DIMM Fit
  Supports Intel® Extreme Memory Profile (XMP)
  ASUS Enhanced Memory Profile III(AEMPIII)
  * Supported memory types, data rate (speed), and number of DRAM modules vary dep
  ending on the CPU and memory configuration, for more information please refer to
  CPU/Memory Support list under the Support tab of product information site or visitAsus official site/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics :1 x DisplayPort**
  1 x HDMI™ port***
  1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
  *Graphics specifications may vary between CPU types. Please refer towww.intel.comfor any updates.
  **Supports max. 4K@60Hz as specified in DisplayPort 1.4.
  ***Supports 4K@60Hz as specified in HDMI 2.1.
  ****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
  ***** VGA resolution support depends on processors' or graphic cards' resolution.
  ****** While installing the operating system, please ensure that your monitor is
  connected to the HDMI port on the back I/O panel or to a discrete graphics card.
• Expansion Slots :Intel® Core™ Ultra Processors (Series 2)*
  1 x PCIe 5.0 x16 slot
  Intel® Z890 Chipset
  1 x PCIe 4.0 x16 slot (supports x4 mode)
  2 x PCIe 4.0 x16 slots (support x1 mode)
  * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
  - To ensure compatibility of the device installed, please refer tohttps:// Asus official site/support/for the list of supported peripherals.
• Storage :Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
  Intel® Core™ Ultra Processors (Series 2)*
  M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  Intel® Z890 Chipset
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  6 x SATA 6Gb/s ports
  * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
• Ethernet :1 x Realtek 2.5Gb Ethernet
  ASUS LANGuard
• Wireless & Bluetooth :Wi-Fi 7*
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band**
  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the operating system
  For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
  ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB :Rear USB (Total 8 ports)
  1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  1x USB 10Gbps port (1 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A) **
  Front USB (Total 7 ports)
  1 x USB 5Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports**
  * USB Type-C® power delivery output: max. 5V/3A
  ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
• Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
  Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

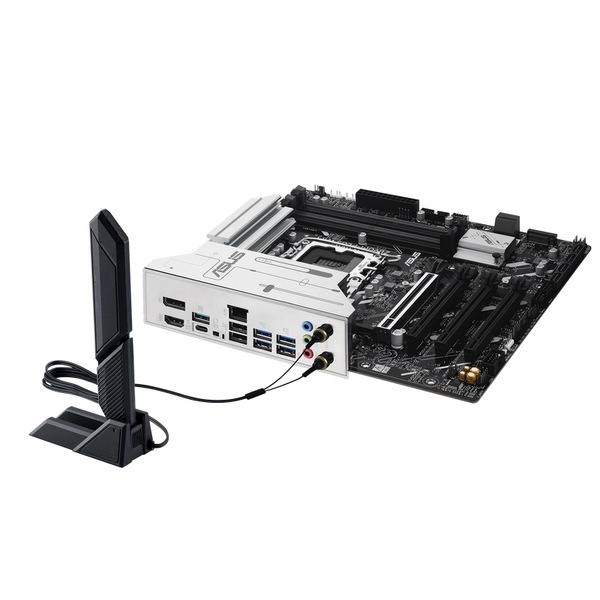

• Back Panel I/O Ports :1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  1x USB 10Gbps port (1 x Type-A)
  4 x USB 5Gbps ports (4 x Type-A)
  2 x USB 2.0 ports (2 x Type-A)
  1 x DisplayPort
  1 x HDMI™ port
  1 x Wi-Fi module
  1 x Realtek 2.5Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack™ button
• Internal I/O Connectors :Fan and cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
  Power related
  1 x 24-pin Main Power connector
  1 x 8-pin +12V CPU Power connector
  1 x 4-pin +12V CPU Power connector
  Storage related
  3 x M.2 slots (Key M)
  6 x SATA 6Gb/s ports
  USB
  1 x USB 5Gbps connector (supports USB Type-C®)
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
  Miscellaneous
  3 x Addressable Gen2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin Front Panel System header
  1 x Thunderbolt™ (USB4®) header
• Special Features :ASUS 5X PROTECTION III
  - DIGI+ VRM (- Digital power design with DrMOS)
  - LANGuard
  - Overvoltage Protection
  - SafeSlot
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - Q-Antenna
  - Q-Dashboard
  - Q-DIMM
  - Q-LED Core
  - Q-Slot
  ASUS Thermal Solution
  - VRM heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  - ProCool
  - Pre-mounted I/O shield
  Aura Sync
  - Aura RGB header
  - Addressable Gen 2 headers
• Software Features :ASUS Exclusive Software
  Armoury Crate
  - Aura Sync
  - Fan Xpert 4 (with AI Cooling II)
  - Power Saving
  ASUS AI Advisor
  ASUS DriverHub
  ASUS GlideX
  TurboV Core
  ASUS CPU-Z
  Norton 360 for Deluxe (60 Days Free Trial)
  WinRAR (40 Days Free Trial)
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash
  - ASUS UEFI BIOS EZ Mode
  - ASUS MyHotkey
  NPU Boost (Intel K-series Processors only)
• BIOS :256 (128+128) Mb Flash ROM, UEFI AMI BIOS
• Manageability :WOL by PME, PXE
• Accessories :Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x ASUS WiFi Q-Antenna
  3 x Screw packages for M.2 SSD
  Documentation
  1 x ACC Express activation key card
  1 x Quick start guide
• Operating System :Windows 11 (22H2 & later)
• Form Factor :mATX Form Factor
  9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
