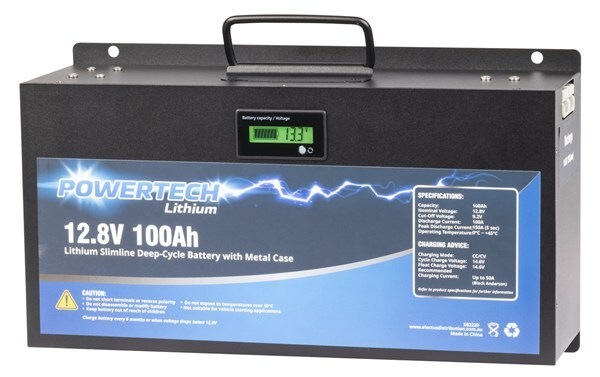

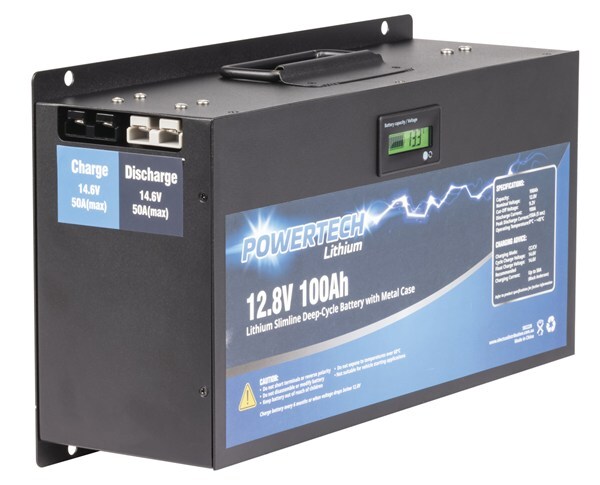

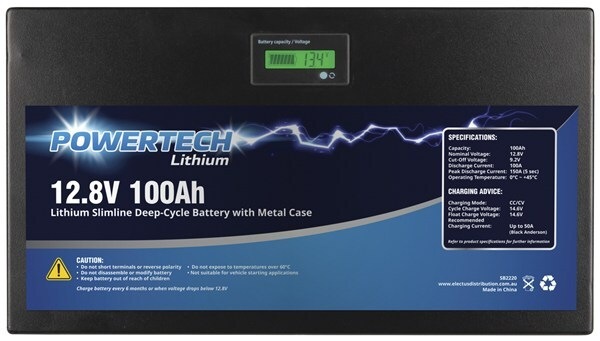

This battery comes in a sturdy mild steel black powder coated case with mounting flanges. It measures a compact 360 long x 180w (excluding flanges) x 115h. It has strong metal handle on the long side above battery display. Including steel box it weighs 13kgs – quite light for a 100 A/hr battery. On the end of one long side are 2 x flush mount 50A Anderson sockets and on the other side there is 1 x flush mount 120A Anderson Socket. On the top of the case is a battery capacity voltage display that measures 60x40mm (back lit.)
Because of the low profile of this unit, it will fit neatly behind the driver/passenger seat in a car 4WD/RV. Indeed you could put one behind each seat for 200 A/Hr. The Anderson connectors guarantee a neat wiring installation with no exposed electrical terminals. It could easily fit somewhere in a box-type camping trailer or even a small boat under a seat.
Length : 230.00000000mm |
Width : 140.00000000mm |
Height : 190.00000000mm |
Weight : 11.00000000kg |
Shape : Lithium Rechargeable Battery Cell/Pack |
Voltage : 12.80000000V |
Capacity : 100.00000000Ah |
Batteries included : true |
DG UN Number : 3480.00000000 |
DG Ship Name : 3480 - Lithium Ion Batteries |
DG Class : 9.00000000 |
DG Pack Group : II - Medium Danger |
DG Hazardous Chemical Code : 4W |
Battery Watt Hour Rating (Required for Lithium Batteries) : 1280.00000000Wh |
Dangerous Road Freight : false |
Dangerous Air Freight : true |
Warranty Policy
Please refer to the individual product listing for specific warranty terms and period. Customers need to return the products back to us for a repair or replacement.
Returns Policy
30-Day Free Returns / Change of mind. Returns postage are payable by the customers.
Estimated Delivery Time Frame: 5-7 business days
