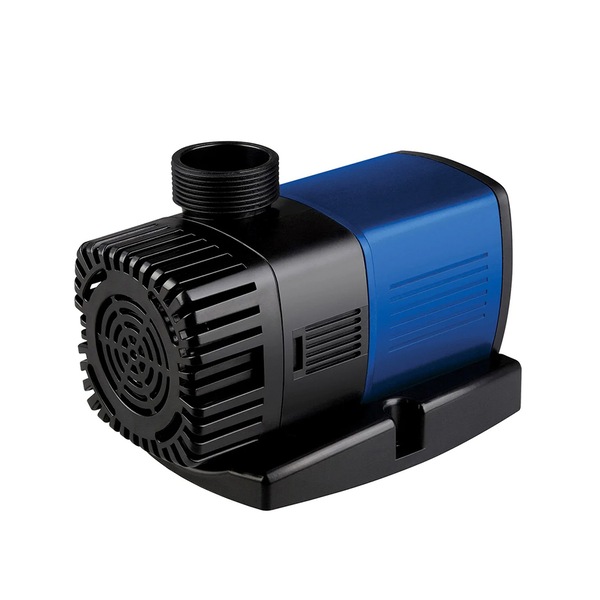

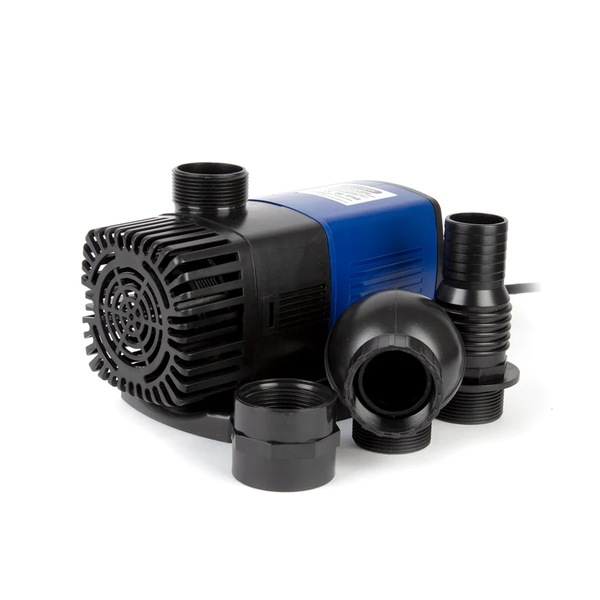

PondMAX EV9200 Submersible Pump - 105W - Max Flow: 9300L/H - 40MM Inlet & Outlet

Specifications:

• Variable Frequency Motor Technology – Extra high-speed rotations of the impellor.
• Open Vane Impeller Design – Handles large particles size up to 4mm soft sediment.
• Long-life Impellor Design – Ceramic shaft is wear-resistant and self-lubricated by water
• High Head Pressure – Due to extra high-speed rotations of the impellor.
• Energy Efficient – Exceptional low power consumption to high water flow conversion.
• Eco Friendly – Exceptional low dB noise rating with low mechanical vibration.
• Marine Compatible* see warranty disclaimer – No exposed copper.
• Tool-less Assembly - For Easy maintenance. No special tools are required.
• Rotor Stop Protection – Sensors automatically cut power in the event that the impellor stops rotating, reducing the chances of motor burnout.
• Soft Start – Rotor starts at low speed and increases over a short period of time. This reduces sudden recoil kickback on start up.
• High Performance With Very Low Power Consumption
• Variable Frequency Motor Design
• Anti-burnout & Soft Start Technology
• Tool-less Assembly for Easy Maintenance
• Fountain Kit Included
• Can Be Used Inline

• Maximum Water Flow (L/H): 9300
• Maximum Head (m): 6
• Power Consumption* (W): 105
• Volts (V): 240V
• IP Rating: IPX8
• Cable Lenght (m): 10
• Front Filter Cage (Flow Adjuster): Yes
• Front Filter Cage (Sponge Pre-Filter INC): Yes
• Inlet Ø BSP Thread (inch): 1.5" (M)
• Outlet Ø BSP Thread (Male / Female): 1.5 (M)
• Threaded Inlet Bush for Optional Block Sponge 1" - 1" Female Bsp: Yes
• Reducing Bush 1 1/2" to 1" Adaptor: Yes
• Threaded Ball Joint Outlet - 1 1/2" Male BSP: Yes
• Frequency (Hz) AC: 50

*SUBJECT TO VARIATION ACCORDING TO LOAD

Limited Warranty 2+1 Year

• The additional 1 Year Extended Warranty applies when you REGISTER with Aquatec Equipment. See enclosed for details and please retain your proof of purchase and Warranty form.
• The warranty covers only appliance defects and faulty material and workmanship within a 2-year period.
• Faults arising due to accidents, misuse, not following manufacturer’s guidelines/instructions or power surges/spikes/brownouts will not be covered.
• The system has been designed with a specific length of cable and DC Power Supply. If any other electrical supply is attached or used this warranty is void.
• The impellor set is a consumable item and is therefore not covered under warranty.
• The warranty will be void if any tampering removal of warranty labels or electrical circuitry is evident.
• The warranty will be void if the power cord is cut or damaged in any way.
• The warranty will be void if any visible signs of overheating are present.
• Loss of livestock, damage to property or personal injury caused by this product will not be covered.
• Warranty claims caused by installation faults will not be covered.
• It is the customer’s responsibility to return the faulty appliance for any warranty claim, to Aquatec.
• For any warranty to be valid, original proof of purchase must be provided.
• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
• You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
• A Warranty claim must be made within 2 years of the date of purchase.
• If used in Marine or Saltwater, due to the harsh conditions, there is only a 1-year warranty.

Extended Warranty

• The Extended Warranty period is for an additional 1 Year and commences on the expiration of the Standard Warranty period.
• Application for Extended Warranty is FREE of any registration cost to the purchaser on completion of the Extended Warranty questionnaire can be found in the box with the item purchased.
• Please keep a copy of the registration form in a safe place together with your proof of purchase (sales receipt). Both documents will be required for any claim under this extended warranty.
• Where Aquatec determines goods are being used in a manner contrary to the instructions, specifications or this Warranty, Aquatec reserves the right to terminate the Extended Warranty for such goods and will provide written notice to the purchaser.
