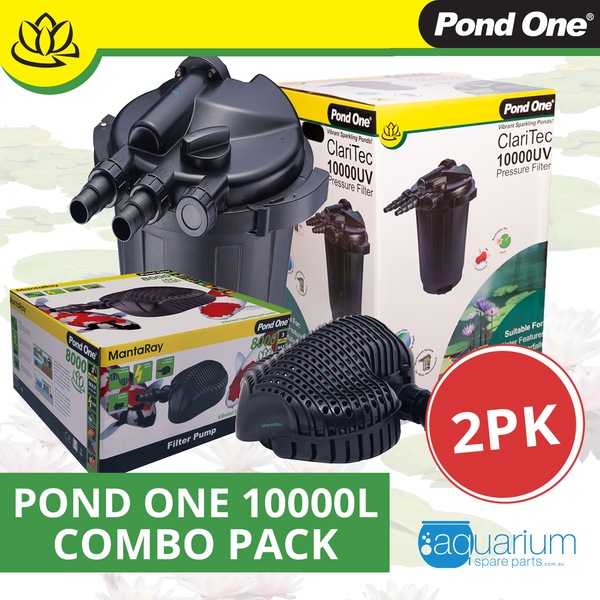

Pond One Claritec/Manta Ray 10000L Combo Pack (Up to 10000L)
Includes:

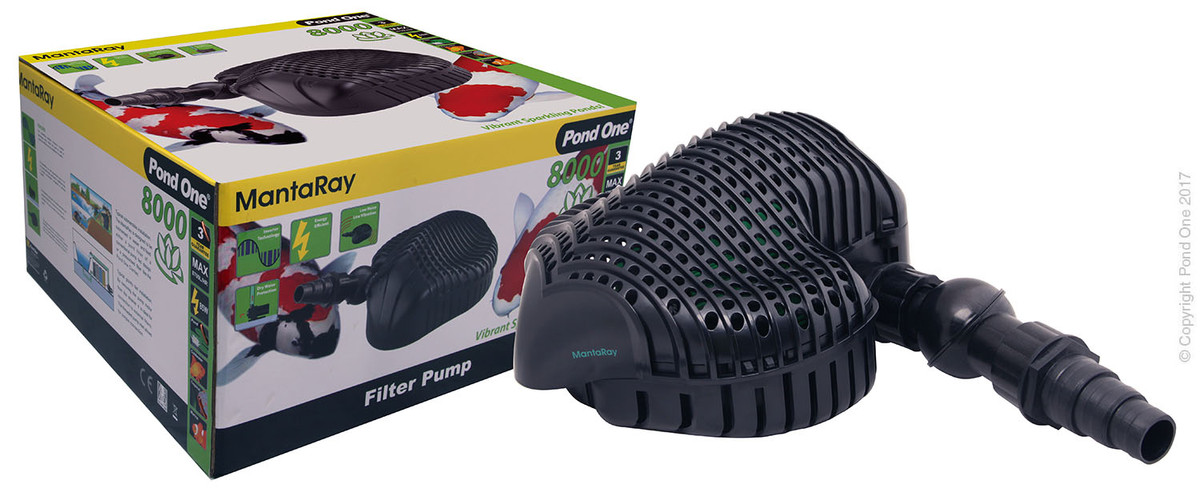

1x Pond One MantaRay 8000 Fountain Pump (93009)
The Pond One MantaRay Pond Filter Pump allows you to recreate the power of natural waterfalls in your garden. If you simply need a reliable pump that can deliver large volumes of water to your filtration system, the MantaRay is your perfect partner. Designed for the job, this pump makes maintenance easy and lets you carry on enjoying your pond. Versatility, convenience and clever thinking are standard features with the MantaRay and it is backed by a 3 Year Guarantee for your peace of mind.
- Max Output L/h 8700
- Max Lift/Head 4.5m
- Power Consumption 85w
Features & Benefits:
- The MantaRay features frequency inversion technology which allows the pump to work at maximum efficiency for the conditions it is used in.
- The MantaRay is a very economical pump to run. The pump technology used gives a significant drop in energy consumption compared to previous models.
- The MantaRay has built in dry water protection and overload protection to minimise any chance of damage to the pump caused by running without water.
- The design and precision manufacture of the MantaRay means that it runs with minimal vibration, noise and electromagnetic interference. Give your fish a quiet, stress free environment to flourish in.
- The outlet of the MantaRay is multi directional in every respect. This allows the hose to be connected in any direction, even across a pond floor. The efficient ball joint design minimises frictional resistance and maximises flow.
- Convenient and simple. The stylish yet practical construction of the all enclosing pump strainer housing is not only designed with low maintenance characteristics. It is also fast and simple to disassemble with minimal need for
tools.
- The MantaRay inverter motor features a solid particles handling impeller. The impeller housing is simple to remove for those occasional instances when cleaning is required. The whole rotor and impeller assembly is also replaceable as you would expect on heavy duty long life pumps.
- The ingenious design of the strainer minimises maintenance even further with the help of the leaf guards raised above the holes. This feature reduces the likelihood of leaves settling on the strainer, which may block the inflow of water to the pump, this maximising water flow for longer periods between cleaning.
Suitable for: Freshwater, Marine

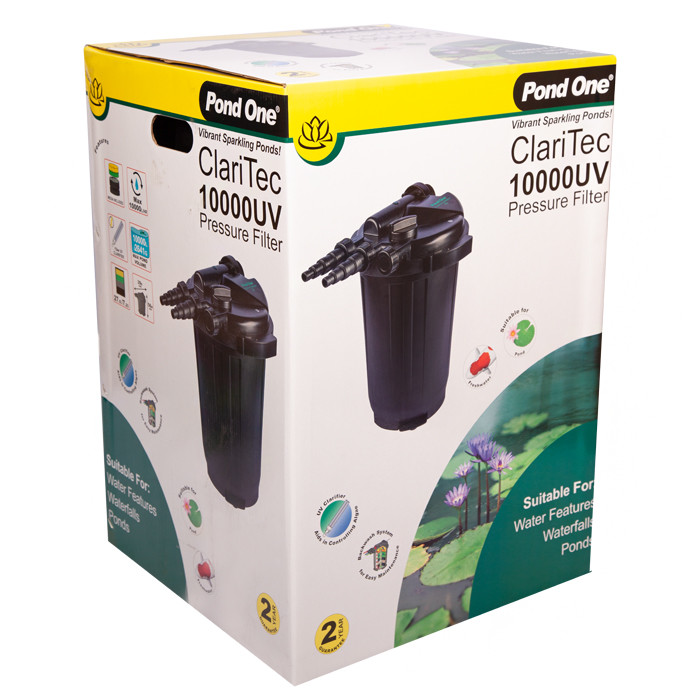

1x Pond One ClariTec 10000UV Pressurised Filter with 13W UVC (93072)
Features & Benefits:
- Solid construction
- Deep cleaning power
- Greater filter volume
- Available with and without UV-C
- Includes filter media
- Supplied with all hose connectors
- Remote UV-C ballast unit
2 + 1 Year Guarantee
Spare Parts:
- 25208S - Sponge - 25ppi Yellow ClariTec 3000/5000/10000/15000/UV 208s
- 25209S - Sponge - 20ppi Green ClariTec 5000/10000/15000/UV 209s
- 25210S - Sponge - 20ppi Green ClariTec 3000/5000/10000/15000/UV 210s
- 25211S - Sponge - 15ppi Black ClariTec 5000/10000/15000/UV 211s
- 25212S - Sponge - 15ppi Black ClariTec 3000/5000/10000/15000/UV 212s
Recommended Pond Sizes for ClariTec Filters:
- Ornamental pond with plants and few fish and less than average exposure to sun - no more than 6 hours a day full sunlight exposure : 10000L
- Typical pond with plants and average fish contents and average sun exposure : 5000L
- Heavily stocked pond with plants and larger fish or greater than average sun exposure : 2500L
Additional Info:
- Item Code: 93072
- Description: ClariTec 10000 Pressurised Filter with UV
- Max Flow Rate: 10000L/Hr
- Fitting in/out: 3/4" 1.5", 19-37mm
- UVC Power: 13W
- Capacity: 27.5L
- Filter Height: 56cm
- Filter Diameter: 39cm
- UVC Cable Length: 10
- Suggested Pump Size*: Manta 10000
*Suggested MantaRay Pumps are a minimum size. When choosing the appropriate pump size the following needs to be taken into consideration: hose length to filter, hose height to filter, hose diameter used, bends and angles in the hose to filter. All of these factors affect the end flow rate of the pump. As a guide, use the following calculations and match them to the head height values to cross reference end flow of the pump in l/ph.Head height refers to the height the pump must push water vertically to the filter however, other factors listed below also add to the ultimate head height values.
* For every 1m of pipe is equivalent to 10cm of head height.
* For every 1 size hose diameter reduced from the maximum outlet diameter of the pump is equivalent to 1m of head height.
* For every 90 degree bend in the hose is equivalent to 1m head height.* For every 45 degree bend in the house is equivalent to 50cm of head height.
