MCLELLAND PLA2FX 120W Dsp Subwoofer Amp Power Amplifier

MCLELLAND PLA2FX 120W Dsp Subwoofer Amp Power Amplifier

Be the first to review this product

Price	$806
	Collect 2418 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

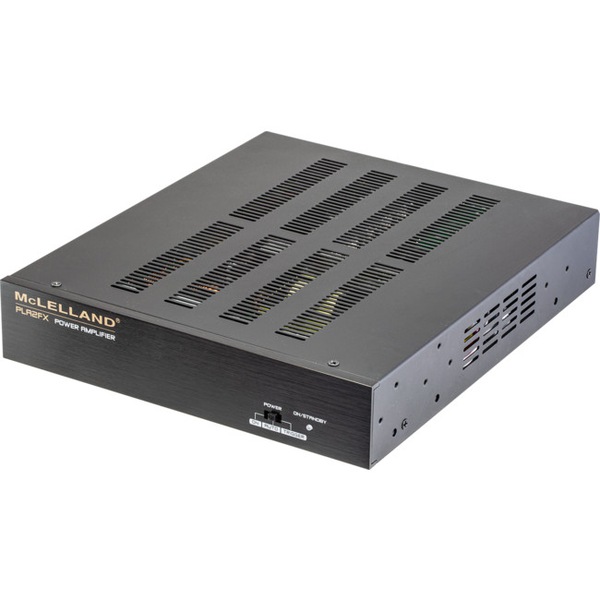

The PLA2FX power amplifier is designed to provide powerful output to speakers used in stereo sound system, 2.1 home theaters, gaming media system and some other listening applications. With Class-D output circuitry, the switching mode power supply offers high efficiency and excellent performance. PLA2FX can be used as two channels, 2.1 channels or bridge as one channel amplifier.
With the LPF switch, it could also be used as a subwoofer amplifier. Built-in DSP (Digital Signal processing) microprocessor to adjust the audio input signal digitally for any kind of speaker and music. Therefore, with its compact size and extremely flexible, the PLA2FX can be used in many different applications.

Features

Output power: 120W x 2 (@4 / 8 Ohm) 240W(Bridged)
Class D circuit design in a compact size
Built-in DSP with Ethernet interface
RCA analog audio inputs
Audio RCA PRE-OUT connector to additional amplifier
Low Pass Filter (LPF) switch sets the amplifier as a subwoofer amplifier.
Speaker output binding post connectors
Selection for Power-Up mode (ON/AUTO/TRIGGER)
TRIGGER IN/OUT could be an external remote ON/OFF
Natural cooling without Fan
Activated standby mode active after 15 minutes of no signal detected

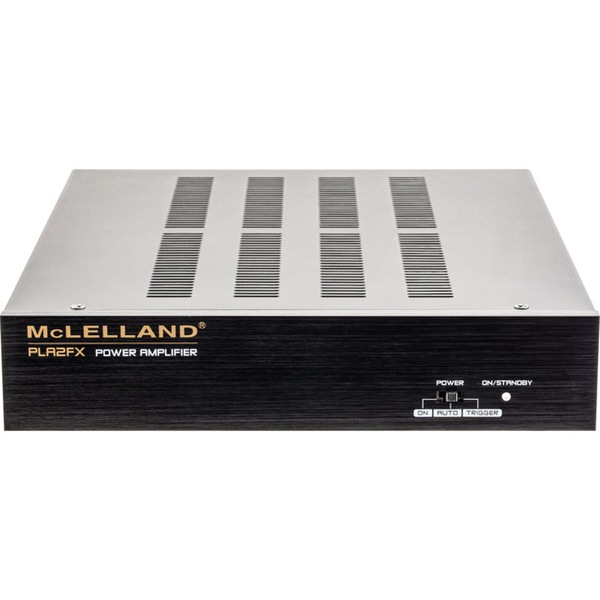

Red LED (Front Panel) to indicate Standby mode is active
Protection: Short circuit, Overheating, Overvoltage, Overcurrent

Specifications

Stereo Output : 120W x 2, 8 120W x 2, 4
Bridged Output : 240W, 8
Frequency Response : 20 Hz ~ 20 kHz, +/- 2 dB @ 4 Load
Low Pass Filter: 150 Hz
Signal to Noise : >90dB A WTD
THD: < 0.05%
Input Sensitivity : 500m V (-4 dBu)
Gain Value : 36 dB @ 8
Input Impedance : >10k, unbalanced
Maximum Input Level : 2.5V (+10 dBu)
Trigger In/Out: DC 12V

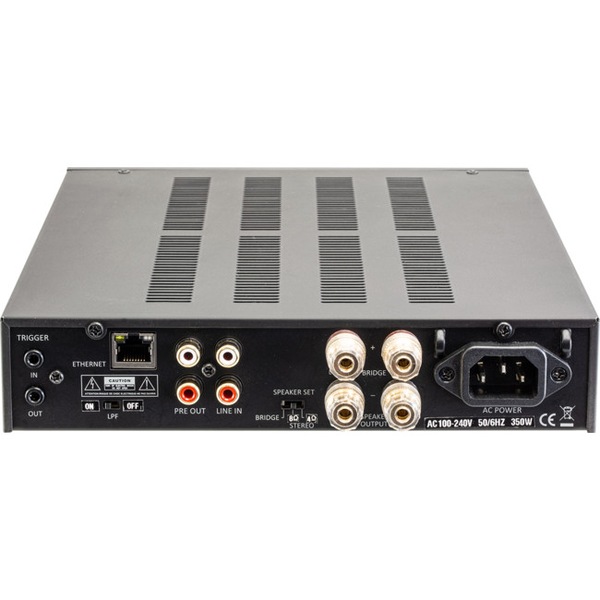

Input Connectors: RCA jacks
Trigger Connectors: 3.5 mm Jacks
Output Connectors: Binding Posts, RCA (PRE-OUT)
Power Requirements : 100 - 240 VAC, 50 - 60 Hz, 350W
Standby Power Consumption : <3.0W
Dimensions : 214mm(W) x 249.8mm(D) x 44mm(H)
Net Weight: 1.9 Kg

Weight: 3.2
