Features

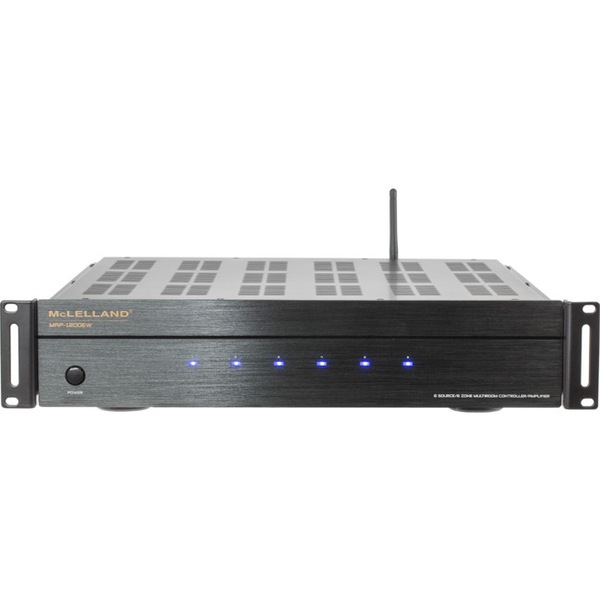

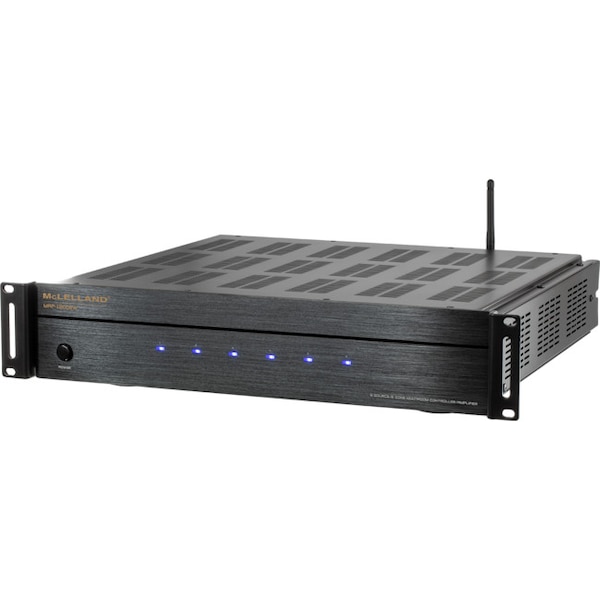

6 Zone Audio Distribution Amplifier

    Compared with all those previous models, the 5th edition, MAP1200EW now has built in both Wi-fi and RJ45 Ethernet port connections, bring your more convenience to your setup and has kept the advanced technology, which is afunctional, easy-to-install, highly compatible, expandable and user friendly audio distribution system. Few simple steps to install, it provides up to 50W @ 4 Ohm power by class D amplifier and distribute at most to 18 zones which all can be controlled by packaged keypads or IR remote controller or RS232 or mobile app! By adjusting the ASCII value, certain volume value now can be set via RS232 control.

Features
  • 6x6 Audio Matrix with 6 bridgeable zones to accommodate 1 or 2 speakers per zone
  • Output power: 50w * 2 @ 4Ohm x per zone (25w x2 @ 8Ohm)
  • High efficiency more than 85%(class D) amplification
  • Stereo/ Bridge mono output
  • Stereo/Bridge mode adjustable
  • Built-in IR receiver &IR remote controller for source select/ volume/ treble/ bass
  • 12V DC mute trigger out to external devices when systemsin on
  • 12V DC mute trigger in from external devices

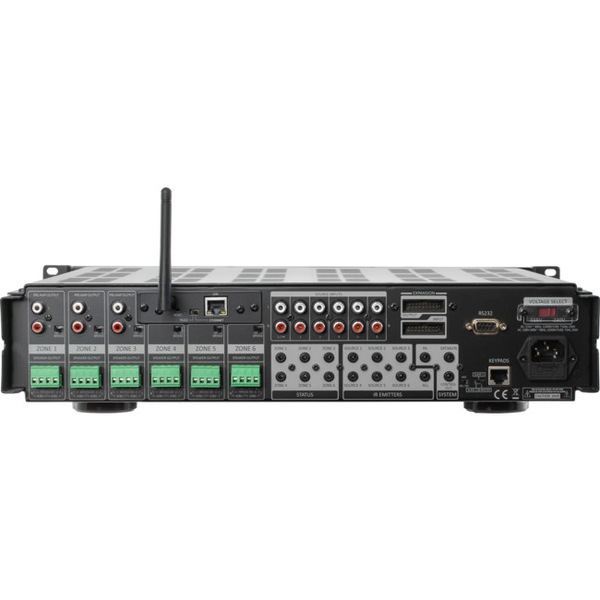

  • RS-232 port allows 2-way communication with the home automation system
  • Expandable up to 3 units for 18 zones by additional units
  • 6 LEDs for 6 ones Power on and Standby
  • Built in IR Emitter
  • Power Supply: AC115V 60Hz/ 230V 50Hz can be switched
  • 6 Keypads, 1Remote Control, 1 RJ-45 connection Hub package
  • 1 PA input jack to set all zone to source 1
  • 6 IR emitter 3.5mm mono mini phone jacks + 1 IR emitter 3.5mm mono for all output
  • 3 zone pre-amp outputs to connect external power amplify
  • Overload protection, Short circuit protection, over temperature protection
Specifications
  • Watts @ 8 Ohms 25W x 2 per zone
  • Watts @ 4 Ohms 50W x 2 per zone
  • Watts bridge 8 Ohms 100W per zone
  • S/N: >85dB AWTD
  • THD: <0.1%
  • Frequency Response: 20Hz-20KHz
  • Input Impedance:>47K Ohm
  • Input Sensitivity: 250mV
  • Output Connection: Terminal Block
  • System on Voltage: DC 12V
  • External mute voltage: DC 12V
  • Power supply: AC115V/60Hz, 230V/50Hz
  • Dimension: 42.93cm (W) x 8.89cm (H) x 41.66 (D) or 16.9" (W) x 3.5" (H) x 16.4" (D)
  • Weight: 25 lbs/ 11.34 kg

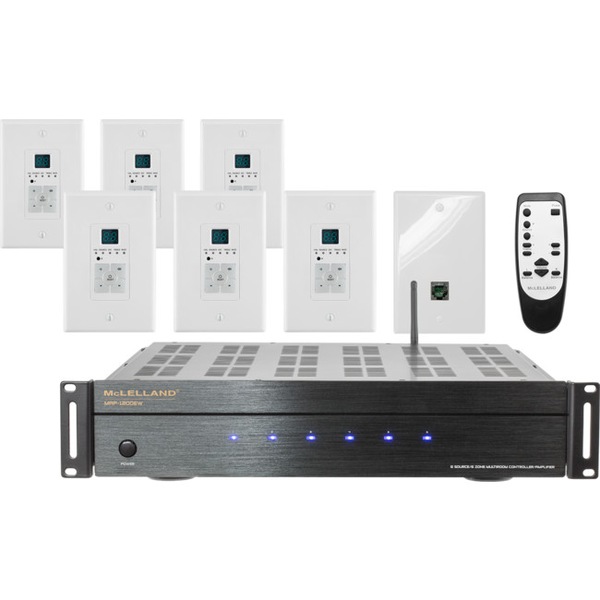

Package Contents
  • 6x6 Amplifier
  • Remote control
  • Expansion ribbon cable
  • Rack mounting ears-2(Installed On Amp)
  • Speaker terminal blocks-6(Installed On Amp)
  • Keypad connection hub and decora wall-plate
  • PoE keypads with built-in IR RX and decora wall-pates-6
  • AC power cable
  • Product Manual

FAQs
Q: What is the name of the control APP?
A: The name of the APP is MAP-800/1200US. compared with the previous version, MAP1200EW only require one APP to control.
Q: I am having trouble with the AUTO search to connect the unit in my network.
A: You can put your MAP1200EW ip address manually. if you don't know your IP address of the unit, you can find it via another APP named Fing-network scanner or from your router DHCP client list, look for the device name "link".
Q: Can I use different mobile or tablet to control the MAP1200EW?
A:Yes, it is suggested to use the same device to control the unit, as mobile phone or tablet will have to regain the access of the MAP1200EW after every change.
Q: Can I expand the MAP1200EW?
A: Yes, you can expand up to 2 extra units using the expansion cable supplied to make it to 6 sources and 18 zones in total and controlled by one app.
