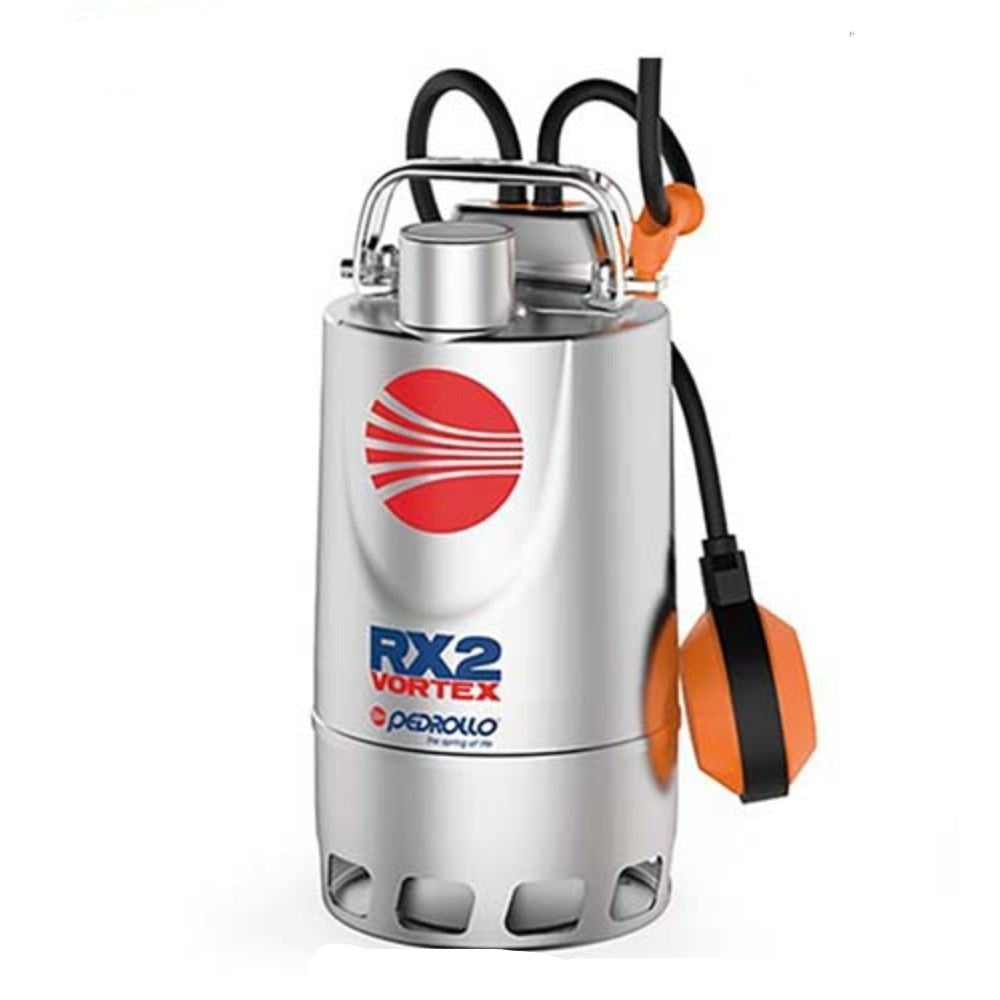

Pedrollo SS304 Vortex Submersible Pump With Float Switch 240V 0.37 KW 180 L/Min

 Application

• The RX-VORTEX series pumps are suitable for use with dirty
• water. The design solutions that have been adopted, such as the
• complete cooling of the motor, guarantee the reliability of the
• pump. They are suitable for use in domestic applications such as
• for discharging dirty water containing suspended solids.

Features

• 10 m maximum immersion depth(with a sufficiently long power cable)
• Maximum liquid temperature +50 °C (Maximum liquid temperature +90 °C for a maximum of 3 minutes intermittent service)
• Passage of solids:
• up to Ø 20 mm for RX 2/20, RX 3/20
• up to Ø 40 mm for RX 4/40, RX 5/40
• Suction level:
• 25 mm above ground level for RX 2/20, RX 3/20
• 50 mm above ground level for RX 4/40, RX 5/40
• Continuous service S1

Construction

• PUMP BODY Stainless steel AISI 304 with threaded port in compliance with ISO 228/1
• SUCTION FILTER Stainless steel AISI 304
• DIFFUSER Stainless steel AISI 304
• IMPELLER Stainless steel AISI 304 VORTEX type
• MOTOR CASING Stainless steel AISI 304
• MOTOR CASING PLATE Stainless steel AISI 304
• MOTOR SHAFT Stainless steel EN 10088-3 - 1.4104
• SHAFT WITH DOUBLE SEAL AND OIL CHAMBER
• Seal Model STA-12R SIC
• Shaft Diameter Ø 12 mm
• Materials
• Stationary ring Ceramic
• Rotational ring Silicon carbide
• Elastomer NBR

The product image shown is for illustration purpose only
