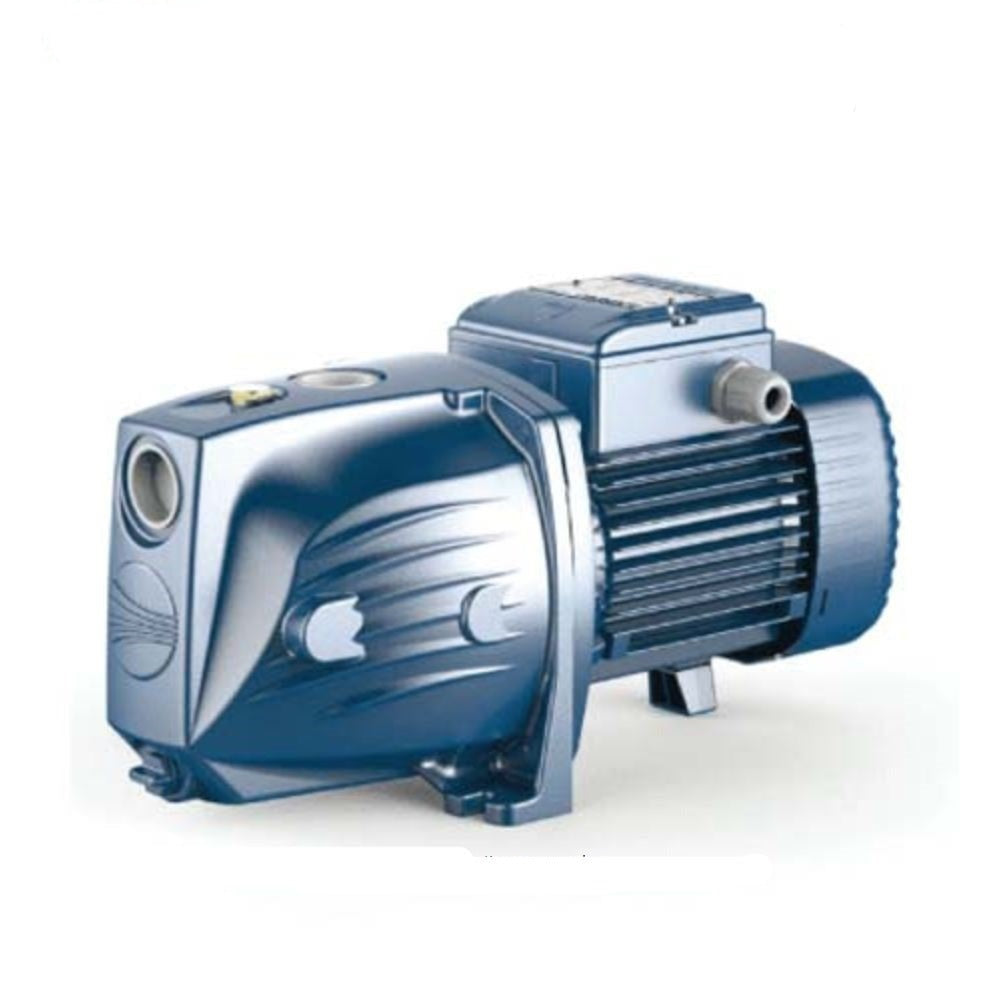

Pedrollo Self Priming Centrifigul Irrigation Pump With EP2 Pressure Controller

Pedrollo Self Priming Centrifigul Irrigation Pump With EP2 Pressure Controller

Hurry! 10 items left!

Price	$1033.98
	Collect 1033 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Specifications

Pump Model	Kw	Hp	Max Flow L/Min.	Max Head (m)	Voltage	Connection Outlet (mm)	Inlet	Size(mm) Height	Width	GW	Phase
JSWm 2A-EP2	1.1	1.5	70	60	240	25	25	200	389	14.7	Single

Application

Water supply for Agricultural, Domestic, Commercial and Industrial applications.
Irrigation
Water Transfer
Wash Down
Heating and Cooling Systems

Features

Construction

1 PUMP BODY Cast iron, complete with threaded ports in compliance with ISO 228/1
2 BODY BACKPLATE Stainless steel AISI 304
3 NOZZLE ASSEMBLY Noryl FE1520PW
4 IMPELLER Stainless steel AISI 304
5 MOTOR SHAFT Stainless steel AISI 431
6 MECHANICAL SEAL
Seal Model ring AR-14
Shaft Diameter Ø 14 mm
Materials
Stationary Ceramic
Rotational ring Graphite
Elastomer NBR

The product image shown is for illustration purpose only

SKU: JSWm 2A-EP2
