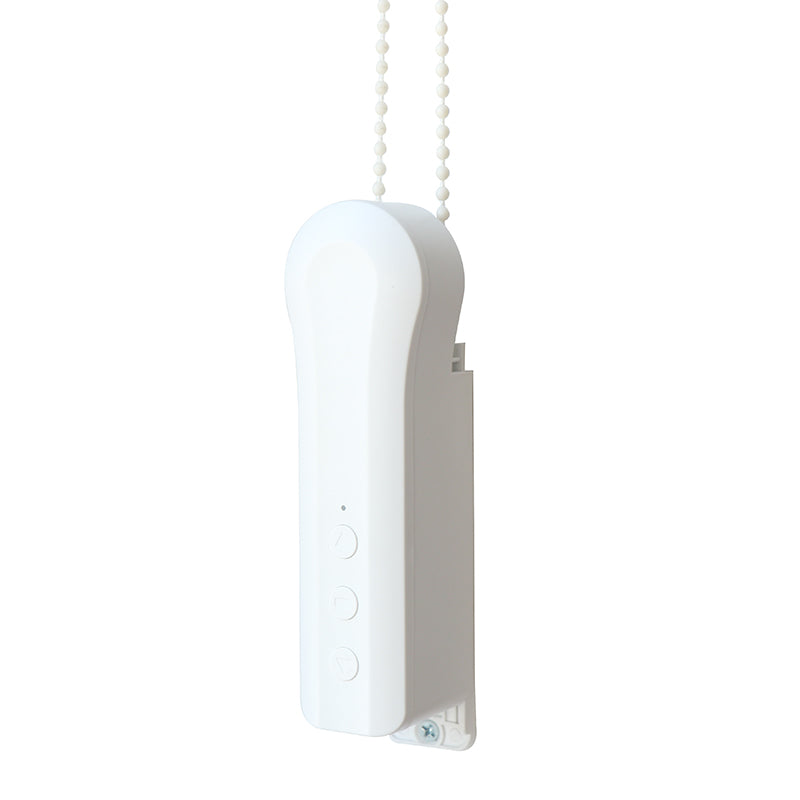

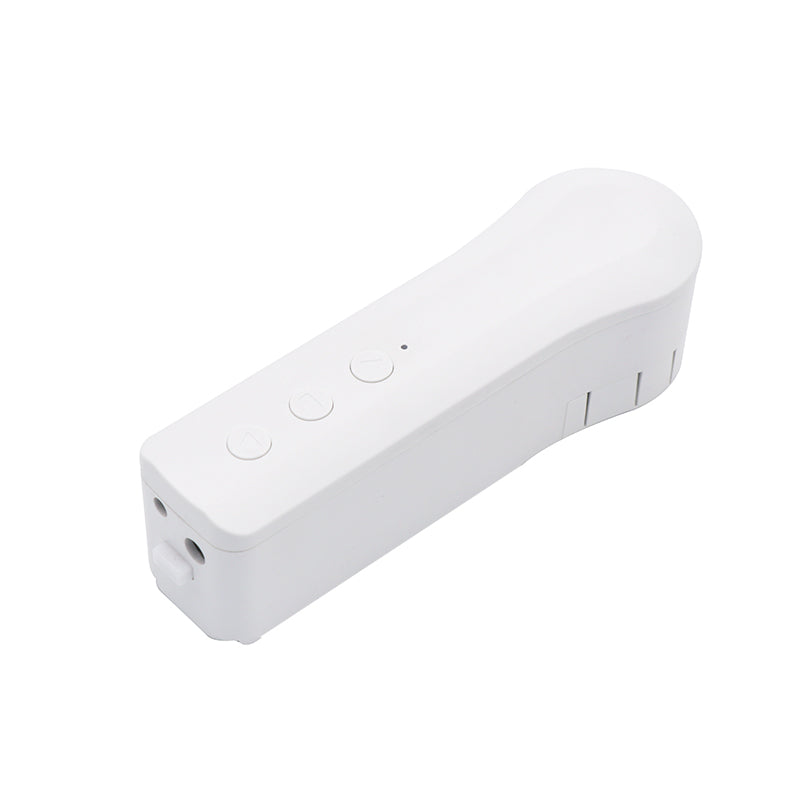

Oz Smart Zigbee Blind V3 with Solar
Upgrade your window coverings with the Oz Smart Zigbee Blind V3, featuring the advanced Blinds Controller YH004. This smart solution integrates seamlessly with your Zigbee network, offering both convenience and versatility for your home automation needs.
Key Features:
Zigbee Compatibility: Enjoy reliable Zigbee connectivity for seamless integration with your existing smart home system. The Blinds Controller YH004 supports Tuya Zigbee, making it easy to add and control your blinds through a Zigbee network.
Simple Installation:

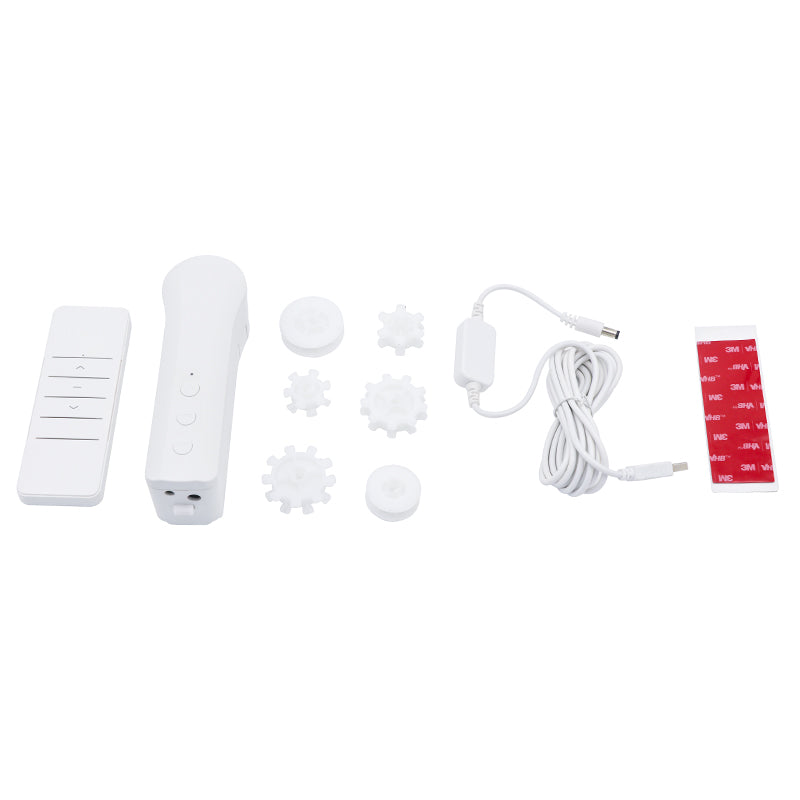

- Mounting Options: Choose between 3M adhesive or screw fixing (cylindrical hole up) for secure installation.
- Easy Setup: Complete installation in just 3 to 5 minutes with straightforward DIY setup. Follow the included illustration for guidance.
Advanced Functionality:
No Tubular Motor Needed: Convert your existing manual blinds into smart blinds without requiring a tubular motor.
Voice Control: Compatible with Google Home, Amazon Alexa, and other popular voice assistants for hands-free operation. (Compatible Zigbee Hub Required)
Long Battery Life: Equipped with a long-lasting battery that can be extended with a solar panel for added convenience.
Smart Scheduling: Set custom schedules for opening and closing your blinds, such as opening at sunrise and closing at sunset.
Remote Control: Manage your blinds from anywhere with internet access, allowing you to control them even when you're at the office or away from home.(Compatible Zigbee Hub Required)
Easy Operation and Maintenance:

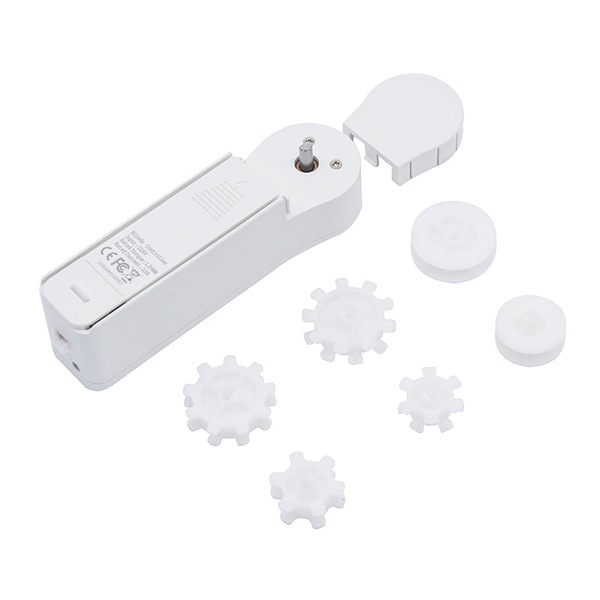

Gear Adjustment: Select the appropriate gear for your chain (refer to the installation card) and adjust tension as needed to avoid noise.
Reset and Remove: Easily reset the device if necessary by pressing and holding the Stop button until the red light flashes. Remove the device by sliding it out of the groove.
Specifications:
Dimensions: 155 x 45 x 45 mm (6.10 x 2.17 x 2.17 in)
Battery: 7.4V Lithium battery (optional), size: < 80 x 25 x 11.5 mm (3.14 x 0.78 x 0.45 in), XH2.54 - 2P plug.
Maximum Blinds Size: Compatible with various sizes depending on the gear used.
Torque: 50-55 RPM
Frequency: 433.92 MHz + ZigBee 3.0 (Tuya)
Power Supply: USB plug (5V, 1-3A) or 12V/12.6V adapter (1-2A)

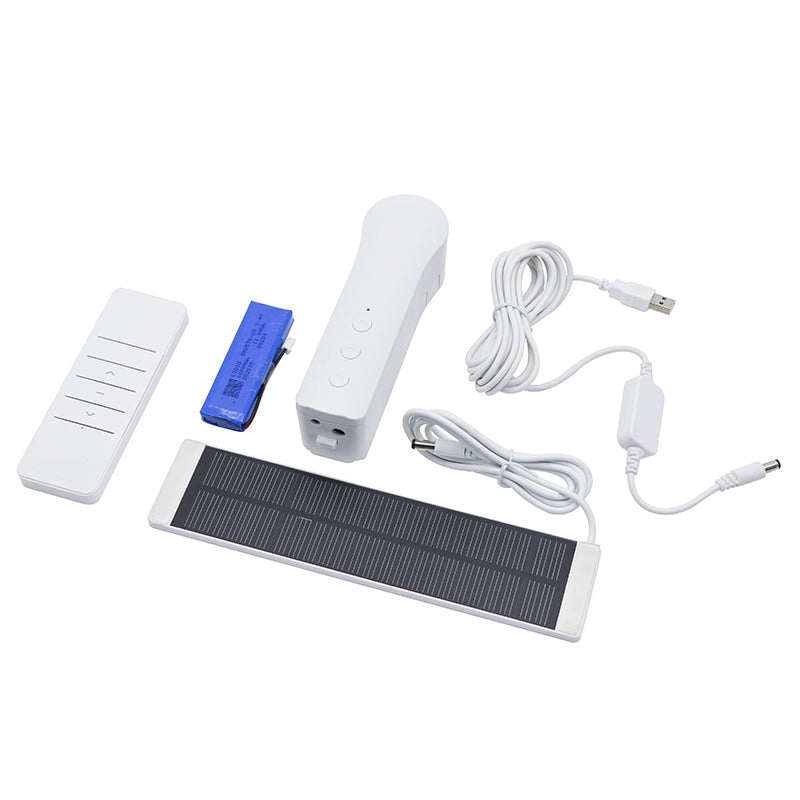

Included Solar panel
Installation Instructions:
- Pull down the blinds to the bottom of the chain and select the suitable gear.
- Mark the position on the installation card and hang the gear on the end of the chain.
- Press and hold the Stop button until the red light comes on steady, then set the limits for the device.
Notice:
- Ensure the chain is correctly adjusted to prevent noise.
- For battery replacement, remove the bottom cover and slide out the battery cover.
Enhance your home automation with the Oz Smart Zigbee Blind V3 and enjoy the convenience of smart, controlled blinds with minimal effort.
