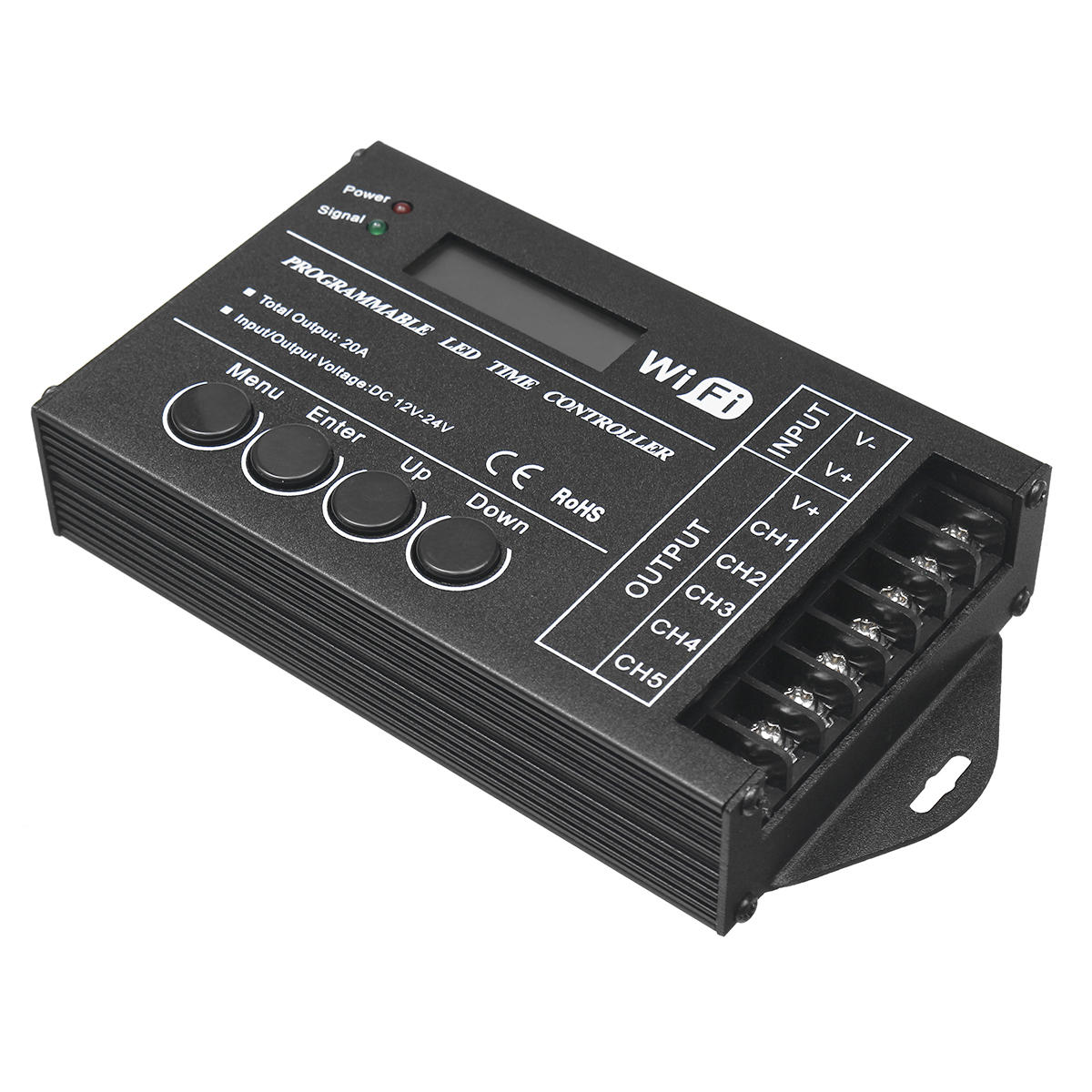

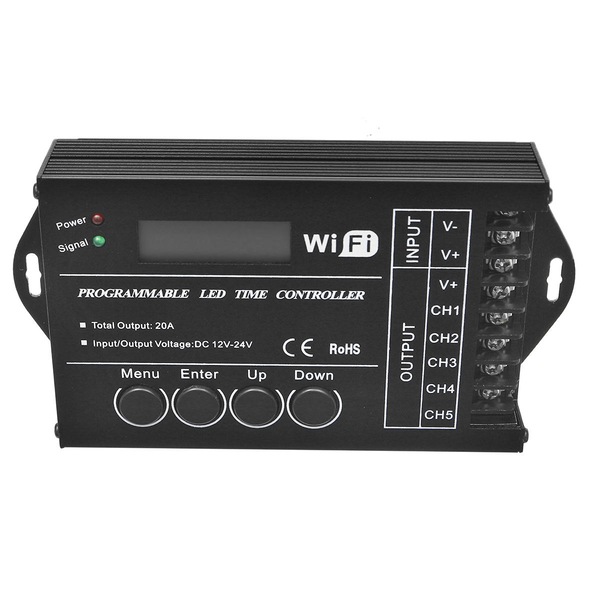

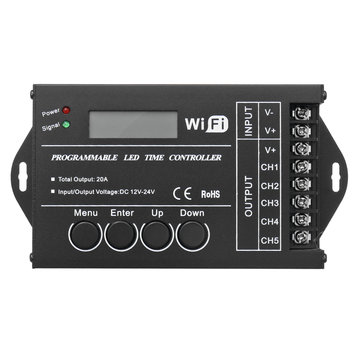

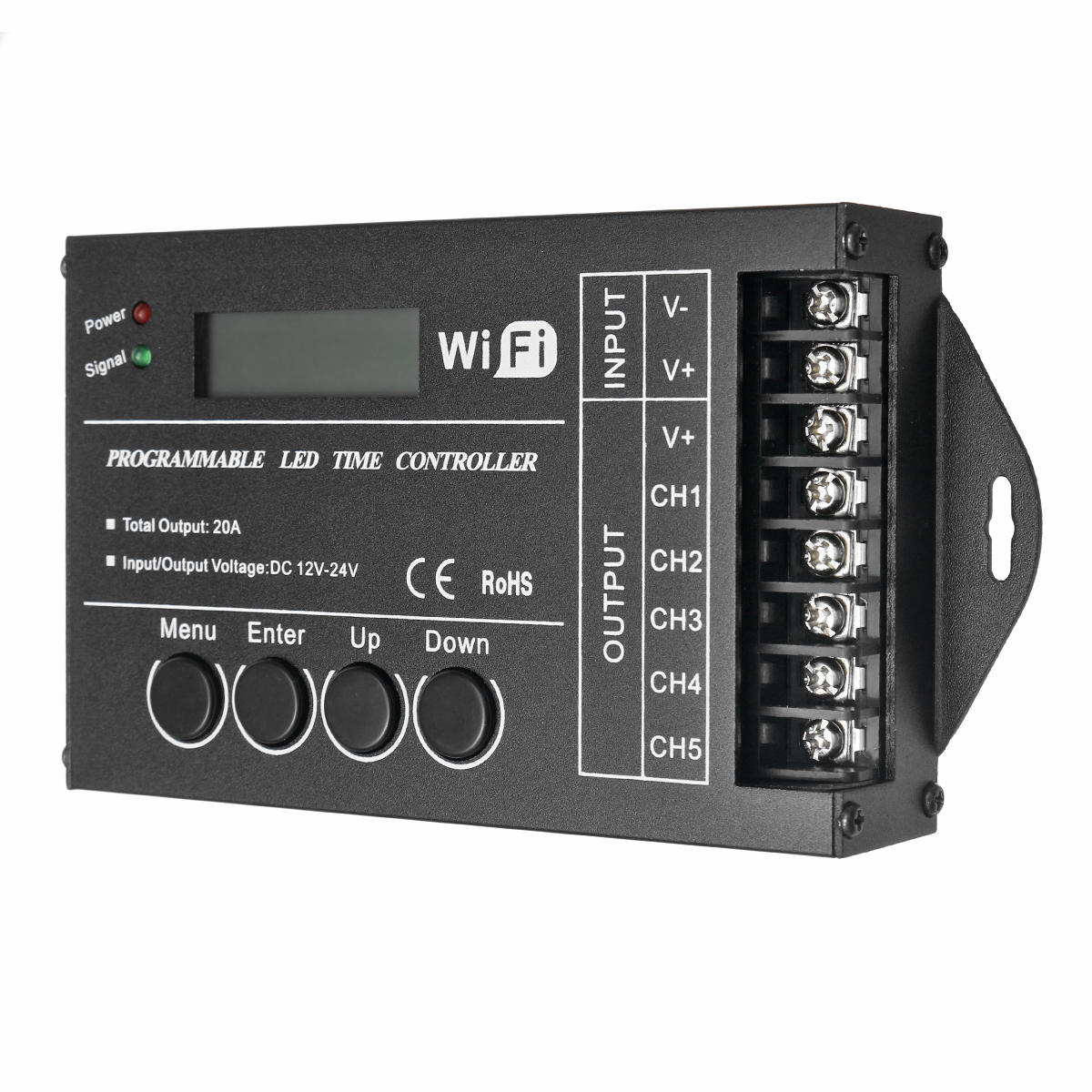

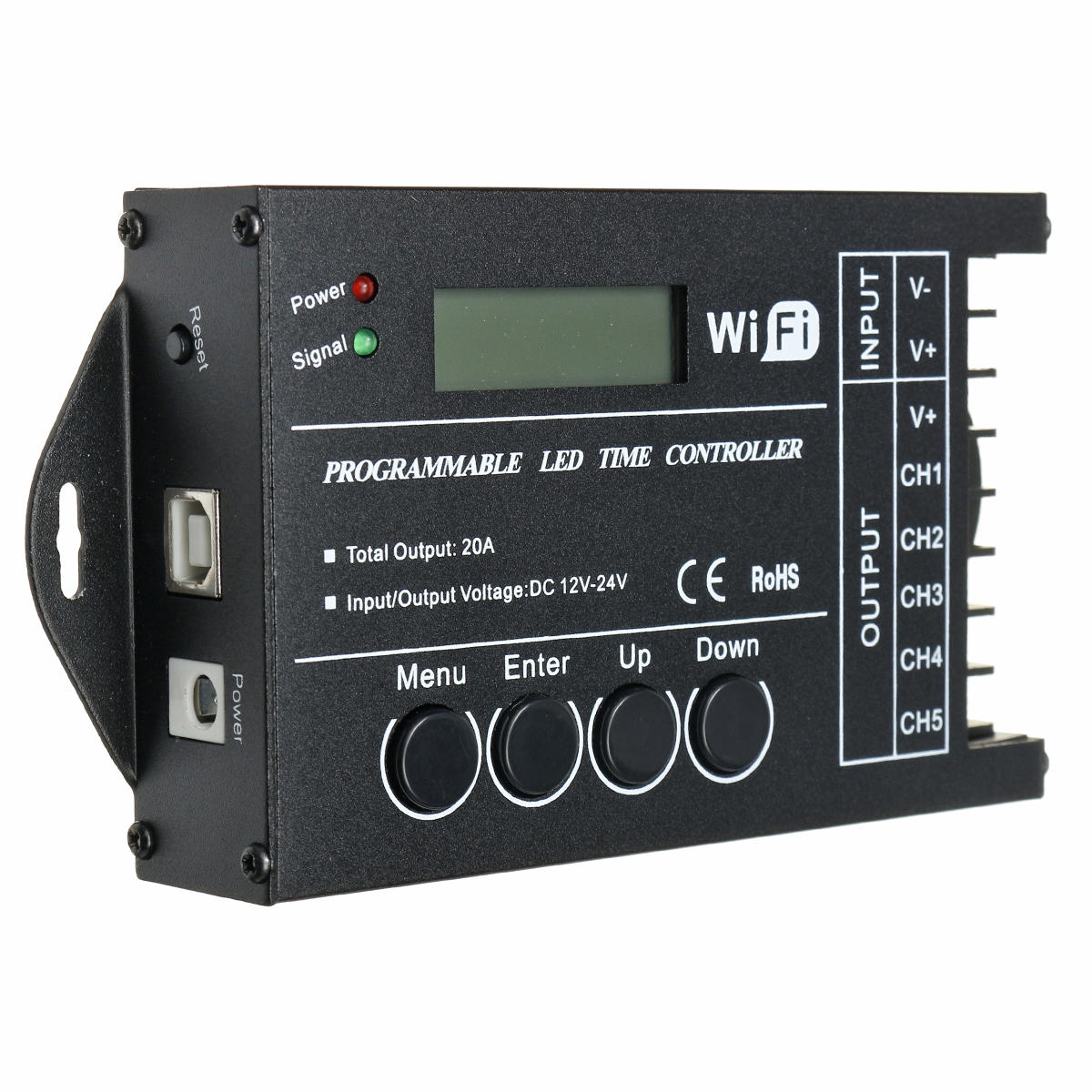

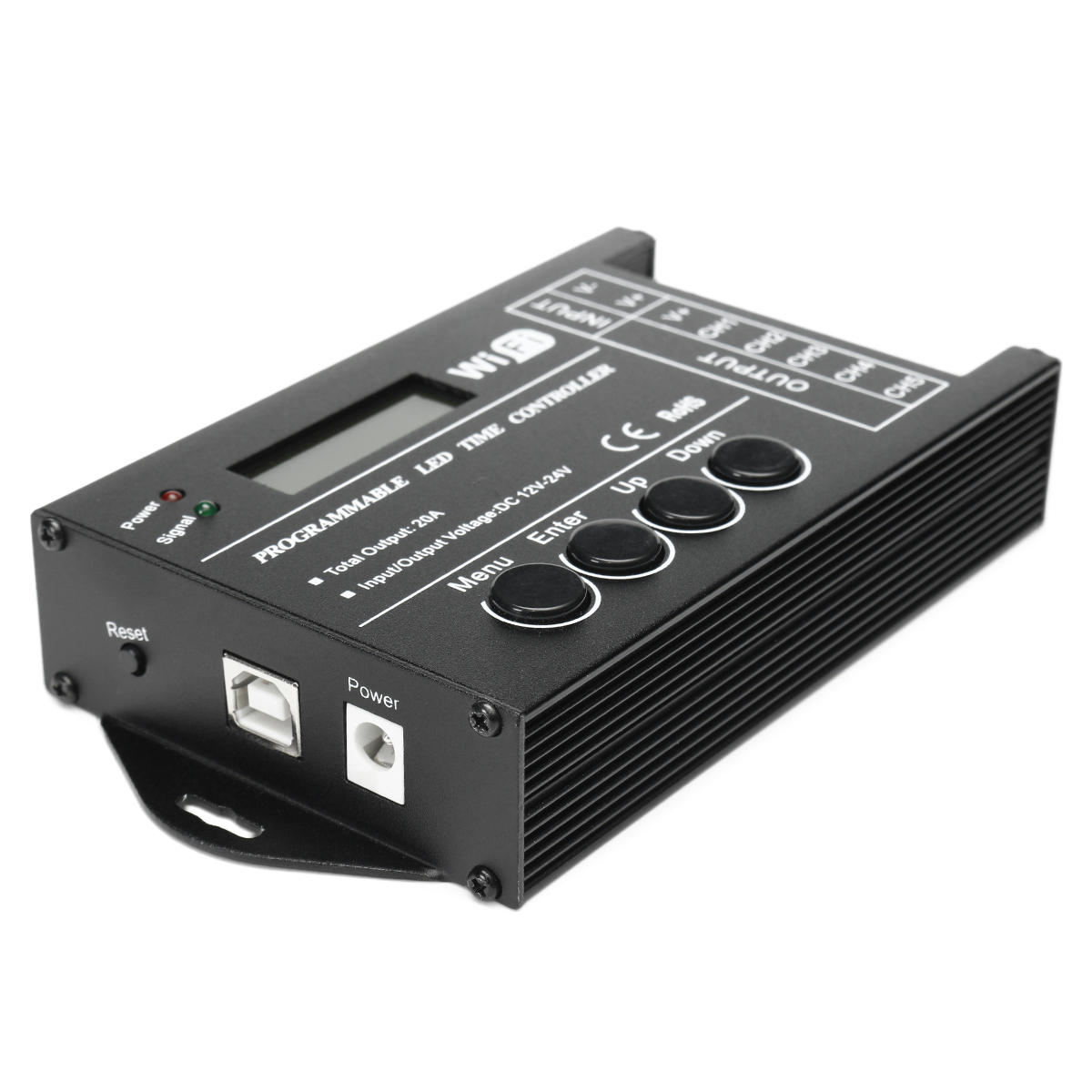

Programmable Led Time Wifi Control Instrument Tc421 Dc12V-24V Common Anode Led Work Light Controller

Specifications:

Name: TC421 DC12-24V Wifi Time Led Controller Programmable 5 Channels

Color: Black

Material: ABS

Size: 150 x 78.5 x 26mm

Working temperature: -20~60�?/span>

Supply voltage: DC 12-24V

Static power: <1W

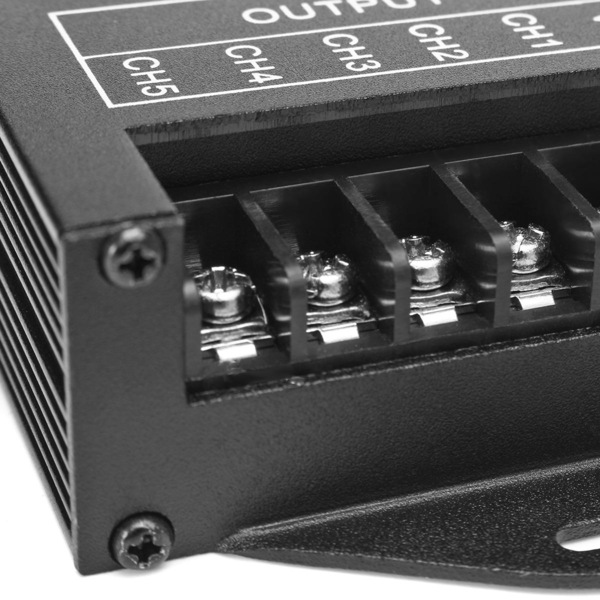

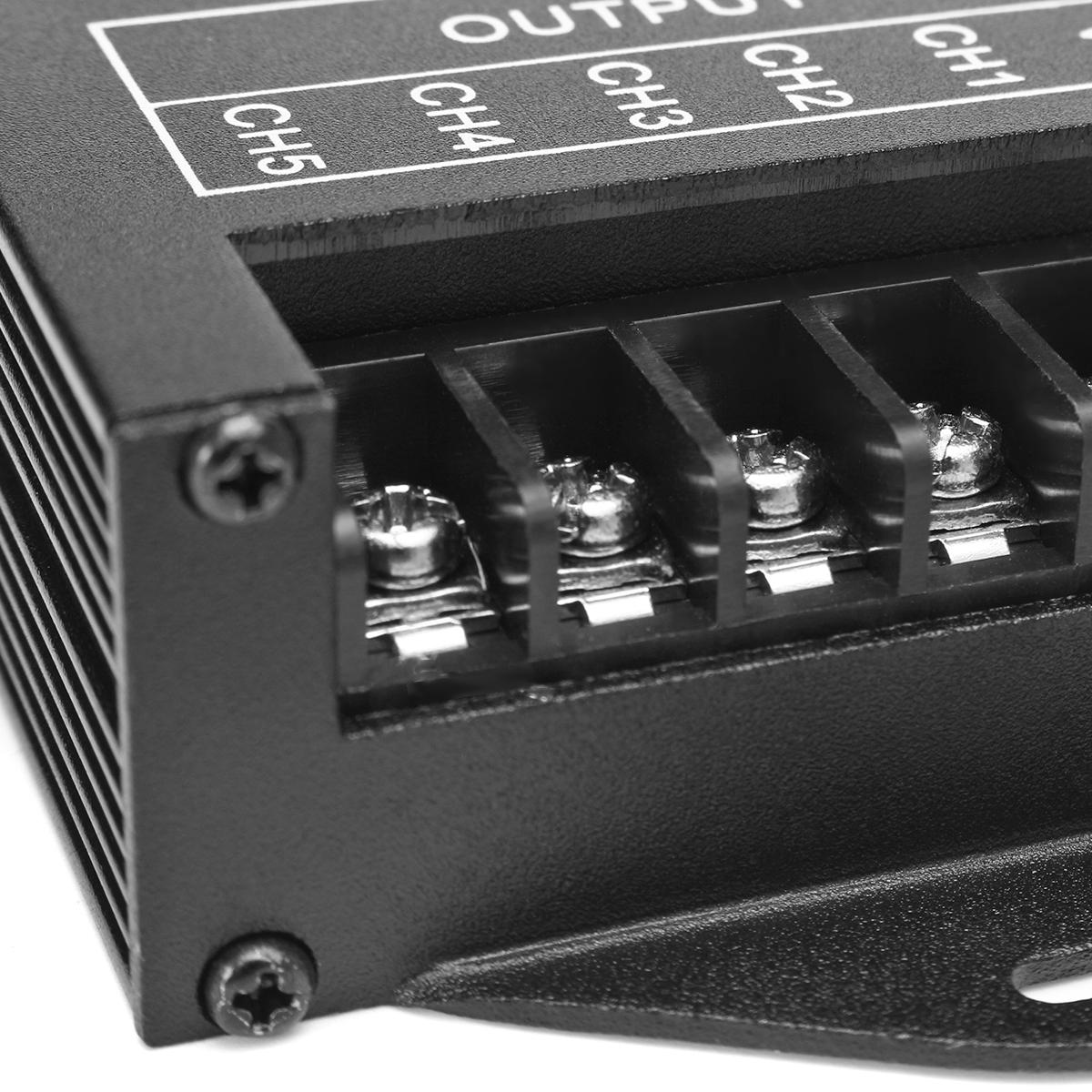

Output: 5 channels

Max load current: 20A

Connecting mode: Common anode

The controller output frequency: 600Hz

Feature:

- This controller can control load of led changing effect no more than five channels.

- It can be used in the occasion of the plant lights, light box advetising, stage, home decoration, etc.
- You can set the mode effect for a certain period of time, and edit multiple mode and delete redundant mode, can be directly preview
mode.
- If you want to see the schedule mode effect after editing, you can use fast sowing function of upper. Because there is no delete function of the upper host, so the mode name display space will come into blank as long as you execute delete.
- There is an upper computer in the programmable time controller to make the load output change over time, you may customize schedule mode they want through the upper PC or APP client.

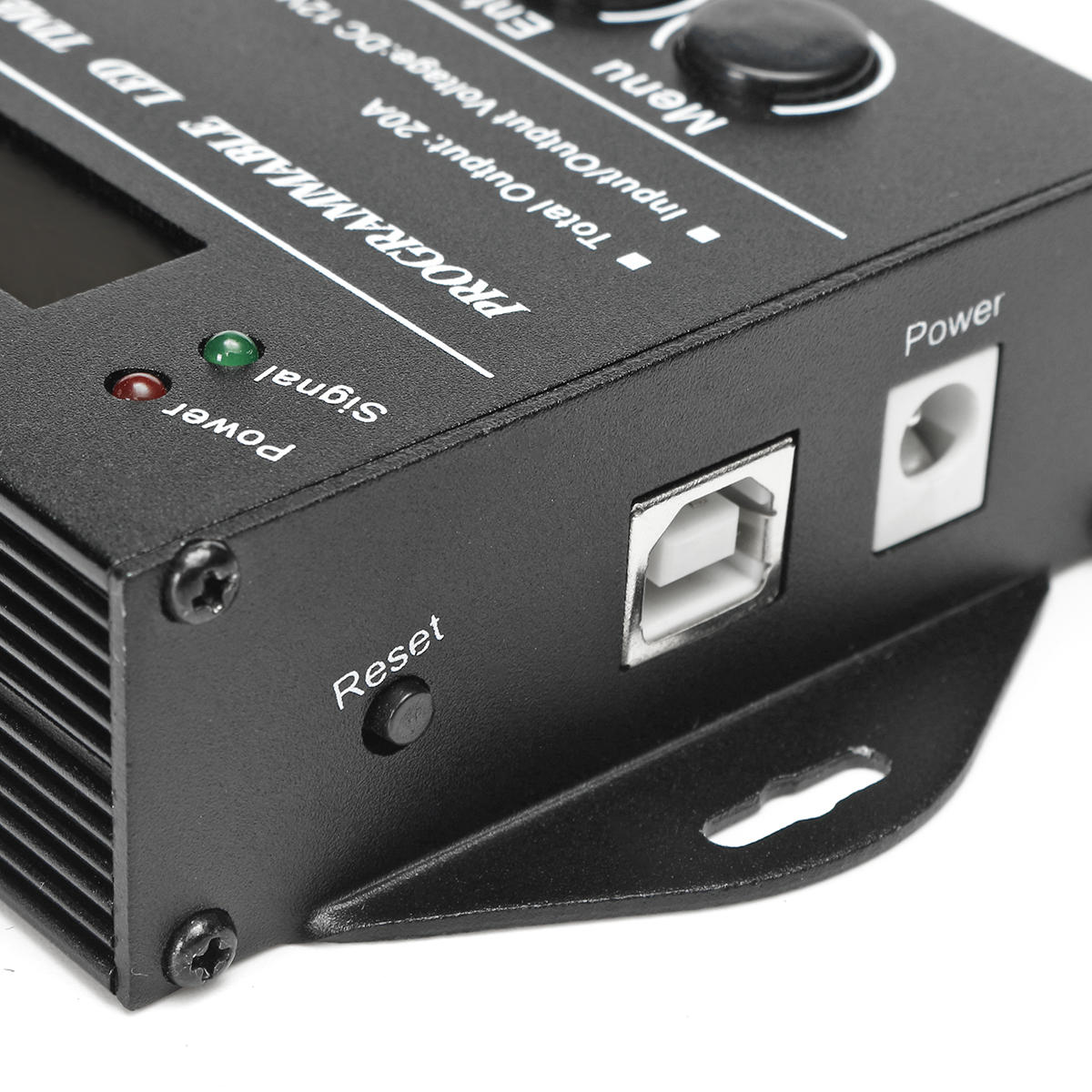

- Then through the USB port or Wifi to download required schedule to the controller. The upper PC and mobile phone APP to the client in addition to the function of editing schedule mode, it also can be setup time for the controller because of synchronous clock function of upper host.

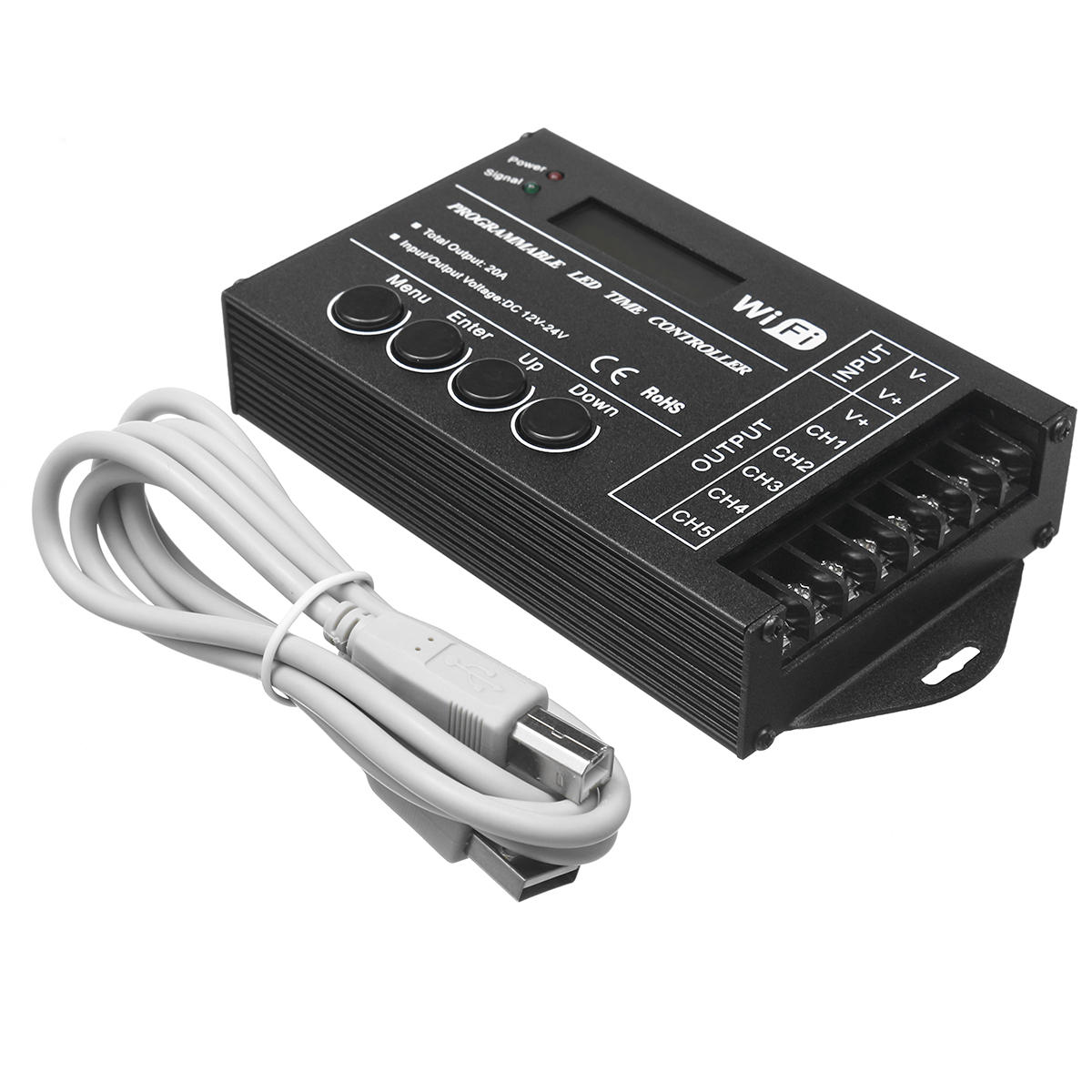

Package included:

1 x Controller

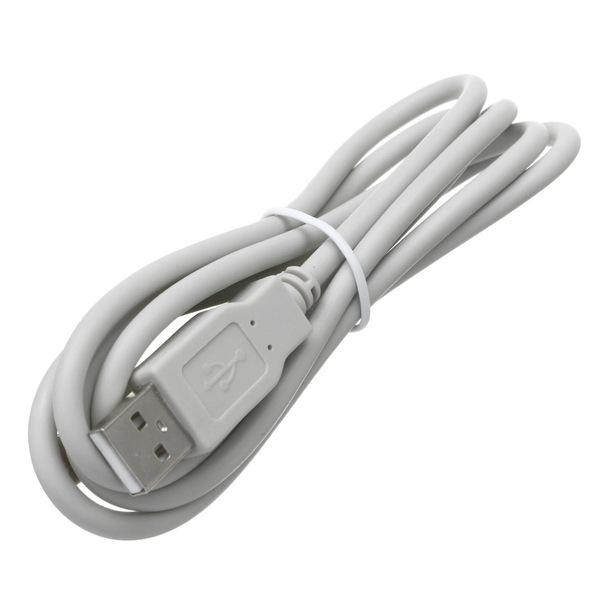

1 x USB Cable

1 x CD-ROM

1 x User Manual
