Chipset | INTEL Z890 |
CPU Support | Intel(R) Core(TM) Ultra Processors (Series 2) LGA 1851 Socket |
Memory | 4x DDR5 UDIMM, Max Capacity: 256GB |
Memory Speed | 8800 - 6400 (OC) MT/s 6400 - 4800 (JEDEC) MT/s |
Memory Overclocking | Supports Intel(R) XMP 3.0 Dual-Controller Dual-Channel mode |
Onboard Graphics | 1x HDMI(TM) 2.1 (4K 60Hz) 1x DisplayPort 1.4 (4K 60Hz) 1x Type-C DisplayPort (Thunderbolt 4, 4K@120Hz / 8K@60Hz) |
PCIe Slots | 4x PCI-E x16 Slots: PCI_E1 (PCIe 5.0 x16, from CPU) PCI_E2 (PCIe 3.0 x1, from Chipset) PCI_E3 (PCIe 4.0 x4, from Chipset) PCI_E4 (PCIe 4.0 x4, from CPU) |
Audio | Realtek(R) ALC897 Codec 7.1-Channel High Definition Audio |
Storage | 3x M.2 Slots: M.2_1 (PCIe 5.0 x4, from CPU) M.2_2 (PCIe 4.0 x4, from Chipset) M.2_3 (PCIe 4.0 x4 / SATA, from Chipset) 4x SATA 6G |
RAID Support | SATA: RAID 0, 1, 5, 10 M.2 NVMe: RAID 0, 1, 5 |
Thunderbolt | 1x Thunderbolt 4 Port (Rear) Supports up to 40Gbps (Thunderbolt) Supports USB4 (20Gbps) Supports USB 3.2 (10Gbps) Supports 8K Display |

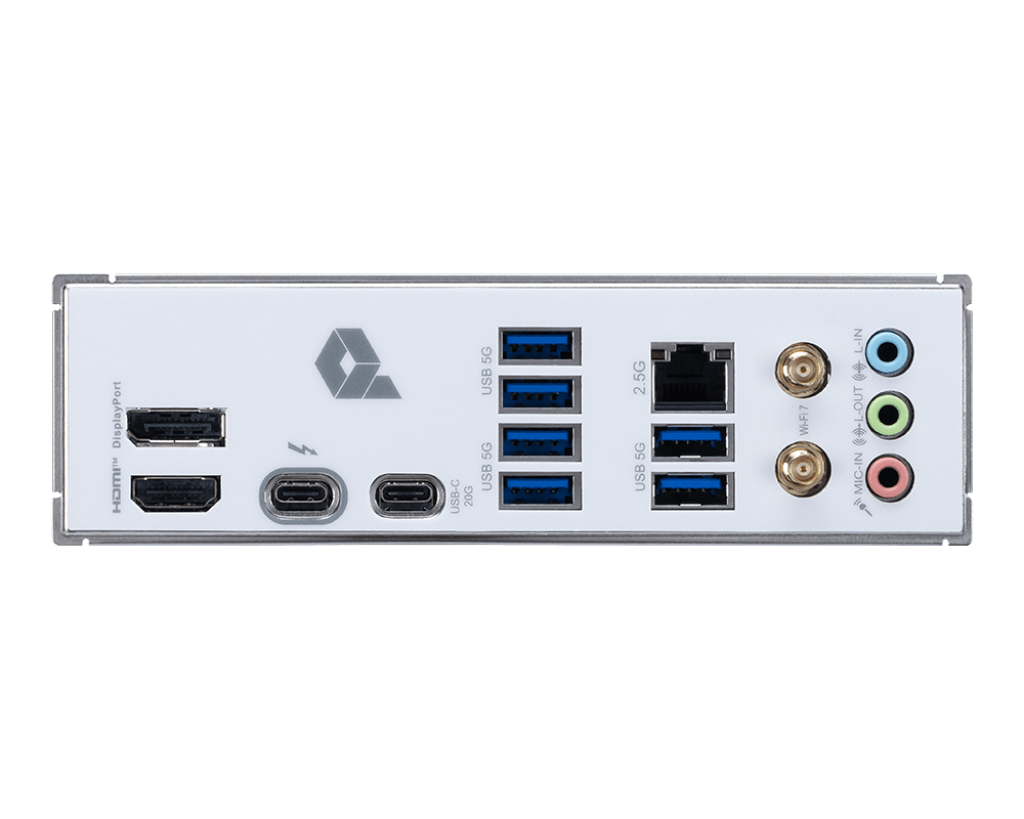

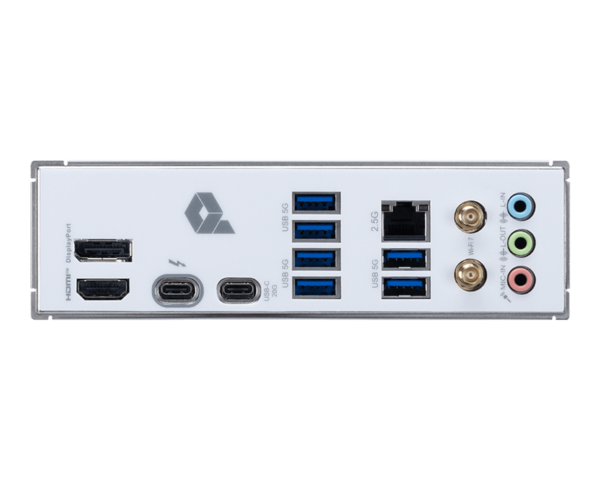

USB Ports | Front: 4x USB 2.0 2x USB 5Gbps Type-A 1x USB 20Gbps Type-C Rear: 6x USB 5Gbps Type-A 1x USB 20Gbps Type-C |
LAN | Realtek(R) 8125D 2.5Gbps LAN |
Internal I/O | 1x Thunderbolt 5 Card Connector (JTBT5) 1x ATX Power Connector 2x CPU Power Connector 1x PCIe Power Connector (8-pin) 1x CPU Fan 1x Combo Fan (Pump/Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller Connector (JDASH) 3x Addressable V2 RGB LED Connectors 1x RGB LED Connector (JRGB) 1x TPM Pin Header (Supports TPM 2.0) |
Wireless LAN & Bluetooth | Intel(R) Wi-Fi 7 Supports MU-MIMO TX/RX (2.4GHz / 5GHz / 6GHz, up to 5.8Gbps) Supports 802.11 a/b/g/n/ac/ax/be Bluetooth(R) 5.4 (Windows 11 24H2 Ready) |
LED Features | 4x EZ Debug LED |
