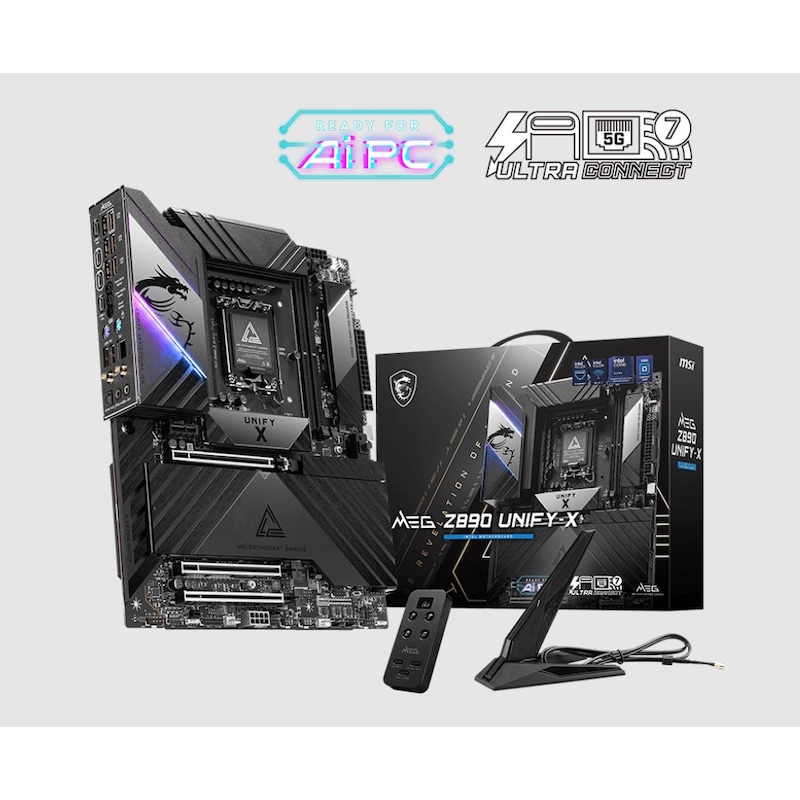

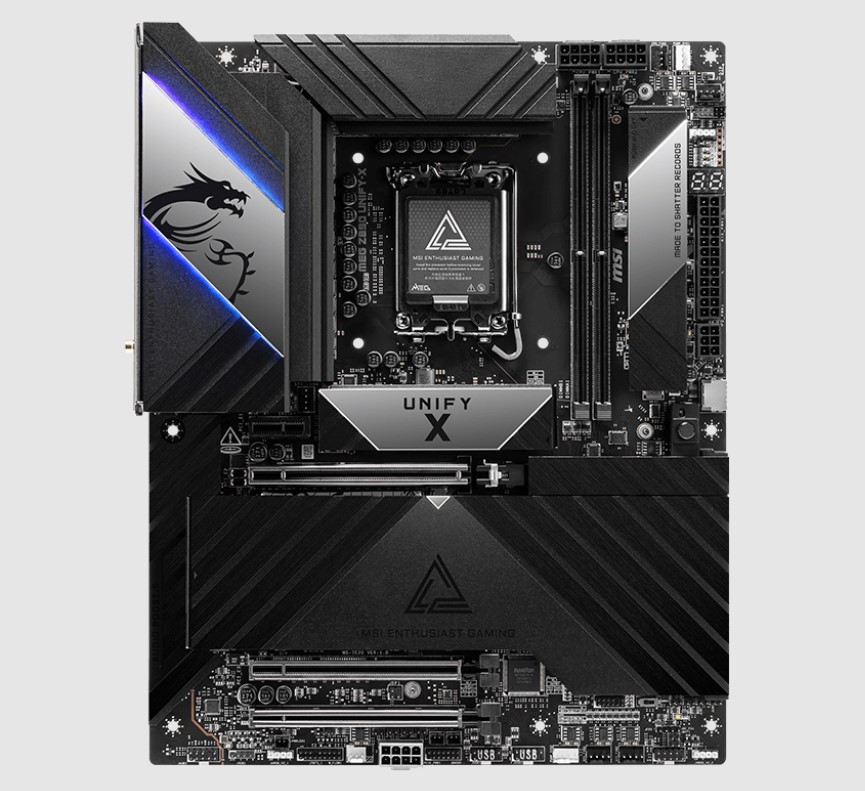

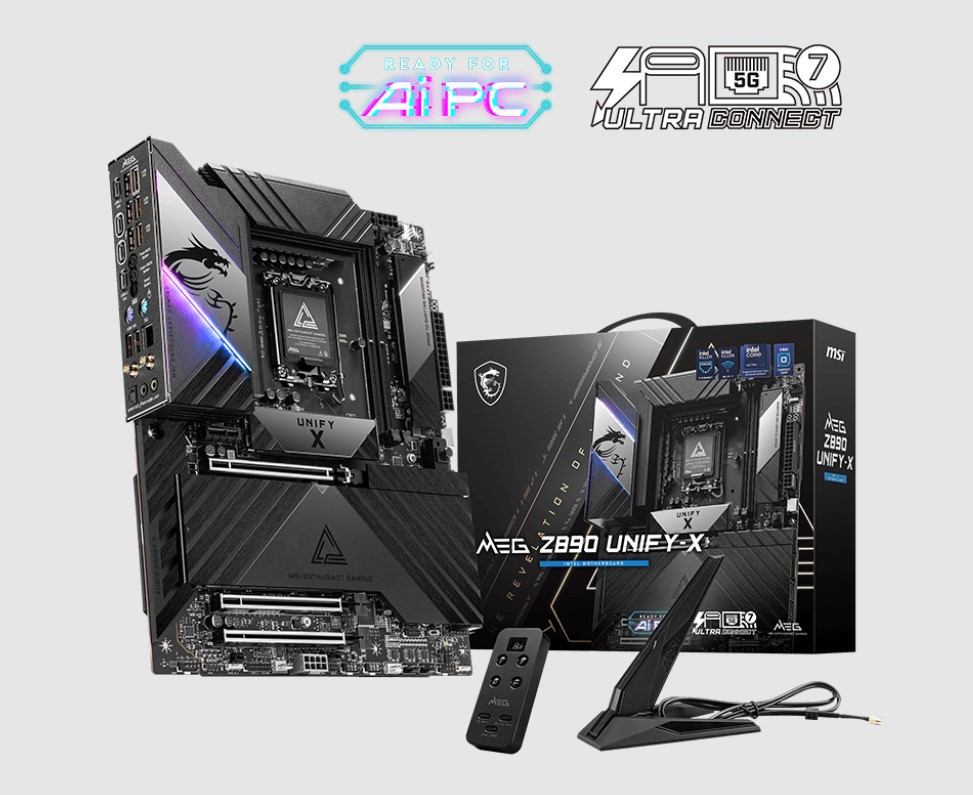

MSI MEG Z890 UNIFY-X, INTEL Z890, 2x DDR5 128GB, 3x PCI-E x16 slot, 1x PCI-E x1, 6x M.2,6x SATA, 4x USB 2.0, Intel(R) Killer(TM) BE1750x Wi-Fi 7
Chipset INTEL Z890
CPU Supports Intel(R) Core(TM) Ultra Processors (Series 2) LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
* 1DPC 1R Max speed up to 9600+ MT/s
* 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel(R) POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel(R) XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Onboard Graphics 2x Type-C DisplayPort
Thunderbolt(TM) 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Slot
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage
6x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
6x SATA 6G

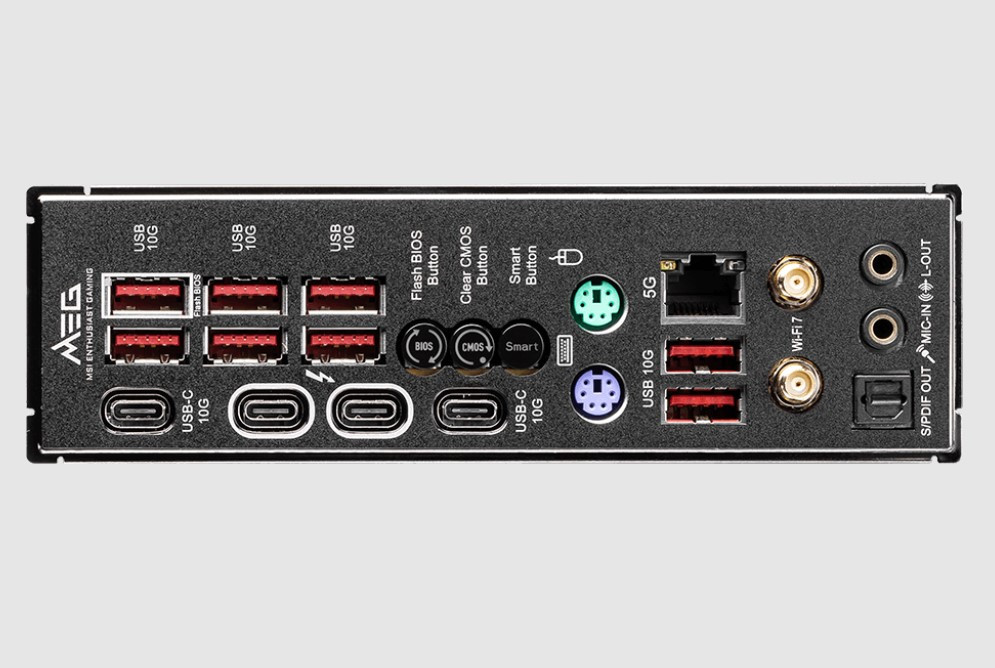

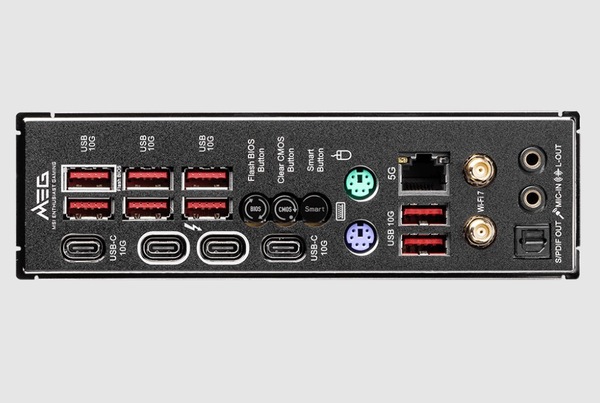

USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN 1x Intel(R) Killer E5000B 5G LAN
