MSI MAG 750W Power Supply 80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP

MAG A750GL PCIE5
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design

MAG - UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.


ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.


DUAL-COLOR 16-PIN CABLE
The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the patented pending Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX


LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 450W of power to PCIe 5.0 graphics cards.


80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.


COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
*The photo is only for illustration


ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.


ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
*The photo is only for illustration

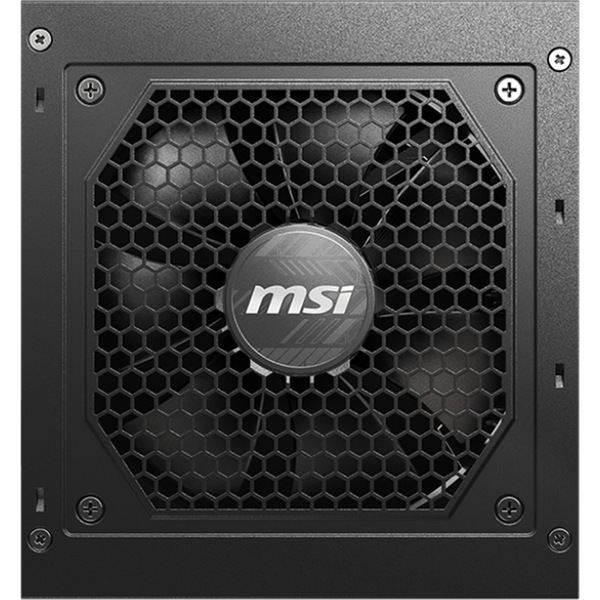

FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
*The picture is for illustrative only.


DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.


THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.


PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- UVP Under Voltage Protection
- SCP Short Circuit Protection
CONNECTORS

EFFICIENCY RATING
80 PLUS Gold (up to 90%)

MODULAR
Yes (full modular)

FAN SIZE
120 mm

FAN BEARING
Fluid Dynamic Bearing

DIMENSIONS (DXWXH)
140 x 150 x 86 mm

PFC TYPE
Active PFC

INPUT VOLTAGE RANGE
100~240 VAC

POWER WATT
750W

POWER EXCURSION
1500W (*up to 200% of the PSU's rated power for 100µs)

INPUT FREQUENCY RANGE
47-63Hz

PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP

ATX (24 PIN)
1

EPS (4+4 PIN)
2

PCI-E 5.0 (16 PIN)
1 (450W)

PCI-E (6+2 PIN)
3

SATA (15 PIN)
8

MOLEX (4 PIN)
4

FDD (4 PIN)
1
- MPN: MAG A750GL PCIE5
GTIN: 824142319239
