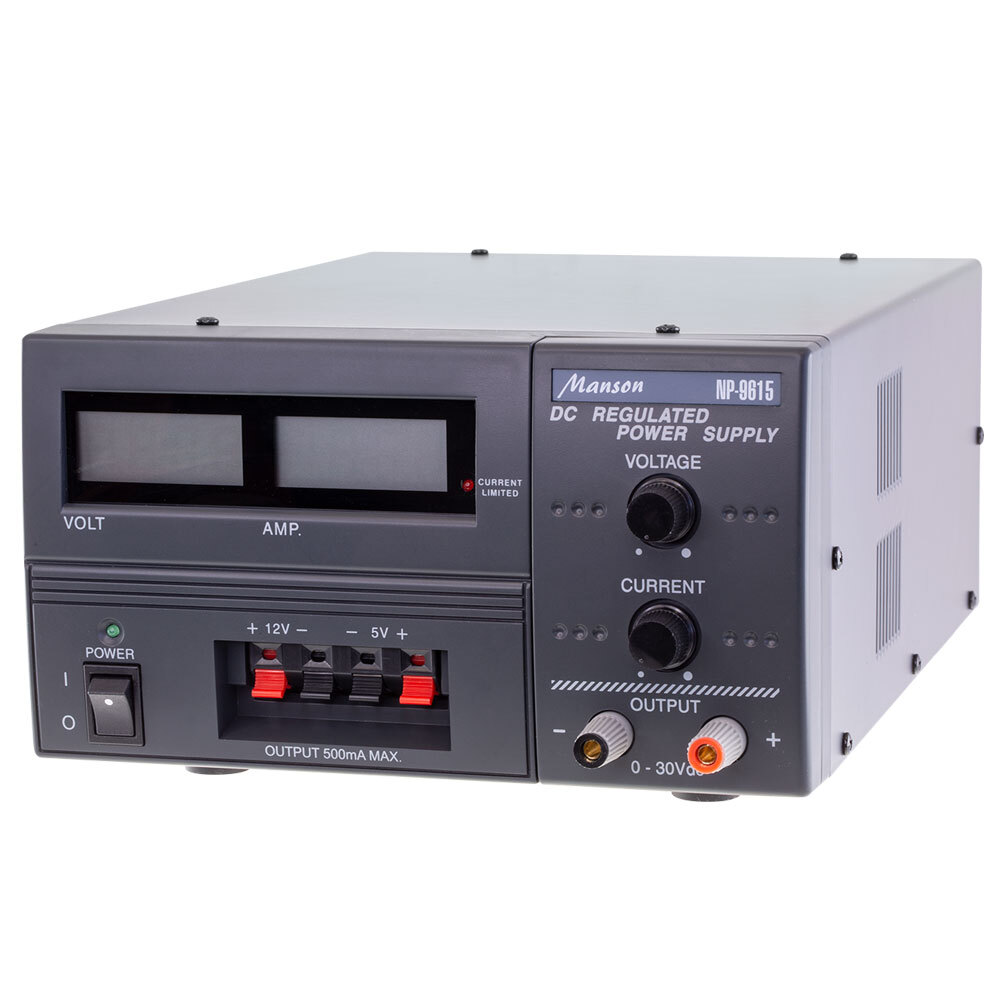

Manson 5AMP 0-30V DC Power Supply Digital Bench Top Dark Grey is a completely solid-state, compact, well regulated, constant voltage power supplies suitable for service field, hobby & telecommunication equipment use. It provides three different voltages of output for different usage.
The NP-9615 is designed for general electronic servicing, school electronics, laboratory use and for the hobbyist. Can be used as either a constant voltage supply with current limiting or as constant current source with voltage limiting. The NP-9615 has three independent outputs, two are of fixed voltage and one adjustable voltage.
Features:
Overload and Short Circuit Protection: Prevent the unit from overload and short circuit. When the unit is under the condition of overload or short circuit, the output current will be limited.
Independent 5V, 12V Easy Snap-On output terminals to make it easy to use for TTL and CMOS circuit testing. The grounding of the output terminals is independent that the output can be connected in series to make a higher output voltage.
Current Limiting LED Indicator
Adjustable Current Control
Overload and Short Circuit Protection
Galvanized Steel Case
Polycarbonate Front Panel
Outputs:
0-30 V adjustable
5 V 500 mA Snap-On
12 V 500 mA Snap-On
Colour: Dark Grey
AU/NZ Plug
Output Voltage: 0-30VDC
Rated Output Current: 5A
Fixed Output Voltage 1: 5V DC 0.5A Continuous 1A Maximum
Fixed Output Voltage 2: 12V DC 0.5A Continuous 1A Maximum
Ripple & Noise (r.m.s.): 5mV
Load Regulation: 30mV
Line Regulation: 10mV
Input Voltage: 230Vac/50Hz (120Vac/60Hz or on request)
Meter Type: LCD
V meter Range: 3 Digit Display
A meter Range: 3 Digit Display
Meters' Accuracy: 1%+2 Digits

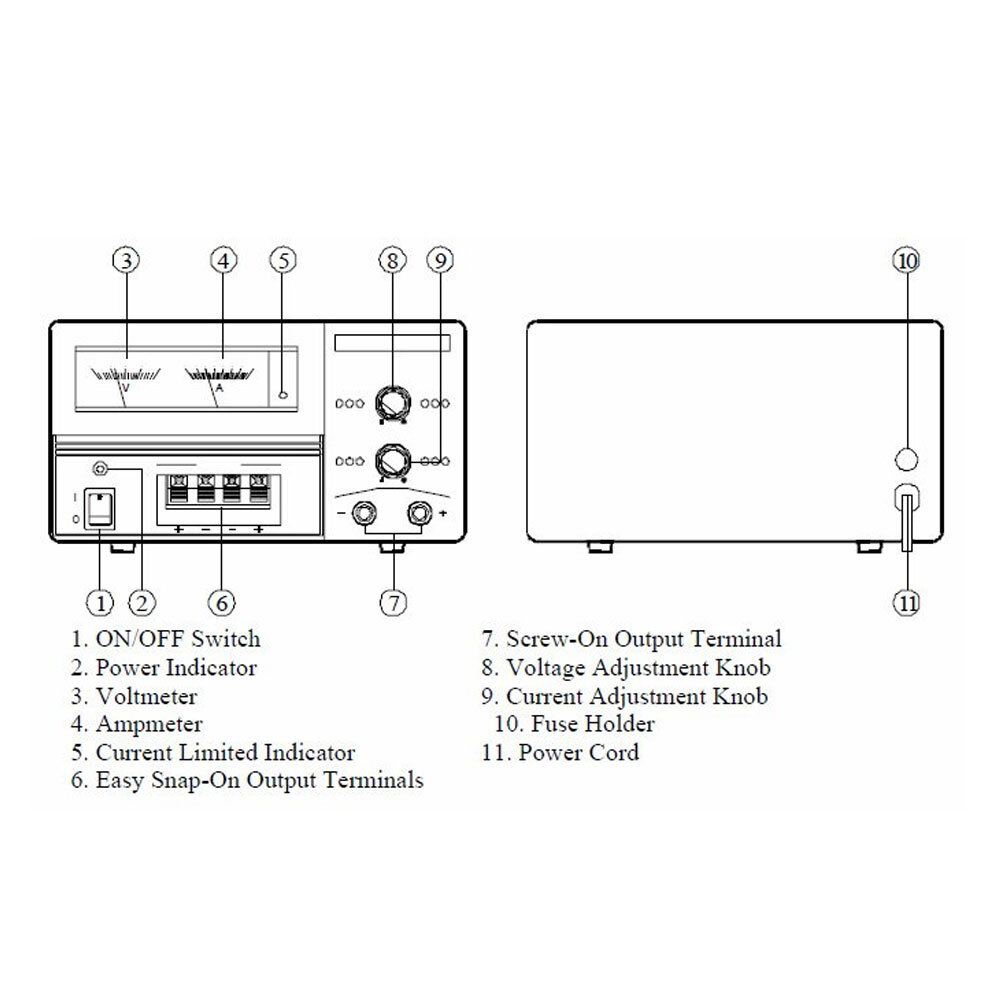

Output Terminals: One Variable Main Output Screw On Type/Two Snap-On Fixed Voltage 1 and 2
Cooling System: Thermostatic Control Fan
Protection: Overload, Short Circuit
Approvals:CE EN61558,EN55014
Dimensions Approx.: 20.5 x 28 x 11.5 cm
Weight Approx.: 6.5 kg
This item comes with a 12-month warranty.
