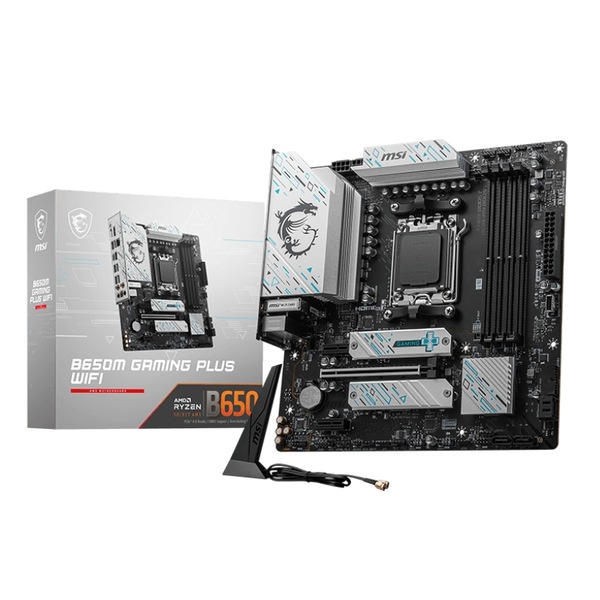

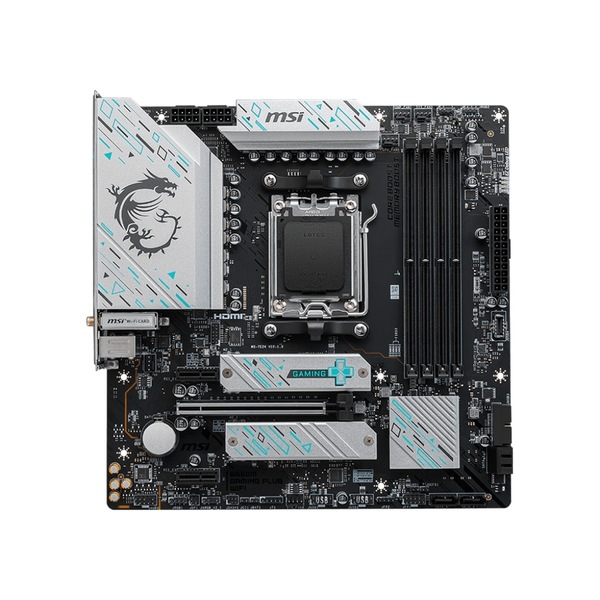

MSI B650M GAMING PLUS WIFI Motherboard, for AMD CPU, DDR5, AM5, Micro-ATX MB

MSI B650M GAMING PLUS WIFI

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

• Chipset :AMD B650
• CPU :Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports AMD EXPO™
  Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7200+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz
• Onboard Graphics :1x HDMI™
  Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
  1x DisplayPort
  Support DP 1.4, maximum resolution of 4K 60Hz*
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• Slot :1x PCI-E x16 slot
  • Supports x16 (For Ryzen™ 9000 and 7000 Series processors)
  • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
  • Supports x4 (For Ryzen™ 5 8500G processor)
  2x PCI-E x1 slot
  PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
  PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
  PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Audio :Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• Storage :2x M.2
  M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
  4x SATA 6G
  • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
• RAID :Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 for M.2 NVMe storage devices
• USB :4x USB 2.0 (Front)
  4x USB 5Gbps Type A (Rear)
  2x USB 5Gbps Type A (Front)
  3x USB 10Gbps Type A (Rear)
  1x USB 10Gbps Type C (Rear)
  1x USB 10Gbps Type C (Front)
• LAN :Realtek® RTL8125BG 2.5Gbps LAN
• Internal IO :1x Power Connector(ATX_PWR)
  2x Power Connector(CPU_PWR)
  1x CPU Fan
  1x Pump Fan
  3x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Tuning Controller connector(JDASH)
  2x Addressable V2 RGB LED connector (JARGB_V2)
  2x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 5Gbps Type A ports
  1x USB 10Gbps Type C ports
• WIRELESS LAN & BLUETOOTH :AMD Wi-Fi 6E
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX
  Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3**
  * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
• LED FEATURE :4x EZ Debug LED

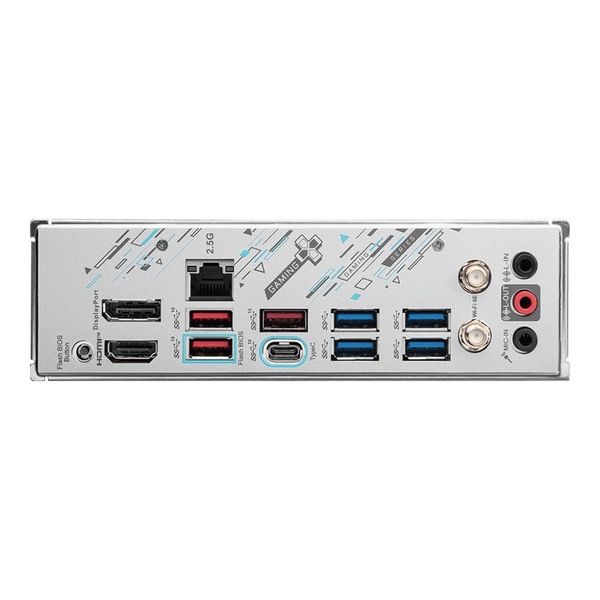

• BACK PANEL PORTS :
  1. DisplayPort
  2. 2.5G LAN
  3. USB 3.2 Gen 2 10Gbps (Type-A)
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. Wi-Fi / Bluetooth
  6. Flash BIOS Button
  7. HDMI™
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. USB 3.2 Gen 2 10Gbps (Type-C)
  10. Audio connectors
• OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Info :mATX
  243.84mmx243.84mm
