KINGRAY MHW43FS 43Db UHF/VHF Shielded Masthead Amplifier Frequency Range: VHF 44-230 / UHF

KINGRAY MHW43FS 43Db UHF/VHF Shielded Masthead Amplifier Frequency Range: VHF 44-230 / UHF

Limited Stock!

Price	$106
	Collect 106 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

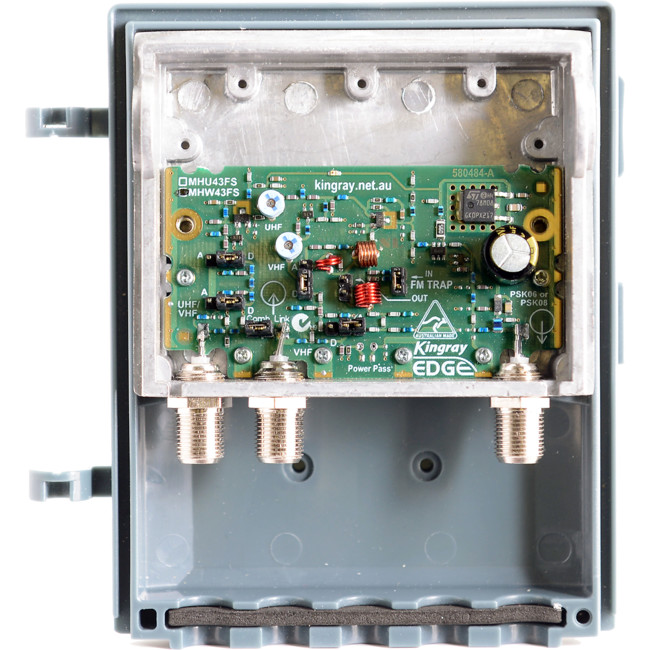

MHW43FS Fully Shielded Masthead Amplifier

The NEW Kingray Edge series has been engineered to provide a future proof solution with switchable LTE/4G filtering to maximise interference rejection.

The Edge series features links allowing the amplifier to be configured to best suit the installation now and in the future. The range includes both wideband and UHF only modelsused to amplify the whole UHF band or alternatively by re-positioning the links, all services above 694 MHz are filtered, blocking future LTE transmissions.

In addition to LTE filtering some wideband models in the Edge series include user selectable low band filtering to eliminate all services below 174 MHz.

The Edge series is designed to meet the needs of the television reception industry now and into the future.

F Type shielded masthead designed to amplify separate VHFand UHF antennas or a combined VHF/UHF antenna.

The Edge Series mastheads can also be powered by either 14 Volt DC, 17.5 (See power supply section). The increased use of Surface Mount technology has resulted in the ability to produce a smaller PCB with increased reliability and performance.

Optional plug pack's: PSK06, PSK08, PSK06F or PSK08F.

Specifications

	VHF	UHF
Frequency Range	(A) 44-230	(A) 520-820
	(D) 174-230	(D) 520-694
Maximum Gain (dB)	27-35	43
Inputs	1 or 2 or comb
Noise Figure (dB)	<3	<2.5
Gain Control (dB)	16-12	10
Power Supply (PSK or KPS)	06 or 08
Current (mA)
FM Trap Option 88-108 MHz (dB)	-25
Pager Filter Option 148 MHz Aust/158 MHz NZ (dB)	-25
LTE 694MHz Filter(dB)	-25
Output Figure DIN45004B (uV)	108

Downloads

pdf

Weight: 0.298

Aussie Stock
All our stock is kept in our Melbourne based warehouse. Our stock levels are also updated every 10 minutes! So if it says 10 units in stock, you can trust that it is accurate.

No PO Boxes or Parcel Lockers
At this stage we only use couriers and can only deliver to a road-side address. This means PO Boxes and Parcel Lockers cannot be accepted as StarTrack do not deliver to these addresses.
In instances where a PO Box or Parcel Locker address in entered, we may ask for an alternative road-side address, or cancel and refund your order immediately and urge you to replace your order with an alternative delivery address.

Delivery times
We typically dispatch our goods same day or next day. From there, you can expect 2 - 8 business days Australia wide. Most capital cities can expect 1-2 day delivery times.
Any RTS (Return to Sender) orders due to missing or incorrect address information entered by the buyer may incur an additional charge for redelivery.

GTIN: 9319493230551
