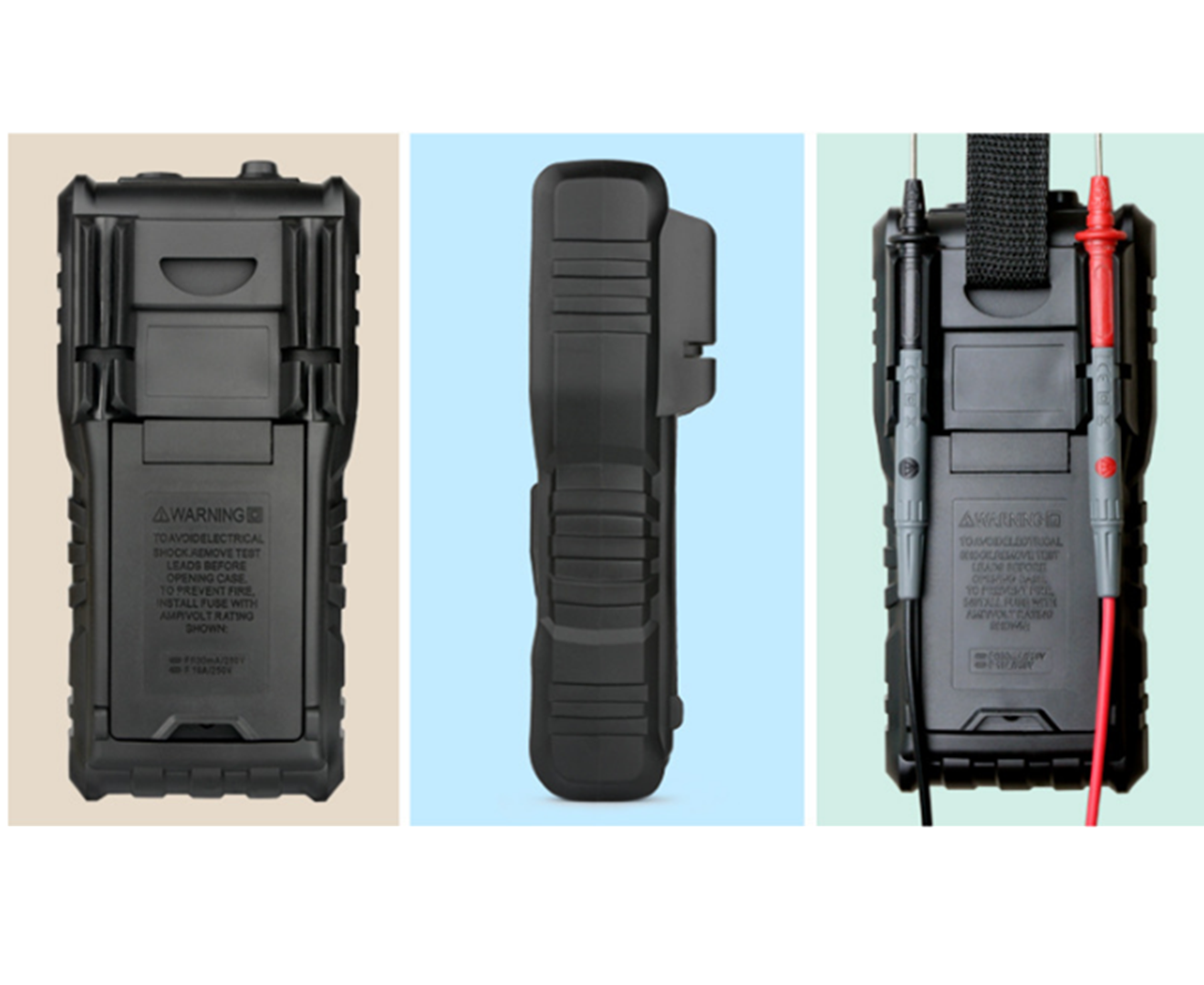

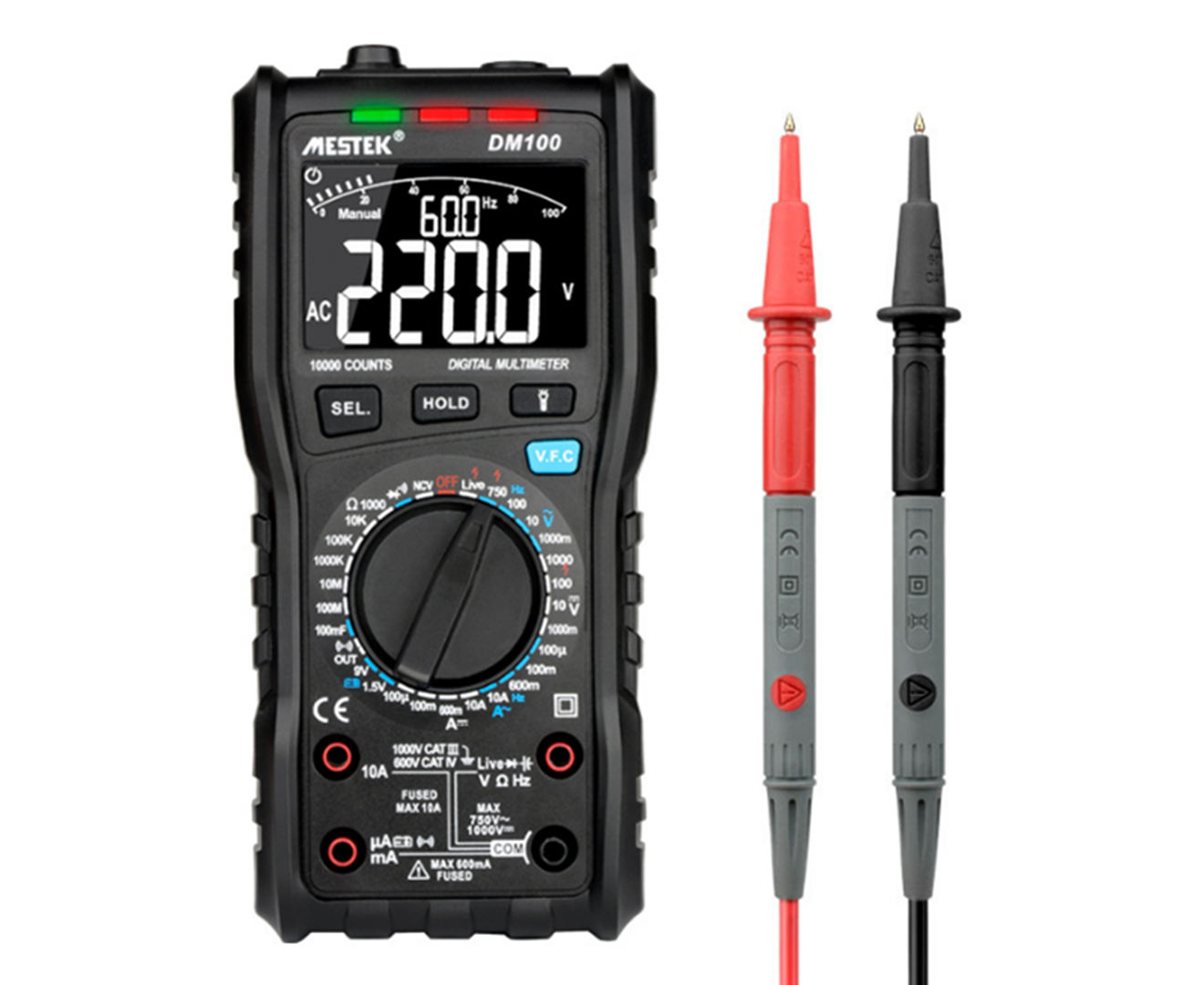

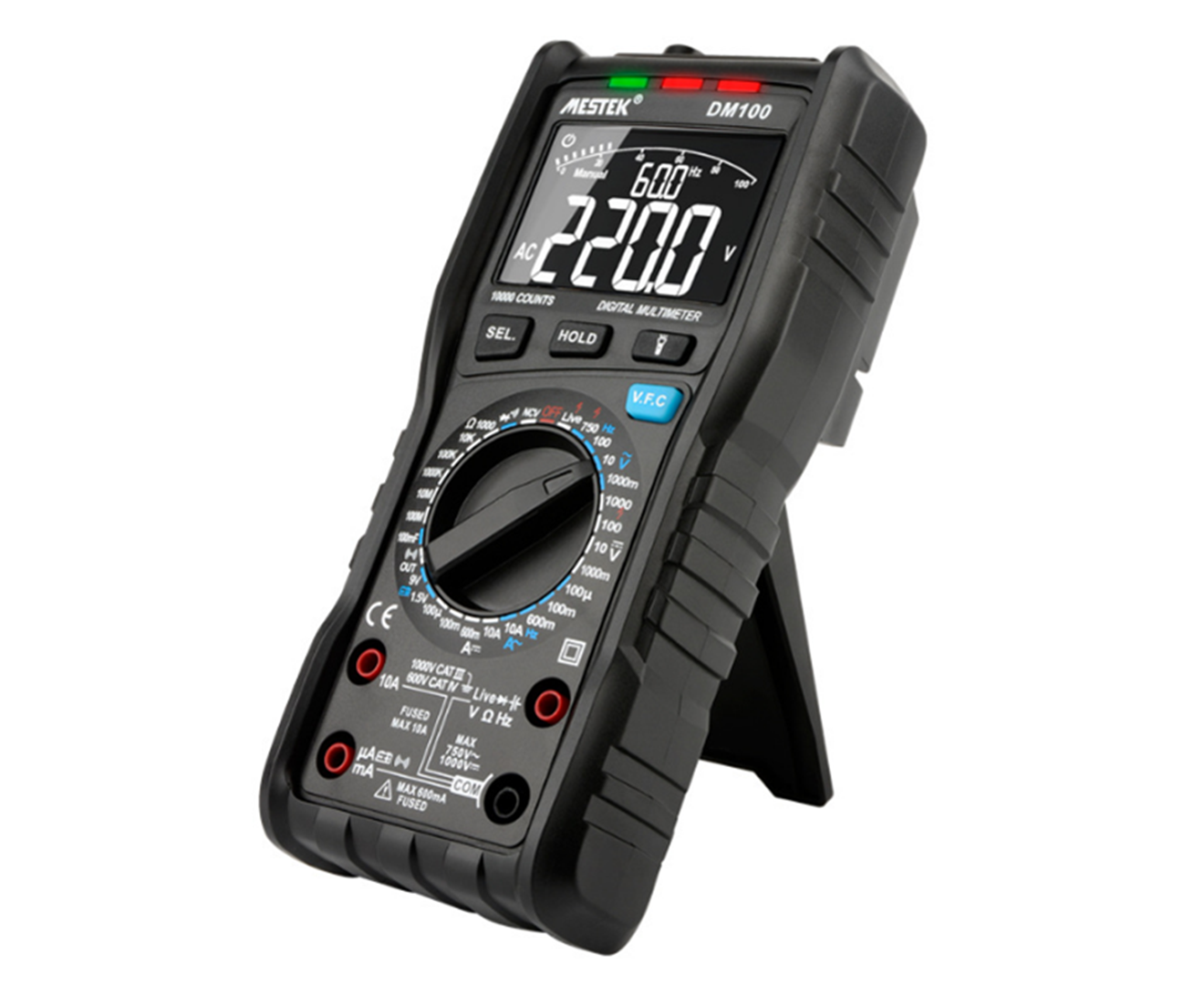

MESTEK DM100 Digital Multimeter Maintenance Tool - Black

parameter:

Battery measurement: 0~1 5V (discharge current about 40mA); 0~9V (discharge current about 20mA)

Buzzer detection: 2kHz/2.7kHz/3V (can detect active or passive small horn buzzer)

True RMS: 1kHz

AC frequency measurement: measure the AC voltage and display the frequency value of the current voltage

High-speed sampling: sampling rate 10 times per second

V.F.C: Variable frequency voltage measurement, frequency response: 40Hz 400Hz true RMS (VFC: 2KHz attenuation 3dB)

Fuse alarm: 600mAV10A current gear insurance ratio is blown, the screen will prompt FUSE and buzzer alarm

Wrong insertion alarm: The test pen is inserted wrongly and the anti-burning alarm can effectively prevent the meter from being burned out due to the misoperation of the current gear. When the wrong plug is inserted, it will display LUSE and buzzer alarm.

Data retention: yes

Flashlight Lighting: Yes

Automatic shutdown: about 15 minutes without operation automatic shutdown

NCV: Non-contact AC voltage detection (induction pen function)

LIVE: Single pen contact FireWire recognition

Input impedance: 10MQ

Overload protection: less than 250V full-scale overload protection

Undervoltage prompt: below 2.4V

Product size: 185*85*40mm

Battery: 2xDC1.5VAA (2 AA batteries) (not included)

Safety class: CAT V 600V / CATII1000V

Weight: about 500g
