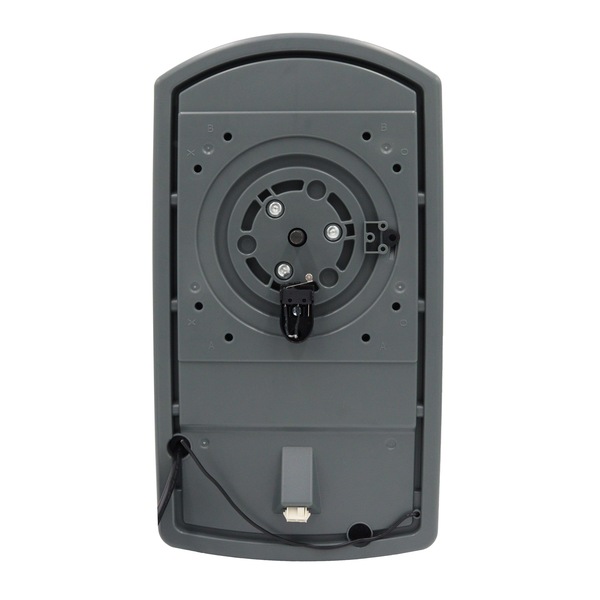

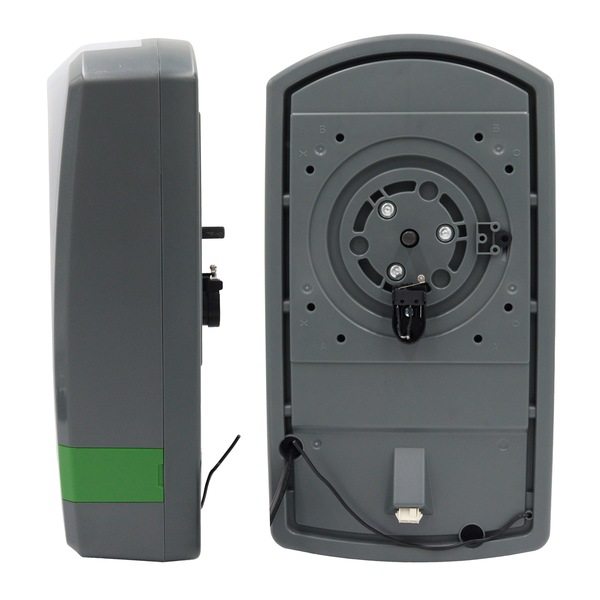

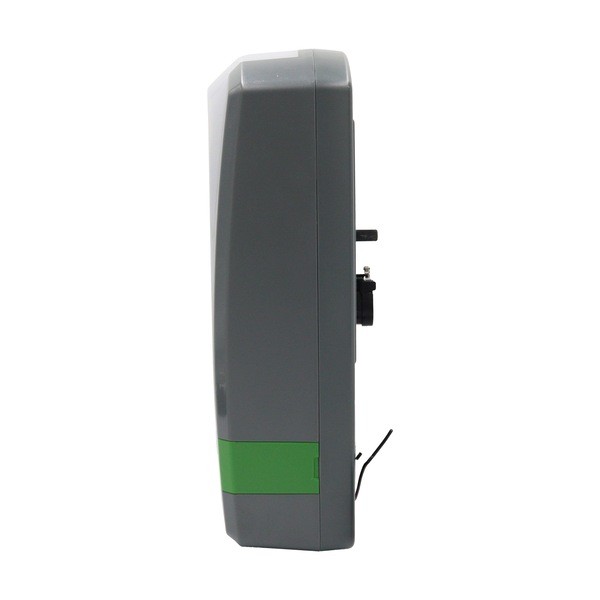

Merlin MS105MYQ Commander Elite Overhead/Sectional Garage Motor/Opener (No Rail)

Motor Manual

Motor Brochure

Australia's favourite opener, Commander Elite is myQ compatible & Battery Backup compatible, with heavy lifting power of 150kg and new powerful LED lighting. Powerful, quiet and compliant to Australian & New Zealand Standards, enjoy complete peace of mind with the market leading 7 Year Warranty and built in premium safety reversal technology, to ensure your family and possessions are protected. Loaded with Merlin Security+2.0 encryption rolling code technology means perfect operation under all environment conditions and from a greater distance than ever before.

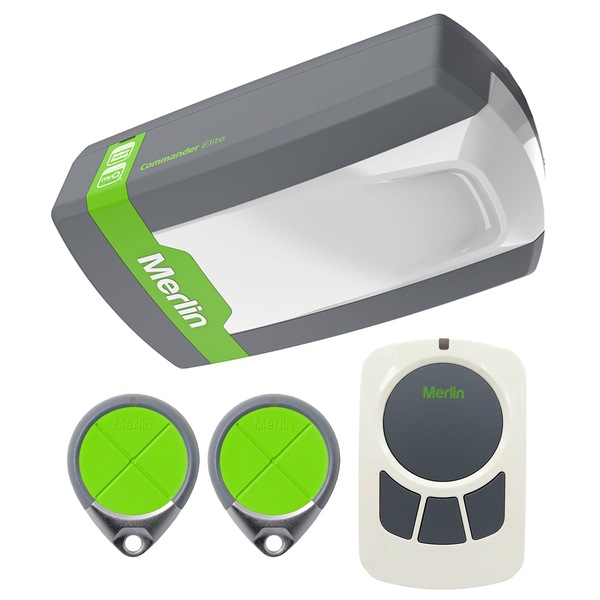

Included:

• 1 x Merlin Commander Elite MS105MYQ

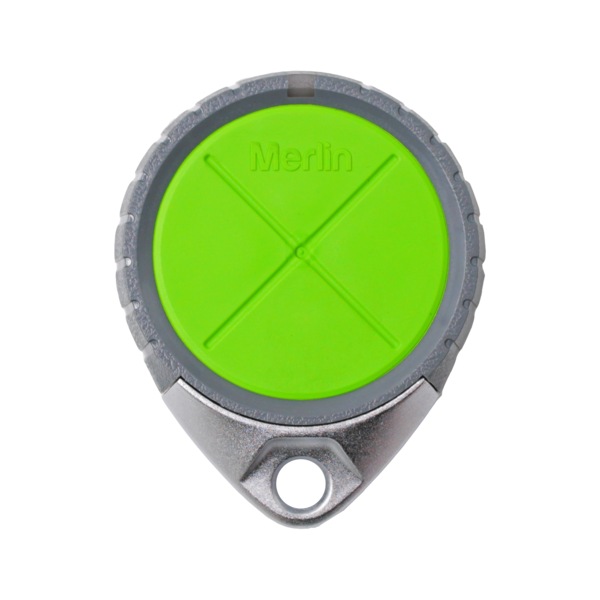

• 2 x Premium E970M remotes

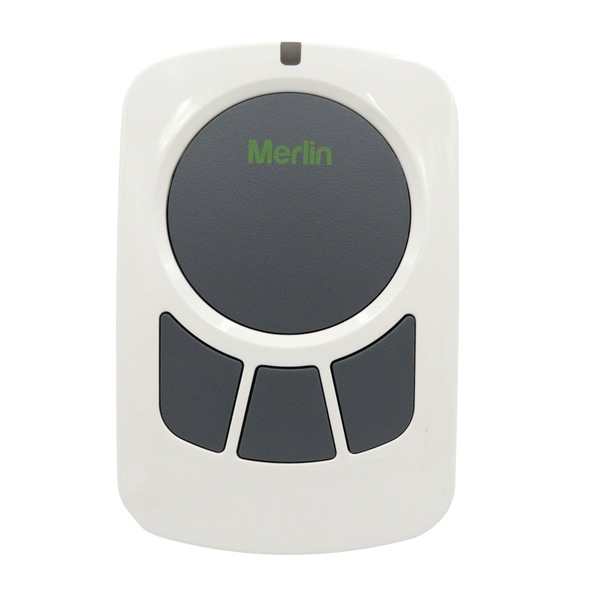

• 1 x E138M Wireless Wall Button
• 1 x Installation Instructions
• 7 Years Manufacturers Warranty*

Please Note: The rail is not included

Specifications:

• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Rated door area up to 20m²
• Max door weight: up to 150kg
• Max peak pulling force: 1000 N
• C-rail with belt drive
• 433.92, 433.30, 434.54 MHz AM radio with Chamberlain Security + 2.0 rolling code technology
• Up to 64 memory registers
• Courtesy light: Powerful LED Lighting
• Min headroom required: 30mm

• Maximum lifting under spring tension = 20kg
• Suitable for steel and timber spring balanced doors

• Door opening time: 18 seconds
• Door closing time: 22 seconds
• Based on a 2.4m high door

• Door height: 3.5m
• Door width: 5.7m
• Double dwelling

Merlin Warranty Terms:

For DIY installs, Merlin offers 1 year warranty.

For authorised garage technician/installer installs and when the door is serviced by a certified technician once in the first 12 months and every 24 months thereafter, a 7 year warranty applies.
