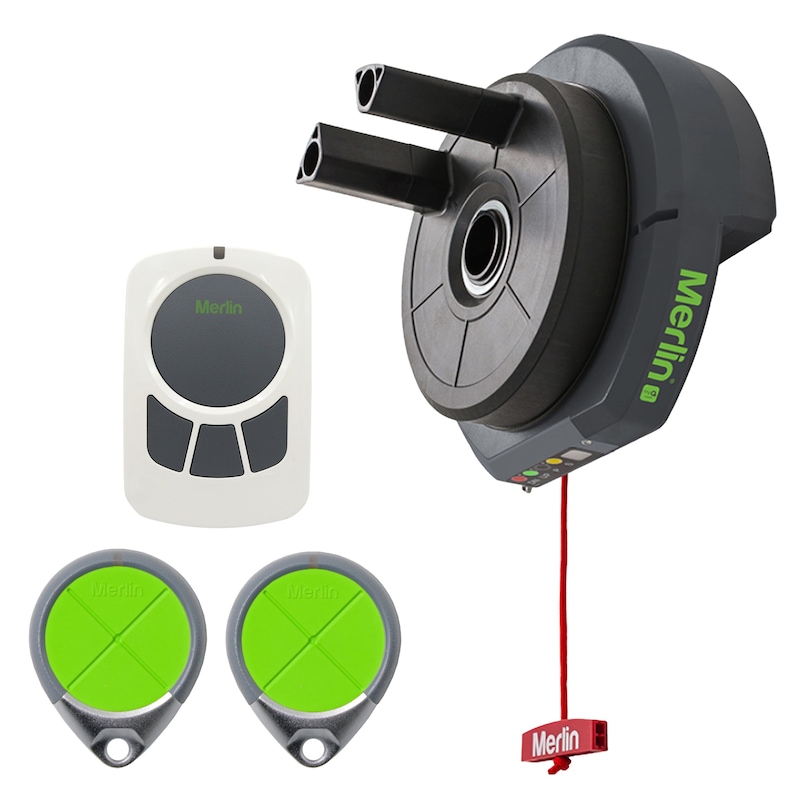

Merlin MR555MYQ WeatherDrive Roller Garage Motor/Opener

With a market leading weather resistant IP34 design, slimline design to fit into the tightest of spaces and LED lighting as standard, makes WeatherDrive the perfect option for powering sheds and carport roller doors.

Compliant to Australian & New Zealand Standards, WeatherDrive comes with a 3 Year Warranty for complete peace of mind and Merlin Security+2.0 encryption rolling code technology for operation under all environment conditions and greater distance than ever before.

Included:

1 x MERLIN MR555MYQ WaetherDrive Roller Door Motor
2 x Premium E960M remotes
1 x E138M Wireless Wall Button
1 x Installation Instructions
3 Years Manufacturers Warranty*

Specifications:

General

• IP34 housing
• 24V DC motor with thermal overload protection
• Input voltage: 240V AC
• Minimum side room 40mm
• Rated door area up to 15m²
• Max door weight: up to 100kg
• Drum rotations: 5.5
• Max peak pulling force: 500 N
• 433.30, 434.54, 433.92 MHz AM radio with Security+2.0 encrypted rolling code technology
• Up to 64 memory registers
• Courtesy light: LED
• Noise rating 1M: 51DB
• Soft start/stop function

• Maximum lifting under spring tension = 15kgs
• Suitable for steel spring balanced doors

• Door opening time: 14 seconds (regular), 18 seconds (slow)
• Door closing time: 14 seconds (regular), 18 seconds (slow)
• Based on a 2.3m high door

• Door height: 5.5m, 3.0m, 2.3m
• Door width: 2.7m, 5.0m, 5.5m
• Single Dwelling
