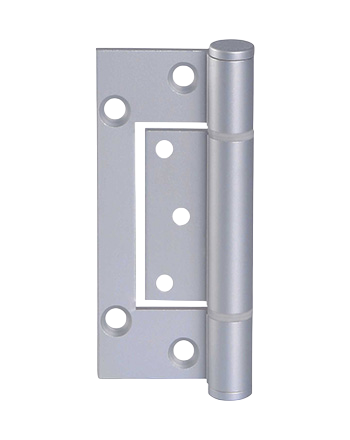

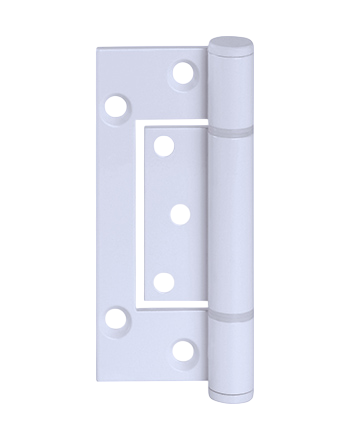

**10 Pack** McCallum Aluminum Offset Interfold Hinge A166 A67RN

10 Pack McCallum Aluminum Offset Interfold Hinge Satin Natural Anodised A67RN
A166

• 10 x Hinge

Application:

• Suitable for Aluminum entrance doors in medium usage situations
• Suitable for either center pocket or front edge glazing systems
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 4.7mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Round
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 20 kg (turn over for further information)
• Dimensions: 100mm x 34mm

Installation Guide Only:

• Door thickness: Minimum 32mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040mm (H) x 820mm (W)

Fixing:

• Fastening screws supplied
• Pop rivets are not recommended

Finish:

• SNA - Satin Natural Anodised
