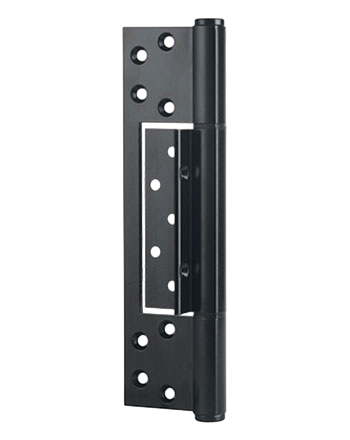

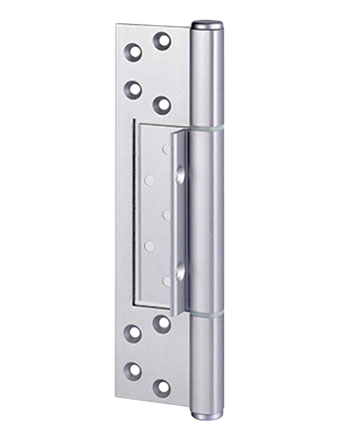

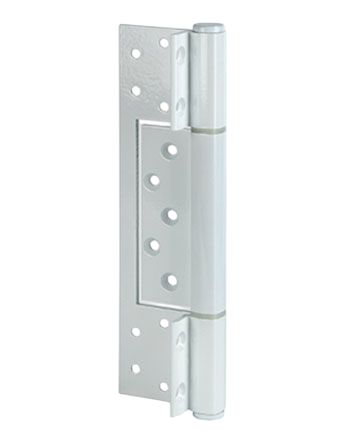

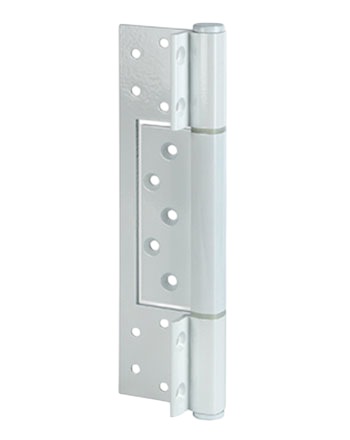

**10 Pack** McCallum Heavy Duty Aluminum Interfold Hinge A134 A104-200

10 Pack McCallum Heavy Duty Aluminum Interfold Hinge Satin Natural Anodised A104-200
A134

• 10 x Hinge w/ screws

Application:

• Suitable for aluminum entrance doors in high usage situation
• Suitable for either center pocket or front edge glazing systems
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required

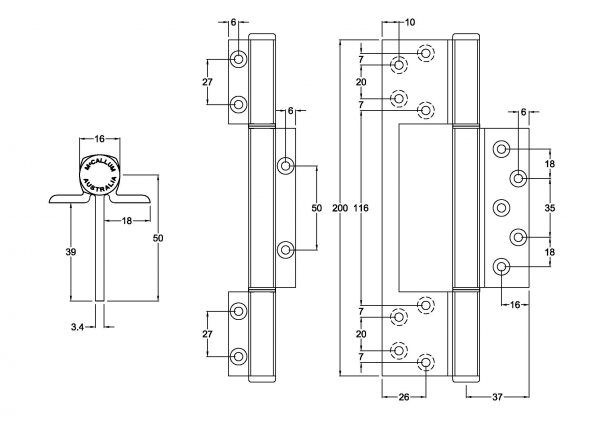

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa
• Pin Dia: 8mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Squareline - Heavy Duty
• Aluminum Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 120 kg (turn over for further information)

Installation Guide Only:

• Door Thickness: Minimum 40mm
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible. For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (H) x 820 (W)
• Oversize Door: Turn over for further information
• Locator allows for fast fixing

Fixing:

• Fastening screws supplied
• Pop rivets are not recommended

Finish:

• SNA - Satin Natural Anodised
