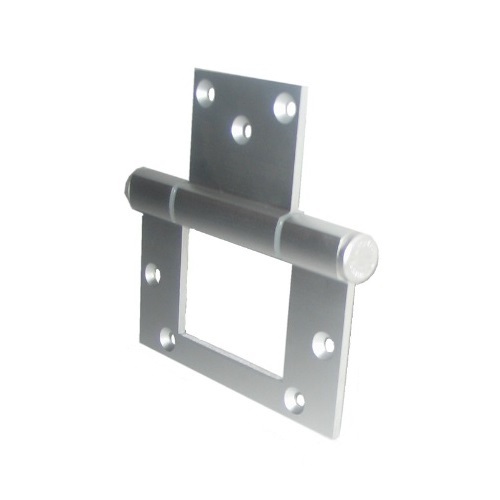

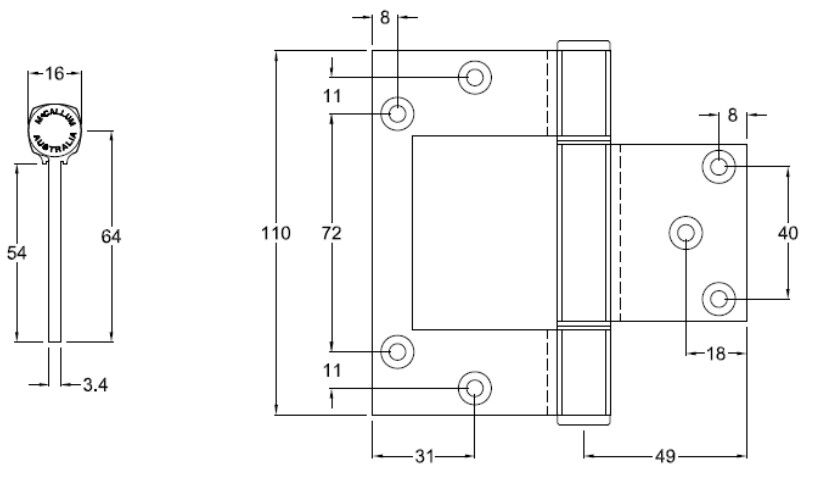

McCallum Door Hinge Heavy Duty Wide Throw Aluminium Fast-Fix 110mm A155

McCallum Heavy Duty Wide Throw Aluminium Fast-Fix Hinge
A155

1x Hinge w/ screws

Application:

• Suitable for aluminium entrance doors in high usage situations.
• Suitable for either centre pocket or front edge glazing systems.
• Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required.
• The A105MWTF gives 15mm extra wide throw.

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Diameter: 6mm stainless steel with machined chamfer both ends.
• Bushes: Flanged nylon.
• Knuckle: Squareline - Heavy duty.
• Aluminium Endcaps: Pressed-in interference fit.

Installation Guide Only:

Door Thickness: Minimum 40mm.
When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
as possible. For excessive usage a fourth hinge may be required.
Standard Door: 2040 high x 820 wide x 40 kgs – 3 hinges.
Oversize Door: 4 to 5 hinges.
Locator allows for fast fixing.
The A105MWTF is not offset, giving 3.4mm approx. thickness of the leaves.

Fixing
Fastening screws supplied.
Two directional.
Pop rivets are not recommended.
