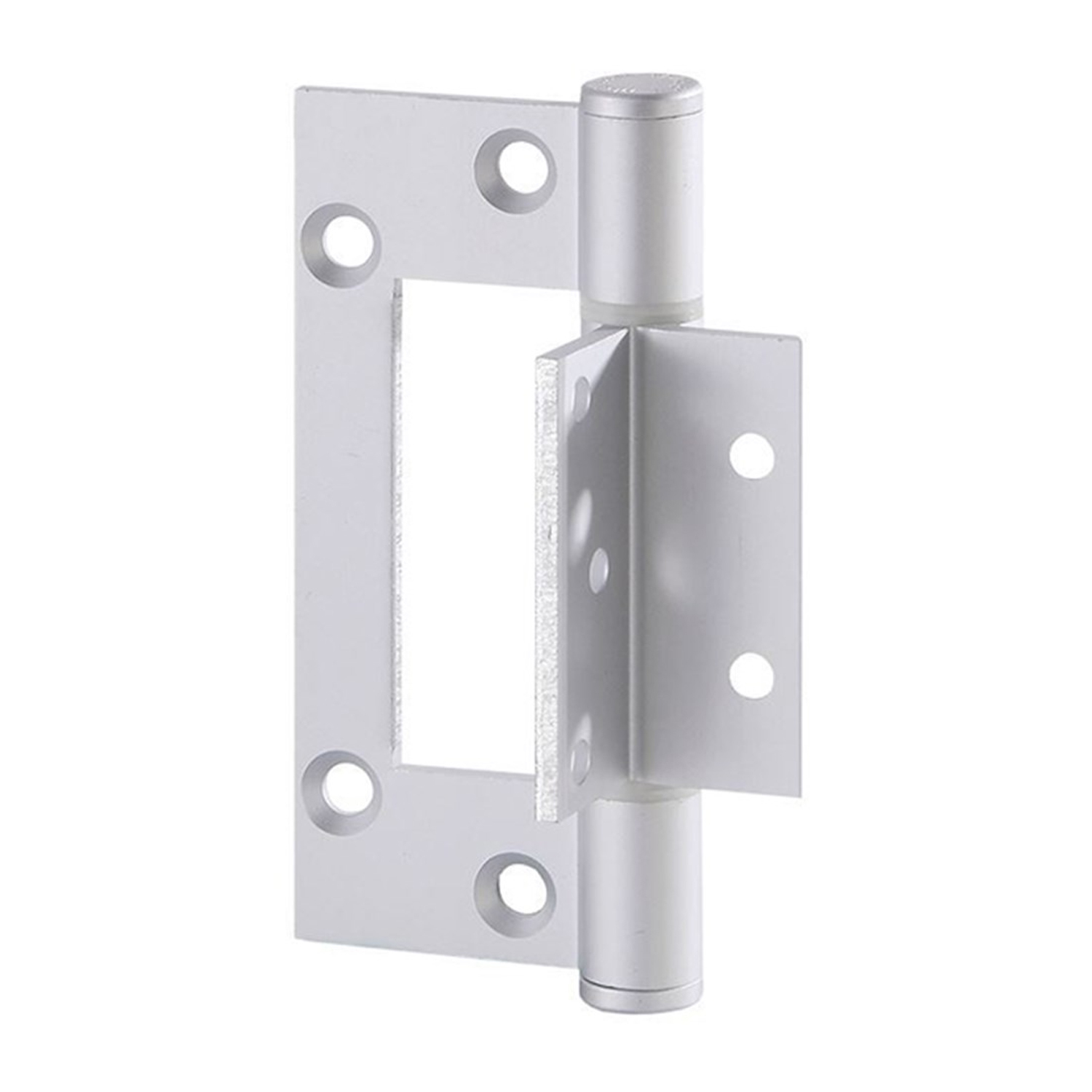

McCallum Aluminium Interfold Fast-Fix Hinge 100mm Satin Natural Anodised A124

McCallum Aluminium Interfold Fast-Fix Hinge
A124

Interfold Hinge used for concealed, interior, and partial doors, as well as providing sufficient closing force for wood and lightweight metal doors.

Interfold Hinge Function - suitable for either Centre Pocket or Front Edged Glazing systems.

Application:

• Suitable for aluminium entrance doors in high usage situations
• Suitable for either centre pocket or front edge glazing systems
• Suitable for some timber door applications. Pre-drilling of the holes in the timber may be required
• Fastening screws supplied

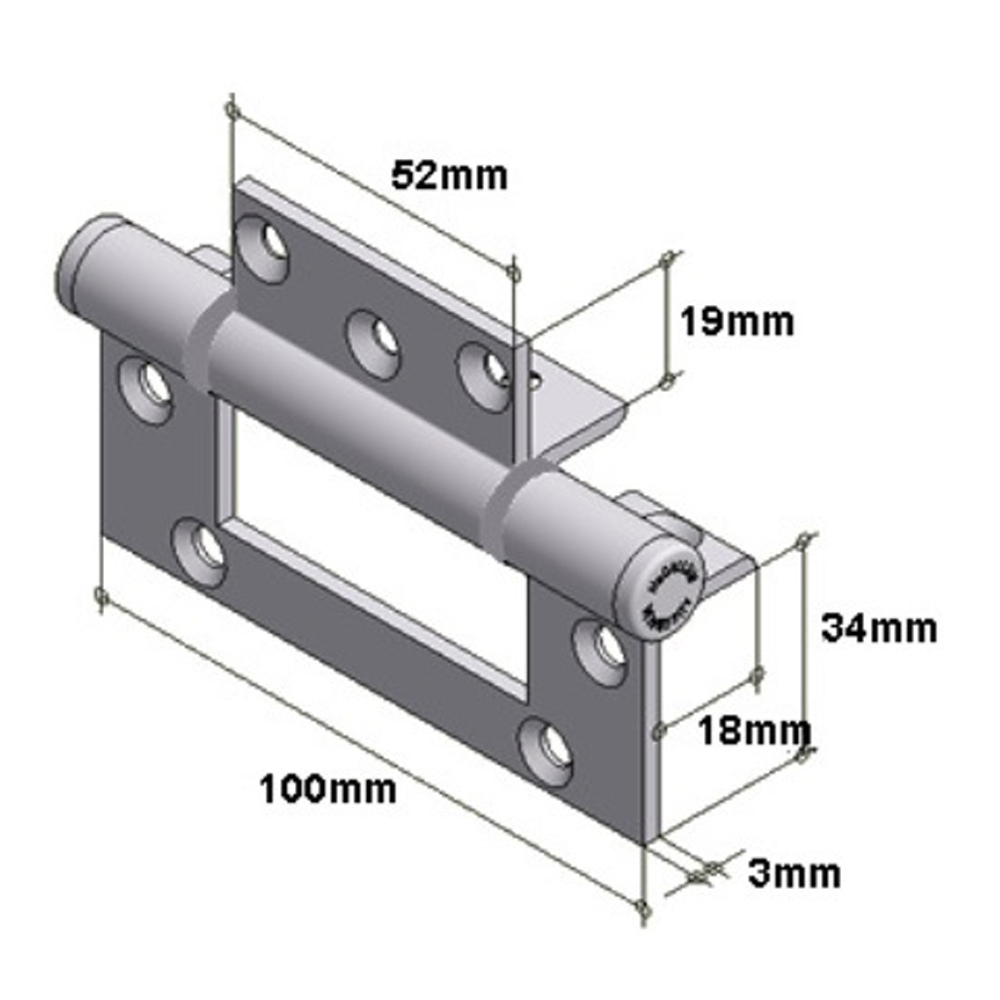

Specifications:

• Door Thickness: Minimum 35mm
• Max. Door Weigth: 20kg
• Length: 100mm
• Width: 48.5mm
• Thickness: 3mm
• Material: High strength T.6 minimum tensile 254 mpa
• Pin Diameter: 6mm stainless steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Squareline - Heavy duty
• Aluminium Endcaps: Pressed-in interference fit
• Finish: Satin Natural Anodised

Installation Guide Only:

• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
• as possible. For excessive usage a fourth hinge may be required.
• Standard Door: 2040 high x 820 wide x 20 kgs – 3 hinges.
• Locator allows for fast fixing.

Includes: 1 x Hinge w/ screws
