Lowara Horizontal Multistage Centrifugal Pump 415V 3 Phase 50Hz 2 Year Warranty

Lowara Horizontal Multistage Centrifugal Pump 415V 3 Phase 50Hz 2 Year Warranty

Price	From $728
	Collect 728 Everyday Rewards points Log in to MyDeal to link your card
Pump Model	Please select an option
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Description

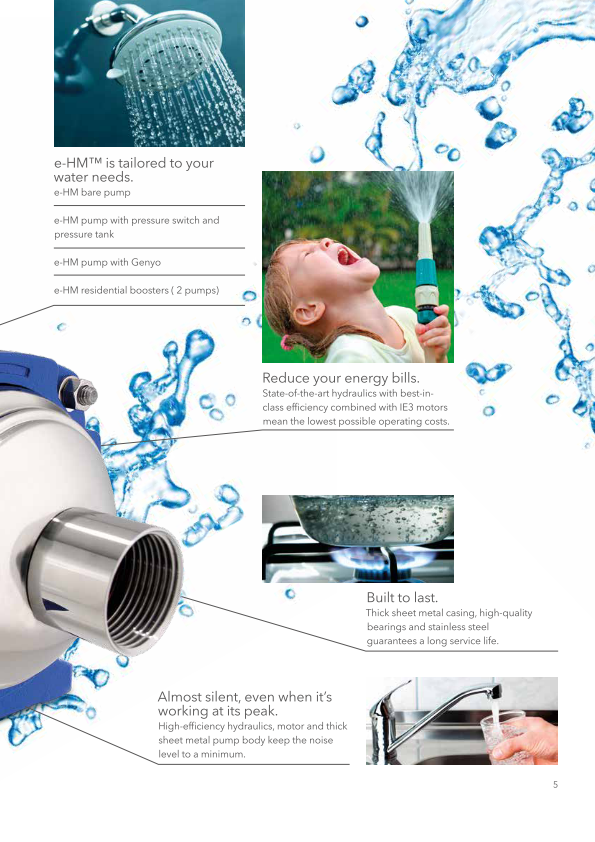

State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs.
Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life.
High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum.

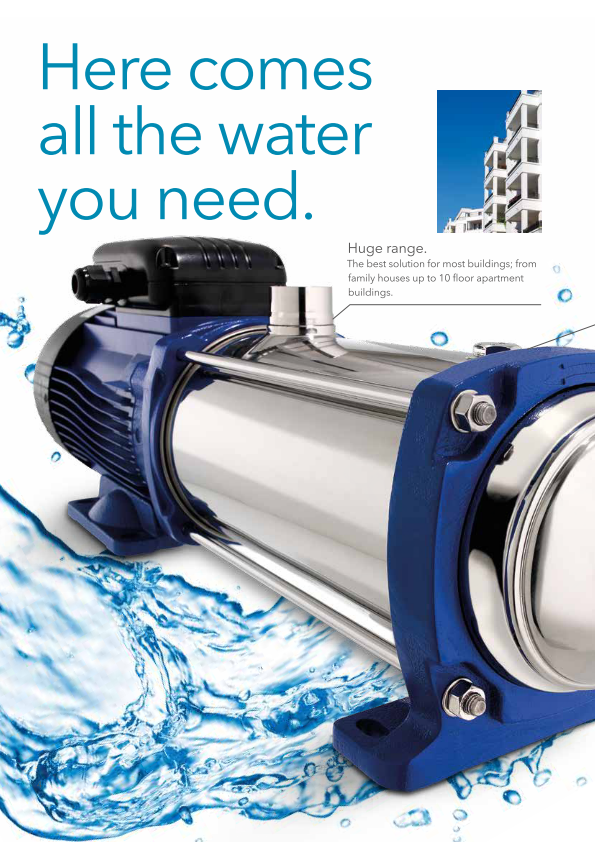

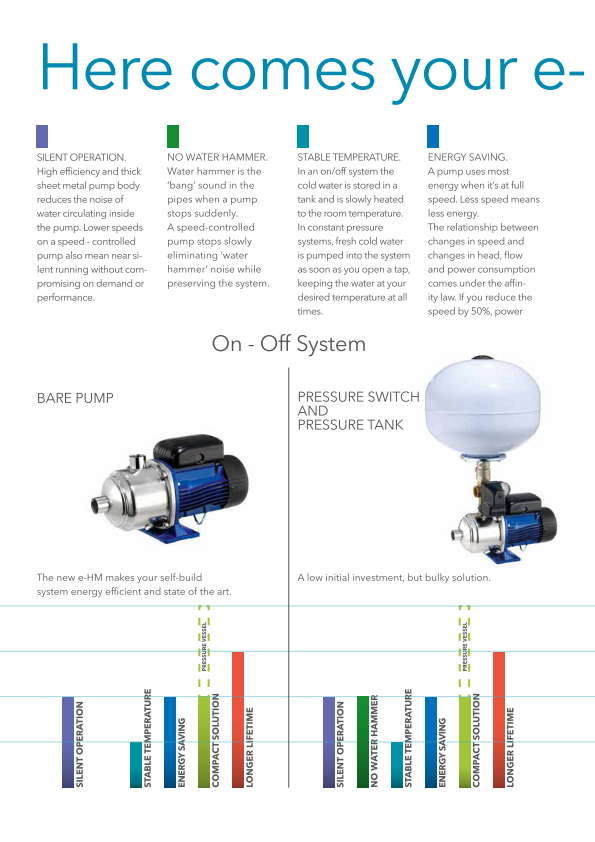

e-HM residential: reliable water supply for most buildings; from family houses up to 10 floor apartment buildings. The new e-HM is available in different versions.

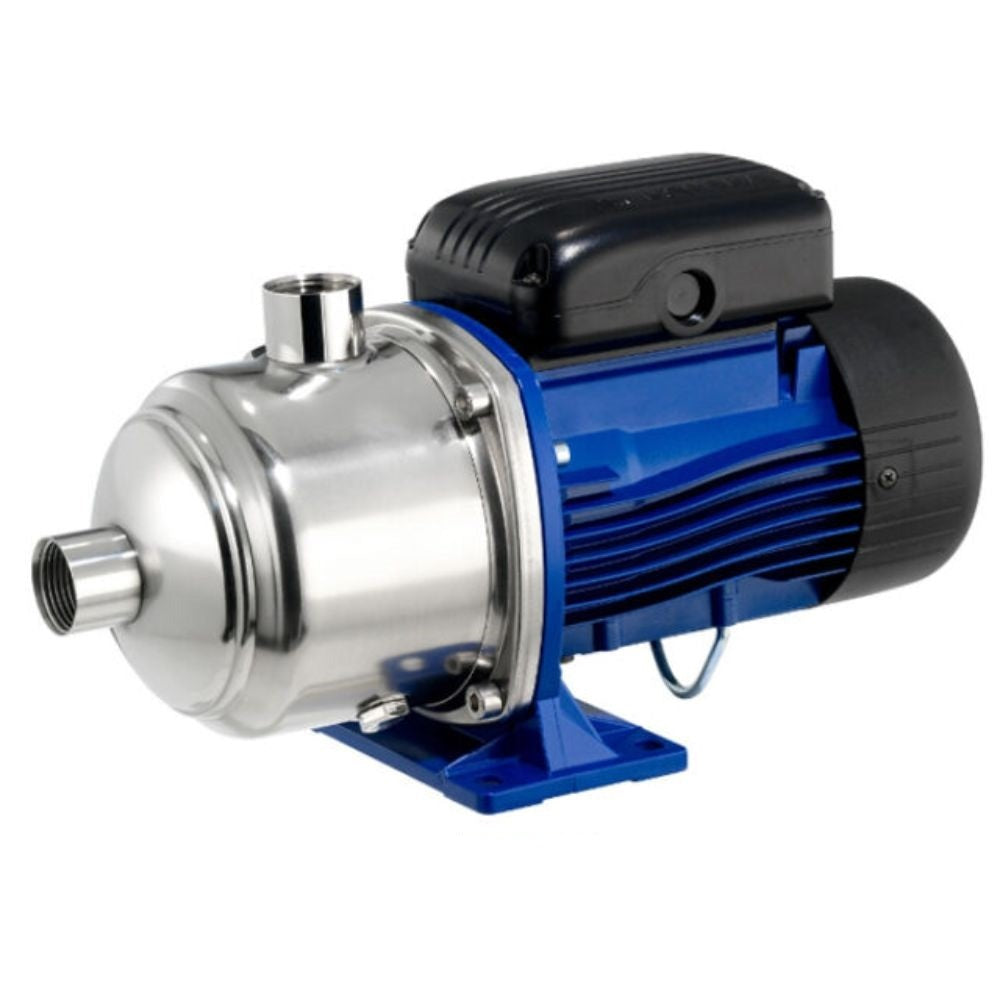

Bare pump

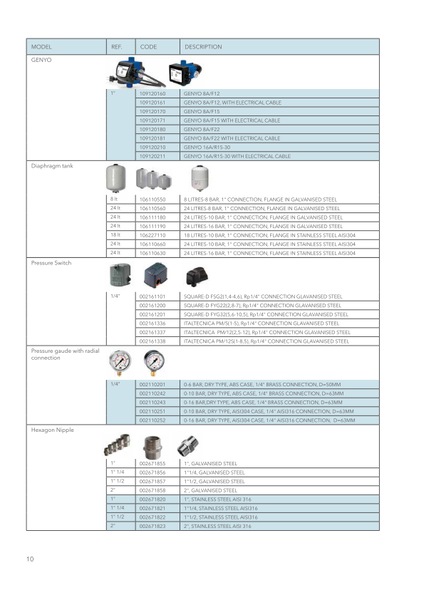

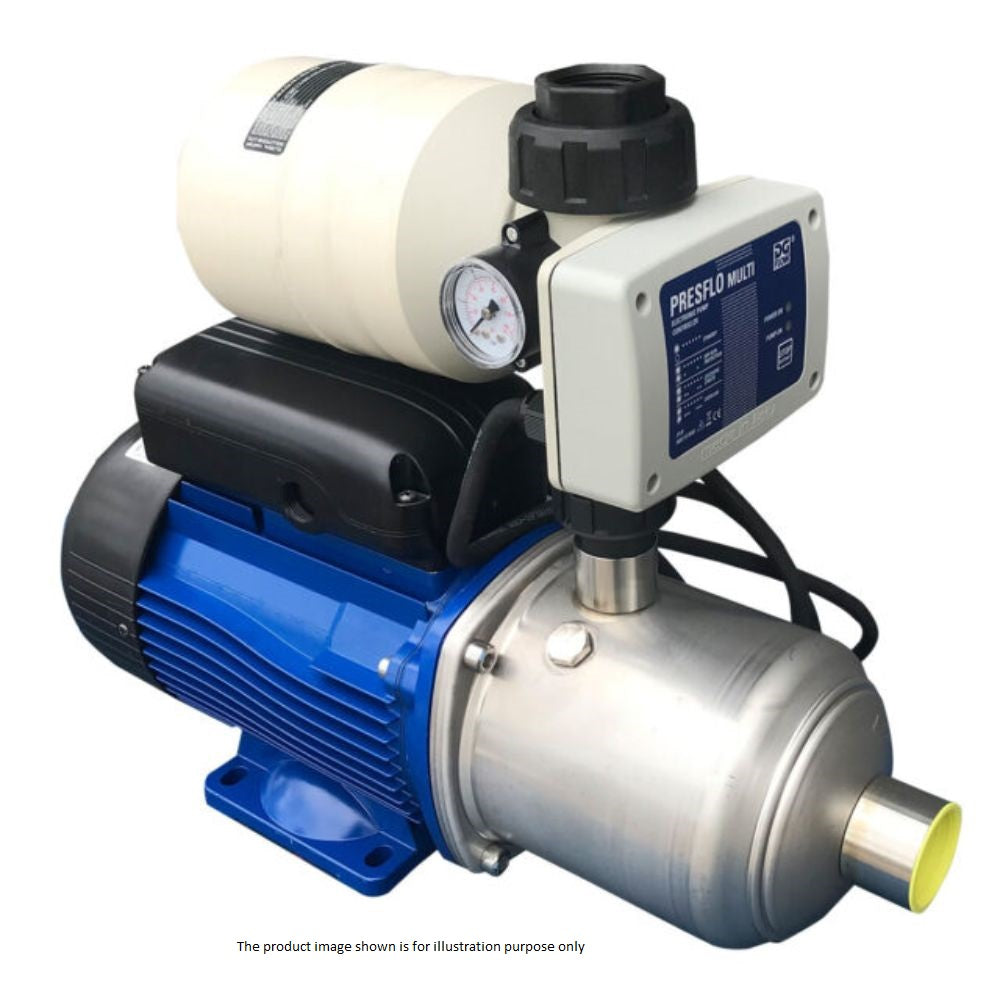

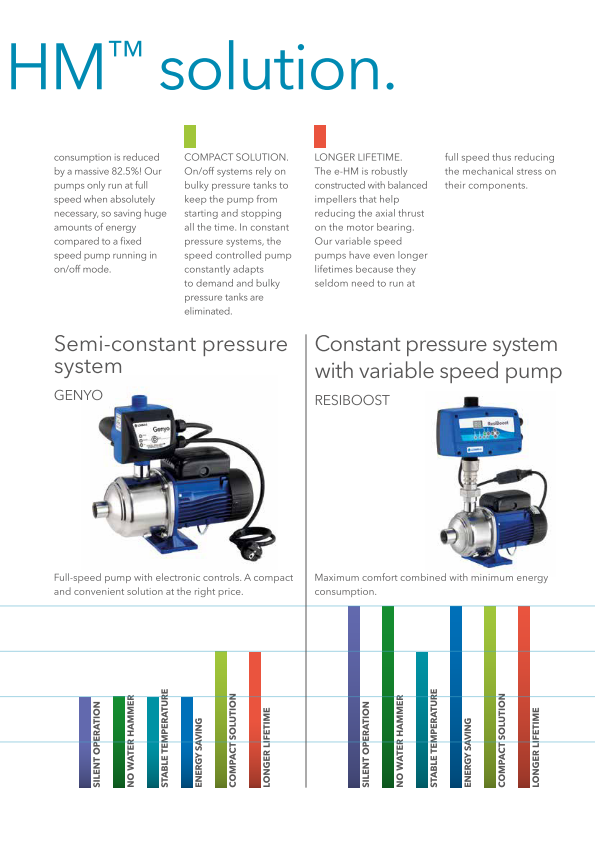

On / off system with pressure switch and pressure tank

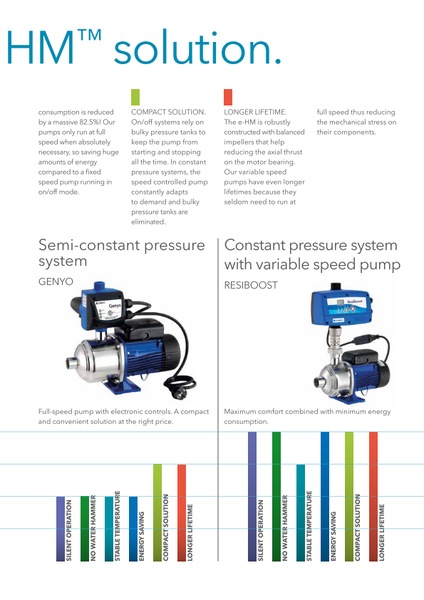

Available with variable speed drive

e-HM industrial: full offering for numerous applications including washing & cleaning, water treatment and food & beverage industries.

AISI 304 or 316
Electropolished
Compact and high efficiency versions
Mechanical face seal and o-ring options

The Lowara e-HM / ehm will reliably supply all the water you need.

Specifications:

Delivery: up to 29 m³/h
Head: up to 160 m
Power supply: both single and three-phase 50 and 60 Hz
Power: from 0.30 kW up to 5.50 kW
Maximum operating pressure: 16 bar
Temperature of pumped liquid: from -30 °C up to +120 °C (max. +60°C for single phase)

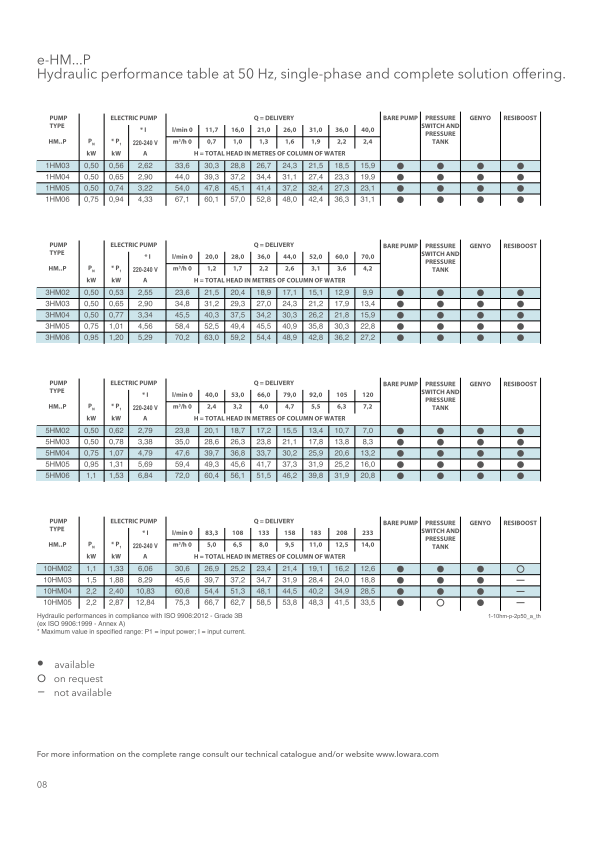

Model	Kw
1HM-02T	0.3Kw
1HM-03T	0.3Kw
1HM-04T	0.4Kw
1HM-05T	0.5Kw
1HM-06T	0.75Kw
3HM-02T	0.3Kw
3HM-03T	0.4Kw
3HM-04T	0.5Kw
3HM-05T	0.75Kw
3HM-06T	1.1Kw
5HM-02T	0.4Kw
5HM-03T	0.5Kw
5HM-04T	1.1Kw
5HM-05T	1.1Kw
5HM-06T	1.5Kw
10HM-02T	1.1Kw
10HM-03T	1.5Kw
10HM-04T	2.2Kw
10HM-05T	3Kw
10HM-06T	3Kw

Applications:

Water supply / water pressure systems
Fertiliser injection
Brine transfer
Marine refrigeration

Material:

The e-HM is a non-self-priming, end-suction horizontal multistage, high pressure centrifugal pump, with axial threaded inlet and radial threaded outlet. The pumps are close-coupled design and are equipped with non-standard Lowara motors. The e-HM / ehm is equipped with mechanical seal. The e-HM are highly modular pumps that are fitted with an innovative hydraulic design that secures high efficiency performances and an increased Mean Time Between Failure.

The e-HM is available in two different configurations:

Compact design for sizes 1HM, 3HM and 5HM up to maximum 6 stages
Sleeve design for sizes 1HM, 3HM and 5HM starting 7 stages and above; any models of 10HM, 15HM and 22HM.

The Compact design is made of one single piece fabricated stainless steel pump body directly connected to the motor flange. The Compact has only one O-ring for the sealing of the casing that clearly reduces the leakages possibilities.

The Sleeve design is made of an external stainless steel TIG welded sleeve and of separate suction casing kept together with the mean of an aluminum casted pump bracket and of stainless steel tie rods screwed in the motor flange.

The e-HM is available in three different material execution:

HM..P: Stainless steel pump body (EN 1.4301/ AISI 304) with Noryl impeller for sizes 1HM, 3HM, 5HM and 10HM to maximum 6 stages.
HM..S: full stainless steel (EN 1.4301/ AISI 304) any models.
HM..N: full stainless steel (EN 1.4401/ AISI 316) any models.

Market Sector:

Residential
Commercial
Light Industrial
Marine

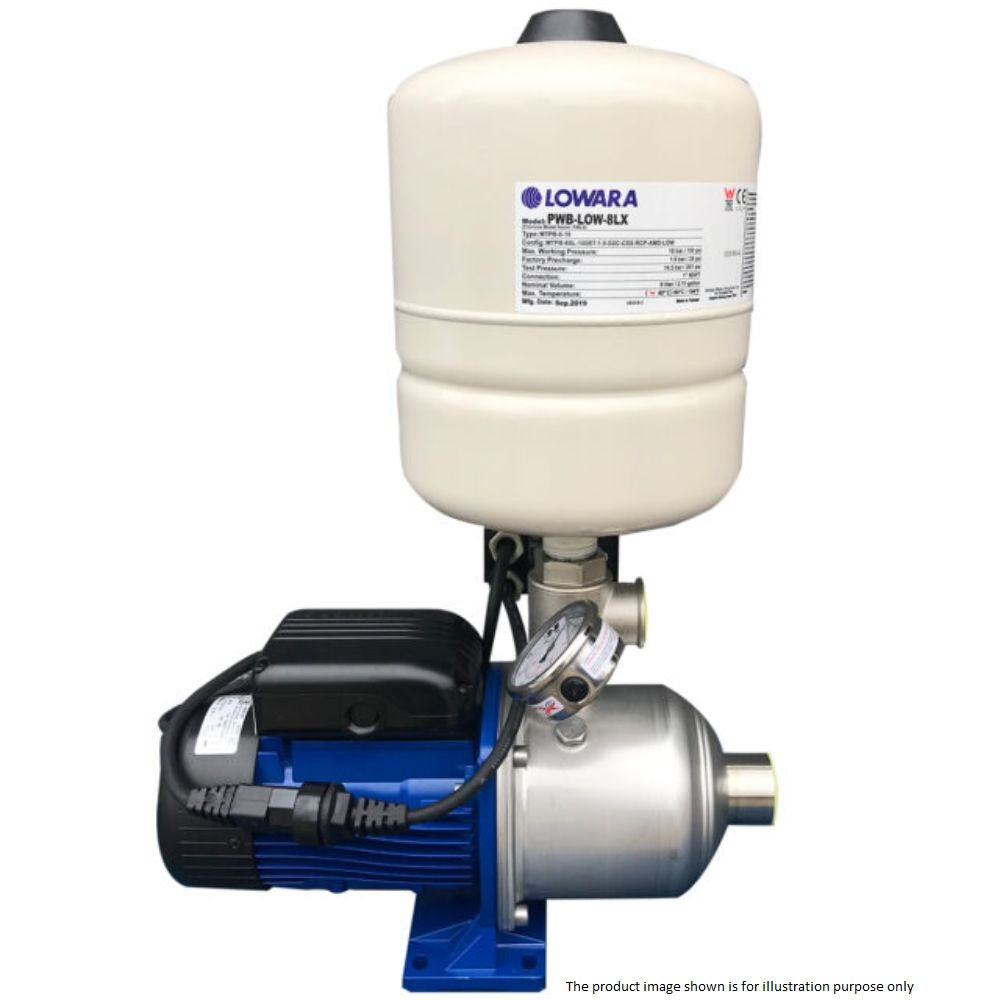

The product image shown is for illustration purpose only
