Lockwood 3782 Narrow Stile Mortice Lock Kit Inc Furniture & Double Cylinders
3782KIT01

Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Cylinder Mortice Lock Kit Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever.

Lockwood Selector® 3782 universal mortice lock with double cylinder & furniture kit

The new Selector® 3780 series mortice lock was designed to incorporate a greater range of lock functions into one primary lock. In addition to industry first holdback capable lock, the Selector® 3780 series also includes an selectable anti-lockout feature. The mortice lock kit includes the following products:

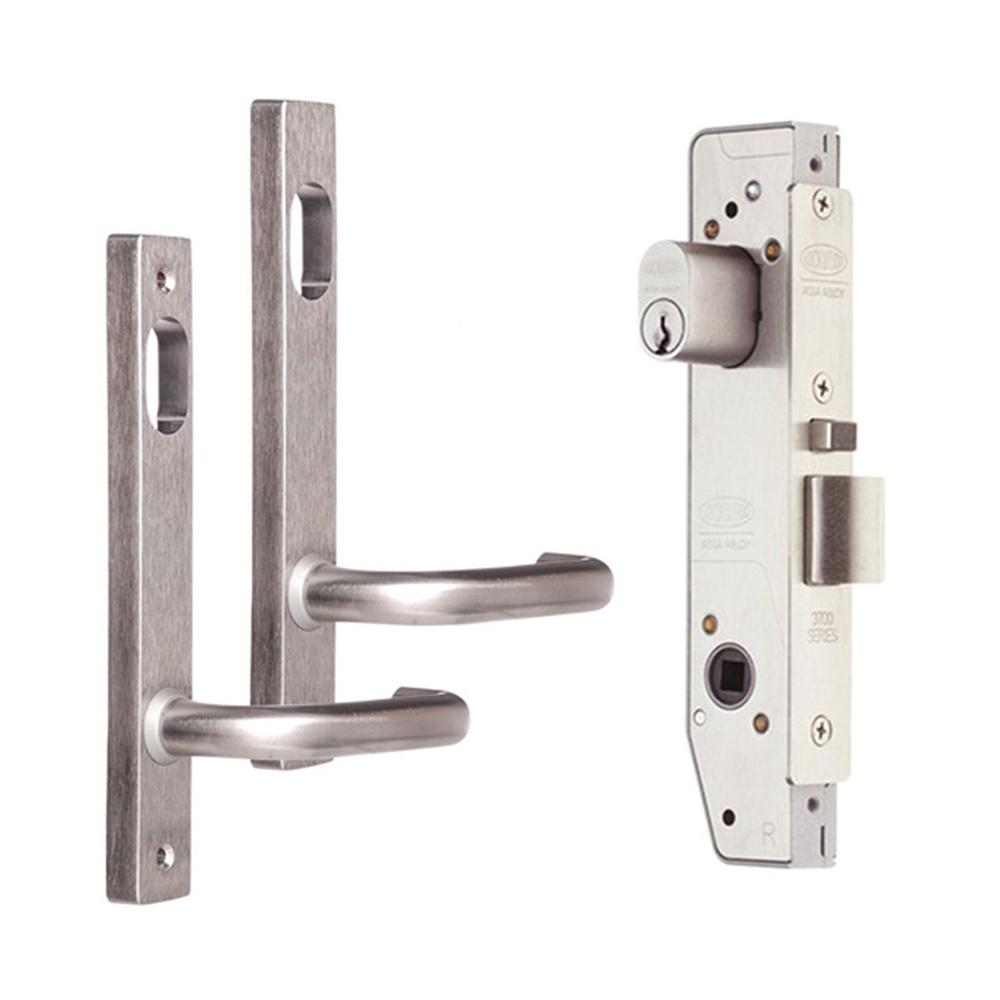

Includes:

• 1 x 3782SS mortice lock.
• 1 x 4801/70SC external lever on plate.
• 1 x 4901/70SC internal lever on plate.
• 2 x 570 cylinders with keys.

Features:

Mortice lock:

• Short backset universal primary mortice lock.
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration.
• Standard primary locks include holdback and anti-lockout capabilities.
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Zinc diecast body with stainless steel chassis plates for improved strength.
• Electric Strike compatibility.
• Supplied with cylinders.
• Supplied with Selector 'V' cam.
• Compatible to most restricted keying systems.
• Backset: 23mm backset as standard
• Suits metal door thickness: 35mm to 50mm.
• Stainless steel reversible latch bolt: 15mm
• Finish: Stainless Steel.

External Furniture:

• Narrow stile exterior square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back to back
• External plates supplied with fixing screws
• Disabled access AS1428.1 compliant lever
• Plate size: 185mm x 26mm x 11.5mm
• Suits door thickness: from 32mm to 50 mm
• Screw fixing centres: 160mm
• Fixing: Concealed
• Finish: Satin Chrome

Internal Furniture:

• Narrow stile internal square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back to back
• Disabled access AS1428.1 compliant lever
• Fixing: Visible
• Fixing holes centres: 160mm
• Suits door thickness: from 32mm to 50mm
• Plate size: 185mm x 26mm x 11.5mm
• Finish: Satin Chrome
