Lockwood 005 Paradigm Pull Handle Lockset Deadbolt Stainless Steel

Lockwood Paradigm Pull Handle Lockset
005/DPHLSSS

Pull Handle - Used as handling feature for opening and closing doors. (e.g. Usually used but not limited to entrance doors and some commercial buildings)

Pull Handle Function - Facilitates the operation of doors by gripping the pull handle with one or both hands before pulling it to enter or exit the door.

Lockwood introduces its new Paradigm Pull Handle lockset for an elegant entry to your home!

This Australian designed lockset comes in three variants including a Double Cylinder Deadbolt, Self-Latching Single and Double Cylinder.

The Double Cylinder Deadbolt is highly recommended for residential homes whether it's a new build or an upgrade, this piece will make an excellent entrance choice. It incorporates the superior state-of-the-art design and safety features from the existing 005 Paradigm Deadbolt such as DualSelect, Safety Release and LockAlert that are renowned for performance.

Features:

• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
• SL8D8C6K5 High security cut resistant
• Stainless Steel bolt for added security
• Brushed 304 grade Stainless Steel Pull Handle
• Door Magnets included to hold the door(s) in position when it is in passage mode (Deadbolt version only)
• Concealed screw fixings provide a neat and clean appearance
• Can be matched with any of Lockwood's internal levers for a stunning and contemporary look throughout the house

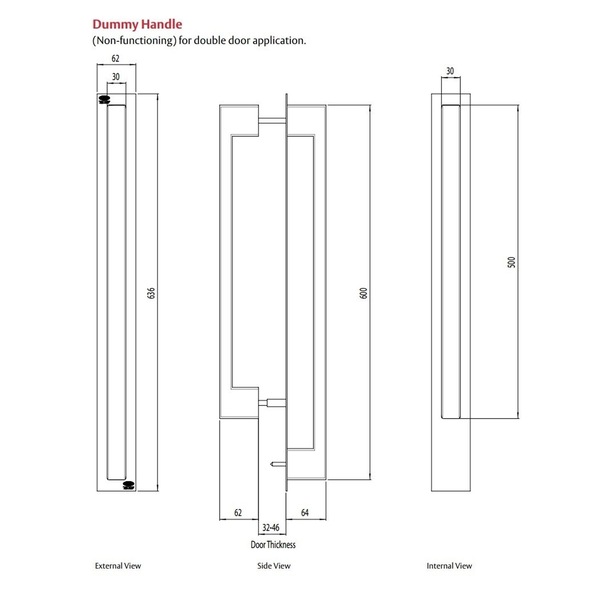

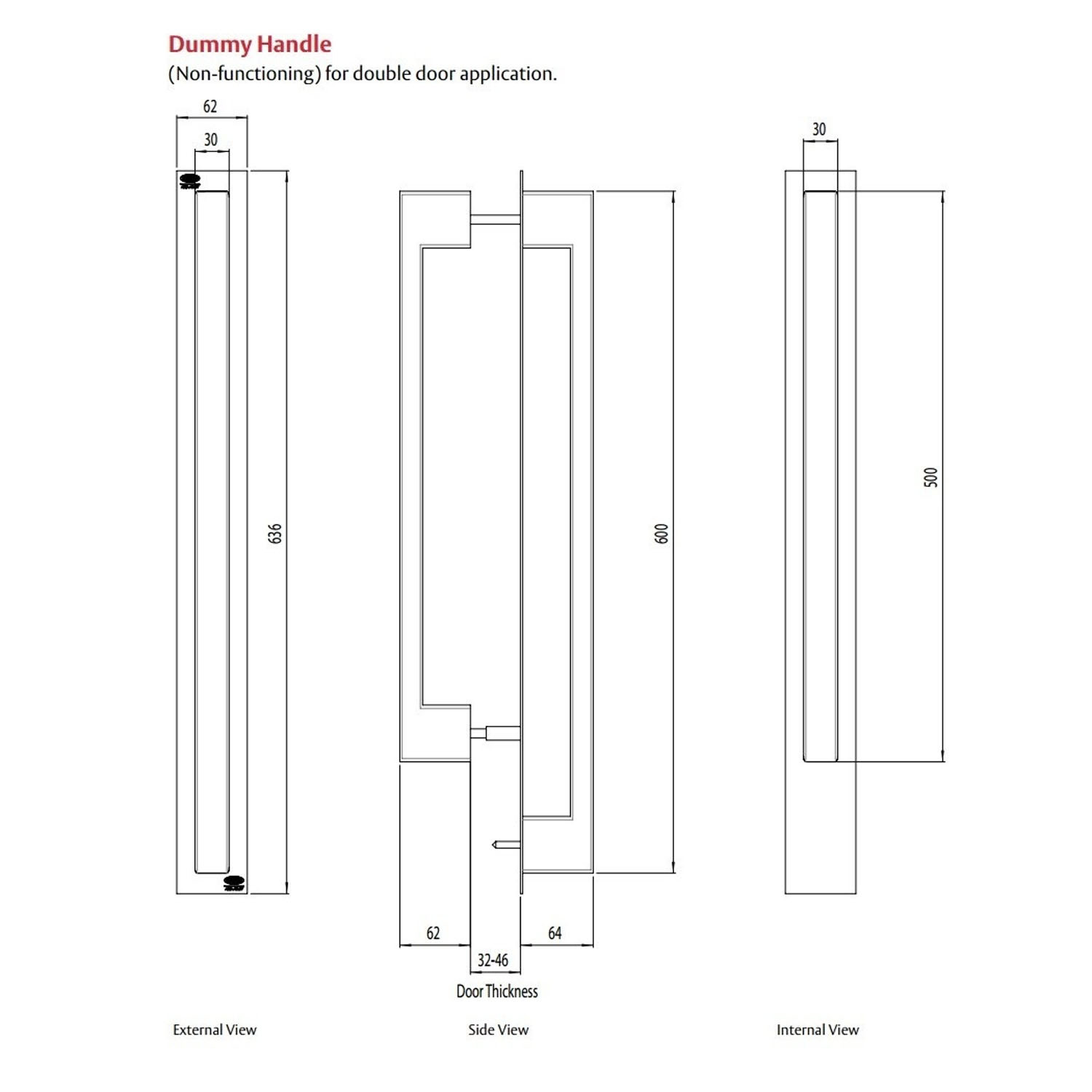

• Can be matched with dummy (non-functioning) pull handle for double door applications
• LockAlert - The Paradigm® Pull Handle Lockset incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance.
• Key blank KB2015P

The lockset can operate in three modes:

• Secure Mode - Locked from the inside and outside.
• Safety Mode - Locked from the outside and free to exit from inside.
• Passage Mode - Free to enter from outside and free to exit from inside.
• DualSelect - Turn the key for safety mode. Turn the key further to select secure mode.
• SafetyRelease - Automatically unlocks the internal knob upon entry minimising the risk of being locked in.
• Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
• Kinetic Defence - Bump and pick resistant.
• Counterbalance Bolt - Proportionally distributes the load between the door and door frame.
• 2 Keys Included - Can be keyed alike to other Lockwood door locks.

Specifications:

• Fucntion: Self-latching Double Cylinder
• Backset: 60mm - 70mm adjustable latch
• External handle length: 600mm
• Internal handle length: 500mm
• Handle width: 30mm
• Cylinder: 5 pin tumbler mechanism
• Keying: Brass cylinder and brass barrel
• Keys: Supplied individually keyed with two keys per lock
• Key Combinations: 78,000

Approvals:

• AS 4145.2-2008 K5 Security
• Conforms to the security and durability requirements of Australian Standard AS4145.2-2008
• SL8D8C6K5 Durability Conforms to level D8
• (Durability) Australian Lock Standard (AS 4145.2: 2008) Anti-Corrosion - Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.
