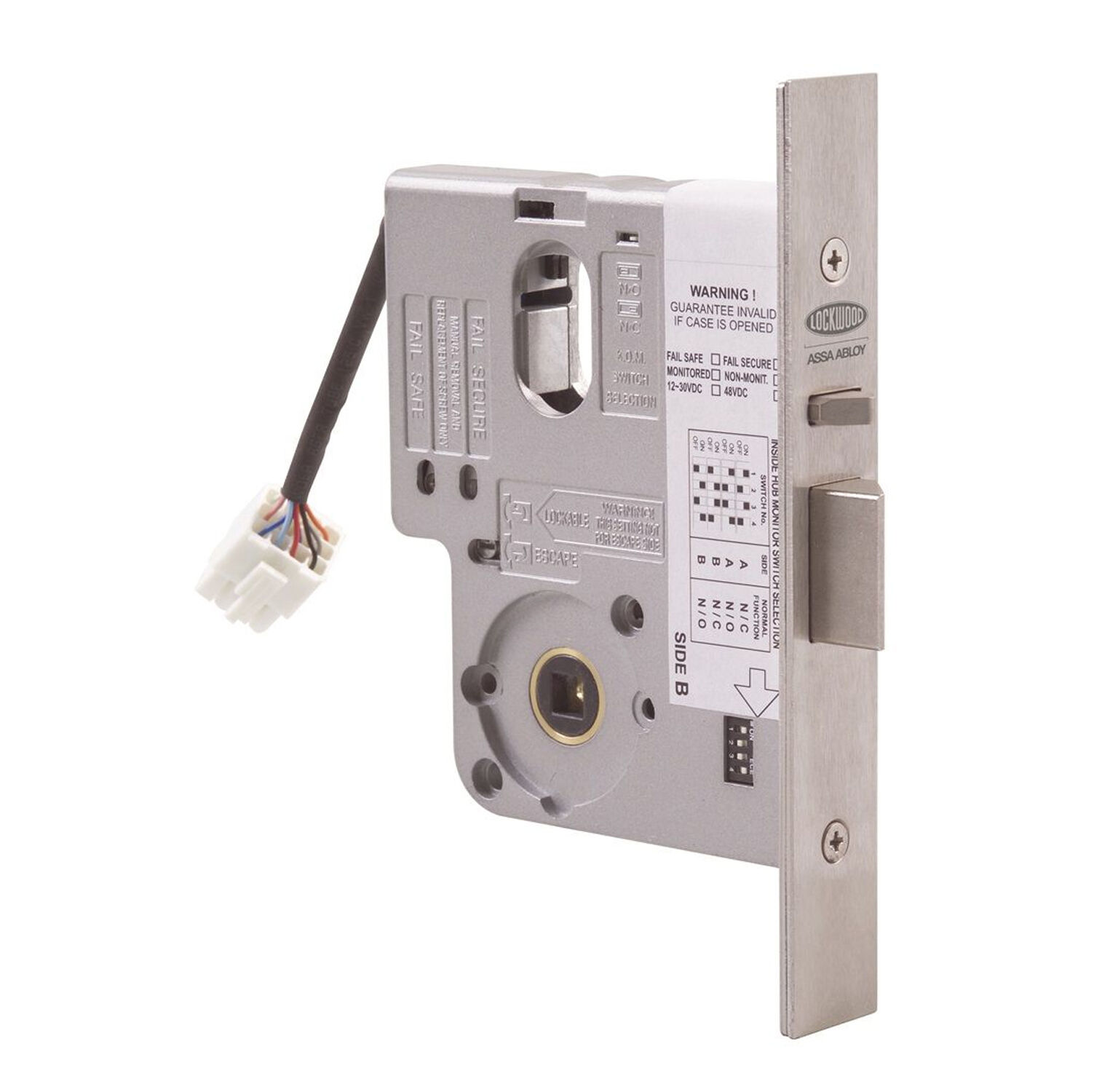

Lockwood 3570 Electric Mortice Lock 60mm Satin Chrome 3570ELM0SC

Lockwood 3570 Electric Mortice Lock
3570ELM0SC

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted

Features:

• Designed and manufactured in Australia,the 3570 series electric mortice is a high performance lock of superior quality.
• It is constructed from high grade zinc alloy, with a stainless steel latch bolt and face plate and is suited for all commercial applications.
• The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers
• Dead latched and Locked
• Door position/Reed switch
• Dual key override monitoring
• Request to exit/REX
• LED indication
• Field Changeable Settings:
• Fail safe/fail secure configuration.
• Multi-voltage - will work on 12-24 VDC systems.
• Selection of free lever or locked lever on both sides of the door
• Key override monitoring either side of the door

Specifications:

• Voltage: 12VDC - 24VDC Operating Voltage
• Current:
  • 500mA (max) 80mA holding @ 12VDC
  • 275mA (max) 50mA holding @ 24VDC
• LED Current: When LED’s are fitted, add 15mA (max) to total current draw
• Monitoring:
  • Dual Key override
  • Deadlatched
  • Locked
  • Door closed
  • Request to exit
  • Microswitches: 500mA (max) @ 30VDC each circuit
  • Reedswitch: 100mA (max) @ 30VDC
• Environment: Operational temperature range -20c to + 60c
• Case/Cover: High purity Zinc alloy construction
• Backset: 60mm standard, 89 & 127 mm available
• Latch Bolts: Reversible with Stainless Steel construction
• Door Clearance: 3 - 6.5 mm
• Door Thickness:Standard applications 32 to 50mm
• Cylinder: Standard Lockwood oval shaped cylinders
• Cabling: 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm) cable runs up to 30m
• Finish: Satin Chrome

Standard and Compliance:

• S8: (Security) Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system)
• D8: (Durability) Australian Lock Standard (AS4145.2.2008)
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
• RCM Certified
• SSCEC Endorsed for SL3 Medium Threat Level Areas
