LCD Digital Multimeter AC/DC Electrical Meter Voltmeter Current OHM Multi Tester

LCD Digital Multimeter AC/DC Electrical Meter Voltmeter Current OHM Multi Tester

Be the first to review this product

Hurry! 10 items left!

Price	$21.99
	Earn 3x points and collect 63 Everyday Rewards points. Promotion ends 25/08/2024. Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Description :

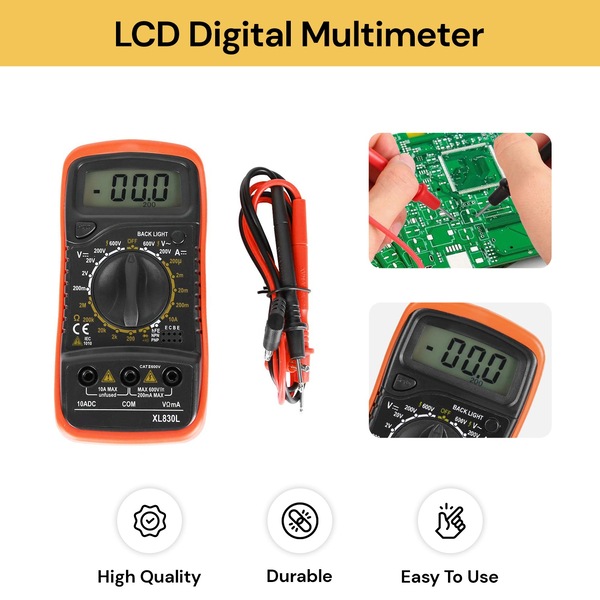

LCD Digital Multimeter

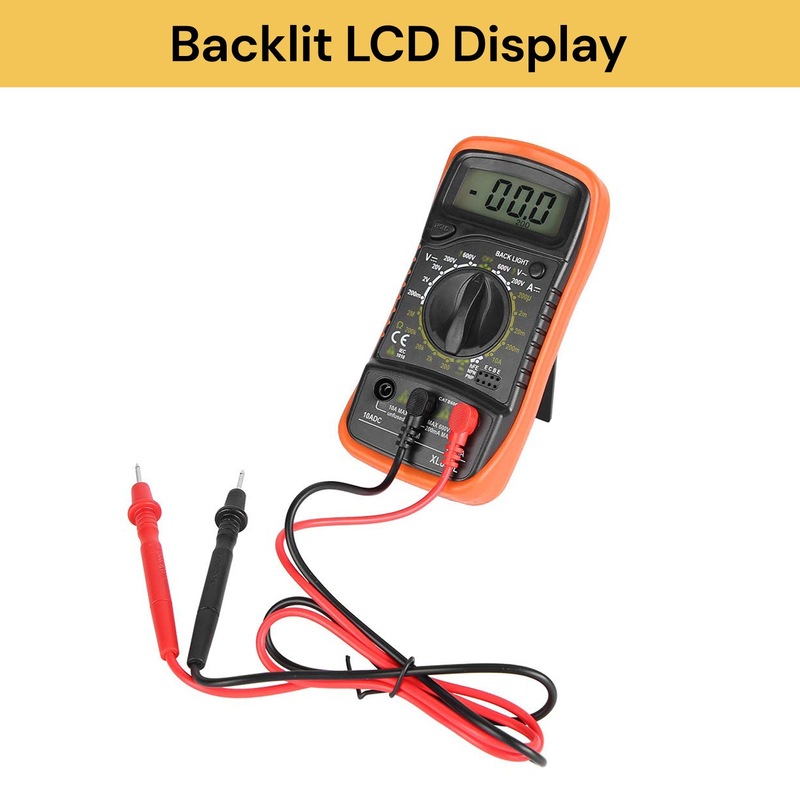

LCD Digital Multimeter Large Display with Back ground Light

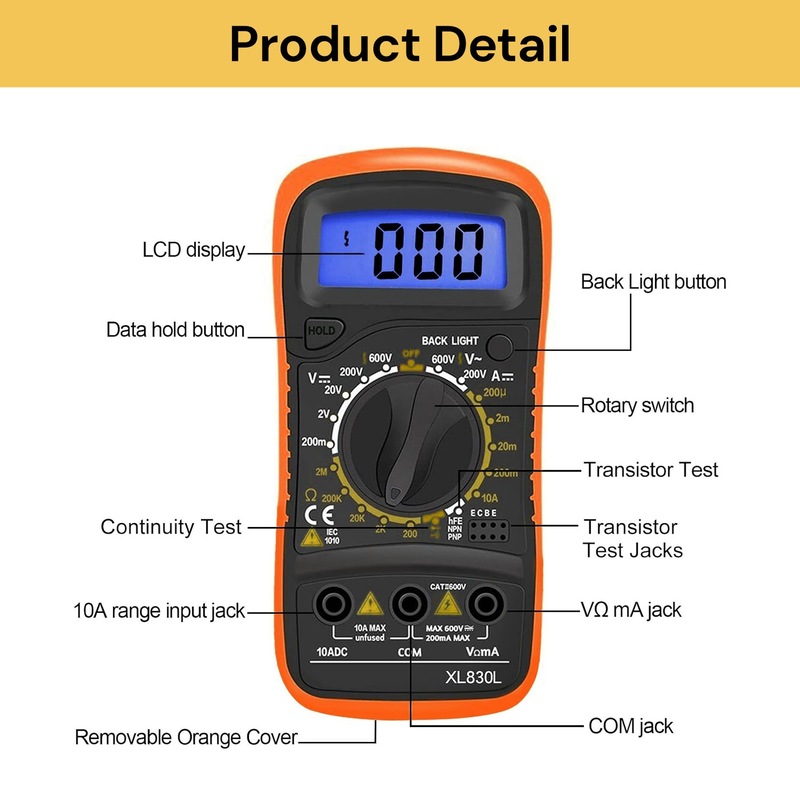

The meter is a handheld 3-1/2 digital mutimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, Transistor test

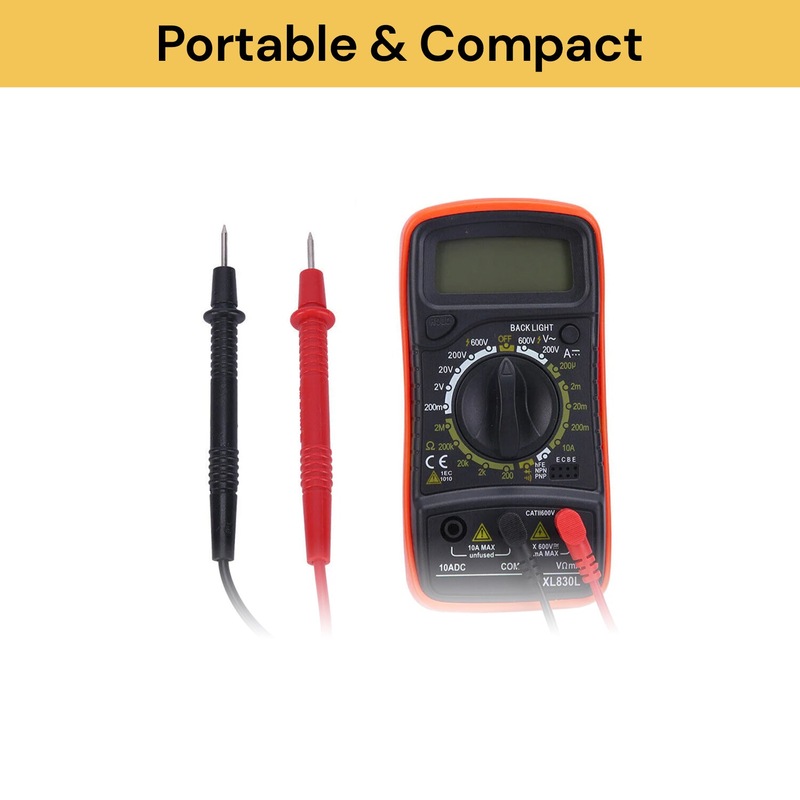

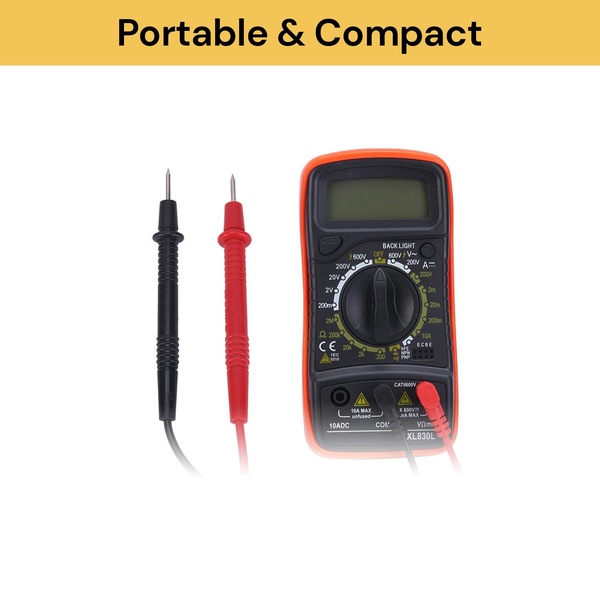

Portable and compact design, easy to operate and the readings indicated directly on the screen
Diode assembly test / Transistor P-N junction test / Transistor HFE test
Continuity test with buzzer sound in circuit
Overload Protection: F 200 mA / 250 V fuse. 10 A range not fused
Low battery voltage indication

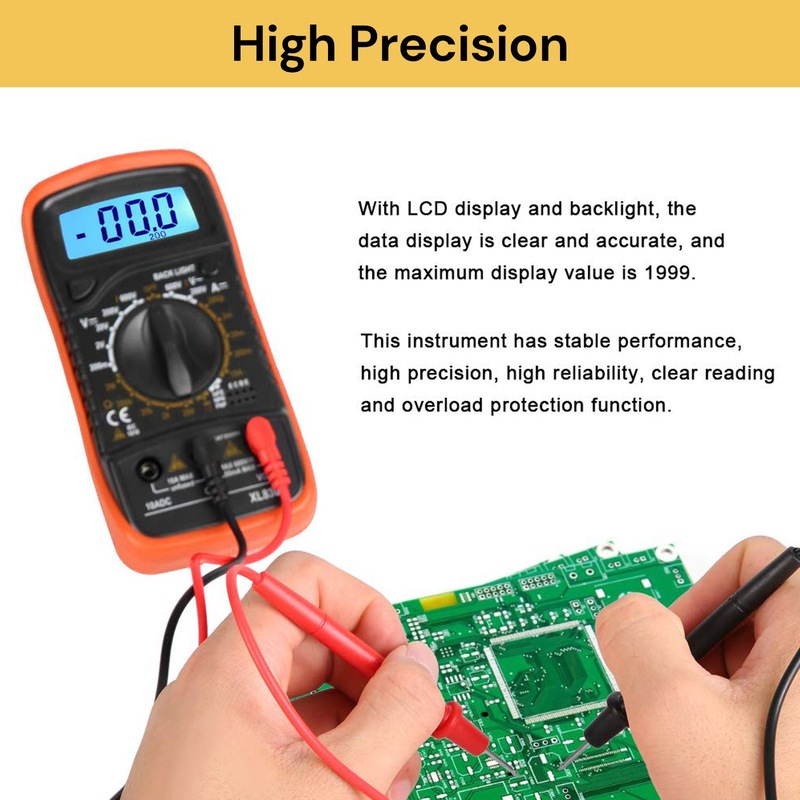

Max display: 1999, Auto polarity display. 3-1 / 2 digits large LCD display with max
It can be use to overhaul all kinds of circuit boards
Ideal teaching instrument for students, and ideal for use in fields, such as laboratory, workshop, and home application
DC Voltage: 2V / 20V / 200V / 600V
AC Voltage: 200V / 600V
DC Current: 20uA / 200u A / 2mA / 20mA / 200mA / 10A
Resistance: 200Ohm / 2KOhm / 20KOhm / 200KOhm / 2MOhm
Fuse Protection: F 200 mA / 250 V
Power: 9 V Battery NEDA 1640
LCD Display: 1999 Counts, updates 2 to 3 per second
Measuring method: Dual-slope integration ADC

Specification :

Type : Digital Multimeter
Color : Black+Yellow

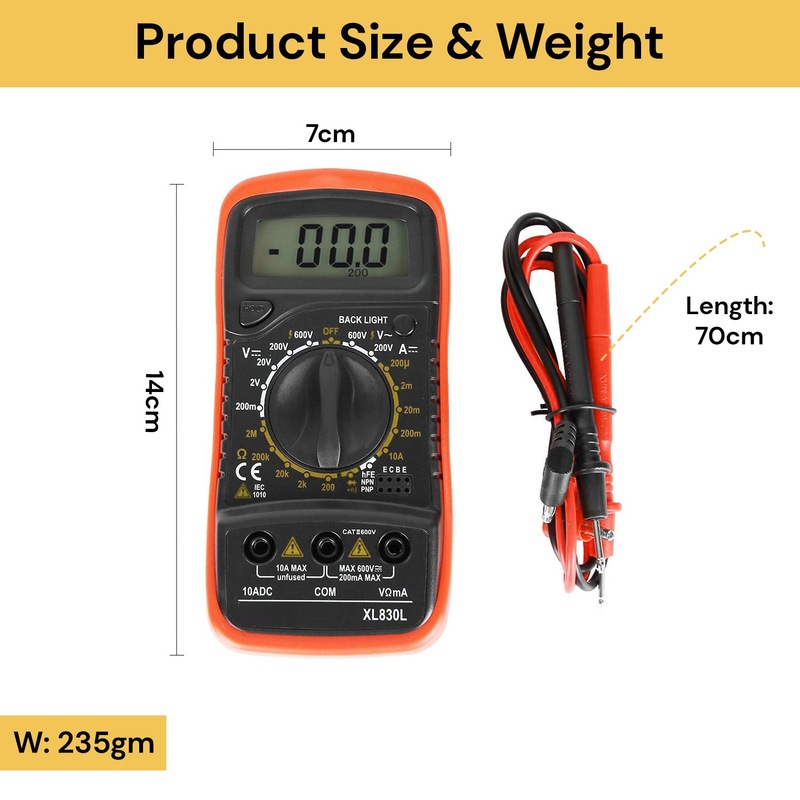

Size : Approx. 138 mm x 69 mm x 31 mm

Package Content :

1 x Digital Multimeter

1 x Set of test leads (black+red)
1 x Battery

1 x Manual

MPN: Z4604
