Launch X431 V+ V5.0 Diagnostic Tool Supports Topology Mapping ECU Online Coding

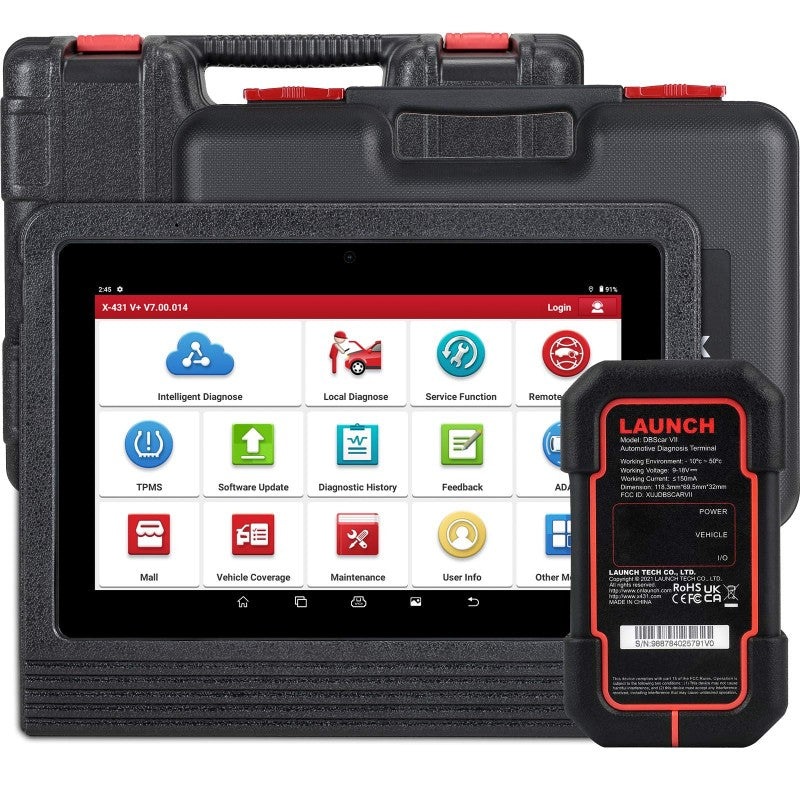

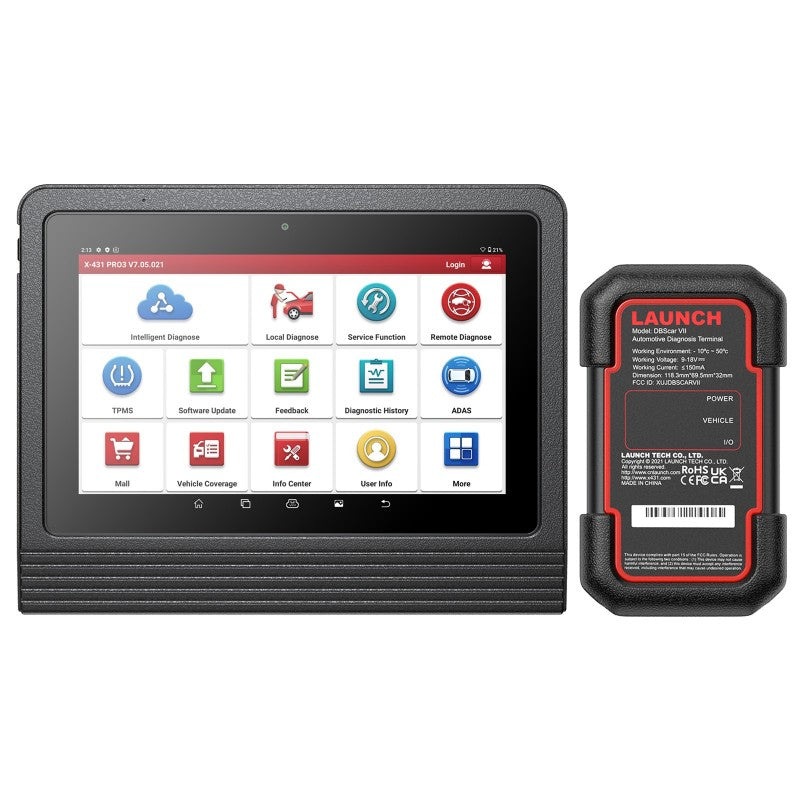

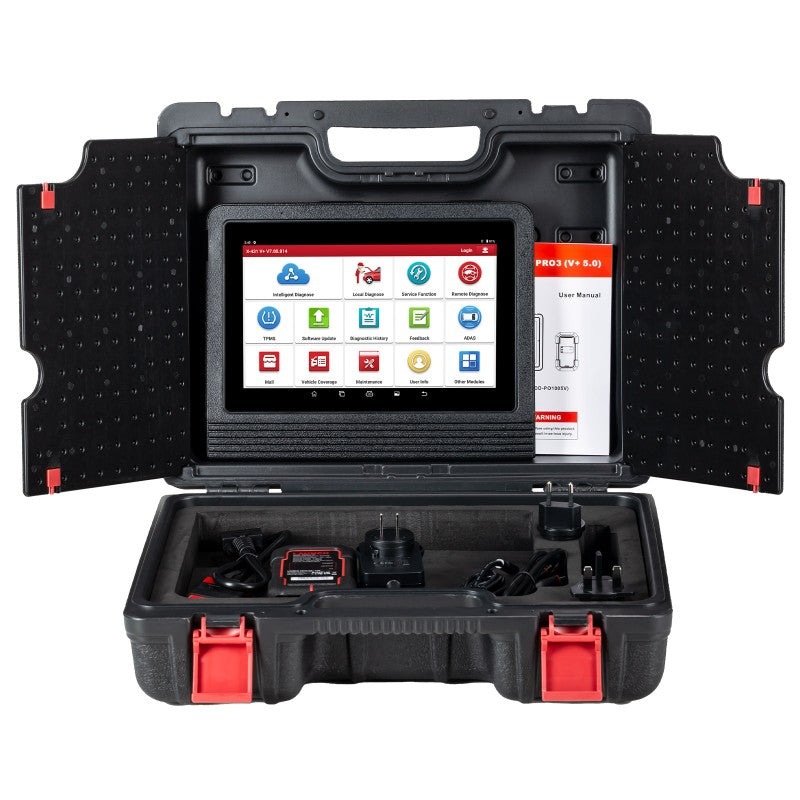

The Launch X431 V+ Elite (with OBD1) is an advanced, Android-powered diagnostic tool crafted for professional mechanics, auto repair shops, and serious DIY enthusiasts. As an upgraded version of the X431 V+ 4.0, this Elite model introduces cutting-edge features like topology mapping, ECU online coding, and support for CANFD/DOIP protocols, all housed in a sleek 10.1-inch touchscreen tablet. With its included complete OBD1 adapter kit, it bridges the gap between modern vehicles and older models, offering unparalleled versatility. Whether you’re diagnosing a 2024 sedan or a vintage truck, the X431 V+ Elite delivers precision, speed, and reliability.

The X431 V+ Elite is more than just a scanner—it’s a comprehensive automotive solution. Built on the legacy of the X431 IV and Diagun III, it combines robust hardware with a cloud-connected ecosystem. It supports over 98% of vehicles worldwide, including 12V light trucks, and can extend to 24V heavy-duty trucks with the optional X431 Smartlink C2.0 Truck Module. From routine maintenance to advanced ECU programming, this tool empowers users with dealership-level capabilities at a fraction of the cost.

• Topology Mapping: Visualize vehicle system layouts and communication networks, highlighting faults in real-time for faster diagnostics.
• ECU Online Coding: Access cloud-based coding to update ECU software, unlock hidden features (e.g., disabling daytime running lights), and match replaced components.
• Full-System Diagnostics: Scan all systems—engine, transmission, ABS, airbags, suspension, and more—to retrieve ECU data, read/erase codes, and monitor live data streams.
• Bi-Directional Control: Perform active tests on components like fuel pumps, windows, and headlights to verify functionality without disassembly.
• 37+ Maintenance Services: Includes oil resets, injector coding, TPMS relearns, DPF regeneration, and over 300 model-specific functions.
• OBD1 Compatibility: Comes with a full OBD1 adapter kit for diagnosing pre-1996 vehicles, expanding its utility beyond OBD1 standards.
• Global Version: No IP restrictions, usable worldwide with 2 years of free software updates.
• Multi-Language Support: Offers 14+ languages, including English, Spanish, German, French, Italian, Japanese, and Russian.

The X431 V+ Elite establishes a data link to every vehicle system, providing:

• ECU Information: Unit type, version numbers, and specifications.
• DTC Retrieval: Read and erase diagnostic trouble codes to pinpoint issues.
• Live Data: View real-time parameters (e.g., engine RPM, coolant temp) in graph or numeric format.
• Supported Systems: Engine, transmission, ABS, airbags, immobilizer, climate control, steering, suspension, body control, and more.

With active test functionality, you can:

• Activate components like radiator fans, throttle valves, and door locks.
• Test actuators without manual intervention, saving time and effort.
• Diagnose subsystems (e.g., fuel injectors, A/C clutch) with precision.

This innovative feature displays a color-coded map of the vehicle’s electronic systems, showing:

• Communication status between modules.
• Fault locations at a glance, reducing diagnostic guesswork.

• Customization: Adjust settings like auto-folding mirrors, disable Start-Stop, or tweak lighting preferences.
• Component Matching: Sync new ECUs or modules post-repair (e.g., after replacing an ABS unit).
• Compatibility: Supports BMW, VW, Porsche, Renault, and more via online coding (requires stable internet).

Replacing an ECU without proper coding can leave a vehicle inoperable. The X431 V+ Elite ensures new modules are initialized and programmed correctly, restoring full functionality.

The X431 V+ Elite offers 37+ reset and relearn functions, including:

• Oil Reset: Recalibrates oil life after changes.
• Injector Coding: Programs new injectors for accurate fuel delivery.
• EPB Reset: Manages electronic parking brakes.
• ABS Bleeding: Removes air from brake lines.
• DPF Regeneration: Clears diesel particulate filters.
• TPMS Reset: Relearns tire pressure sensors.
• SAS Calibration: Resets steering angle sensors.
• Throttle Matching: Restores idle settings.
• Additional Functions: Sunroof initialization, suspension calibration, AdBlue reset, and more.

With over 300 special functions for specific models, it’s a one-stop solution for routine and advanced repairs.

• 80+ Brands, 10,000+ Models: Covers 98% of vehicles from the USA, Europe, Asia, and Australia, including:
  • USA: Ford, GM, Chrysler, Jeep, Dodge.
  • Europe: BMW, Benz, VW, Audi, Porsche, Fiat, Peugeot, Land Rover.
  • Asia: Toyota, Honda, Nissan, Hyundai, Kia, Mazda, Subaru.
  • Australia: Holden, Ford AU.
• 12V Light Trucks: Included out of the box.
• 24V Heavy Trucks: Requires optional X431 Smartlink C2.0 module.

• CANFD & DOIP: Supports newer vehicles (e.g., 2020+ GM, BMW E/F series) with the updated DBScar VII VCI.

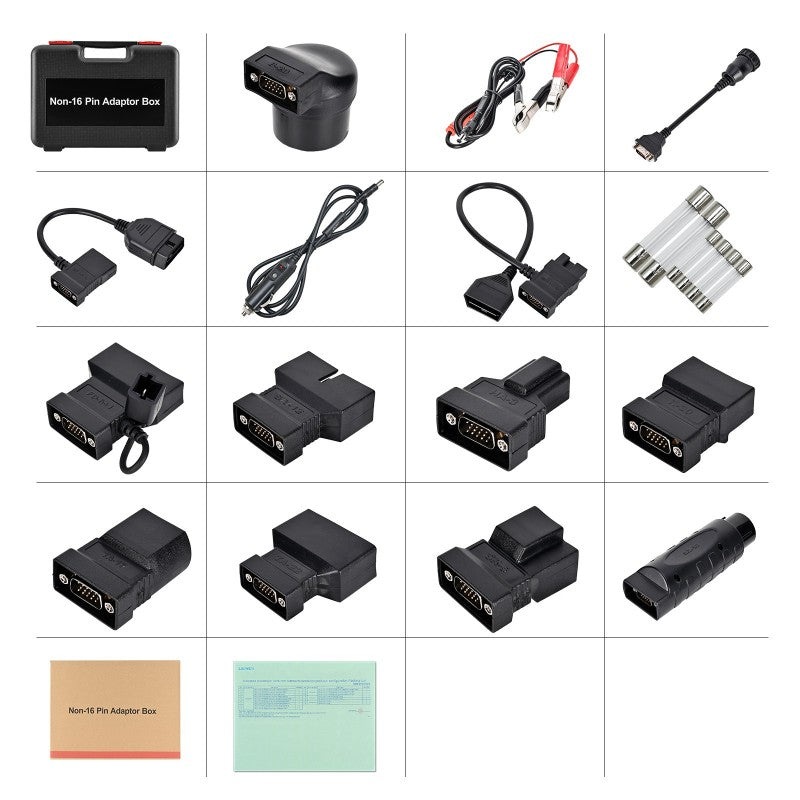

• OBD1 Support: Full kit ensures compatibility with pre-1996 vehicles using legacy connectors.

• Operating System: Android 10.0
• Processor: Qualcomm Snapdragon 450, 8-core, 1.8GHz
• Memory: 4GB RAM
• Storage: 64GB ROM (expandable to 128GB via TF card)

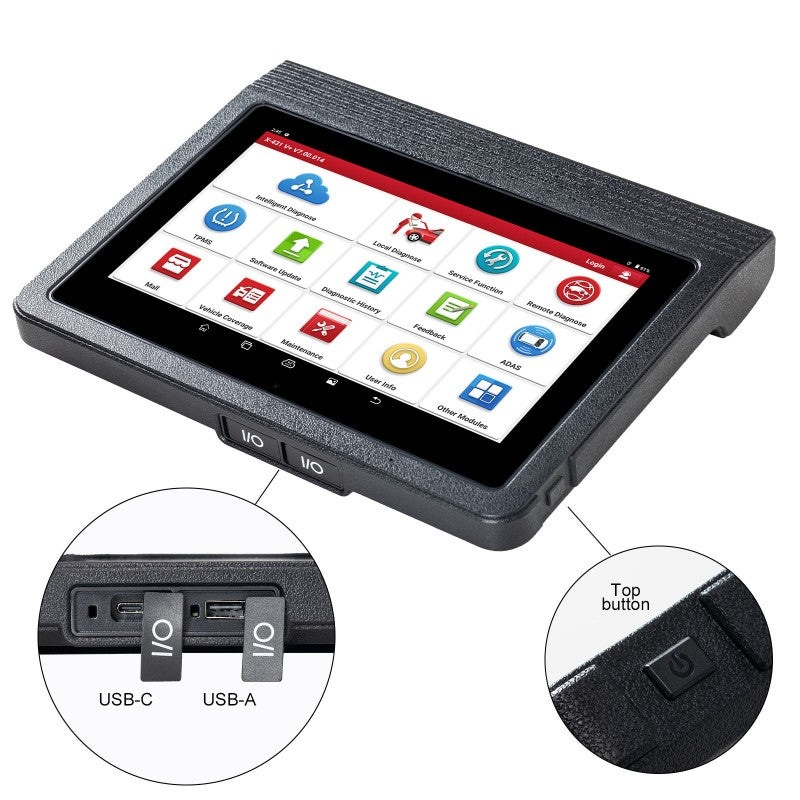

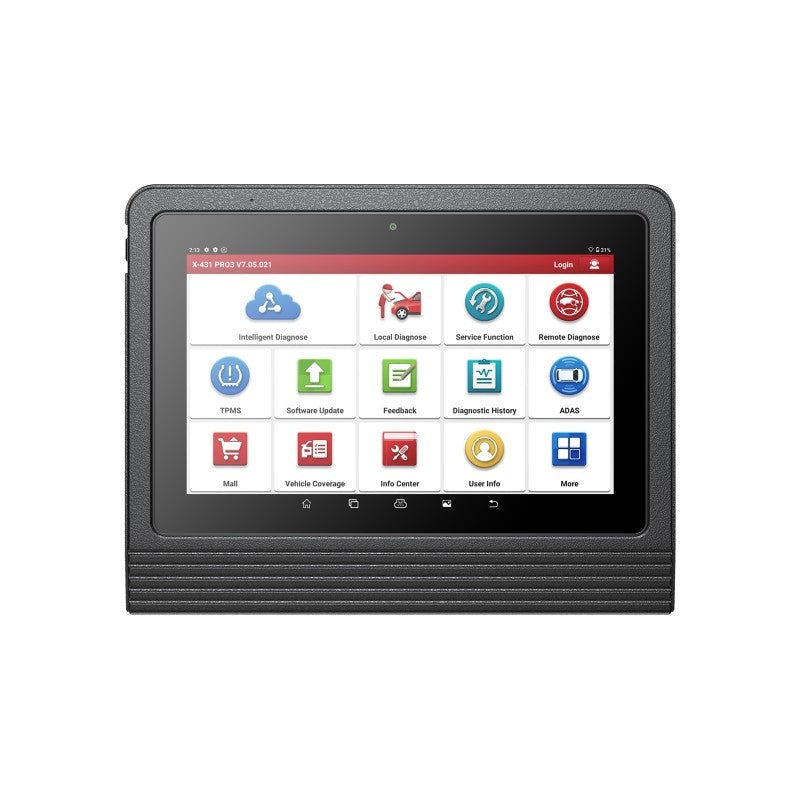

• Display: 10.1-inch HD capacitive touchscreen (1280x800 resolution)
• Battery: 7000mAh lithium-polymer, up to 10 hours of use
• Cameras: 5.0MP front, 8.0MP rear
• Connectivity: Dual Wi-Fi (2.4GHz/5GHz), Bluetooth
• Dimensions: 10.1 inches (tablet size)
• Weight: Approx. 1.2kg (tablet only)

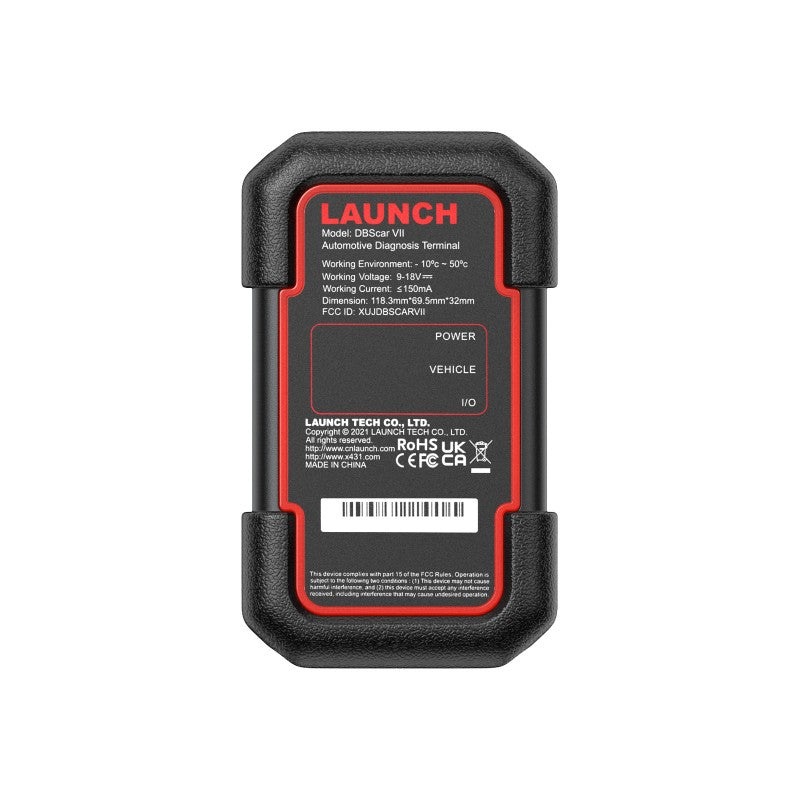

• Connection: Bluetooth
• Working Voltage: 9-18V
• Current: ≤150mA
• Operating Temp: -10°C to 50°C

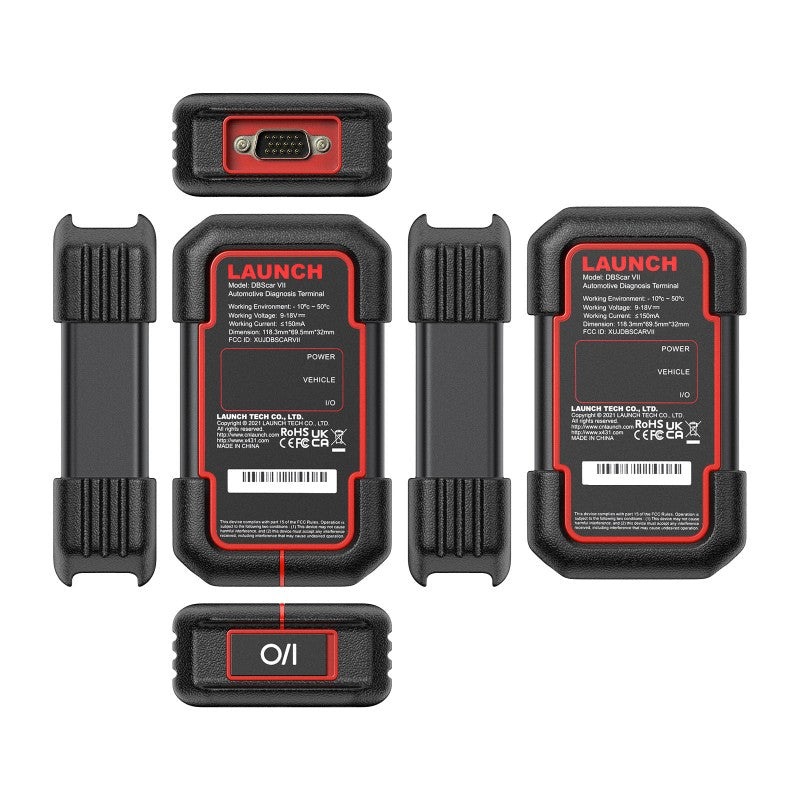

• Dimensions: 118.3mm x 69.5mm x 32mm

• Working Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 70°C

• Free Updates: 2 years included; optional subscriptions available post-expiration (no lockout after free period).
• Multi-Language: English, Italian, German, French, Spanish, Portuguese, Russian, Japanese, Korean, Polish, Dutch, Danish, Swedish, etc.
• Cloud Integration: Access maintenance data, case libraries, and diagnostic history online.
• Auto VIN: Automatically detects vehicle details for quick setup.

Enhance your diagnostics with these compatible modules (sold separately):

• X431 Smartlink C2.0: Adds 24V truck diagnostics.
• X431 XPROG3 GIII: Advanced IMMO and key programming.
• X431 TSGUN: TPMS sensor activation and programming.
• BST-360: Battery health testing.
• VSP-600 Videoscope: Inspect hard-to-reach areas.
• Wi-Fi Printer: Print diagnostic reports instantly.

From modern CANFD/DOIP-equipped cars to legacy OBD1 vehicles, this scanner handles it all. Its global version ensures no regional limitations, making it ideal for mechanics worldwide.

With topology mapping, ECU coding, and bi-directional control, you’ll diagnose and repair faster than ever. The 7000mAh battery and dual Wi-Fi keep you productive all day.

Updated to 2024 models and expandable with add-ons, the X431 V+ Elite grows with your needs, ensuring long-term value.

Backed by Launch’s extensive online resources, including repair cases, videos, and a community platform, you’re never alone in solving tough issues.

• Auto Repair Shops: Streamline diagnostics and boost service offerings.
• Fleet Managers: Maintain diverse vehicle types efficiently.
• DIY Enthusiasts: Tackle advanced repairs with professional tools.

Order the Launch X431 V+ Elite (with OBD1) today and experience diagnostics redefined. Contact us for compatibility questions or additional details—this is the tool your garage has been waiting for!
