Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 iPhone Android

Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 iPhone Android

Be the first to review this product

Limited Stock!

Price	$39.95
	Collect 117 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner V1.5 iPhone Android

SKU: OBDBTSCAN

Bluetooth 4.0 OBD II Scanner

Allows this scanner to connect to Apple iOS devices.

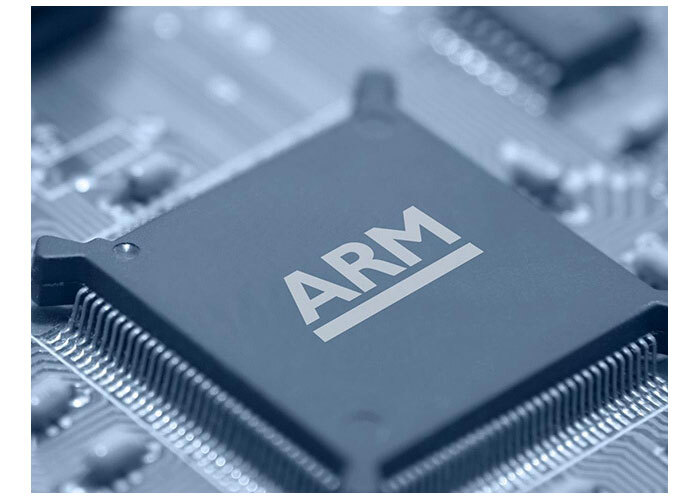

ARM Chipset

Advanced RISC Machines optimises performance and low power consumption.

V1.5 Firmware

It supports all 9 OBD2 protocols.

For OBDII Compliant Vehicles

Easy to Install & User-friendly

Easily connect to your vehicle's OBD port.

Real-Time Data Viewing

View real-time vehicle data, graphs and performance parameters while you're driving.

Product Views

MORE INFORMATION

Scanning your vehicle will be easier and affordable now. With this NEW Mini OBD2 Bluetooth 4.0 Wireless Diagnostic Scanner, you can now perform different scans on your car and do a health check.

A stylish diagnostic scan tool and real-time monitor with a third-party OBD2 App like Torque, OBD Car Doctor, DashCommand, Car Scanner ELM OBD2 for Android and Car Scanner ELM OBD2, Dashcmd, OBD Car Doctor for iOS. ScanMaster-ELM for Windows. You can scan your car using your iPhone, iPad or Android phone/tablet.

Using Bluetooth 4.0 which is faster than any other Bluetooth versions and more reliable than WiFi. No complicated settings or delicate connections plus much lower power consumption. It uses Bluetooth and you can have access to internet via your cellular data or WiFi when the phone is connected to ELINZ OBDII Diagnostic Scanner.

Why settle for an expensive scanning method when you can easily do it at home? Try Elinz Mini OBD2 Bluetooth 4.0 Car Wireless Diagnostic Scanner.

PRODUCT HIGHLIGHTS

Bluetooth 4.0 OBD II Diagnostic Scanner
- Allows this scanner to connect to Apple iOS devices
ARM Chipset
- Same chipset used on expensive brands
- Advanced RISC Machines optimises performance and low power consumption
V1.5 firmware
- It supports all 9 OBD2 protocols
Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light

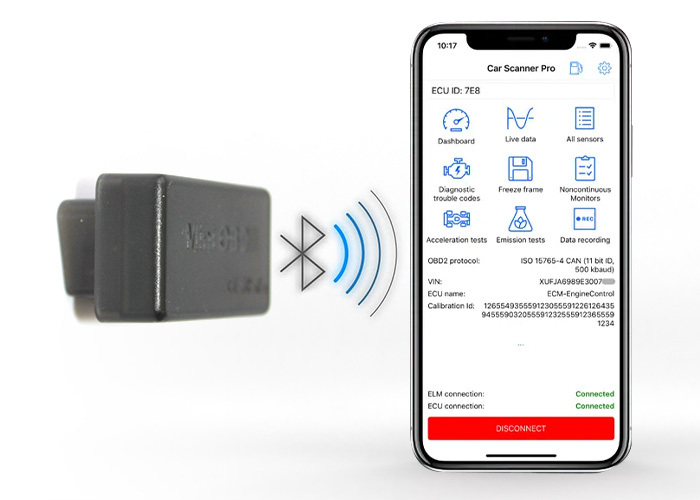

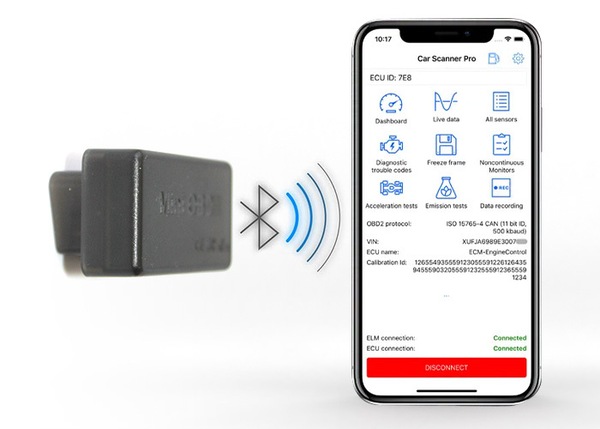

- Connect to your iOS or Android devices using one of the many free compatible apps or a Bluetooth® enabled computer
View real-time vehicle data, graphs and performance parameters while you're driving
Compatible* with most OBDII compliant vehicles
- Contains QR code to download the recommended Mini OBDII app for android
Pays for itself with one use
Multi-Protocol Support:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2 (5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4Kbaud)
- ISO14230-4 (fast init, 10.4Kbaud)
- ISO15765-CAN (11bit ID, 500Kbaud)
- ISO15765-CAN (29bit ID, 500Kbaud)
- ISO15765-CAN (11bit ID, 250Kbaud)
- ISO15765-CAN (29bit ID, 250Kbaud)

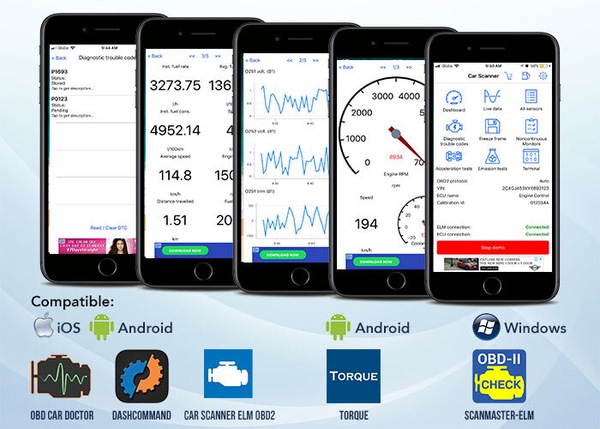

Compatible software:
- Android: Torque, OBD Car Doctor, DashCommand, Car Scanner ELM OBD2
- iOS: Car Scanner ELM OBD2, Dashcmd, OBD Car Doctor
- Windows: ScanMaster-ELM
What operation you can Perform on this Scanner?
- Read diagnostic trouble codes, both generic and manufacturer-specific and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL or malfunction indicator lamp ("Check Engine light")
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure AND Many others...
User-friendly and Easy to learn
- Basically extract the files into a folder on your computer's hard drive and you are ready to go. To uninstall the program, just delete the entire contents of the folder where the program is.

ITEM DESCRIPTION

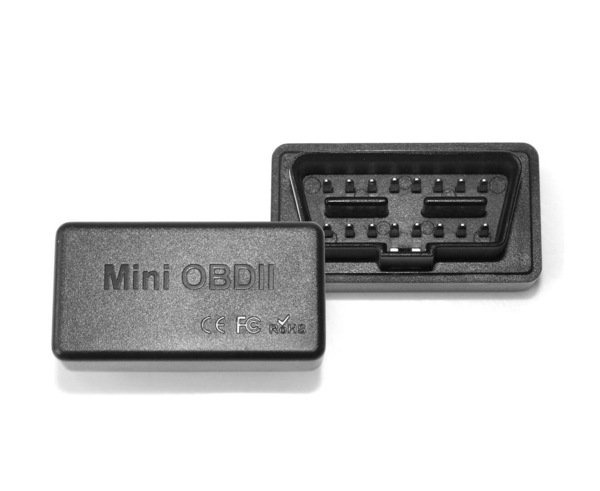

Bluetooth 4.0 OBD II Diagnostic Scanner
Chipset: ARM
Firmware: V1.5
Bluetooth 4.0
Colour: Black
Unit Size: 49*25*23mm
Compatible Devices: Android/Windows/iOS

WHAT'S INCLUDED

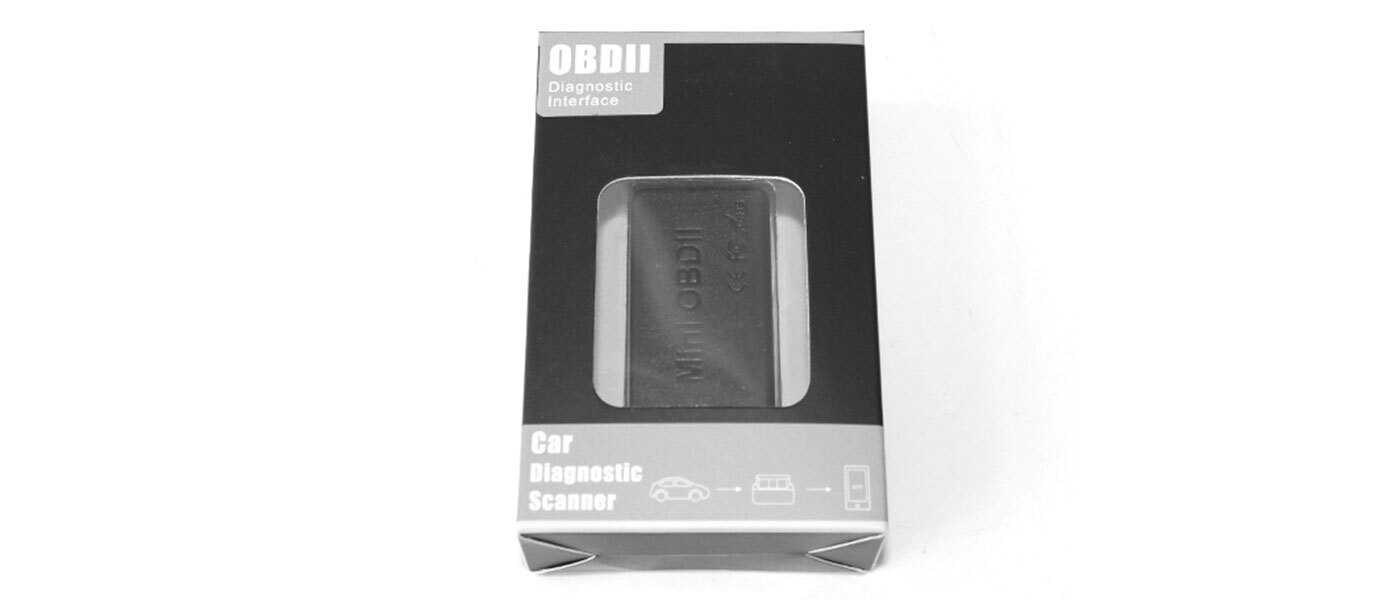

1. 1x Mini Diagnostic Car Scanner

GTIN: 0606015374541
