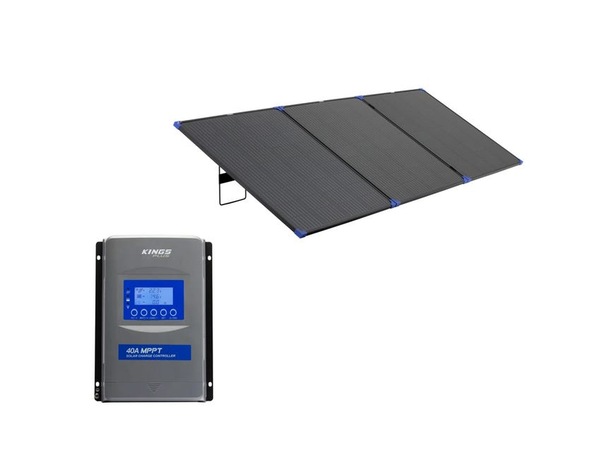

Kings 300W Folding Solar Panel Up to 25A at 12V + 40 AMP MPPT Solar Regulator

Kings 300W Folding Solar Panel Up to 25A at 12V + 40 AMP MPPT Solar Regulator

Price
$438
Collect 438 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$20.00 Australia-wide (per item)

24-48 hour dispatch
Quantity
Maximum item limit (50) has been reached.

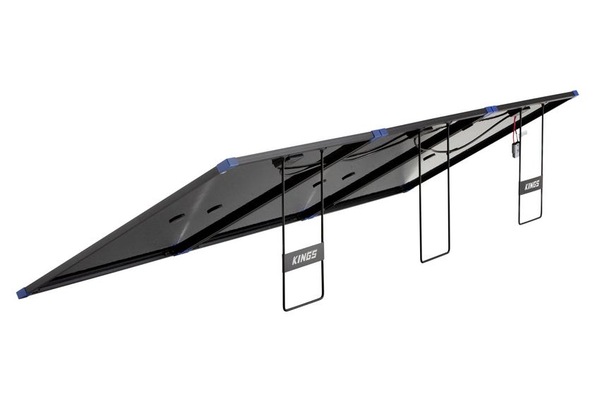

The Adventure Kings 300W Folding solar panel is perfect for capturing power from the sun. With legs designed to capture maximum sun exposure all day, this panel is ideal for charging large battery banks to run power hungry setups. Its compact folding design makes it perfect for on-the-go power needs, whether you're camping, traveling, or embarking on off-grid adventures.

• Made with heavy-duty 2.0mm tempered glass and a lightweight slimline extruded aluminum frame, they can withstand harsh conditions. Its compatible with all Adventure Kings solar regulators and solar leads that feature the Quick Connect icon.Join two panels together to boost your charging capacity. This ensures your big battery banks stay fully charged, providing a reliable power source for energy-intensive appliances like inverters, induction cooktops and even off grid air conditioners.

• 40A MPPT - On the solar input side, it will make use of up to 520W of solar power as a 12V system and of up to 1,040W of solar power as a 24V system. It can also over power by 50%, meaning you can connect up to 780 Watts of solar panels when using this solar regulator as a 12 Volt system and a massive 1,560 Watt of solar panels when setting up a 24 Volt system. This is a super effective way of making the most in cloudy or low light conditions. With over 98% max conversion efficiency and less than 15 milliamps of standby power it’s able to efficiently and effectively charge your batteries!

• 40 Amp MPPT Solar Charge controller has you covered for most battery chemistries on the market! It is Lithium battery compatible and is specifically tuned to suit Adventure Kings Lithium Iron Phosphate batteries, plus 24V Lithium Iron Phosphate as well as 3 different profiles for lithium nickel cobalt manganese. Of course there are Sealed, GEL and Flooded battery settings too. With Sealed being the default - perfect for Adventure Kings AGM batteries.

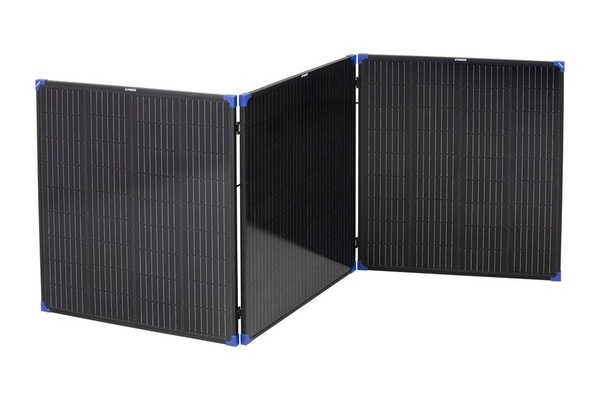

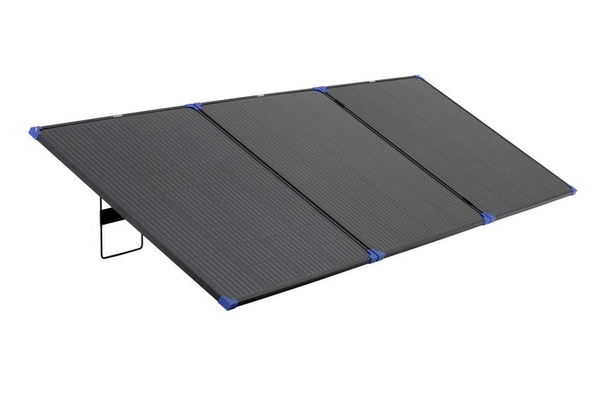

KINGS 300W FOLDING SOLAR PANEL 300W Output


Tri-Fold Compact Design | Quick Connect Plugs


For camping, traveling, or off-grid adventures.


Output 300W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 24.20V
ISC (Short Circuit Current) 16.52A
Note VOC and ISC can vary by up to +/-1v and +/-1A Review regulator for max voltage and current rating
VMP (Maximum Power Voltage) 20.40V
IMP (Maximum Power Current) 14.75A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 211.5 x 80 x 1.8 cm
Folded Dimensions 70 x 80 x 6 cm
Weight 13.3 kg

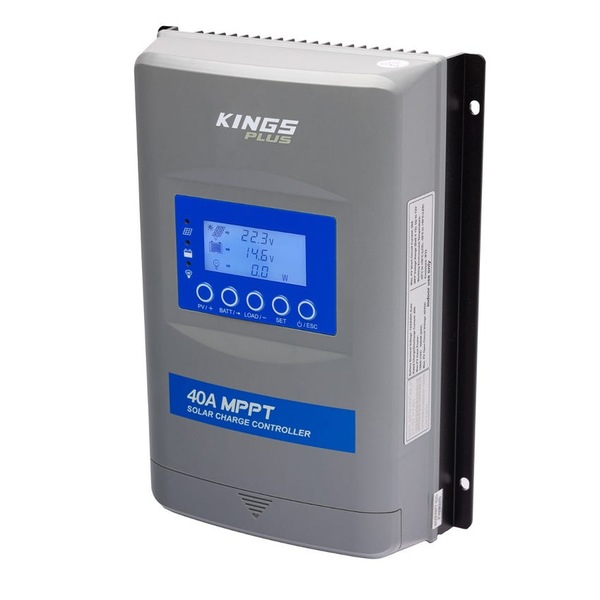

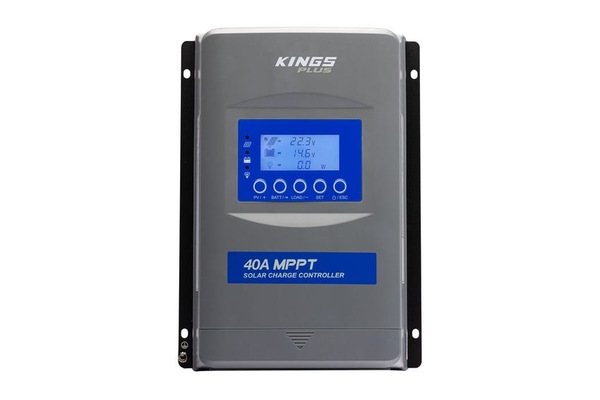

ADVENTURE KINGS PLUS PREMIUM 40 AMP MPPT SOLAR REGULATOR


It can accept up to 92V of solar input in standard conditions! It can suit just about any setup - AGM or lithium, up to 780 Watts as a 12 Volt battery system or 1,560 Watts as a 24 Volt battery system with a 40 Amp charge rating


Battery Chemistry Options Sealed, Gel, Flooded, Lifepo4,Li(NiCoMn)O2, User Adjustable
Display Backlit LCD + LED Indicator Lights

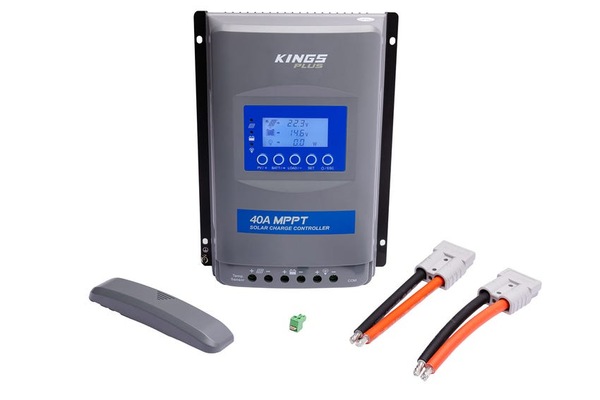

Included cables 100mm Double Insulated XLPO 16mm2 + Quick Connect Plugs

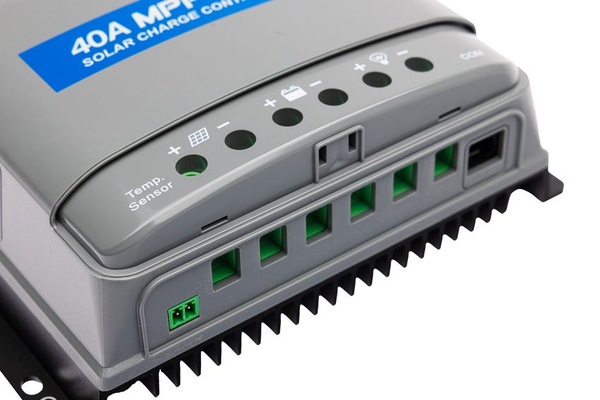

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 255 X 185 X 68mm (200 X 176 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 92V
Rated Solar Power Input 520W (12V) 1040w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%

MPN: SC-CO-300WF-40MPPTREG
