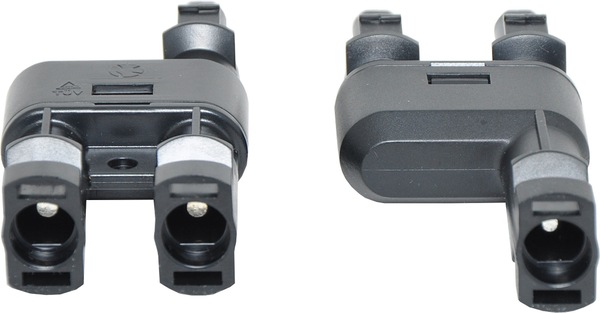

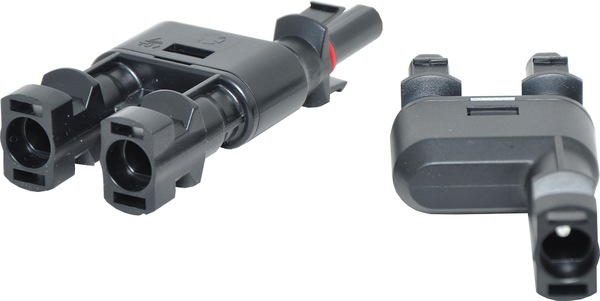

Amphenol LTW Solar Panel Male to Female 30A Y Adapter Pair

Amphenol LTW Solar Panel Male to Female 30A Y Adapter Pair

Be the first to review this product

Price	$41.95
	Collect 123 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Dual line plug adaptor designed for use when daisy-chaining solar panels together. Water & dust proof - IP67 rated. Commonly used on photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. Rated 30A @ 1000VDC (70°C).

Specifications:

Contact Material: Copper, Silver Plated
Insulation Material: PPO
Rated Current: 30A (2-4mm2)
Rated Voltage: DC 1000V TUV
Test Voltage: 6000V (50Hz, 1min)
Contact Resistance: 0.5mΩ
Protection Requirement: IP67
Safety Class: II
Flame Class: UL94 - V0
Insertion Force: = Withdrawal Force: >= 50N
Temperature Range: -40 ~ +90°C
Overvoltage Category/Polution Degree: CATIII/2

Specifications:

12 Months

GTIN: 9321758219621
