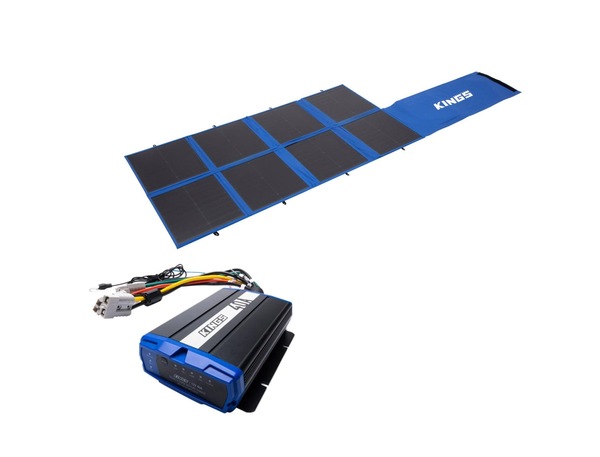

Kings 240W Folding Solar Blanket + 40A DCDC Charger

Kings 240W Folding Solar Blanket + 40A DCDC Charger

Price
$388
Collect 388 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$15.00 Australia-wide (per item)

24-48 hour dispatch
Quantity
Maximum item limit (49) has been reached.

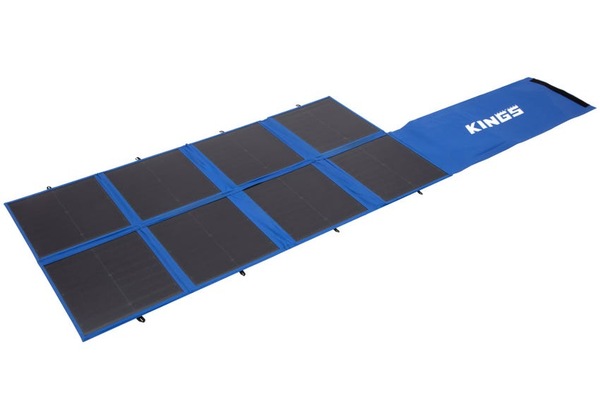

The Adventure Kings 240W Solar Blanket stands out as an ideal choice for medium-sized setups, making it perfect for charging a medium-sized battery bank to run fridge or powering a small inverter off grid. Its compact and lightweight design ensures easy transportation and storage, offering convenience without compromising on power output. Whether you're camping, traveling, or setting up an off-grid system, our solar blanket delivers reliable performance to meet your energy needs.

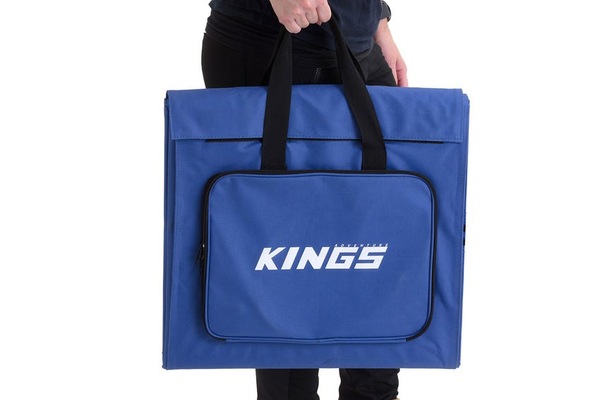

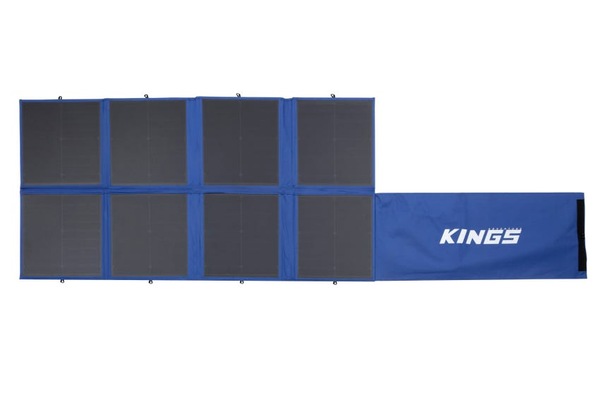

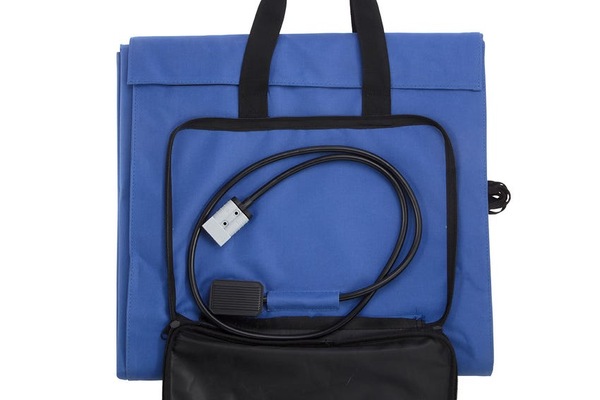

• Each of our solar blankets feature ultra black solar technology with enlarged busbars, ensuring highly efficient solar power generation. The cells are then protected by a double-layered anti-crack flexible PET film, enhancing durability and longevity of the blanket while maximising sunlight transmittance. The 240W Solar blanket measures in at a generous 165cm long, by 94cm wide and just 0.75cm thick. It packs down to a compact 44 x 46 x 6cm with an inbuilt wrap around cover,

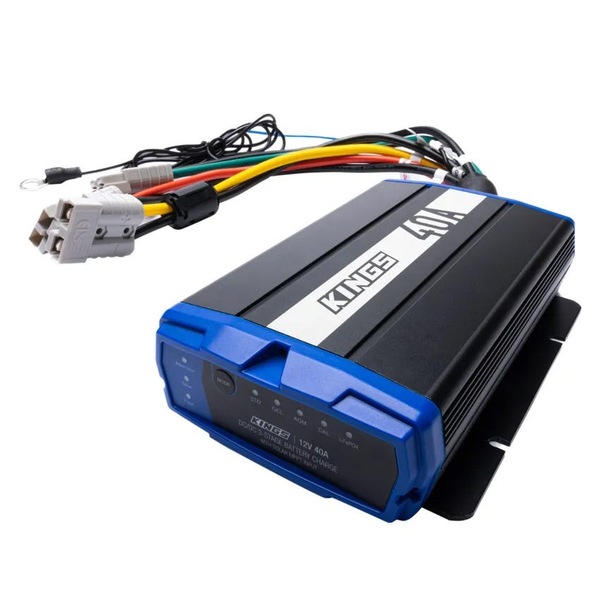

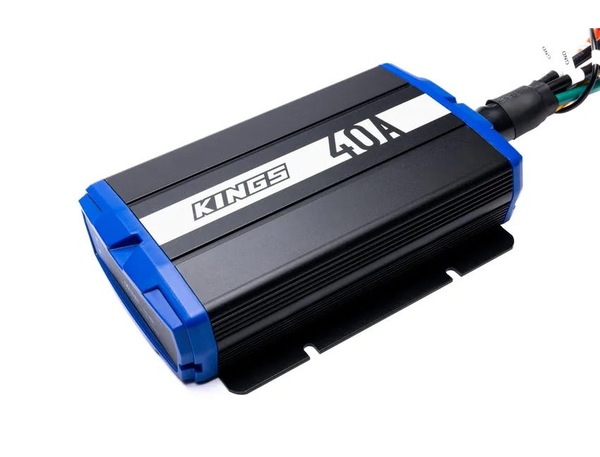

• CHARGER, ISOLATOR + SOLAR REGULATOR ALL IN ONE CHARGING SOLUTION The Kings 40A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 30W input. So you know you’re getting the most charge out of your panel no matter the conditions.

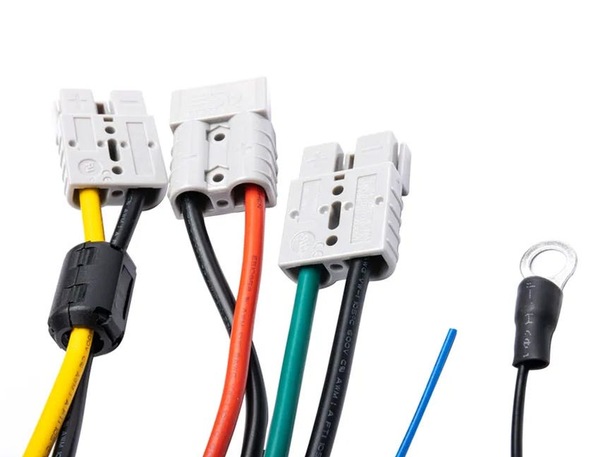

• Connecting your DCDC charger has never been easier - simply connect up the input from your starter battery, the output to your auxiliary battery and then connect a solar panel in seconds all thanks to the quick connect plugs. The 40A Charger along with a Kings 50A Wiring Kit is the perfect combo for an easy plug and play install!

• BUILT IN MPPT SOLAR CONTROLLER WITH SOLAR PRIORITY CHARGING The Kings 40A DCDC Charger has built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 30W input. So you know you’re getting the most charge out of your panel no matter the conditions. If, for example, you're driving at night and there is no solar input, the charger will pull only from your alternator. When you stop at camp and turn off your vehicle, the DCDC will automatically swap over to solar charging. If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 350W of solar power input.

KINGS 240W FOLDING SOLAR BLANKET | Up to 20A of charge at 12V
Output 240W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 25.37V
ISC (Short Circuit Current) 12.39A
Note NOTE: VOC and ISC can vary by up to +/-1v and +/-1A
Review regulator for max voltage and current rating
IMP (Max Power Current) 11.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.28%/°C
Pmax Temperature Coefficient -0.36%/°C
Standard Test Condition: 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Open Dimensions 165 x 94 x 0.75cm
Folded Dimensions 44 x 46 x 6cm
Weight 6.6kg






KINGS 40A DCDC CHARGER

Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C
Dimensions 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) internal + external
Housing Powder coated aluminium

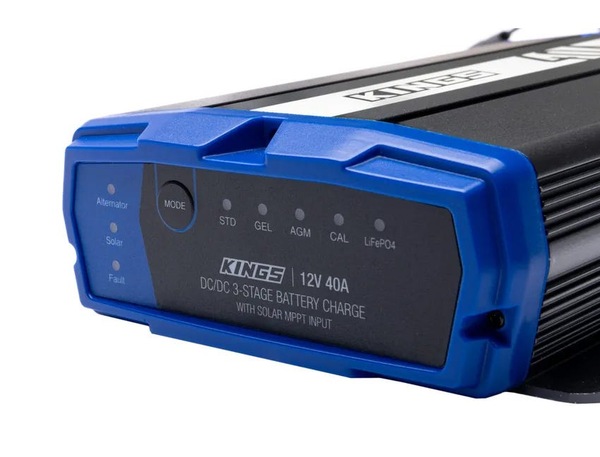

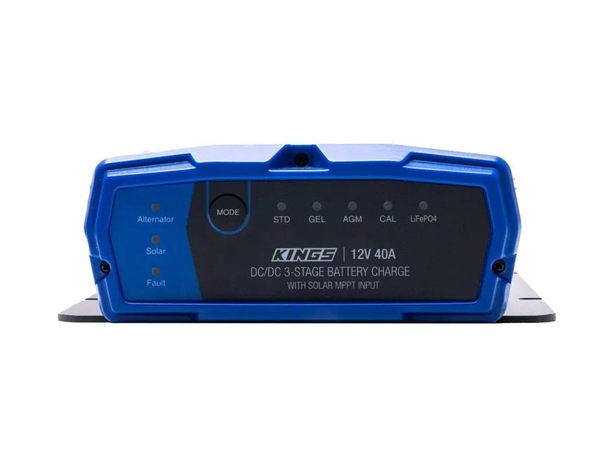

LED Indicator lights for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

MPN: SC-CO-240WSB-DC40A
