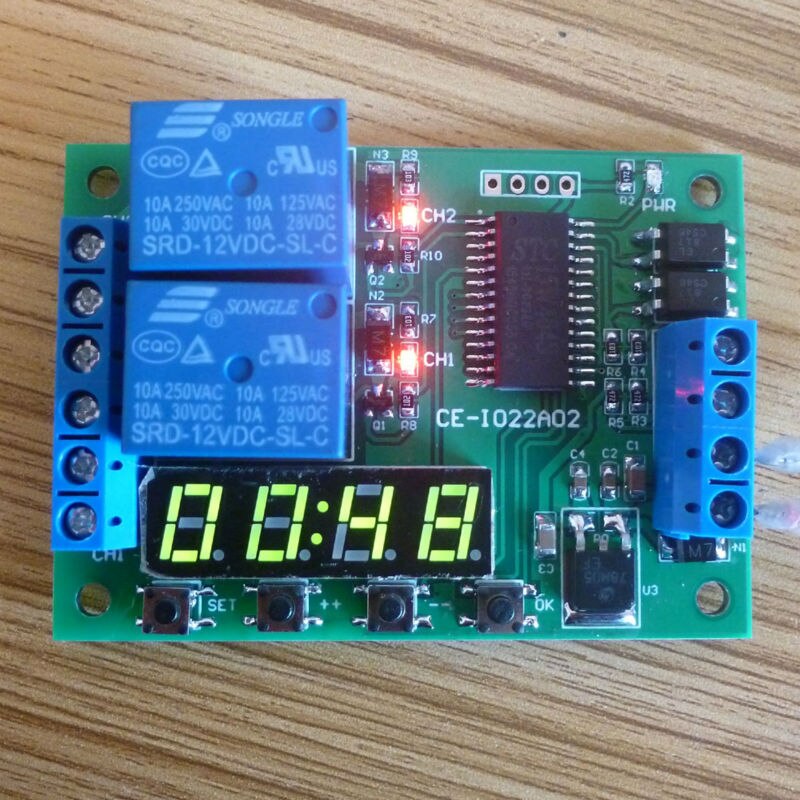

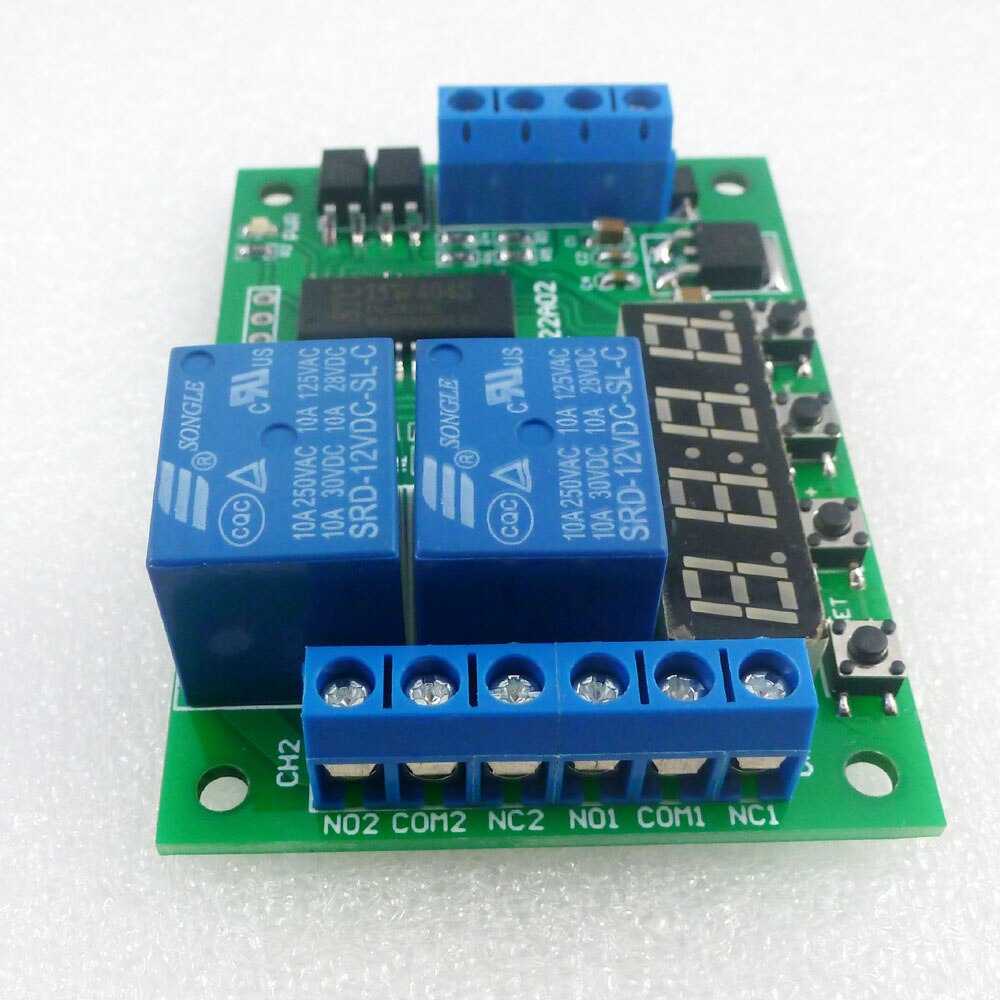

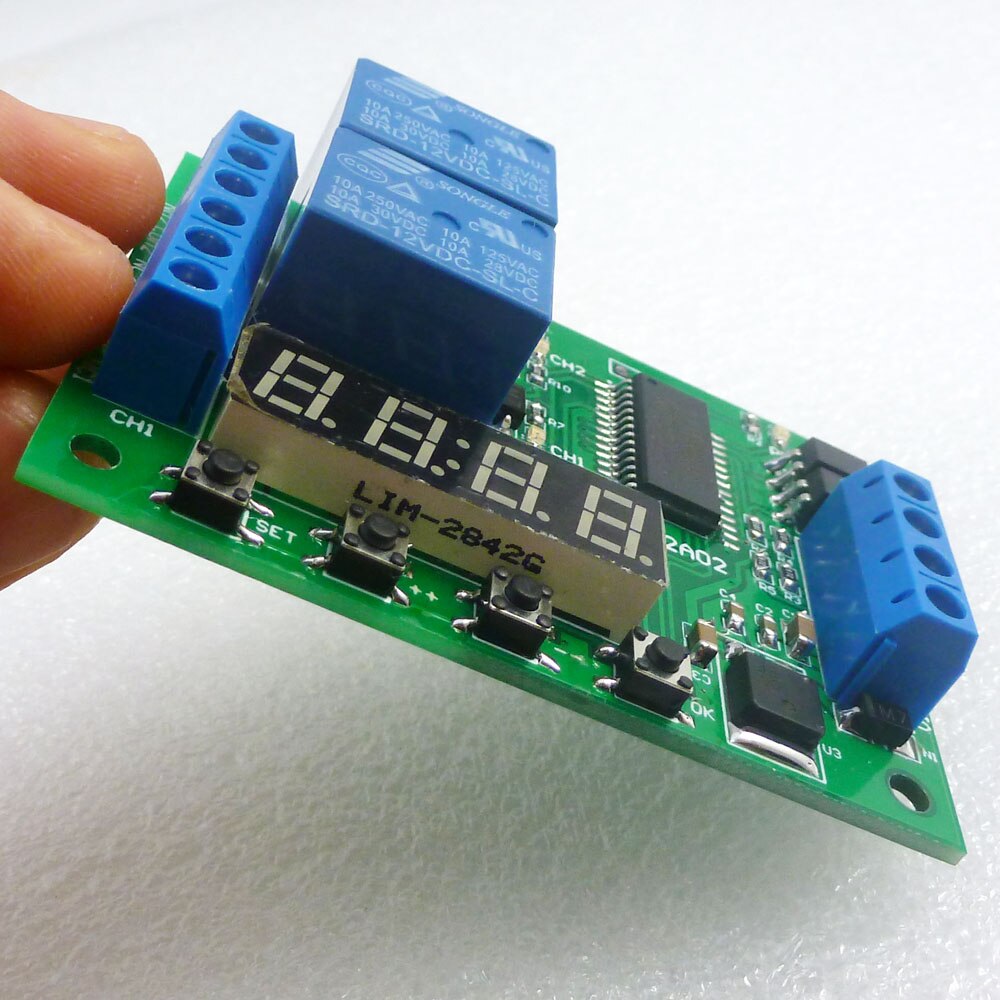

DC 12V 2CH Multi-function Delay Relay Timer Time Switch for PLC LED Motor

DC 12V 2CH Multi-function Delay Relay Timer Time Switch for PLC LED Motor

Be the first to review this product

Price	$34.27
	Collect 102 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 28/11/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code KMVGM

Quantity

Add to wishlist

Product Specifications:
?
1 Operating voltage: DC 12V
2?? Operating Current(Digital tube off): Standby current (all relays closed) 8MA, 1 relay open 41MA, 2 relays open 75MA,
??? Operating Current(Digital tube on): Standby current (all relays closed) 26MA, 1 relay open 59MA, 2 relays open 93MA
3 Size: 70x50x20
4 Weight : 40g
5 Relay maximum load capacity: DC 1-100V/6A; AC 85-265V/5A
?
Typical applications:

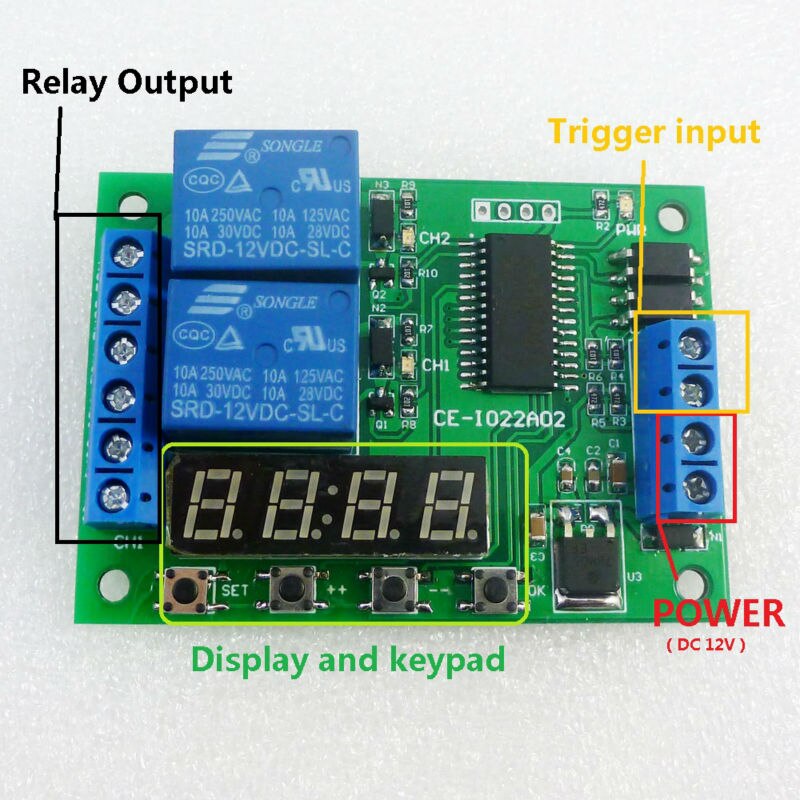

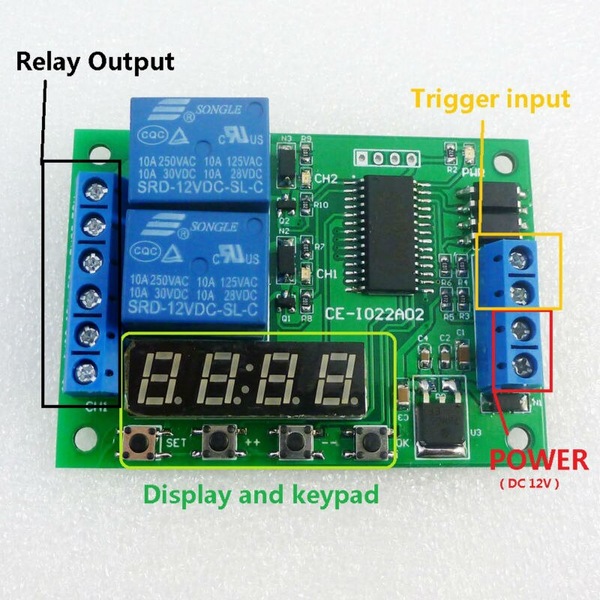

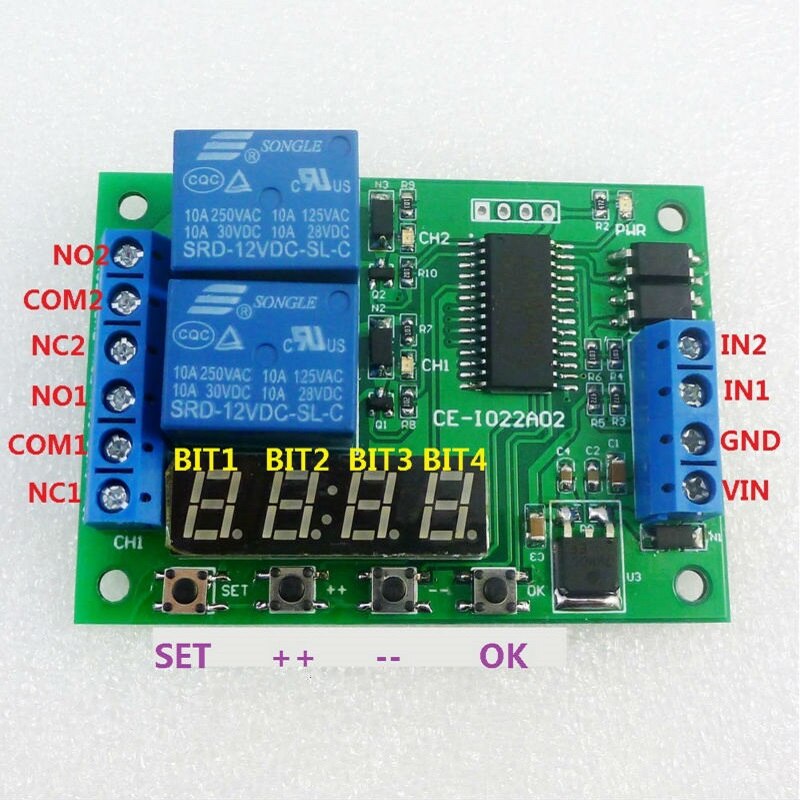

1 DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and
other DC12V equipment

Longest delay time : 00h:00m:01s - 99h:59m:59s
4 channel relay,each channel independently triggered independent delay, do not interfere with each other.
6 kinds of functional modules, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).
Input optical isolation.
Power anti-reverse diode.
High Q value SMD electrolytic capacitors.

Package inlcuded:1 PCS DC 12V 2 channel multi-function delay relay board
